BA XR Cluster wiring or where to tap into?



Page 1 of 1 [ 2 posts ]


 Post subject: BA XR Cluster wiring or where to tap into?
Posted: Fri Feb 13, 2009 3:35 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1231

Joined: 6th Nov 2004

Ride: 2010 Nitro Blue FG

Location: Melbourne
VIC, Australia

Just wondering if anyone ahs a wiring diagram of a BA XR cluster as i want to tap inot the wires for water temp and oil temp gauges. Does the B-series actually have a water temp sensor/wire somewhere? I have bought the oil gauge adaptor that goes between the oil filter and the block, but would rather splice into a loom if it exists?

Lukeyson...any help on this one? LOL or anyone else?

Cheers

Andrew



_________________

The boogieman checks under his bed for chuck norris

Top
 Profile


 Post subject: Re: BA XR Cluster wiring or where to tap into?
Posted: Sat Feb 21, 2009 8:24 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Nope, there's no pins to the IC for water or oil temp. Those will be wired to the PCM, and transmitted digitally over the CAN bus to the IC.


Lukeyson





Attachments:

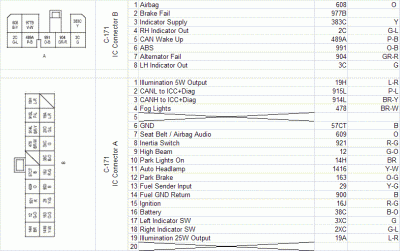

IC PINOUTS.GIF
IC PINOUTS.GIF [ 30.73 KiB | Viewed 55 times ]
