Blue LED'S for odometer



Page 1 of 1 [ 8 posts ]


 Post subject: Blue LED'S for odometer
Posted: Fri Dec 26, 2008 12:51 pm
Oompa Loompa
Offline

Posts: 46

Joined: 4th Dec 2008

Ride: Bf xt 6 spd/ef fairmont v8

Location: adelaide
SA, Australia

i have a ef fairmont v8
has anyone changed the odometer golbe for a blue led t5 wilst removing the orange filter. so the blue light can shine thru?
if so what were the results?

regards to all...

:P


ps i dont want do it and then have look like crap!
Top
 Profile


Posted: Fri Dec 26, 2008 2:40 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 490

Joined: 10th Feb 2006

Ride: NF Fairlane

Location: Brisbane
QLD, Australia

I don't have pics anymore but it looks pretty good

My old XR6 had blue LED's in dash itself as well and you could see couple hotspots but wasn't too bad, if i was to do it with blue LED's again i would sand the underside of the needles removing the orange coat and paint them white so you can see them at night



_________________

If you don't do it whilst your livin, you aint got no bloody chance when your dead!!!

Top
 Profile


Posted: Fri Dec 26, 2008 3:03 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

hi, i have blue leds in my el xr6 dash, i am using ef white needles. i bought mine from jaycar and soldered/fitted them myself. they were 10,000mcd 5mm, brightest i have found. odometer is a little dull but is still readable. cost around $4.00 ea to make. you can buy them premade in autobarn or outbound and elsewhere ,they cost about $7 a pair. i used 12 t5s for dash, trip comp, demist and climate control ignition key lamp and a blue inverted led t10 for my tbar indicator in the console. im happy with the look. to make the leds light spread better i just rubbed scotchbrite over the lenses otherwise it will concentrate the light in the middle.
Top
 Profile


 Post subject: needles
Posted: Fri Dec 26, 2008 3:12 pm
Oompa Loompa
Offline

Posts: 46

Joined: 4th Dec 2008

Ride: Bf xt 6 spd/ef fairmont v8

Location: adelaide
SA, Australia

how do you get the needles of without damaging them?
i've tried just pulling them but they dont want to move!
whats the secret?
Top
 Profile


Posted: Fri Dec 26, 2008 3:27 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1110

Joined: 25th Mar 2007

Gallery: 7 images

Ride: BA MKII Fairlane GHIA

Location: Berwick
VIC, Australia

i got a knife under them and flicked them up fairly easy to take off
Top
 Profile


Posted: Fri Dec 26, 2008 4:03 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

can use a fork also. avoid bending the shaft too. make sure you mark where they were pointing to on the side of the faces, to make it easier to refit
Top
 Profile


Posted: Fri Dec 26, 2008 10:01 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

I used a fork too, just go slow it will come off. I have a blue odometer and it looks awsome(no pics sorry) Had to do it becuse the rest was of the cluster was blue and the orange stood out real bad. Only prob i had was the paper i put in to replace the filter looked s**t it was a grainy and u could seen the texture of the paper, so i replaced it with a bit of transparent blue plastic from a folder/enlope thing i brought from safeway and it looked awsome. I have an EL mont btw
Top
 Profile


 Post subject: Re: Blue LED'S for odometer
Posted: Tue May 26, 2009 6:40 pm
Parts Gopher
Offline
User avatar

Age: 37

Posts: 86

Joined: 1st Aug 2008

Gallery: 34 images

Ride: EF fairmont + upgrades

Location: Werribee
VIC, Australia

EF 5.0 wrote:
i have a ef fairmont v8
has anyone changed the odometer golbe for a blue led t5 wilst removing the orange filter. so the blue light can shine thru?
if so what were the results?
regards to all...
:P
ps i dont want do it and then have look like crap!

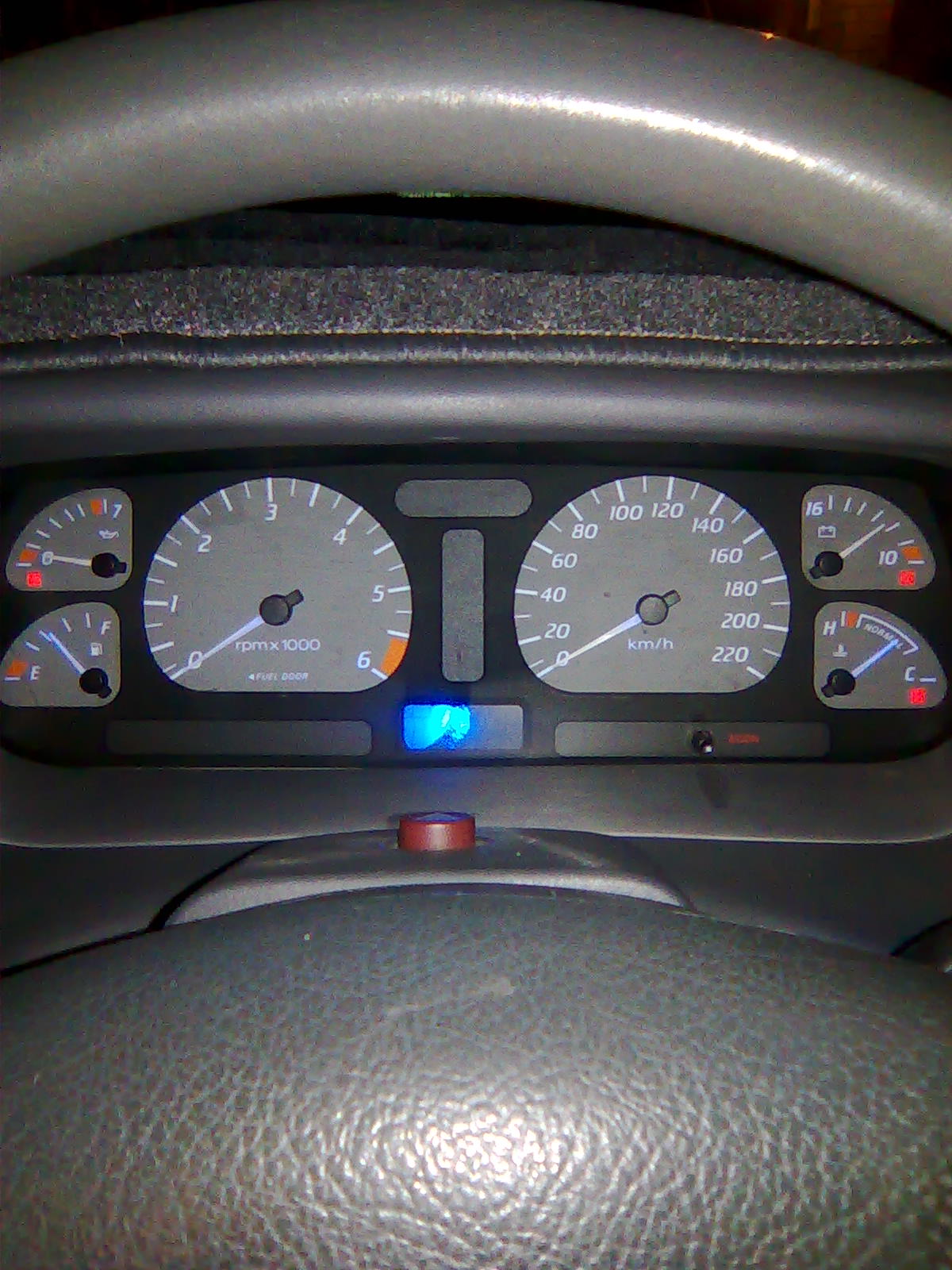

i did this to mine i used filters made up of coloured plastic with a blue led

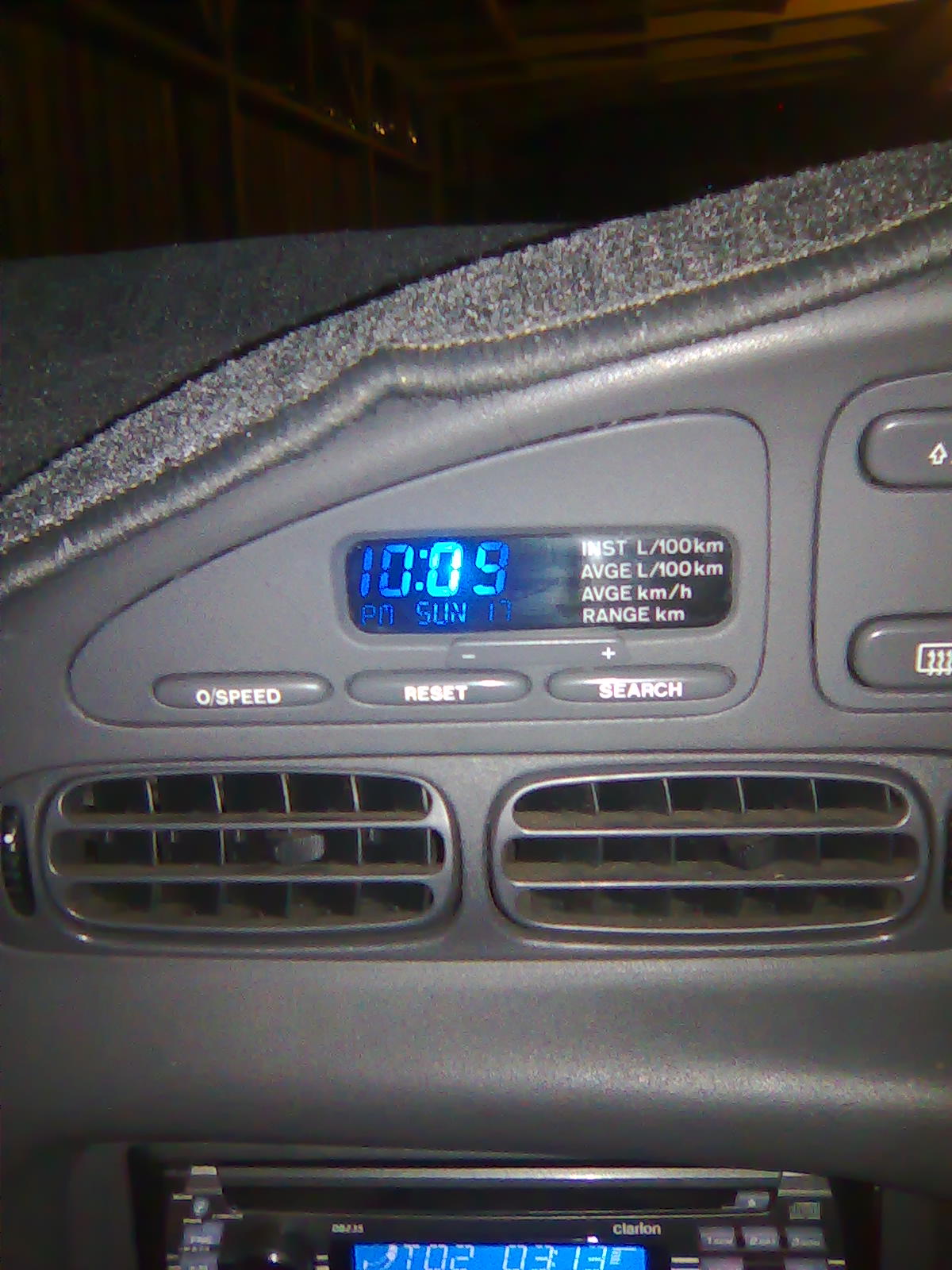

i asume it would have looked good but i screwed it back togeather too hard the trip meter come good though
Attachment:
File comment: whoops
Image0118.jpg [ 250.47 KiB | Viewed 45 times ]





Attachments:
Image0116.jpg [ 212.92 KiB | Viewed 32 times ]



_________________

need a rotisserie for a classic resto 0471525912 Tom
