 Post subject: centre console
Posted: Mon Sep 13, 2010 7:53 pm
Getting Side Ways
Offline

Age: 17

Posts: 636

Joined: 5th Jan 2008

Location: Egg
SA, Australia

hi

what screws hold the ed ford centre consoles down besides the back ones under the lid
Top
 Profile


 Post subject: Re: centre console
Posted: Mon Sep 13, 2010 7:57 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

two in the sides under the two inside the console... Have to get in back seat and slide front seats as far forward as possible to get them out and two under the gear stick surround... It comes off in a manual by simply poping up and unbolting stick or in an auto but uncrewing handle off stick... sliding stick to L and then prying front of surround up and then holding it up about half an inch then putting stick back in park so plastic strip comes up over console and then pry back side out and should lift off... And then you'll see two screws...

So 6 in total...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: centre console
Posted: Mon Sep 13, 2010 8:45 pm
Getting Side Ways
Offline

Age: 17

Posts: 636

Joined: 5th Jan 2008

Location: Egg
SA, Australia

has anyone got a photo of a ed fairmont console with lid with screw locations
Top
 Profile


 Post subject: Re: centre console
Posted: Mon Sep 13, 2010 8:47 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I just gave them to you... :?

Two under gear stick surround...
Two inside Console box (in the bottom)..
Two in the sides down beside front seats...

Unless somebody does have a photo with them... But it doesn't get much easier than that ^^^ :?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: centre console
Posted: Mon Sep 13, 2010 8:57 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

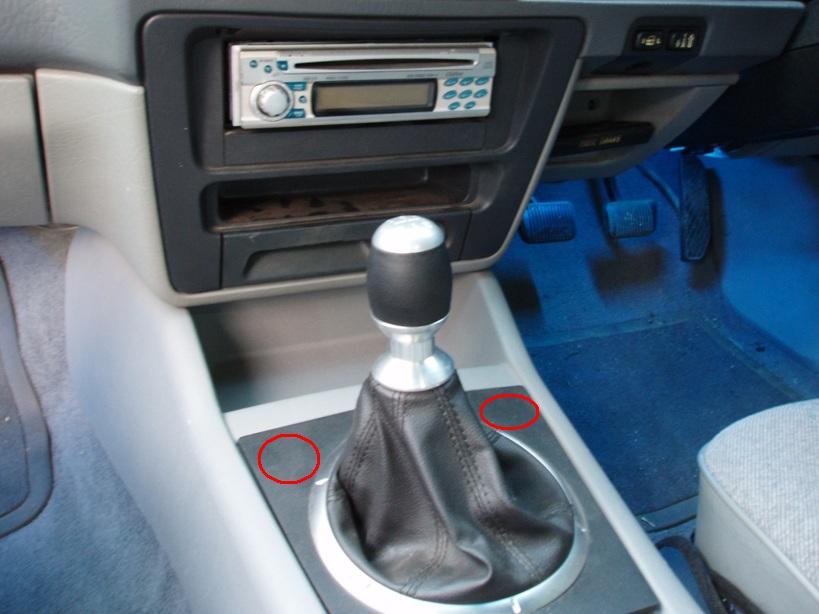

Two under this panel where circles are...

Attachment:
PC100575.JPG [ 58.3 KiB | Viewed 32 times ]


The others I don't photos of... Self explanetry though... Look down beside you seat, towards the back of the console you should see two in the sides... And when you lift the lid there is two right down the bottom of the box... These are inline with the two in the side as they screw into the same floor mounted bracket...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit
