 Post subject: Re: Clock and Headunit added
Posted: Tue Mar 31, 2020 5:58 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

[flash=][/flash]
5h4dy wrote:
Mad2 wrote:
5h4dy wrote:
Mad2 wrote:
don't see that one ..... so didn't bother :mrgreen:


Admit it - you forgot :lol: It was the first one I changed - drove me mad every time I pushed the unlock button and saw that yellow glow, it had to go!




haha ....

1st ones i see are the NF/NL interior light & the three above the rear doors/tailgate :mrgreen: . . . then the rear of the console. actually quite bright 8-)





and no i didn't forget. the rest do what i require & that ones hard to see most of the time..........



Sounds like you're approaching the car from the wrong end, most of us gain ingress through the driver's door :lol:

Console and floor lights are still on my list, but I either need to wait till lockdown is over and go get some parts, or take them out of the EB. I was going to take them from the EF, but then I realised I never installed any in that one :?



1st door i open in the morning is the back drivers .. . . ... chuckin me work bag, then grab drivers :roll:

hahahahaha on the EF :mrgreen:

think me next mod 'might' be fitting some small driving lights at the rear next to the tank :wink:
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Tue Mar 31, 2020 6:05 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 369

Joined: 8th Jul 2009

Gallery: 2 images

Ride: BA MKII XR6

Location: Waikato
New Zealand

Mad2 wrote:
think me next mod 'might' be fitting some small driving lights at the rear next to the tank :wink:


As auxiliary reversing lights, or to blind tail-gaters?
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Tue Mar 31, 2020 8:07 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

5h4dy wrote:
Mad2 wrote:
think me next mod 'might' be fitting some small driving lights at the rear next to the tank :wink:


As auxiliary reversing lights, or to blind tail-gaters?



lol ....... hmmmm ... maybe both :lol: nah just Aux reverse lights. mounted behind the lpg tank so only showing the ground & hopefully unseen otherwise.


bracket to mount lights with one shown, currently thinking of using two lights. bracket needs to be 'shaped' to suit [match tank] and mounted to the two rear tank cover mounts.

Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Tue Mar 31, 2020 8:28 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 369

Joined: 8th Jul 2009

Gallery: 2 images

Ride: BA MKII XR6

Location: Waikato
New Zealand

Mad2 wrote:
5h4dy wrote:
Mad2 wrote:
think me next mod 'might' be fitting some small driving lights at the rear next to the tank :wink:


As auxiliary reversing lights, or to blind tail-gaters?



lol ....... hmmmm ... maybe both :lol: nah just Aux reverse lights. mounted behind the lpg tank so only showing the ground & hopefully unseen otherwise.


bracket to mount lights with one shown, currently thinking of using two lights. bracket needs to be 'shaped' to suit [match tank] and mounted to the two rear tank cover mounts.

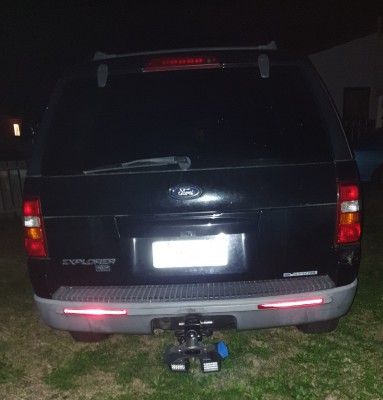

They look the same as my lights...

Attachment:
--.jpg [ 184.87 KiB | Viewed 42 times ]
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Tue Mar 31, 2020 8:43 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

possibly the same? altho mine will be under the car.


i do need to change the icc & clock lights as .... not the same as cluster

icc



clock



steady pic of cluster



shifter had led fitted

Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Wed Apr 01, 2020 6:01 am
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 369

Joined: 8th Jul 2009

Gallery: 2 images

Ride: BA MKII XR6

Location: Waikato
New Zealand

Mad2 wrote:
possibly the same? altho mine will be under the car.


i do need to change the icc & clock lights as .... not the same as cluster

icc



clock



steady pic of cluster



shifter had led fitted




OMG :lol: that would do my head in... How good are you at SMD soldering?
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Wed Apr 01, 2020 8:44 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

5h4dy wrote:
Mad2 wrote:
possibly the same? altho mine will be under the car.


i do need to change the icc & clock lights as .... not the same as cluster

clock




OMG :lol: that would do my head in... How good are you at SMD soldering?


nup never done one........... yet! will have to chase it up.


ground clearance at rear. lpg tank cover mounting bolts is where i was thinking of mounting 'light' bracket. should be [?] enough ground clearance for the lights under there :?: :roll:

Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Wed Apr 01, 2020 8:49 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 369

Joined: 8th Jul 2009

Gallery: 2 images

Ride: BA MKII XR6

Location: Waikato
New Zealand

Mad2 wrote:
nup never done one........... yet! will have to chase it up.


It's a pain in the backside with how tiny the LEDs are. Would be easier if you have the right tools, but I only have through-hole soldering equipment.


Mad2 wrote:
ground clearance at rear. lpg tank cover mounting bolts is where i was thinking of mounting 'light' bracket. should be [?] enough ground clearance for the lights under there :?:


Depends if you tow huge amounts of weight or speed up for speed humps or take it off-roading. If not then there's heaps of room, the wagons sit plenty high at the rear.
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Wed Apr 01, 2020 9:18 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

5h4dy wrote:
Mad2 wrote:
nup never done one........... yet! will have to chase it up.


It's a pain in the backside with how tiny the LEDs are. Would be easier if you have the right tools, but I only have through-hole soldering equipment.


yeah i'm the same .... one small soldering iron & one large[ish] for the bigger wiring.


5h4dy wrote:
Mad2 wrote:
ground clearance at rear. lpg tank cover mounting bolts is where i was thinking of mounting 'light' bracket. should be [?] enough ground clearance for the lights under there :?:


Depends if you tow huge amounts of weight or speed up for speed humps or take it off-roading. If not then there's heaps of room, the wagons sit plenty high at the rear.



for now it will have the smaller 65Ltr lpg tank & now and again towing a car trailer. has some used 1 tonner springs fitted. mine was originally a bit lower. don't speed up for the speed bumps around here . . . . . . don't slow down either :roll: & lights 'will hopefully' fit roughly above the bracket sorta where the tank is sitting [white piece]. not going to be doing any 'serious off roading' :roll: :lol:
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Thu Apr 02, 2020 7:24 am
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 369

Joined: 8th Jul 2009

Gallery: 2 images

Ride: BA MKII XR6

Location: Waikato
New Zealand

Mad2 wrote:
yeah i'm the same .... one small soldering iron & one large[ish] for the bigger wiring.


I have more than that - temperature controlled soldering stations and such, but it's still a pain doing SMD... Wondering if I should attempt it with the clock though, I do have some spare SMD LEDs on the bench


Mad2 wrote:
for now it will have the smaller 65Ltr lpg tank & now and again towing a car trailer. has some used 1 tonner springs fitted. mine was originally a bit lower. don't speed up for the speed bumps around here . . . . . . don't slow down either :roll: & lights 'will hopefully' fit roughly above the bracket sorta where the tank is sitting [white piece]. not going to be doing any 'serious off roading' :roll: :lol:


No problems then, should be heaps of room for some stealth lighting :mrgreen:
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Thu Apr 02, 2020 10:05 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

5h4dy wrote:
Mad2 wrote:
yeah i'm the same .... one small soldering iron & one large[ish] for the bigger wiring.


I have more than that - temperature controlled soldering stations and such, but it's still a pain doing SMD... Wondering if I should attempt it with the clock though, I do have some spare SMD LEDs on the bench


:cry: ..... jealous :roll: :lol:


5h4dy wrote:
Mad2 wrote:
for now it will have the smaller 65Ltr lpg tank & now and again towing a car trailer. has some used 1 tonner springs fitted. mine was originally a bit lower. don't speed up for the speed bumps around here . . . . . . don't slow down either :roll: & lights 'will hopefully' fit roughly above the bracket sorta where the tank is sitting [white piece]. not going to be doing any 'serious off roading' :roll: :lol:


No problems then, should be heaps of room for some stealth lighting :mrgreen:



yeah .... driving around tonight i found out i gotta bring my headlights aim up! ..... seeing as i raised the rear the front is now low :roll: :lol:
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Thu Apr 02, 2020 10:10 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 369

Joined: 8th Jul 2009

Gallery: 2 images

Ride: BA MKII XR6

Location: Waikato
New Zealand

Mad2 wrote:
:cry: ..... jealous :roll: :lol:


:lol: It is pretty amazing having the clock match the cluster - it's so pretty :mrgreen:

Mad2 wrote:
yeah .... driving around tonight i found out i gotta bring my headlights aim up! ..... seeing as i raised the rear the front is now low :roll: :lol:


:lol: :lol: :lol: Well done - is there enough adjustment in the factory adjustors?
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Thu Apr 02, 2020 10:14 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

5h4dy wrote:
Mad2 wrote:
:cry: ..... jealous :roll: :lol:


:lol: It is pretty amazing having the clock match the cluster - it's so pretty :mrgreen:


your enjoying rubbing it in :? :P :mrgreen:


5h4dy wrote:
Mad2 wrote:
yeah .... driving around tonight i found out i gotta bring my headlights aim up! ..... seeing as i raised the rear the front is now low :roll: :lol:


:lol: :lol: :lol: Well done - is there enough adjustment in the factory adjustors?



don't know? ..... might just buy some 20mm lifted front springs/shockers............ :roll:
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Thu Apr 02, 2020 10:20 pm
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 369

Joined: 8th Jul 2009

Gallery: 2 images

Ride: BA MKII XR6

Location: Waikato
New Zealand

Mad2 wrote:
your enjoying rubbing it in :? :P :mrgreen:


Of course - I'm usually well behind you on all the mods, finally did one first - don't even know anyone at all that's beaten me to that yet ;)


Mad2 wrote:
don't know? ..... might just buy some 20mm lifted front springs/shockers............ :roll:


:lol: yeah that's one way to fix it
Top
 Profile


 Post subject: Re: Clock and Headunit added
Posted: Thu Apr 02, 2020 10:29 pm
Fordmods Junkie
Online
User avatar

Posts: 3457

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

5h4dy wrote:
Mad2 wrote:
your enjoying rubbing it in :? :P :mrgreen:


Of course - I'm usually well behind you on all the mods, finally did one first - don't even know anyone at all that's beaten me to that yet ;)


welllll it took me a year to get the car on the road................ i drove it home from the other side of melbourne too :roll:


5h4dy wrote:
Mad2 wrote:
don't know? ..... might just buy some 20mm lifted front springs/shockers............ :roll:


:lol: yeah that's one way to fix it



:lol: :mrgreen:
