| NAfairlane... |
|
|||
|
has anyone done the blue dash to a digital?? i have the fairlane digital n i have a 10 pack of narva 47902's which i cant seem to take out of the globe holders... did i just bugger up n lose out on $22 lol .. the speedo n tacho backlight on the digital has a different logo to the other lights, they are Toshiba, the others have a small S logo.. any help appreciated
_________________ Mercedes 500SEC: -- GONE -- http://www.fordmods.com/the-garage-f53/my-83-mercedes-500sec-buildup-t69837.html |
|||
| Top | |
|||
| fordzatmyplace |
|
||
|
NAfairlane... wrote: has anyone done the blue dash to a digital?? i have the fairlane digital n i have a 10 pack of narva 47902's which i cant seem to take out of the globe holders... did i just bugger up n lose out on $22 lol .. the speedo n tacho backlight on the digital has a different logo to the other lights, they are Toshiba, the others have a small S logo.. any help appreciated
I have done it to my NC, and i also have a white instrument face as well. I took the LEDs out of the narva globe holders and soldered them onto the metal contacts where the factory globe holders normally go. You will need more then one LED per LCD screen for it to light up well in day time due the the massive size of the screen
_________________ ^^^ What He Said
|
||
| Top | |
||
| NAfairlane... |
|
|||
|
lucky i have a NA wreck to play around with aswell, i can see myself completely f**k the soldering up lol might be a job for the fat-her
_________________ Mercedes 500SEC: -- GONE -- http://www.fordmods.com/the-garage-f53/my-83-mercedes-500sec-buildup-t69837.html |
|||
| Top | |
|||
| NAfairlane... |
|
|||
|
got any recent pix of ur digital dash cluster? wouldnt mind seeing the blue+ the white face
_________________ Mercedes 500SEC: -- GONE -- http://www.fordmods.com/the-garage-f53/my-83-mercedes-500sec-buildup-t69837.html |
|||
| Top | |
|||
| fordzatmyplace |
|
||
|
NAfairlane... wrote: got any recent pix of ur digital dash cluster? wouldnt mind seeing the blue+ the white face
can't take pics ATM, as i am changing the number colour of the white face from Red to Blue. Heres pics of the white face before i started to get rid of the red filters to replace them with blue 1's
_________________ ^^^ What He Said
|
||
| Top | |
||
| stevegt |
|
||
|
OK Ive got an Au fairmount with the stanard orange glow. Ive just put in a new deck now oly to find that the allsinging and danceing thing only has blue for its dial markings. How do i change over the trip and the instrument cluster over to blue leds, and is there a white facer pannel that can be prechased for the cluster. Also anyone know who can do the conversion.
|
||
| Top | |
||
| tfindlay |
|
||
|
Just a quick question - I stopped by Jaycar today to get some 10,000mcd White LED's (Part #47900) only to find they dont have such a part ?
The dude behind the counter instead sold me 18,000mcd White LED's (Part #ZD0195) I'm planning to solder these up with the suggested 390ohm resistors can anyone see a problem here ? I'm also wondering what people used to scuff up/cloud over their LED's with ? I was just figuring I'd try some sandpaper or braso or something .. |
||
| Top | |
||
| data_mine |
|
|||
|
The #47900 part number is for Narva/Repco not Jaycar.
But you can go ahead with the 18,000's just fine. They'll just be brighter.
_________________ 1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow |
|||
| Top | |
|||
| SR_AU |
|
||
|
what type of globes do i order for an AU ??
_________________ 2001 SR AUII Falcon - Cant Get enough of this ! |
||
| Top | |
||
| jim3964 |
|
|||
|
Thought this might be of interest found it on ebay
T5 BLUE LED INTERIOR / DASH globes / bulbs 5MM base (#4628146729)
_________________ 98 AU Falcon Futura I6 ABS & Cruise stock (The Wifes car
|
|||
| Top | |
|||
| mixxxr |
|
||
|
Hey Guys
I did something different I put 2 small 8 inch neon sticks from auto barn $10 each and there just sitting there nicely with double sided tape that came with the neons wired them up to one of the bulb holders. I had to take the small block out that is for the seat belt light the only thing is that you have make sure that the wires are the right way. I have done mine and also my mates ef xr6
_________________ Ef XR8 King springs ultra lows ss inductions cold air intake 2.5" sports exhaust 18" x 8" anz mahems blue cluster face alpine stereo bmc air filter stainless intake pipe
|
||
| Top | |
||
| data_mine |
|
|||
|

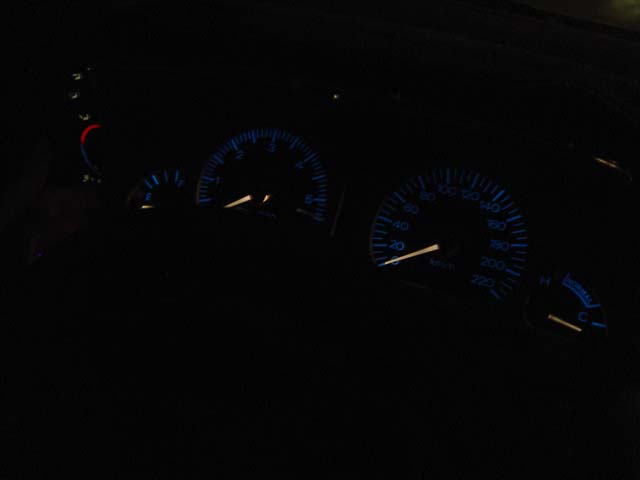

I've though about this, got some pics of them in action.
_________________ 1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow |
|||
| Top | |
|||
| zxodus |
|
||||||
|

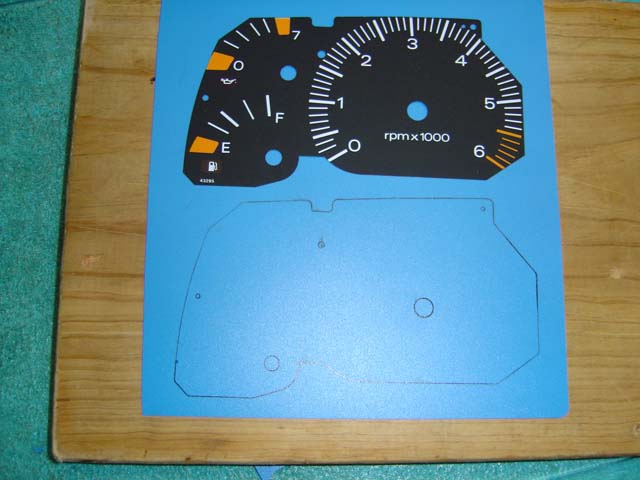

all i used was a 60 cent binder. put it behind the normal thing there, just the problem with the needles being white, but it isnt back together yet ill see if i can fix that and i have done the air conditioning thing. you lose a bit of brightness but it is brighter then the pics show. bit bright then normal low setting, which is what i normally have it on so i will just have it on bright setting.
|
||||||
| Top | |
||||||
| claytonchatham |
|
||
|
Im looking at pulling out a heap of led lights from China, they're cheap and they have what I want, including green leds, if anyone is interested let me know, as bulk would probably have to be ordered.
_________________ EB II |
||
| Top | |
||
| gryph |
|
|||
|
Buy your leds from www.oatleyelectronics.com.au $4 for 10 leds 10000mcd whites blues n greens
, Minimum order is $20 but when you get leds for 40c each who cares!!!!!
|
|||
| Top | |
|||
