ED Futura Power Window mod issues



Page 1 of 1 [ 4 posts ]


 Post subject: ED Futura Power Window mod issues
Posted: Sat Apr 02, 2011 4:46 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Hey fordmodders,

I'm doing a service on my mums ED Futura, and also starting the power window upgrade. Car has ABS & Cruise. Has the wiring in the center console for the power windows, so I've swapped in a power window console & switches. I have swapped over the passenger front door loom & power window mech. Went to test it.......

Got nothing. Tried a couple of door mechs on teh same wiring, all known good mechs. Nothing. Went probing with the multi-meter, and I'm none the wiser.... Plugged in the drivers door loom & window mech (without fitting to the door for a test) and it doesn't work either.

What am I missing? I've done one of these upgrades before & not had issues. The car was a ED futura, had abs & cruise. It was all just plug & play.......

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: ED Futura Power Window mod issues
Posted: Sat Apr 02, 2011 4:54 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

did you check the fuse panel for power at the fuse??

mine had the same issue, no power at the fuse..
i beleive there is a link behind the fuse panel that needs to be added...
i couldnt get my hands behind to get to it so i added a direct battery12v wire from the ignition wires to a fuse and used a spade terminal to supply the power to the output of the fuse panel to the windows... the advantage for me is i can use my windows without the ignition on..

ill take a pic of where i added the fuse if you like...
Top
 Profile


 Post subject: Re: ED Futura Power Window mod issues
Posted: Sat Apr 02, 2011 6:06 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

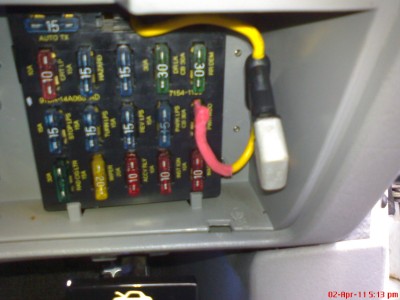

pic..





Attachments:
ABCD0002.JPG [ 271.93 KiB | Viewed 37 times ]
Top
 Profile


 Post subject: Re: ED Futura Power Window mod issues
Posted: Sat Apr 02, 2011 7:02 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Hey Troyman,

Thanks for that. Greatly appreciated for the pics and reply! I did check for power at the fuse after I posted, and found there was none. I was thinking there was a circuit not connected or a plug not plugged in. Hrmmm, I will have to get some heavy wire & run the power like you have.

I tested the window mech directly from a battery, works perfect. All the other door functions work too, so this will probably be the solution.

Cheers

ToranaGuy
