EF/EL Airbag System Ready Reference



Page 1 of 1 [ 13 posts ]


 Post subject: EF/EL Airbag System Ready Reference
Posted: Tue Nov 06, 2007 6:20 pm
Technical Contributor
Online
User avatar

Age: 50

Posts: 5201

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Airbag doco:
documents.php?d=3

Airbag light on/diagnostics:
forums/viewtopic.php?t=21981
forums/viewtopic.php?t=23061
forums/viewtopic.php?t=38233
forums/viewtopic.php?t=47606
forums/viewtopic.php?t=41781
forums/viewtopic.php?t=43501
forums/viewtopic.php?t=54345
forums/viewtopic.php?t=56815
forums/viewtopic.php?t=55065
post1118595.html#p1118595

Reusing components/replacing airbag module:
forums/post742402.html

Airbag blanking resistor:
forums/viewtopic.php?t=22144

Airbag set off inadvertedly
forums/viewtopic.php?t=67226

Fuses to check: REV LPS, AUTO TX, AIRBAG.
Codes less than 52 need to be repaired before they'll reset.
Generally, late EL's need to go to ford to be reset - although
if the reset pin is present, try resetting the system yourself first.
XH's fitted with drivers Airbag use exactly the same system as EF/EL


If there are any inaccuracies, or you have other info not covered here, please post.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Last edited by snap0964 on Fri Apr 09, 2010 12:15 am, edited 5 times in total.

Top
 Profile


Posted: Tue Nov 06, 2007 10:30 pm
Getting Side Ways
Offline
User avatar

Posts: 1079

Joined: 18th Sep 2005

Ride: AUII Fairmont

Location: Belmont
WA, Australia

Good work, sticky the bugger!
Top
 Profile


Posted: Sun Jun 08, 2008 10:54 pm
Commercial Sponsor
Offline
User avatar

Age: 31

Posts: 146

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

hey so can anybody tell me why my airbag went off while i was driving!! it is showing code 32, which the mechanic said means it had been deployed.. so he pluged a simulator into it so it thought it had a airbag in it and he said it didnt show any codes so he doesnt know why it went off.. can anyone help??



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Wed Jul 09, 2008 5:53 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 3741

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

... ..



_________________

SEVEN YEARS FORDMODS MEMBERSHIP.
And yet, or maybe because of this, still a total f**k
Know any decent cheap paint and panel shops? | FOR SALE | Geek

Last edited by fiend on Fri Jun 29, 2012 6:33 pm, edited 2 times in total.

Top
 Profile


Posted: Wed Jul 09, 2008 5:58 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 3741

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Mr Howdy pardner Ed wrote:
hey so can anybody tell me why my airbag went off while i was driving!! it is showing code 32, which the mechanic said means it had been deployed.. so he pluged a simulator into it so it thought it had a airbag in it and he said it didnt show any codes so he doesnt know why it went off.. can anyone help??


Dude - Bad luck - that woulda frightened the bejeezus outa me!

I have pulled the airbag out and put back in to a few wheels now - but my latest one is now returning a
72... Intermittent or Repaired Airbag Circuit High Resistance, or Open Circuit
error. I have pulled it out and checked that it is earthing itself to the wheel via the 10mm bolt screws and attempted to see if anything else needed to be earthed - doesn't appear so.

I have pulled it out and put it back three times and keep getting this error. This airbag was in the car without a problem until this time...

Any ideas what contacts or things to clean? Will just try spraying contact cleaner around the whole bloody lot and refitting again, but would prefer to know what actually is going on! And all the contact cleaner in the world might not help!!!

Does the airbag module need to be earth to wheel anywhere or am I barking up the wrong column?



_________________

SEVEN YEARS FORDMODS MEMBERSHIP.
And yet, or maybe because of this, still a total f**k
Know any decent cheap paint and panel shops? | FOR SALE | Geek

Top
 Profile


Posted: Sat Nov 15, 2008 6:13 pm
Oompa Loompa
Offline

Age: 46

Posts: 39

Joined: 1st Nov 2008

Gallery: 9 images

Ride: EF

Location: Orange
NSW, Australia

Hi everyone
First I have read the relevant docs concerning the Airbag system, which has just left me more confused..... :?
So here's one for you :

I bought an EF in October at a "trusted car Dealership" which somehow failed to inform myself of any faults, anyway.
Ignition on, irregular, intermittent flashing of warning lamp while car is at idle, once the car is underway the lamp stays lit continuously.
Ignition off, nothing however if I've been using the CD player, then I get a single group of 5 beeps.

I always turn the CD Player off before cutting the ignition, but the CD Player?? then tries to retract the busted Electric Ariel this is the only time I here the 5 beeps.

It's no biggy, I'm just curious, I'm not even bothered by the continuously lit lamp while I'm driving, it just would have been nice to know that I was protected during a high speed impact.

cheers
rant mode off.



_________________

This thread is useless without pics!

hey look, I made Oompa Loompa!

"Oompa Loompa doompadee doo
I've got another puzzle for you
Oompa Loompa doompadah dee
If you are wise you'll listen to meeeee"!

Top
 Profile


 Post subject: Re:
Posted: Sat Jul 11, 2009 2:38 am
Fordmods Newbie
Offline

Age: 30

Posts: 15

Joined: 15th Jun 2009

Ride: Ford EL GLi Wagon 1997

Location: Wilberforce
NSW, Australia

Custom EF wrote:
Hi everyone
First I have read the relevant docs concerning the Airbag system, which has just left me more confused..... :?
So here's one for you :

I bought an EF in October at a "trusted car Dealership" which somehow failed to inform myself of any faults, anyway.
Ignition on, irregular, intermittent flashing of warning lamp while car is at idle, once the car is underway the lamp stays lit continuously.
Ignition off, nothing however if I've been using the CD player, then I get a single group of 5 beeps.

I always turn the CD Player off before cutting the ignition, but the CD Player?? then tries to retract the busted Electric Ariel this is the only time I here the 5 beeps.

It's no biggy, I'm just curious, I'm not even bothered by the continuously lit lamp while I'm driving, it just would have been nice to know that I was protected during a high speed impact.

cheers
rant mode off.


are you saying the 5 beeps only happen when you turn the CD player off?
If so its a normal thing (if its an aftermarket CD player) as its just telling you that you havent removed the anti theft face
Top
 Profile


 Post subject: Re: EF/EL Airbag System Ready Reference
Posted: Thu Jun 03, 2010 8:03 pm
Smokin em up
Offline
User avatar

Age: 24

Posts: 236

Joined: 4th Jan 2010

Ride: el wagon

Location: garfield
VIC, Australia

what is 52, my phone is being gay.
Top
 Profile


 Post subject: Re: EF/EL Airbag System Ready Reference
Posted: Mon Jun 07, 2010 12:21 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 3741

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

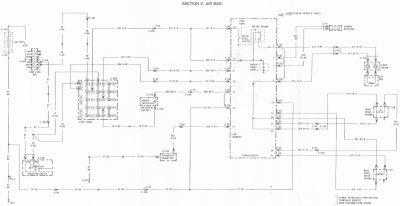

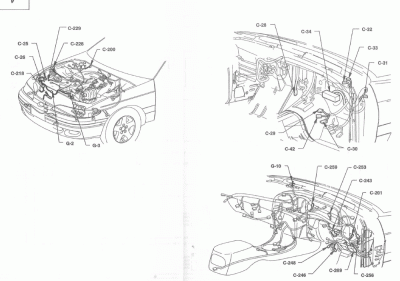

Air Bag wiring





Attachments:
air_bag1.gif [ 226.71 KiB | Viewed 508 times ]
air_bag2.gif [ 489.18 KiB | Viewed 403 times ]



_________________

SEVEN YEARS FORDMODS MEMBERSHIP.
And yet, or maybe because of this, still a total f**k
Know any decent cheap paint and panel shops? | FOR SALE | Geek

Top
 Profile


 Post subject: Re: EF/EL Airbag System Ready Reference
Posted: Mon Jun 07, 2010 10:59 pm
Technical Contributor
Online
User avatar

Age: 50

Posts: 5201

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Well done - finally a constructive post to this thread.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: EF/EL Airbag System Ready Reference
Posted: Tue Mar 22, 2011 1:34 pm
Technical Contributor
Online
User avatar

Age: 50

Posts: 5201

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Doco already has it, but here it is again:

AU99 wrote:
it actually does tell you.... it flashes a code....

12 = low battery voltage
13 = air bag circuit shorted to ground
14 = crash sensor shorted to ground
22 = safing sensor output circuit shorted to battery voltage
23 = memory clear circuit failure
24 = system disarm failure
32 = driver airbag circuit high resistance or open circuit
33 = pass air bag or resistor (where no pab fitted) high resistance or open circuit
34 = driver airbag circuit low resistance or shorted
35 = pab or resistor (where no pab fitted) circuit low resistance or shorted
41 = dash crash sensor circuit open
42 = front crash sensor circuit open
44 = dash crash sensor not mounted to vehicle properly
45 = front crash sensor not mounted to vehicle properly
52 = intermittent or repaired low battery voltage
53 = intermittent or repaires air bag circuit shorted to ground or crash sensor resister to ground
54 = intermittent or repaired crash sensor circuit shorted to ground



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: EF/EL Airbag System Ready Reference
Posted: Tue Apr 19, 2011 8:15 pm
Smokin em up
Offline

Age: 24

Posts: 206

Joined: 19th Jul 2009

Ride: Ford EL Fairmont Ghia

Location: Melbourne
VIC, Australia

hey guys sorry to hijack the thread but i have an airbag issue myself. it flashes code 52 which i no is intermittent or repaired low battery voltage, but i have no idea what this actually means lol or how to fix it. Any help much appreciated thanks guys
Top
 Profile


 Post subject: Re: EF/EL Airbag System Ready Reference
Posted: Sat Aug 10, 2013 11:48 pm
Oompa Loompa
Offline

Posts: 35

Joined: 31st Oct 2007

Location: Darwin
NT, Australia

I am interested in getting an answer to the SRS code 12 Low Battery Voltage. Is it talking about the 12V car battery or the backup battery in the SRS unit? I have had an issue with a crook battery which is now rectified. Tried to clear the code today but it doesnt clear. Car battery voltage is ok. Any advice would be appreciated. Thanks
Top
 Profile
