Im installing EL door trims in my ED and need to adapt the mirror control to the current wiring. Anyone have a diagram/schematic for the EF/EL mirrors?

Apologise if its been covered before, I did do a search! :oops:



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


Posted: Mon Jan 02, 2006 9:31 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

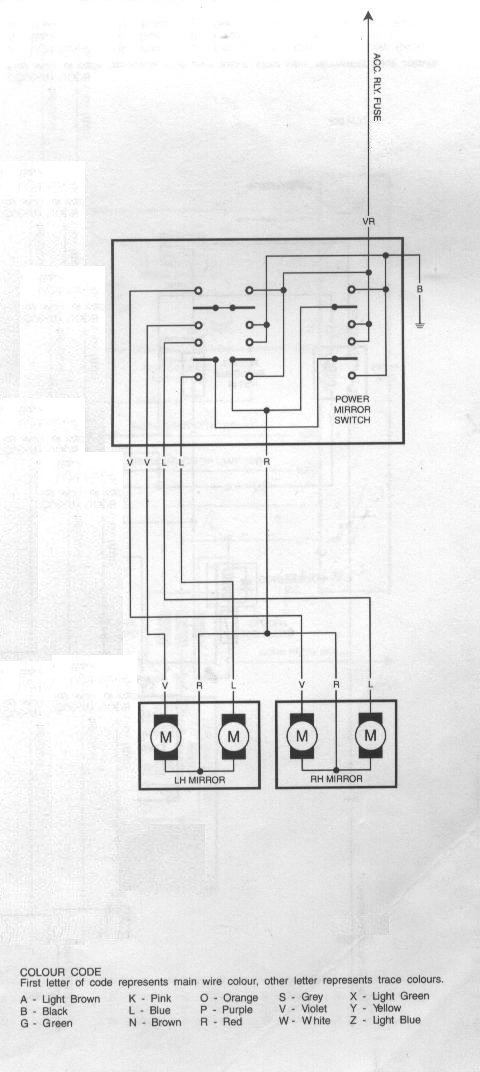

Here it is . . . . .
