Ef front door panels



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: Ef front door panels
Posted: Sat Feb 15, 2014 11:20 am
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

At this stage cannot get and further. All bottom loose but top seems stuck, any help? Everything removed except lock button and power window knob, not 100% sure how to remove lock button. Any help?
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 11:54 am
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

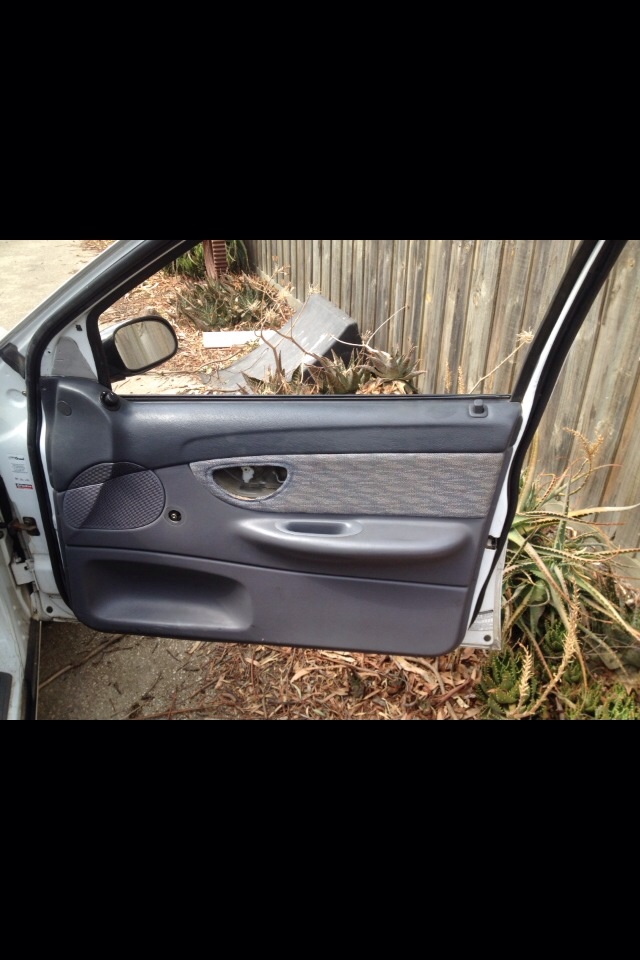

This is what it's like





Attachments:
image.jpg [ 190.68 KiB | Viewed 29 times ]
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 11:54 am
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

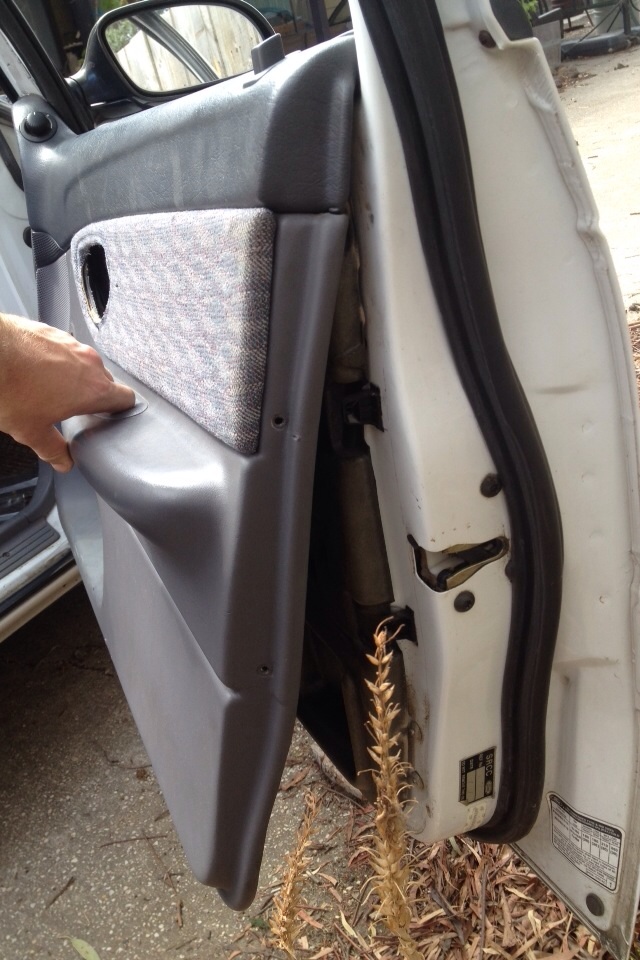

And this is side view





Attachments:
image.jpg [ 137.12 KiB | Viewed 46 times ]
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 12:03 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Get a pair of pliers, put a cloth over the snipper button, grip the snipper buton with the pliers and pull up, Button out.

There is no power window swith on the front door. I assume you mean the power mirror control. Just pull it out of where it is and unplug the wiring. Use a small screw driver if you need too to lift it a little.

Job done.
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 12:28 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

Yeah sorry I meant the power mirror knob! Haha! So grab the actual part that moves up and down not the surround? If so I tried but would budge, didn't want to break it?
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 1:49 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

If you are talking about the mirroe control, then remove it including the surround.
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 2:40 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

Got it all sorted now mate thanks for your help! Only issue now is I cannot get the lock button back on properly, any ideas? Won't sit flush when locked.
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 2:52 pm
Stock as a Rock
Offline

Age: 27

Posts: 199

Joined: 27th Jun 2008

Gallery: 9 images

Ride: EF 2 Fairmont. AU 5 Litre ute

Location: Berwick
VIC, Australia

Inside the lock bit is a piece of plastic. Use a pair of pliers and pull it down. Then just push it back on the bar that comes up. But remember to have the doors unlocked when you do tjis
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 3:21 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

shipo_1150 wrote:
Inside the lock bit is a piece of plastic. Use a pair of pliers and pull it down. Then just push it back on the bar that comes up. But remember to have the doors unlocked when you do tjis


So this plastic piece comes out separate to the actual piece you can see?
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 3:41 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

FORD-FirstOnRaceDay wrote:
shipo_1150 wrote:
Inside the lock bit is a piece of plastic. Use a pair of pliers and pull it down. Then just push it back on the bar that comes up. But remember to have the doors unlocked when you do tjis


So this plastic piece comes out separate to the actual piece you can see?


No need to pull it right out, just pull it down and spread the tabs slightly. When you press it home the tabs slide back up into the snipper button and clamp it onto the lock rod.
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 3:57 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

Yeah no worries mate all sorted now! Thanks heaps for your help! Absolute legend! Except I found it easier to do it with the doors locked? Oh well! It works and works well! Thanks heaps again!
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 3:58 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Actually is easier to fit with the doors locked and widow open. :D
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 4:11 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

SWC wrote:
Actually is easier to fit with the doors locked and widow open. :D


Exactly what I did mate! Thanks again for your help! Greatly appreciated!
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Sat Feb 15, 2014 4:26 pm
Parts Gopher
Offline

Age: 22

Posts: 71

Joined: 8th Feb 2014

Ride: EF Falcon

Location: Geelong
VIC, Australia

And thank you Shipo as well! Greatly appreciate the advice!
Top
 Profile


 Post subject: Re: Ef front door panels
Posted: Mon Feb 17, 2014 5:14 pm
Stock as a Rock
Offline

Age: 27

Posts: 199

Joined: 27th Jun 2008

Gallery: 9 images

Ride: EF 2 Fairmont. AU 5 Litre ute

Location: Berwick
VIC, Australia

No problem. Sorry was ment to say doors locked
