EL --> EF Cluster



Page 1 of 2 [ 26 posts ] Go to page 1, 2  Next


 Post subject: EL --> EF Cluster
Posted: Wed Jul 20, 2005 1:17 pm
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Would it be possible to take apart an EL cluster and an EF cluster and change over the black parts onto the gray of the EL cluster inc. white needles and s**t?
Top
 Profile


Posted: Wed Jul 20, 2005 1:47 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yes it is a straight swap. I take it you must have a logical reason for doing it ?



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Jul 20, 2005 2:19 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

EF's look better!!



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Wed Jul 20, 2005 2:23 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 5313

Joined: 6th Nov 2004

Gallery: 4 images

Ride: Surf, Turbo Diesel

Location: Melbourne, S.E Suburbs
VIC, Australia

Happy wrote:
EF's look better!!
as always :D



_________________


Top
 Profile


Posted: Wed Jul 20, 2005 3:20 pm
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Well Im looking at buying a Fairmont cluster but its EL and I like my EF cluster so I want to swpa the two over so I ahve a new EF FAIRMONT cluster...is it possible?

How do I get around the extra needles and s**t on my current cluster?
Top
 Profile


Posted: Wed Jul 20, 2005 3:32 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Happy wrote:
EF's look better!!
Yeah it's a no brainer - but what I'm saying is it's easier to use the std EF templates from http://www.fordmods.com/forums/documents.php?doc=67 rather than strip an EF cluster.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Jul 20, 2005 3:45 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

twirqurky wrote:
Well Im looking at buying a Fairmont cluster but its EL and I like my EF cluster so I want to swpa the two over so I ahve a new EF FAIRMONT cluster...is it possible?How do I get around the extra needles and s**t on my current cluster?
Okay - now I'm hearin' ya :wink:
I'm assuming your current cluster is EF low series.
1. Dial faces are a direct swap.
2. Oil press/Volts needles need to be recoloured white - you know how to do that due to previous advice to others.
3. Use the Fairmont matt black front fascia (with the extra "windows" for oil press & volts)
4. That's about it - use a kitchen fork with masking tape underneath the forks to pry your needles off.
As said previously - may be easier to print the EF dial faces from the doco rather than strip your EF cluster.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Jul 20, 2005 8:33 pm
Site Admin
Offline
User avatar

Age: 42

Posts: 514

Joined: 5th Nov 2004

Gallery: 5 images

Ride: V8 VE Calais V Spec

Power: 262 rwkw

Location: Sydney
NSW, Australia

You might even want to keep your orange needles from the EL cluster, using the EF Faces ?!?!?!?!?!

The reason why I am saying this is the orange needles actually suit the EF Faces better than the white ones !

I know it sounds strange, but give it a go before recolouring the needles...

The only reason why people prefer the white needles is because of the Illumination problems you have when using Orange Needles with LEDs coloured Blue or Green... (Red/White/Yellow LEDs work very well with Orange Needles).....

Anyways, just a thought ?!?!?!



_________________

VE Calais V8, IQ, HSV instruments and brembos fitted.
IQ, IPC, BCM all hacked and programmed without TECH2 :)

Top
 Profile


 Post subject: Re: EL --> EF Cluster
Posted: Thu Jul 21, 2005 10:37 pm
Stock as a Rock
Offline

Posts: 148

Joined: 14th May 2005

Location: New South Wales
NSW, Australia

twirqurky wrote:
Would it be possible to take apart an EL cluster and an EF cluster and change over the black parts onto the gray of the EL cluster inc. white needles and s**t?


If you don't want your orange needles I would take them off your hands for a reasonable price?
Top
 Profile


Posted: Fri Jul 22, 2005 3:39 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 829

Joined: 5th Nov 2004

Ride: 2004 Mazda Tribute

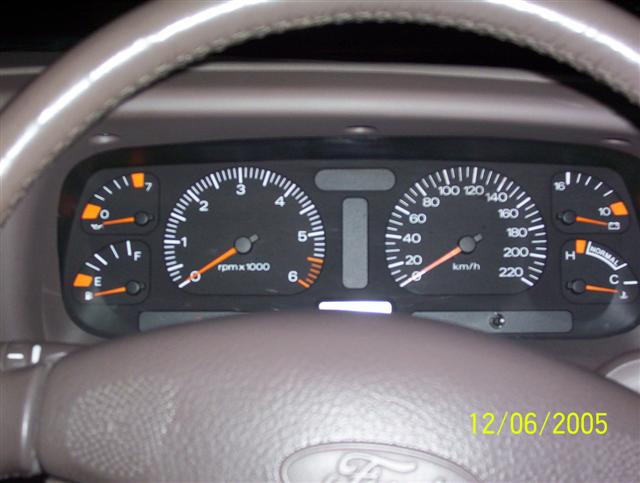

Here is a result of EF dials on an EL dash :-)
Xyphoid wrote:
The reason why I am saying this is the orange needles actually suit the EF Faces better than the white ones !

Thanks for saying so Matti :-D





Attachments:
3.jpg [ 43.13 KiB | Viewed 44 times ]
Top
 Profile


Posted: Fri Jul 22, 2005 6:25 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

yeah that does look nice!!!



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Fri Jul 22, 2005 9:31 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Happy wrote:
EF's look better!!


f**k yeah. Black EF clusters look heaps better than the grey EL ones.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Sat Jul 23, 2005 2:18 am
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Iw ant to keep the blue LED globes I sue now, how does the orange needles light up with blue behind it?
Top
 Profile


Posted: Sat Jul 23, 2005 3:13 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

I've tested blue LED's in an EL Fairmont cluster - the grey dial faces and orange needles looked pretty awful, seemed to have a dark spot or two on the dials. White LED's were a huge improvement. As for an EF with orange needles, you can only try them - but what Matti (Xyphoid) has written seems to be consistent with what I've found.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Jan 22, 2006 8:26 pm
Smokin em up
Offline

Age: 36

Posts: 210

Joined: 14th May 2005

Location: Perth
WA, Australia

I recently stuffed a EF Fairmont dash into my EL.
Works first time no dramas except for ODO readings.
That will be fixed soon. The new dash had the correct ODO minus exactly 200,000 KMS hahaha.

I didnt think it would work at first but after the car running for 10 seconds the cluster came to life. Its possable the ECU detected a diffrent Serial No.
