 Post subject: ford quick shift
Posted: Sun Mar 17, 2013 10:06 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

Hi, i thought i post up some pics of my quick shift i've installed. the main object of this post is to give people ideas when they install theres.

so please throw up some pics get the ideas out there!

first of if you havent made the circuit it can be found here:

ford-4l-and-6-cylinder-f1/shift-kit-info-compiled-t84386.html

so i made the circuit about 4 months ago and i'v had it in a blue jaycar box. i thought it would be time for an upgrade rather than rattling around everywhere! im a cnc machinist so this was not a hard task although i must say the plate was made by one of my workmates, i made the more simple knob from 316 ss and the plate was made from aluminium (not sure of the grade) maby 2011?

anyway pics!

Attachment:

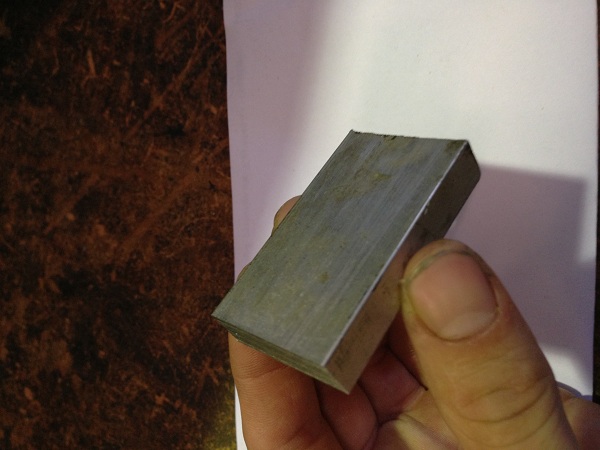

File comment: flat bar stock
IMG_0197.JPG [ 71.08 KiB | Viewed 290 times ]

Attachment:

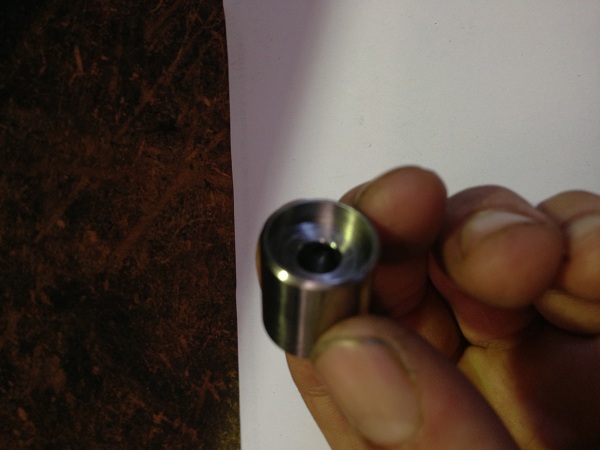

File comment: dial
IMG_0196.JPG [ 61.26 KiB | Viewed 274 times ]

Attachment:

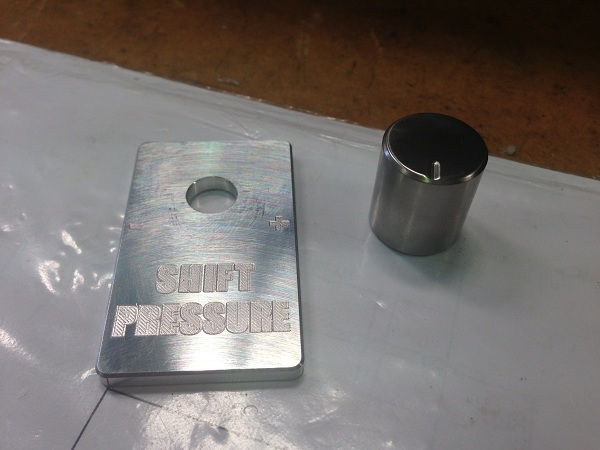

File comment: machined
IMG_0246.JPG [ 68.82 KiB | Viewed 312 times ]

Attachment:
File comment: almost installed
IMG_0248.JPG [ 68.27 KiB | Viewed 312 times ]

Attachment:

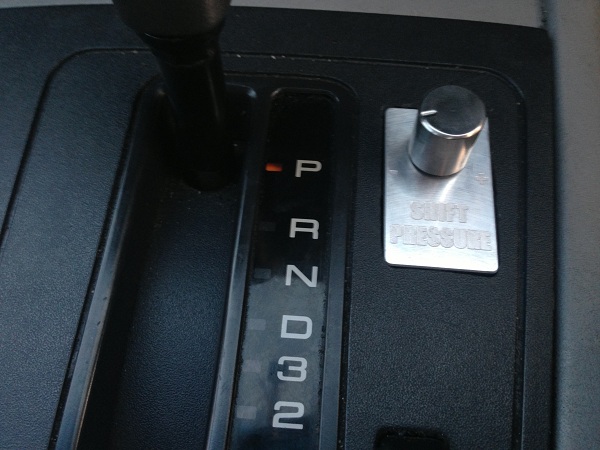

File comment: all done
IMG_0251.JPG [ 86.65 KiB | Viewed 296 times ]


sorry i never took pics while installing it, hopefully its all self explanatory!



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: ford quick shift
Posted: Sun May 11, 2014 3:40 am
Fordmods Newbie
Offline

Age: 37

Posts: 7

Joined: 12th May 2012

Ride: Ford Falcon EL

Location: Mandurah
WA, Australia

hey mate, thanks for that. hows it been going anyway? still reliable?
Top
 Profile


 Post subject: Re: ford quick shift
Posted: Sun May 11, 2014 10:41 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 416

Joined: 19th Dec 2008

Gallery: 4 images

Ride: AUII XR8 ute

Location: Ballarat
VIC, Australia

Since writing that article I have discovered that adding more horsepower and more cubes is the best way to get wheelspin on gear changes. However, that looks pretty damn cool. It would be good if someone ran straight off the TPS signal though and had it triggered instantaneously by that, like adaptive shift from the au's. The only problem with adaptive shift though is that it doesnt happen straight away. It usually kicks in after you've done the thrash.



_________________

How many bears could Bear Grylls grill if Bear Grylls could grill bears?

Top
 Profile


 Post subject: Re: ford quick shift
Posted: Mon May 12, 2014 1:05 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

bngoold wrote:
hey mate, thanks for that. hows it been going anyway? still reliable?


It was going good right until I sold my eb. I never had any problems with it, the beauty of having an adjustable one is that it wasn't always harsh shifting.



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch
