 Post subject: FPV Starter Button
Posted: Sun Jun 10, 2007 1:26 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Time off work + car + boredom + electronics skills = another mod

Anyway, I found absolutely no information available on the wiring of the starter button. So here's what I've found myself.

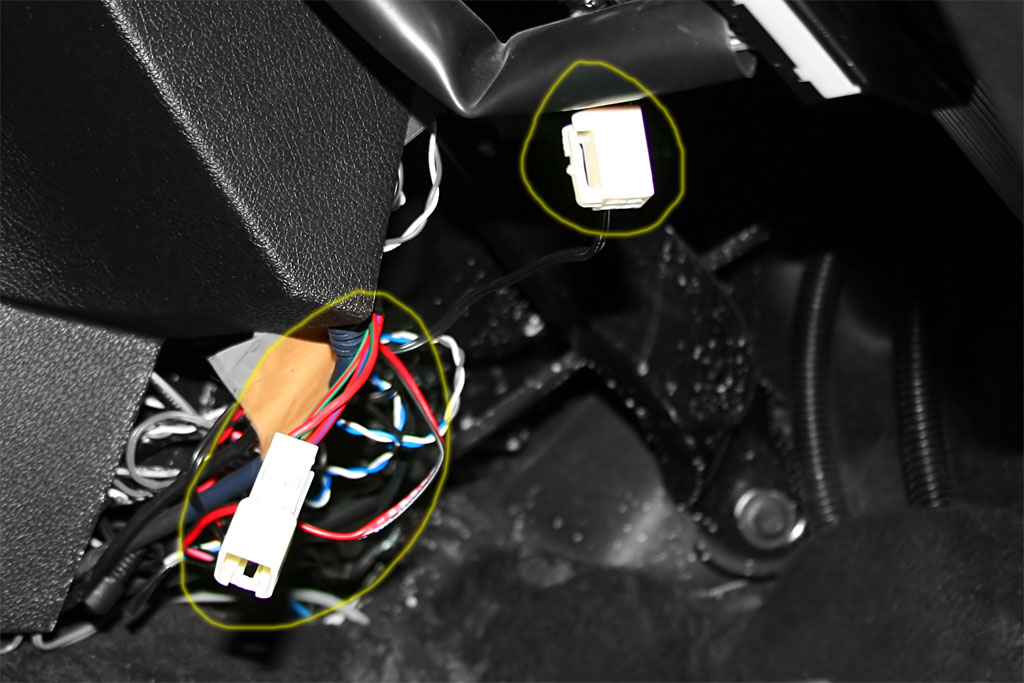

Leading from the button itself is a 3 wire loom, that connects (using a 4 pin white coloured plug) into the ignition loom from the key barrel. This three wire loom is as follows.

Green/Red - Earth (for the red LED in the button)
Red/Green - +12 when the ignition switch is in the run (II) position.
Red/Blue - +12 to activate the starter motor.

The Red/Green Red/Blue pair are shorted by the starter button. The red LED gets it's power from the Red/Green wire.





Attachments:
File comment: FPV Starter Button Loom
starterbuttonloom.jpg [ 140.07 KiB | Viewed 198 times ]



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sun Jun 10, 2007 1:59 am
Getting Side Ways
Offline
User avatar

Posts: 1863

Joined: 30th Apr 2006

Location: Melbourne
VIC, Australia

I'm tired, but I can't tell what you've done?!
Top
 Profile


Posted: Sun Jun 10, 2007 2:25 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

I haven't said what I've done, just provided info on the wiring of the button.

I'm not saying either as it's security/alarm related.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sun Jun 10, 2007 1:05 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 912

Joined: 6th Nov 2004

Ride: XR8

Power: 238 rwkw

Location: Perth
WA, Australia

the one on the right looks like the AUX input cable, but i know its not, cause that bastard is tucked up inbehind the fuse box. I am going to get a starter button, but i think im going to get Barry at BPT to do it.



_________________

03 XR8 ute.... 251.5rwkw and counting

Top
 Profile


Posted: Sun Jun 10, 2007 5:44 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Doesn't look anything like the aux cable. Different number of pins and a different style of plug.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sun Jun 10, 2007 9:24 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 912

Joined: 6th Nov 2004

Ride: XR8

Power: 238 rwkw

Location: Perth
WA, Australia

from here it does. i cant really count the number of pins in that pic..



_________________

03 XR8 ute.... 251.5rwkw and counting

Top
 Profile


Posted: Sun Jun 10, 2007 10:20 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

MR XR wrote:
but i think im going to get Barry at BPT to do it.


bah you slack bastard!! do it yourself! :lol:



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sun Jun 10, 2007 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 912

Joined: 6th Nov 2004

Ride: XR8

Power: 238 rwkw

Location: Perth
WA, Australia

nicco wrote:
MR XR wrote:
but i think im going to get Barry at BPT to do it.


bah you slack bastard!! do it yourself! :lol:


lol, not worth the pain :P



_________________

03 XR8 ute.... 251.5rwkw and counting

Top
 Profile


 Post subject: fpv starter install
Posted: Mon Jun 11, 2007 10:59 pm
Fordmods Newbie
Offline

Age: 42

Posts: 3

Joined: 7th Apr 2007

Ride: xr6

Location: brissie
QLD, Australia

g'day data mine,

did you install this button yourself?

I tried last week to install my starter button on my ba xr6 as per the fern tree gully salvage instructions which I sourced from vince in cairns.
I followed the instructions to a tee but a couple of the wires were accidently shorted when i bumped them as i didnt want to disconnect the battery as i knew i might have problems with the smartshield being reset.

when the wires touched it momentarily cranked the engine over.

I connected the the starter button wires into the 16 pin connector under the steering column and the earth end of the loom to the earth on the fuse box.on this same end you have to connect to the 24 pin connector behind the r/h kickpanel.

once installed it seemed to crank the engine only when the key was held in the start/crank position .
where as i am led to believe you should only have to put the key to the acc position...ie dash warning lights lit up.I confirmed this on an actual GT.

I decided to remove the starter button and return things to normal.
when i did this i found that the car wouldnt start as per normal.

It turned out the ignition barrel switches at the back of the key had collapsed.

so....

I have had that fixed and i am still very hesitant to install the button again as it may create the same problem

also i have rung 2 ford service deealers and they say that you need a different pcm to accomodate this starter button and also different loom fitted to the car.but i find this hard to believe as heaps of other people on the forums have had them fitted.I also have a friend who is an engineer in ford in melbourne and he says that you dont need to have a different pcm or loom.

so at the moment i am at a loose end and hoping that some legend can help me out.

cheers flesh
Top
 Profile


 Post subject: Re: fpv starter install
Posted: Tue Jun 12, 2007 9:45 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

flesh wrote:
i didnt want to disconnect the battery as i knew i might have problems with the smartshield being reset.

when the wires touched it momentarily cranked the engine over.



Automotive mechanics 101. Always disconnect the battery when working on electrical systems in the vehicle.

You will not have smartshield issues on a BA/BF when u disconnect the battry. At worst you will have a poor idle which can be fixed by cleaning the throttle body.

The starter button can be done without a different loom however it does require wiring modifications.
From a dealership point of view its not worth getting involved in wiring mods as if they do it and it breaks in 9 months technically they have to warrant it.

Also data_mines vehicle is a genuine FPV vehicle and came from the factory with the starter button.
Top
 Profile


 Post subject: Re: fpv starter install
Posted: Tue Jun 12, 2007 2:59 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

flesh wrote:
g'day data mine,

did you install this button yourself?

I tried last week to install my starter button on my ba xr6 as per the fern tree gully salvage instructions which I sourced from vince in cairns.
I followed the instructions to a tee but a couple of the wires were accidently shorted when i bumped them as i didnt want to disconnect the battery as i knew i might have problems with the smartshield being reset.

when the wires touched it momentarily cranked the engine over.

I connected the the starter button wires into the 16 pin connector under the steering column and the earth end of the loom to the earth on the fuse box.on this same end you have to connect to the 24 pin connector behind the r/h kickpanel.

once installed it seemed to crank the engine only when the key was held in the start/crank position .
where as i am led to believe you should only have to put the key to the acc position...ie dash warning lights lit up.I confirmed this on an actual GT.

I decided to remove the starter button and return things to normal.
when i did this i found that the car wouldnt start as per normal.

It turned out the ignition barrel switches at the back of the key had collapsed.

so....

I have had that fixed and i am still very hesitant to install the button again as it may create the same problem

also i have rung 2 ford service deealers and they say that you need a different pcm to accomodate this starter button and also different loom fitted to the car.but i find this hard to believe as heaps of other people on the forums have had them fitted.I also have a friend who is an engineer in ford in melbourne and he says that you dont need to have a different pcm or loom.

so at the moment i am at a loose end and hoping that some legend can help me out.

cheers flesh

Flesh - you obviously stuffed up matey, the instructions orked and were made from Darren and his team ripping apart a couple of fpv's they had a nd piecing it together.
That is exactly how they install them at fpv as i spoke to on eof the guys that fits them on teh production line and he said that was exactly spot on - it takes them 5 minutes to do!

My susggestion - try it again with your battery disconnected and you should be right



_________________

Nicko

Top
 Profile


 Post subject: Re: fpv starter install
Posted: Tue Jun 12, 2007 11:01 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

flesh wrote:
did you install this button yourself?
...

also i have rung 2 ford service deealers and they say that you need a different pcm to accomodate this starter button and also different loom fitted to the car.but i find this hard to believe as heaps of other people on the forums have had them fitted.I also have a friend who is an engineer in ford in melbourne and he says that you dont need to have a different pcm or loom.


No, mine came factory fitted.

They're spinning you sh!t. As nicco (and yourself) has said, plenty of people have done it without PCM or loom changes. After all it's just a dumb momentary switch and LED.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: fpv starter install
Posted: Tue Jun 12, 2007 11:22 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

data_mine wrote:
flesh wrote:
did you install this button yourself?
...

also i have rung 2 ford service deealers and they say that you need a different pcm to accomodate this starter button and also different loom fitted to the car.but i find this hard to believe as heaps of other people on the forums have had them fitted.I also have a friend who is an engineer in ford in melbourne and he says that you dont need to have a different pcm or loom.


No, mine came factory fitted.

They're spinning you sh!t. As nicco (and yourself) has said, plenty of people have done it without PCM or loom changes. After all it's just a dumb momentary switch and LED.

Exactly, and a relay to stop it from powering starter motor again if car is already going!



_________________

Nicko

Top
 Profile


Posted: Tue Jun 12, 2007 11:41 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 119

Joined: 2nd Jul 2006

Ride: EB Falcon

Location: Dubbo
NSW, Australia

Does anybody know how to do this to a E-series car?



_________________

Smoke tyres not drugs.

92 EB falcon 4.0L I6.

Top
 Profile


 Post subject: Re: fpv starter install
Posted: Wed Jun 13, 2007 12:13 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Nicko wrote:
data_mine wrote:
flesh wrote:
did you install this button yourself?
...

also i have rung 2 ford service deealers and they say that you need a different pcm to accomodate this starter button and also different loom fitted to the car.but i find this hard to believe as heaps of other people on the forums have had them fitted.I also have a friend who is an engineer in ford in melbourne and he says that you dont need to have a different pcm or loom.


No, mine came factory fitted.

They're spinning you sh!t. As nicco (and yourself) has said, plenty of people have done it without PCM or loom changes. After all it's just a dumb momentary switch and LED.

Exactly, and a relay to stop it from powering starter motor again if car is already going!


I though the anti-start was part of the BEM, not the button (either itself, or part of the changes that are made to implement it). The BF wagon at work (no starter button obviously) won't engage the starter motor if it's running.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile
