 Post subject: Ignition LIGHT GLOBE TYPE?? LED? AU
Posted: Thu Oct 02, 2014 12:23 am
Fordmods Newbie
Offline

Age: 21

Posts: 4

Joined: 27th Sep 2014

Ride: AU XR6 VCT Black

Location: Mildura
VIC, Australia

I'm looking for a led replacement for the ignition key courtesy light, that illuminates the circle around the key hole. For the life of me i haven't been able to find the globe type that fits????
Can anyone shed some light on what bulb/led is needed

LED is preffered.

Thanks :D



_________________

1998 AU Silhouette Black XR6 VCT

I have a small business that specialises in LED conversions for all types of fords. Private message me for more info!

Available are the following in most colours:
Interior lights
Front and rear courtesy lights
TONNES MORE!
DASH cluster replacement kit, (blue)

Top
 Profile


 Post subject: Re: Ignition LIGHT GLOBE TYPE?? LED? AU
Posted: Thu Oct 02, 2014 7:40 am
Tyre Shredder
Offline
User avatar

Age: 34

Posts: 319

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

If there the same as the BA there a T4neo

something like this

http://www.ebay.com.au/itm/4-X-White-T4 ... 2c8632c0dd



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
1996 EF Falcon furura, White.
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: Ignition LIGHT GLOBE TYPE?? LED? AU
Posted: Thu Oct 02, 2014 10:40 am
Fordmods Newbie
Offline

Age: 21

Posts: 4

Joined: 27th Sep 2014

Ride: AU XR6 VCT Black

Location: Mildura
VIC, Australia

Can anyone shed some light on this?





Attachments:

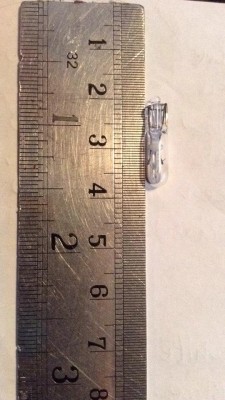

File comment: it looks like a wedge fit so not sure how the neo wedge t4 would fit?
10719154_819564571400056_2139697853_n.jpg [ 85.94 KiB | Viewed 63 times ]



_________________

1998 AU Silhouette Black XR6 VCT

I have a small business that specialises in LED conversions for all types of fords. Private message me for more info!

Available are the following in most colours:
Interior lights
Front and rear courtesy lights
TONNES MORE!
DASH cluster replacement kit, (blue)

Top
 Profile


 Post subject: Re: Ignition LIGHT GLOBE TYPE?? LED? AU
Posted: Thu Oct 02, 2014 10:54 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Looks like a T5. Measure the diameter.
Top
 Profile


 Post subject: Re: Ignition LIGHT GLOBE TYPE?? LED? AU
Posted: Thu Oct 02, 2014 11:15 am
Fordmods Newbie
Offline

Age: 21

Posts: 4

Joined: 27th Sep 2014

Ride: AU XR6 VCT Black

Location: Mildura
VIC, Australia

it's 4.2mm, the thickness of the wedge part but then the bulb in about 4.7mm
Would a t4/t5 need modifying to be installed?



_________________

1998 AU Silhouette Black XR6 VCT

I have a small business that specialises in LED conversions for all types of fords. Private message me for more info!

Available are the following in most colours:
Interior lights
Front and rear courtesy lights
TONNES MORE!
DASH cluster replacement kit, (blue)

Top
 Profile


 Post subject: Re: Ignition LIGHT GLOBE TYPE?? LED? AU
Posted: Thu Oct 02, 2014 1:20 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I run an AU light in my ED (Au column shrouds and EF/EL combo switch with BA arms)...

You just need to buy a T5 wedge LED... Look up ebay... When you pick one but the LED head cannot extend outside the sides of the base otherwise it will not fit into the bezel in the column shroud and it cannot be too long otherwise it will foul on the end of the bezel...

I've had something like this and had to grind it down because it was just too long...


I think the 5050 smd is just too large to fit into the hole, and really only because it's square, if it had no corners I think it'd be right...

[img]001.jpg[/img]

Something like this may work without modifcation... Doesn't look too long and is confined to being no wider than the T5 wedge part...


Click on the pictures to be taken to ebay... Otherwise search around yourself...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Ignition LIGHT GLOBE TYPE?? LED? AU
Posted: Thu Oct 02, 2014 1:34 pm
Fordmods Newbie
Offline

Age: 21

Posts: 4

Joined: 27th Sep 2014

Ride: AU XR6 VCT Black

Location: Mildura
VIC, Australia

thanks mate, appreciated. Ill post a photo when ive installed it :D



_________________

1998 AU Silhouette Black XR6 VCT

I have a small business that specialises in LED conversions for all types of fords. Private message me for more info!

Available are the following in most colours:
Interior lights
Front and rear courtesy lights
TONNES MORE!
DASH cluster replacement kit, (blue)

Top
 Profile
