 Post subject: Installing high series door trim in GLi
Posted: Mon Sep 26, 2011 3:56 pm
Parts Gopher
Offline

Age: 33

Posts: 77

Joined: 12th May 2011

Ride: Ford Falcon EL

Location: Perth
WA, Australia

Hi Guys,

I need a bit of help.

I am converting a GLi to Fairmont (I know, I've got too much time on my hands) and have used the doco on here for installing the Elec window winders (using original looms ect). Issue is that the part number mentioned for the door rivets (the metal ones with thread in the middle, used for screwing the door handles on) does exist, but Ford does not sell them anymore. (I actually found that you can get nearly nothing anymore from Ford for E series!! :shock: ).

Any ideas on to where I could get these rivets? Pref in Perth, if eastcoast it needs to be a mob that posts them.

Cheers for your help!
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Mon Sep 26, 2011 4:42 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Wrecker would be the best bet, should be able to get them for nuthin at the right place. What that is in Perth I have no idea sorry, East coaster here.....



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Mon Sep 26, 2011 4:57 pm
Parts Gopher
Offline

Age: 33

Posts: 77

Joined: 12th May 2011

Ride: Ford Falcon EL

Location: Perth
WA, Australia

Quote:
Wrecker would be the best bet, should be able to get them for nuthin at the right place. What that is in Perth I have no idea sorry, East coaster here.....


Cheers for the reply, but they are rivets. You cannot get them out of the door. Once installed they stay there. If I was able to get them from the wreckers I would have...

I have already been thinking about welding nuts in the holes ect, but rather not.

Anyone??
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Mon Sep 26, 2011 5:09 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

the_axeman wrote:
Quote:
Wrecker would be the best bet, should be able to get them for nuthin at the right place. What that is in Perth I have no idea sorry, East coaster here.....


Cheers for the reply, but they are rivets. You cannot get them out of the door. Once installed they stay there. If I was able to get them from the wreckers I would have...

I have already been thinking about welding nuts in the holes ect, but rather not.

Anyone??

that may be the only way as they where aluminium,or use a 50mm sq plate or flat bar.5-6mm thick,aluminium and drill and tap the hole you need,use 2-4 rivets fix the plates to the door,no welding and still strong,bit of a pita,but a way around it.or swap the doors to fairmont



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Tue Oct 04, 2011 2:56 pm
Parts Gopher
Offline

Age: 33

Posts: 77

Joined: 12th May 2011

Ride: Ford Falcon EL

Location: Perth
WA, Australia

Cheers for the replies so far. I've been told by Ford themselves Wurth might still be able to supply them. I'll check this in the next few days. If they do have them I'll be able to finally fit the door cards.

Good idea on the plate, have been thinking of a similar solution, but factory would be preffered.

Let's see how we go!

Cheers again!
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Sun Nov 06, 2011 3:17 pm
Fordmods Newbie
Offline

Age: 58

Posts: 17

Joined: 12th Apr 2011

Ride: ed falcon / au fairmont

Location: perth
WA, Australia

When I put ef/el fairmont door trims in my ed I ended up using plastic screw grommets
10G in "Champion Panel Packs" available from Auto One. Only problem I had was one rear
door was an early model ea/eb and didn't have the rivet holes, so I just screwed the armrest directly to the door. These plastic grommets are the same as the plastic grommets that hold the ed interior door handles in place. Hope this helps.

Cheers
Geoff
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Sun Nov 06, 2011 5:57 pm
Fordmods Newbie
Offline
User avatar

Age: 35

Posts: 14

Joined: 11th Jun 2010

Gallery: 4 images

Ride: ed xr8 sprint/78 escort sundowna

Location: mandurah
WA, Australia

Hi um just wondering wat the bracket looks like the picture dosn't come up on my computer when in the tech documents.

Ive just done the power window conversion to my ed xr8 sprint but have put the original door trims back on till i find some eb ghia ones.

Could some one please post a picture of what there talking about i might know wat im in for when i have to change the door trims thank you very much
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Sun Nov 06, 2011 6:26 pm
Fordmods Newbie
Offline
User avatar

Age: 35

Posts: 14

Joined: 11th Jun 2010

Gallery: 4 images

Ride: ed xr8 sprint/78 escort sundowna

Location: mandurah
WA, Australia

what about those rivet nuts you can buy and they come in a m6 they look like what your talking about if they are the same as in the power windows tech document
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Sun Nov 06, 2011 11:54 pm
Parts Gopher
Offline

Age: 33

Posts: 77

Joined: 12th May 2011

Ride: Ford Falcon EL

Location: Perth
WA, Australia

Hi guys,

Cheers for all the comments. Finally I got 8 for only $1.30!!! Go to any fastners place and you'll get a huge choice of scrivets, rivet nuts or whatever people like calling them...
Works a treat and the door handles are nice and tight!

PS: the fairmont conversion (from GLi) nearly complete!!! :) Only need to hook up the last bits for the ABS and I am done!

Also got my XR8 rims and tickford skirts ready and waiting to add on!!! Can't wait!
Will leave that for another post.
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Mon Nov 07, 2011 11:20 pm
Fordmods Newbie
Offline

Age: 58

Posts: 17

Joined: 12th Apr 2011

Ride: ed falcon / au fairmont

Location: perth
WA, Australia

Unscrew the inside door handle the plastic screw grommets are used here. Round on the trim side square where it goes through the door skin.

Good to hear you got your rivetnuts, Great score at 0.16 cents each or so, as I said I couldn't get any from ford, obsolete, They also wanted to charge me $5 something each for the 5mm rivets for the power window motor bracket. I paid $5 a pack for nuts and bolts.

Cheers
Geoff
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Tue Nov 08, 2011 12:02 pm
Parts Gopher
Offline

Age: 33

Posts: 77

Joined: 12th May 2011

Ride: Ford Falcon EL

Location: Perth
WA, Australia

Its shocking how much stuff for E series Ford does no longer supply!
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Tue Nov 08, 2011 2:30 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the_axeman wrote:
Its shocking how much stuff for E series Ford does no longer supply!

ford are lucky to service parts for 10 years, most e series stuff is obsolete and au is starting to go that way aswell..
give a couple of years and ba stuff will start getting obsolete..
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Tue Nov 08, 2011 2:46 pm
Parts Gopher
Offline

Age: 33

Posts: 77

Joined: 12th May 2011

Ride: Ford Falcon EL

Location: Perth
WA, Australia

They guy I spoke to at Ford here in Perth said that interior parts of the BA's are getting NLA!! :shock:

I am restoring a 1977 6-series BMW, I can still order new parts for that car at BMW...
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Mon Jul 02, 2012 5:36 pm
Parts Gopher
Offline

Age: 26

Posts: 76

Joined: 19th Mar 2012

Ride: EB Fairmont Ghia

Location: Radelaide , South Australia
SA, Australia

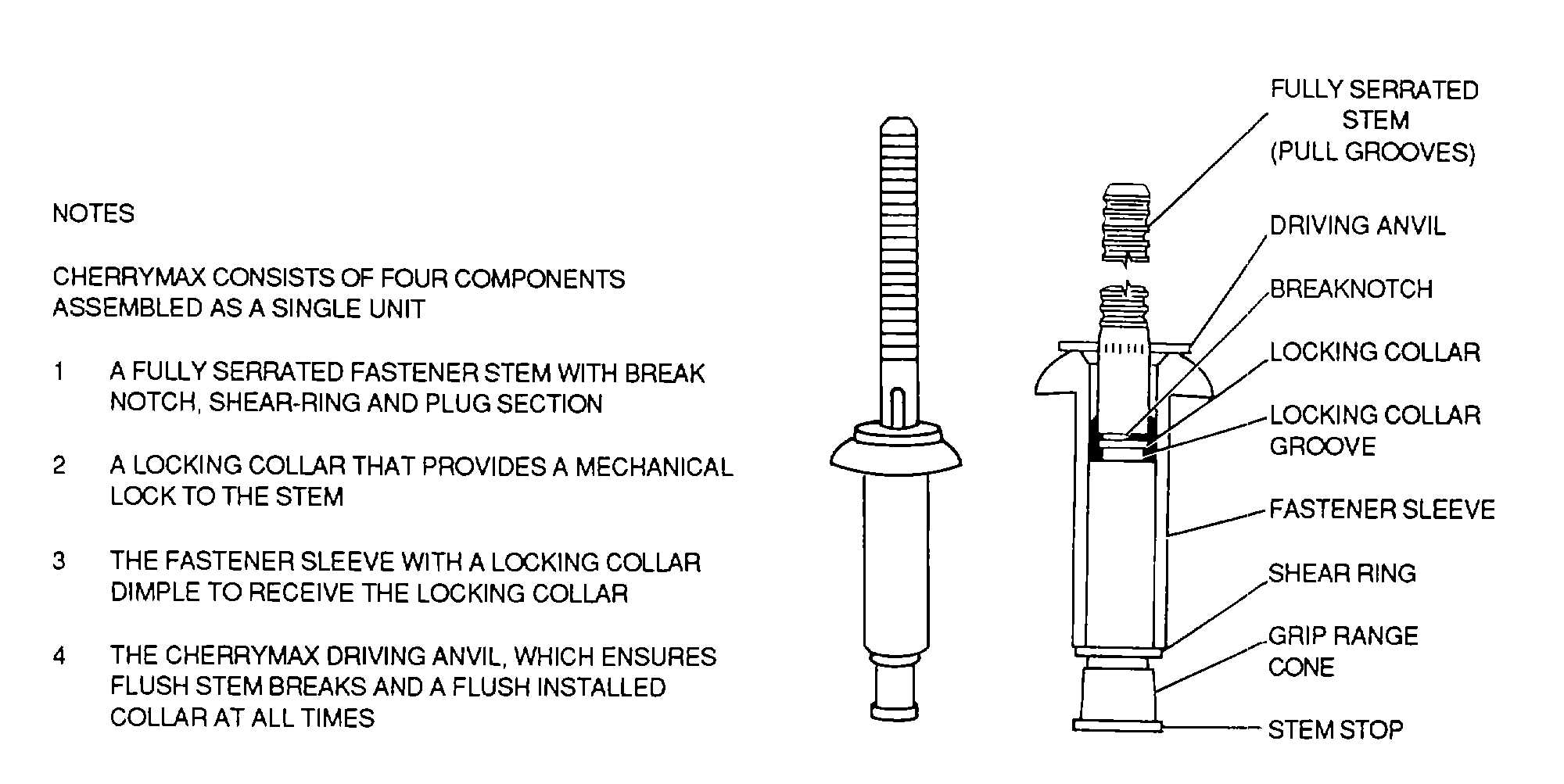

we used to use somthing very similar at work .. they where called "huck rivets"

Attachment:
File comment: Getting the torque on bolts right is very tricky business for many companies. Huck fasteners mistake-proof this problem using a hybrid: half “pop-rivet,” half bolt. The tension on the bolt is created in a linear fashion and the “nut” is clamped in place and the excess bolt length is cut off. The only drawback is that removal involves cutting the bolt off and installing a new one after repairs
HUCK.jpg [ 159.73 KiB | Viewed 79 times ]
Top
 Profile


 Post subject: Re: Installing high series door trim in GLi
Posted: Mon Jul 02, 2012 6:02 pm
Parts Gopher
Offline

Age: 33

Posts: 77

Joined: 12th May 2011

Ride: Ford Falcon EL

Location: Perth
WA, Australia

Hi mate,

Thanks for the reply. It's been a while since I worked on this. Since I have resolved the issue by getting some of the rivets from a fastner place and tightening them with a bolt and nut. Squeezing the rivet in-between worked a treat. To make sure they stay where they are I tacked one side of the rivet to the door with a welder. They are sturdy as now.

I could have gone out and bought an actual screw rivet gun, but they cost a fair bit. Cheapest I could find was 100 dollars and I could not justify buying one just for the 8 rivets.

Cheers!
