installing vinyl material??



Page 1 of 2 [ 21 posts ] Go to page 1, 2  Next


 Post subject: installing vinyl material??
Posted: Thu Apr 07, 2011 6:54 pm
Stock as a Rock
Offline

Age: 26

Posts: 102

Joined: 2nd Feb 2010

Ride: Ford Falcon EL

Location: Toowoomba
QLD, Australia

Hey all, I'm looking at installing black vinyl material into parts of my dash and door cards. Just wondering if anybody has any tips like using heat to mould it around the curves and what to use to stick it to it.



_________________


Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sat Apr 09, 2011 12:29 pm
Smokin em up
Offline
User avatar

Posts: 214

Joined: 7th Nov 2006

Ride: Territory TS TDCi

Location: Melbourne
VIC, Australia

i had a few t bar surrounds that had holes from mobile phone holders so i decided to wrap them in vinyl. get good quality 3m di-noc vinyl or else it might lift when the car gets hot. heres my attempt at carbon fiber.


its really easy to use, just do a bit at a time, don't pull off a hole sheet and stick it on or else you will get air bubbles. i used a small fan heater but you can use a hair drier. when it heats up it gets real soft and just melts over any shape. next im gonna try to do the radio surround and ash tray.
Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Wed Apr 20, 2011 2:37 pm
Oompa Loompa
Offline

Posts: 46

Joined: 31st Mar 2011

Gallery: 7 images

Ride: Au2 Xr6 Ute

Location: northshore city
New Zealand

i'm doing the same with my au2 use a heat gun/hair dryer but not to much heat and i'm useing some 3m Super 77™ Multipurpose spray Adhesive and its very good for vinyl if you cant get it get a clue that will let the vinyl stretch and contract with the heat from inside the cabin or it will start to let go
Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Tue Aug 16, 2011 3:58 am
Getting Side Ways
Offline

Age: 25

Posts: 1260

Joined: 11th Dec 2010

Ride: EL xr6

Location: Craigieburn
VIC, Australia

magna wrote:
i had a few t bar surrounds that had holes from mobile phone holders so i decided to wrap them in vinyl. get good quality 3m di-noc vinyl or else it might lift when the car gets hot. heres my attempt at carbon fiber.


its really easy to use, just do a bit at a time, don't pull off a hole sheet and stick it on or else you will get air bubbles. i used a small fan heater but you can use a hair drier. when it heats up it gets real soft and just melts over any shape. next im gonna try to do the radio surround and ash tray.


where you get this paper from?



_________________

EL xr6,standard a** au motor,hi-tech headers, 2 1/2inch red back,,Tikky kitted and wingless,Black GT-P's,on ultra lows and still too high

My Build: the-garage-f53/daniels-el-xr6-build-t100586.html

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sat Aug 20, 2011 8:52 pm
Smokin em up
Offline
User avatar

Posts: 214

Joined: 7th Nov 2006

Ride: Territory TS TDCi

Location: Melbourne
VIC, Australia

i got it off ebay do a search for 3m di-noc it comes in different sized sheets.
Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sat Aug 27, 2011 1:15 pm
Oompa Loompa
Offline

Age: 27

Posts: 24

Joined: 27th Aug 2011

Gallery: 2 images

Ride: '06 MKII FmG

Location: South East, Melbourne
VIC, Australia

G'day,

Wrapping your plastics etc. should be relatively easy,
vinyl is great to use because it stretches nicely.
A heat gun would be best for those tricky corners/curves,
just remember to heat it gradually, and don't stretch
it too much.

In regards to the glue,(if you're not using self-adhesive)
any automotive contact adhesive would suffice.
Just go to your local motor trimmer with a small container,
shouldn't cost you more than 10 bucks,
and can be applied with a brush or spray gun.

Hope that was useful.

Greggy B
Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sun Oct 02, 2011 12:18 am
Getting Side Ways
Offline
User avatar

Age: 24

Posts: 1006

Joined: 1st Oct 2010

Gallery: 14 images

Ride: EF XR8

Location: Richmond,
NSW, Australia

I'm looking into putting chrome vinyl over my exterior door handles,
would this be recommended to be used in the same fashion as what you have done with the shift selector?
http://www.ebay.com.au/itm/HIGH-QUALITY-CONTACT-CHROME-VINYL-CUTTER-ROLL-490mmx10m-/110732198105?pt=AU_Business_Industrial_Printing_Equipment&hash=item19c82740d9#ht_3370wt_905

I'm thinking of going down the my local sign writing place and asking them about buying some.



_________________

Blue blooded.

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sun Oct 02, 2011 8:02 am
Parts Gopher
Offline
User avatar

Posts: 84

Joined: 8th Sep 2011

Gallery: 22 images

Ride: NF Fairlane

Location: Melbourne
VIC, Australia

Yeh no problem rew93n, i did my woodgrain console with high quality vinyl from the states you can get it by the foot, i got around 3.5 feet for around $25 delivered and it has about more than 7 years life on the exterior of the car and more of course for interior.The store can also be found on ebay or google "Metro restyling" they are quite good with a variety of vinyls from carbon fibre,brushed aluminium,woodgrain,chrome etc.give them a go i was very happy. i will upload some pics of my interior on this thread a bit later, ive already uploaded some on the fairlane and ltd thread if you want to see or wait untill i up load some here. anyway hope it helps and good luck and make sure you get a heat gun you do need it for those nasty curves. lol. :) .



_________________

*NF FAIRLANE RIDING ON KING SPRING ULTRAS AND 20 INCH BSA CUSTOMS*
(Watching out for speed humps and steep driveways) ;-?

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sun Oct 02, 2011 2:56 pm
Getting Side Ways
Offline
User avatar

Age: 24

Posts: 1006

Joined: 1st Oct 2010

Gallery: 14 images

Ride: EF XR8

Location: Richmond,
NSW, Australia

Fairghia95 wrote:
Yeh no problem rew93n, i did my woodgrain console with high quality vinyl from the states you can get it by the foot, i got around 3.5 feet for around $25 delivered and it has about more than 7 years life on the exterior of the car and more of course for interior.The store can also be found on ebay or google "Metro restyling" they are quite good with a variety of vinyls from carbon fibre,brushed aluminium,woodgrain,chrome etc.give them a go i was very happy. i will upload some pics of my interior on this thread a bit later, ive already uploaded some on the fairlane and ltd thread if you want to see or wait untill i up load some here. anyway hope it helps and good luck and make sure you get a heat gun you do need it for those nasty curves. lol. :) .

Cheers for that mate,
I think I might hit up the local sign making joint (a mate works in there) and see if I can get a small quantity to do the handles.
7 years life sounds bloody tops to me,
by then I'll be legally able to drive a V8...

Thanks for that,
REW93N



_________________

Blue blooded.

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sun Oct 02, 2011 8:19 pm
Parts Gopher
Offline
User avatar

Posts: 84

Joined: 8th Sep 2011

Gallery: 22 images

Ride: NF Fairlane

Location: Melbourne
VIC, Australia

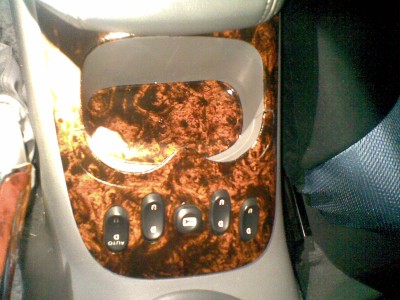

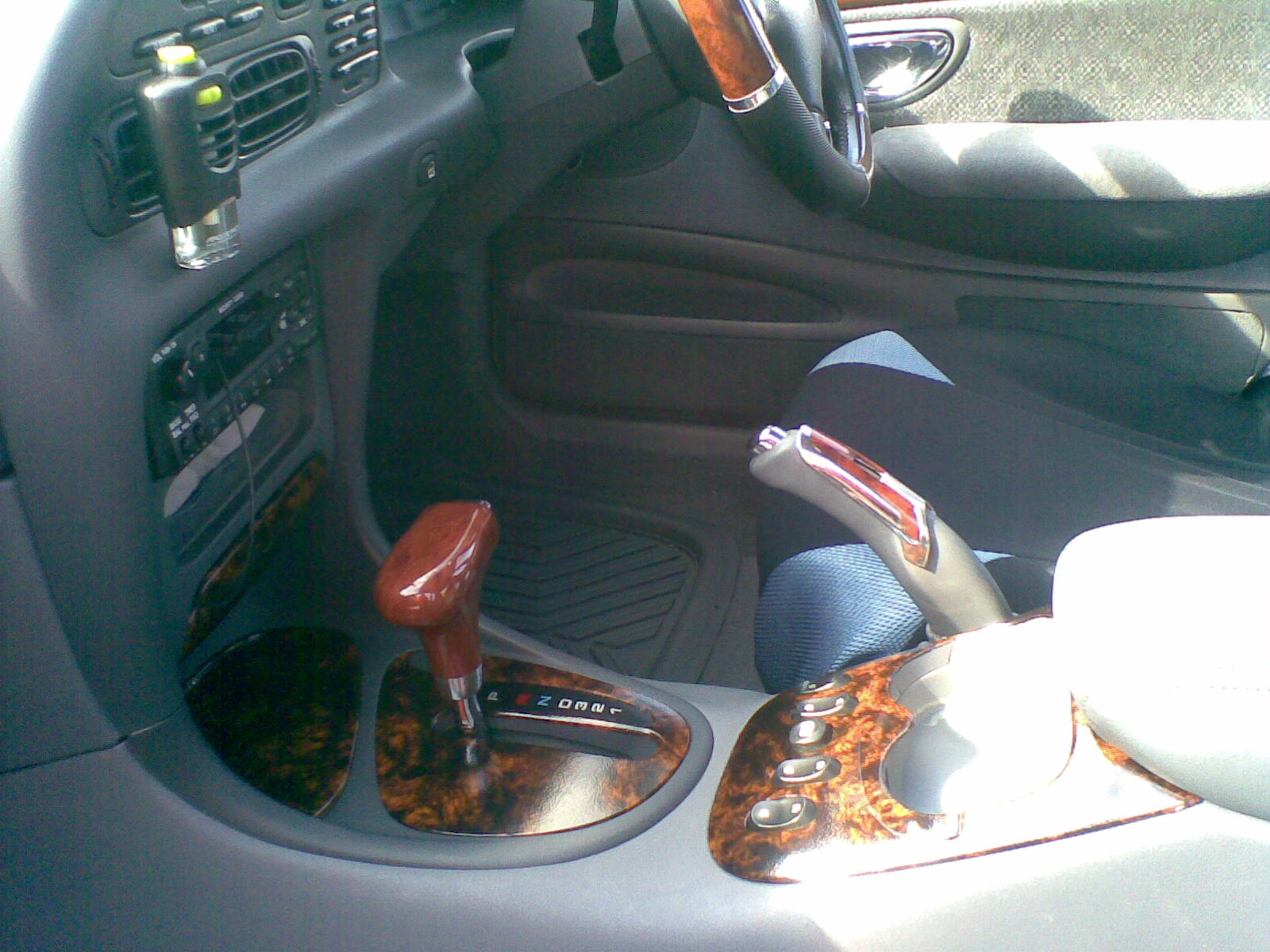

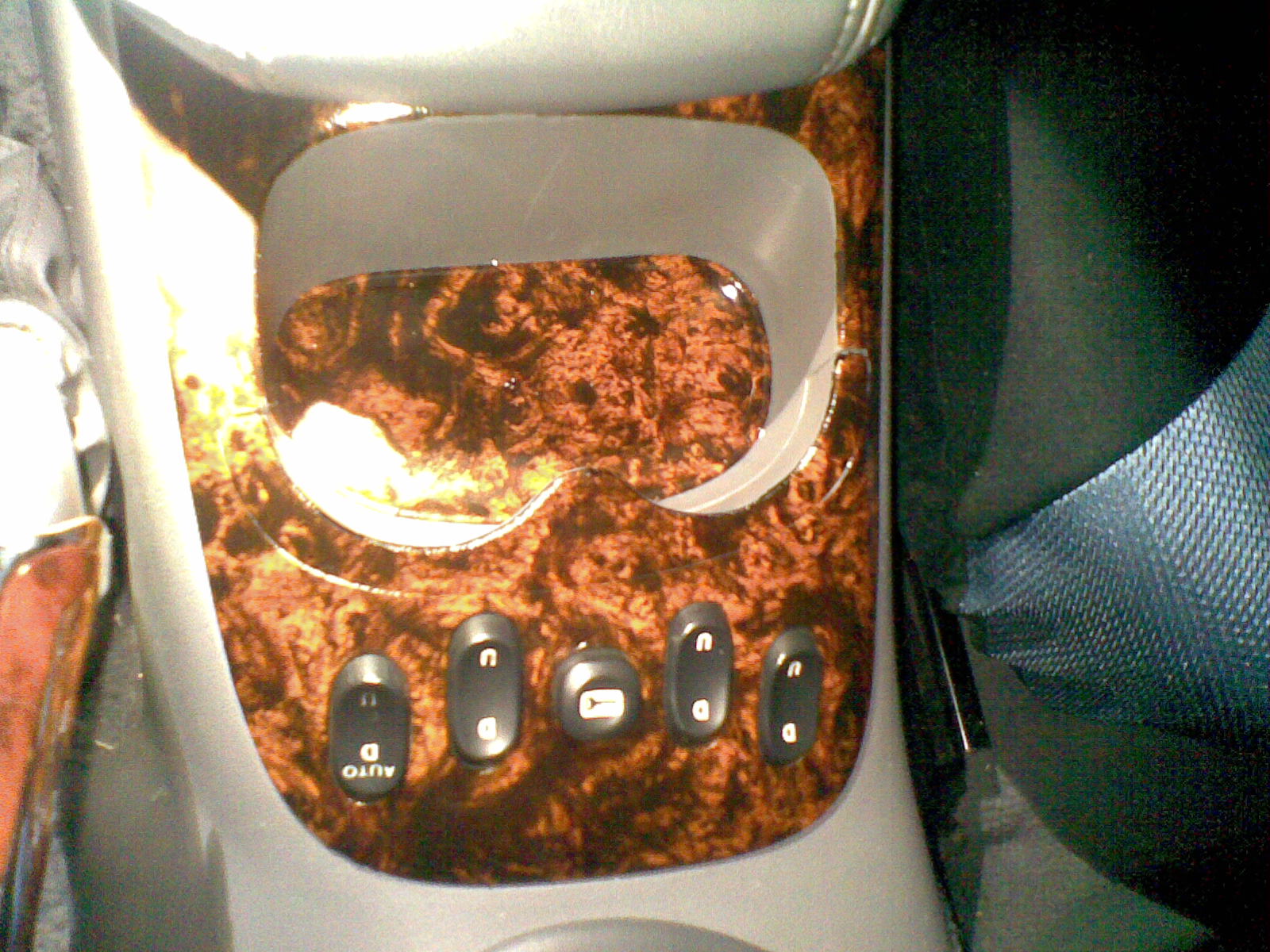

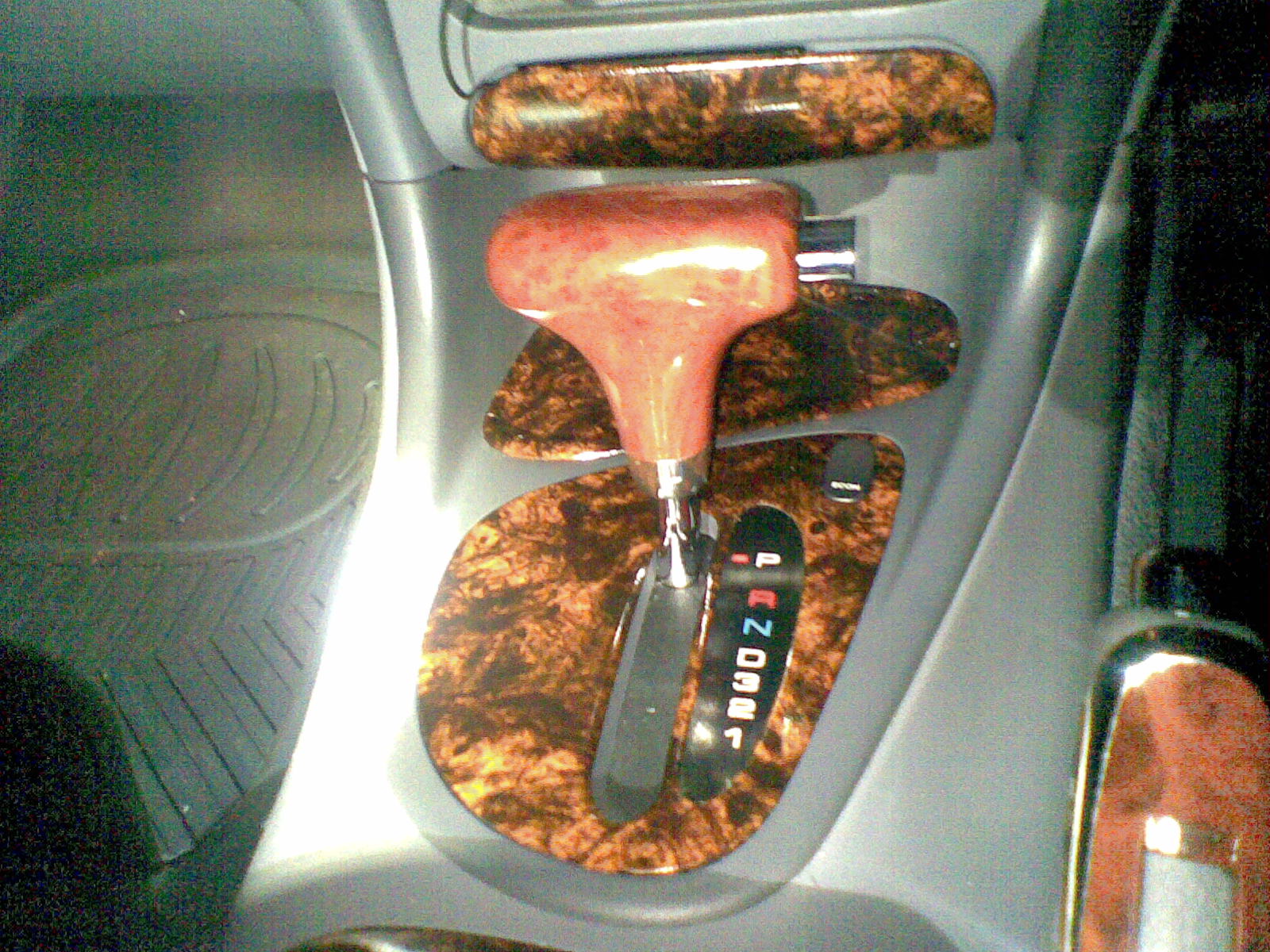

Haha thanks mate yeh you can nik that idea i havent got a copyright on it :lol: lol. i just thought of it cos i had enough vinyl to go around. i thought i over did it but like anything it becomes fun to do and addictive i wanted to woodgrain everything.il start to worry if i start putting woodgrain on the exterior haha.





Attachments:
01102011(010).jpg [ 428.31 KiB | Viewed 55 times ]
02102011(002).jpg [ 260.51 KiB | Viewed 43 times ]
01102011(008).jpg [ 359.61 KiB | Viewed 41 times ]



_________________

*NF FAIRLANE RIDING ON KING SPRING ULTRAS AND 20 INCH BSA CUSTOMS*
(Watching out for speed humps and steep driveways) ;-?

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sun Oct 02, 2011 10:38 pm
Getting Side Ways
Offline
User avatar

Age: 24

Posts: 1006

Joined: 1st Oct 2010

Gallery: 14 images

Ride: EF XR8

Location: Richmond,
NSW, Australia

Fairghia95 wrote:
Haha thanks mate yeh you can nik that idea i havent got a copyright on it :lol: lol. i just thought of it cos i had enough vinyl to go around. i thought i over did it but like anything it becomes fun to do and addictive i wanted to woodgrain everything.il start to worry if i start putting woodgrain on the exterior haha.

I like the switch array done in the wood grain, it'd match my Burr Walnut 2x DIN Stereo surround... Hmmm.... Haha



_________________

Blue blooded.

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Sun Oct 02, 2011 10:58 pm
Getting Side Ways
Offline

Age: 29

Posts: 887

Joined: 13th Mar 2011

Gallery: 14 images

Ride: 1999 Ford AU1 Forte Wagon

Location: Morwell
VIC, Australia

Fairghia95 wrote:
Haha thanks mate yeh you can nik that idea i havent got a copyright on it :lol: lol. i just thought of it cos i had enough vinyl to go around. i thought i over did it but like anything it becomes fun to do and addictive i wanted to woodgrain everything.il start to worry if i start putting woodgrain on the exterior haha.


hey mate does the nf lane have a diff ashtray to a ef mont cause ur ashtray looks diff to my monts one??



_________________

1999 AU Forte Wagon Fairly Stock

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Mon Oct 03, 2011 12:58 pm
Getting Side Ways
Offline
User avatar

Age: 24

Posts: 1006

Joined: 1st Oct 2010

Gallery: 14 images

Ride: EF XR8

Location: Richmond,
NSW, Australia

fordnut1988 wrote:
Fairghia95 wrote:
Haha thanks mate yeh you can nik that idea i havent got a copyright on it :lol: lol. i just thought of it cos i had enough vinyl to go around. i thought i over did it but like anything it becomes fun to do and addictive i wanted to woodgrain everything.il start to worry if i start putting woodgrain on the exterior haha.


hey mate does the nf lane have a diff ashtray to a ef mont cause ur ashtray looks diff to my monts one??

He's layered that in the woodgrain vinyl too,
I know that you can get a double DIN walnut surround, that is either aftermarket or OEM.
Im not quite sure.



_________________

Blue blooded.

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Mon Oct 03, 2011 2:47 pm
Getting Side Ways
Offline

Age: 29

Posts: 887

Joined: 13th Mar 2011

Gallery: 14 images

Ride: 1999 Ford AU1 Forte Wagon

Location: Morwell
VIC, Australia

REW93N wrote:
fordnut1988 wrote:
Fairghia95 wrote:
Haha thanks mate yeh you can nik that idea i havent got a copyright on it :lol: lol. i just thought of it cos i had enough vinyl to go around. i thought i over did it but like anything it becomes fun to do and addictive i wanted to woodgrain everything.il start to worry if i start putting woodgrain on the exterior haha.


hey mate does the nf lane have a diff ashtray to a ef mont cause ur ashtray looks diff to my monts one??

He's layered that in the woodgrain vinyl too,
I know that you can get a double DIN walnut surround, that is either aftermarket or OEM.
Im not quite sure.


i know he has layred it in woodgrain vinyl but if you compare the shape of it to a series 2 fairmont single din ashtray its looks diffrent



_________________

1999 AU Forte Wagon Fairly Stock

Top
 Profile


 Post subject: Re: installing vinyl material??
Posted: Mon Oct 03, 2011 3:45 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Series 1 and series 2 are different, Series 1 has a full cover which hides the Cig Lighter. Series 2 onwards exposed the lighter.
Top
