interior advice please!



Page 1 of 2 [ 21 posts ] Go to page 1, 2  Next


 Post subject: interior advice please!
Posted: Mon Oct 25, 2010 11:57 am
Parts Gopher
Offline
User avatar

Age: 35

Posts: 82

Joined: 20th Oct 2010

Ride: EF II XR6

Location: Melbourne
VIC, Australia

Hey guys,
Last summer I put in some leather seat covers, painted the interior black and had a few little issues that I need some help with.

Issue #1
Paint chipping on panels. I used a plastic primer, then a black interior paint for the panels, but have found panels are chipping and scratching. Is there such a thing as non-chipping primer that'd solve this? I'm going re-spray a fair few panels inside the car this summer.

Issue #2
Parcel shelf. The seats are all an ivory-cream color, but the parcel shelf is still that dull grey! How do I go about coloring this or adding a new material? I know it's not something I can just pull apart, so how would you go about this?

Thanks guys, any advice would be great.
Dark_EF





Attachments:

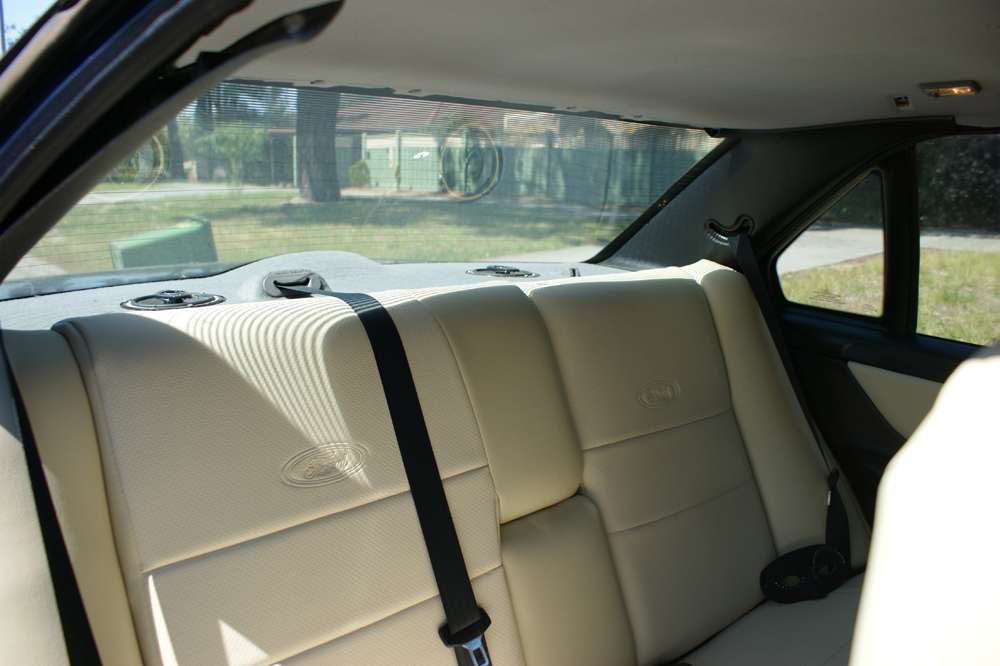

car.jpg [ 418.39 KiB | Viewed 185 times ]
Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 12:34 pm
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

The parcel shelf can be removed. undo the mount brackest for the child restraints, then remove the plastic clips. With the back seats folded down, peel the shelf away from the rear bulkhead. It then just lifts out.

Good luck

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 12:36 pm
Parts Gopher
Offline
User avatar

Age: 35

Posts: 82

Joined: 20th Oct 2010

Ride: EF II XR6

Location: Melbourne
VIC, Australia

Oh great, I had always assumed you couldn't remove it.
Now, I guess I can find some more leather and just cover the old carpet look!
Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 12:57 pm
Smokin em up
Offline
User avatar

Age: 46

Posts: 248

Joined: 4th Nov 2007

Gallery: 1 images

Ride: AUIII

Location: COONABARABRAN
NSW, Australia

:shock: :shock: :shock: whats with the mask on the back seat ??????

MITCHY



_________________

AUIII, PACEY 4499's, MAGNIFLOW CAT, 2.5" ZORST, 17X8" AUII XR RIMS....otherwise all factory!

Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 1:00 pm
Parts Gopher
Offline
User avatar

Age: 35

Posts: 82

Joined: 20th Oct 2010

Ride: EF II XR6

Location: Melbourne
VIC, Australia

Ha, I had my girlfriend's uni ball on the weekend and didn't even notice it!
Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 1:20 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

When i painted the centre console, vents, door handles and kickpanels in mine i just used alot of sandpaper then painted over it with straight paint from a spray can, no primer.

If that doesnt work, try a clear coat over the top of what you would normally do.



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 1:27 pm
Parts Gopher
Offline
User avatar

Age: 35

Posts: 82

Joined: 20th Oct 2010

Ride: EF II XR6

Location: Melbourne
VIC, Australia

I had sanded mine down pretty good, and even had some panels I didn't use primer on.
Both flaked and scratched, especially around the center console and kick panels.

That's why I'm wondering if anyone could suggest a good primer, or ... a non-chipping paint?
Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 2:23 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

I used a super cheap auto plastic primer, and spray putty - it sounds dodgey but it worked aye. It also depends on what sort of sand paper your using, as a minimum i would use 120-140 and paint over that, using thin light coats. After a few coats sand it back with 400 but not back to the plastic and paint over that, thats should give you a good smooth finish. It took 4 days to paint my console between coats of primer, spray putty and paint. But it has lasted 5+ years.



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 2:26 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Also, i should mention that alot of plastic interior parts would have been armor all'd previously in the cars life, a key ingredient of armor all is silicone. And paint don't stick well to that, so if they have ever been exposed to armor all, give them a thorough cleaning with hot soapy water several times, and leave in sun to dry. And remember this, a good paint job is 99% preperation.

Good Luck,



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 2:31 pm
Parts Gopher
Offline
User avatar

Age: 35

Posts: 82

Joined: 20th Oct 2010

Ride: EF II XR6

Location: Melbourne
VIC, Australia

Fairmont_03_5.4 wrote:
I used a super cheap auto plastic primer, and spray putty - it sounds dodgey but it worked aye. It also depends on what sort of sand paper your using, as a minimum i would use 120-140 and paint over that, using thin light coats. After a few coats sand it back with 400 but not back to the plastic and paint over that, thats should give you a good smooth finish. It took 4 days to paint my console between coats of primer, spray putty and paint. But it has lasted 5+ years.


Thanks, that sounds like a really good plan of attack. I'm unsure of if any products like that were used on my car previously, but I think after some good prep and a few days such as the above I should get some good results!
Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 2:34 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Yeah mate, you should be right aye with some really good prep.

Good Luck :)



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 2:38 pm
Parts Gopher
Offline
User avatar

Age: 35

Posts: 82

Joined: 20th Oct 2010

Ride: EF II XR6

Location: Melbourne
VIC, Australia

While I'm at it, the parts in my car that have peeled/cracked/chipped I need to completely strip of the paint, what's the best way to go about this?
Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 2:44 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

On Plastic - Sand Paper my firend, everything else will most likely screw with the finish. Dont use anything more abrasive than 120 but.



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 2:47 pm
Parts Gopher
Offline
User avatar

Age: 35

Posts: 82

Joined: 20th Oct 2010

Ride: EF II XR6

Location: Melbourne
VIC, Australia

Fairmont_03_5.4 wrote:
On Plastic - Sand Paper my firend, everything else will most likely screw with the finish. Dont use anything more abrasive than 120 but.


Great, thanks. I'll head down to bunnings tonight and grab quite a bit because there's a fair few panels I wasn't happy with. Luckily my twin sister works there (20% discount!) :D

Also, on the non plastic parts (such as top of dash, tops of doors) I used a vinyl dye, which worked really well but the finish wasn't as nice as I'd hoped. It's a little faded over the year. Should I just add another light coat of dye or use some sort of finish?
Top
 Profile


 Post subject: Re: interior advice please!
Posted: Mon Oct 25, 2010 3:06 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Hey Mate,

Never actually painted vinyl before, but if it was me then i would dye it more. Reason being is the vinyl is flexible, and paint is not. Where is the dye will be absorbed by the vinyl and still remain flexible so no cracking.

Cheers Mate,



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile
