So did you order T3, T4 or T5's from that seller on ebay?

It looks great by the way. There was another fella on Ford Forums that did this using a narva blue sleeve but I would rather go this way.

Do you have any tips re: getting to the globe?



_________________

xh96 ute, manual, unifilter, port polish, headers, 2.5" zorst, unichip, 161rwkt, venom body kit, 18" rims, lowered, dba slotted x-drilled rotors, hard tarp, debadged, tarp pins removed, obx seats, momo wheel & gear knob, silver dials, shift light, CD, remote central locking

Top
 Profile


Posted: Thu Apr 03, 2008 9:44 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

data_mine wrote:
I know of a NL Fairlane with UV LEDs everywhere. Weird effect.


as in blacklight? imagine taking someone home whos p****d, and they got in and they realised cricket whites were glowing :lol: what would happen then i wonder lol



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Thu Apr 03, 2008 11:30 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Yeah blacklights, and yep stuff glows.

Some stuff you wouldn't expect either.

At least it's easy to check if your cash is legit or not.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Apr 04, 2008 7:32 am
Parts Gopher
Offline
User avatar

Age: 32

Posts: 84

Joined: 21st Jan 2005

Location: Geelong
VIC, Australia

Got any pics of the blacklights? That would look trippy as!



_________________

In hope we believe... but in God we trust...

Top
 Profile


Posted: Fri Apr 04, 2008 7:37 am
Oompa Loompa
Offline

Posts: 20

Joined: 28th Feb 2008

Location: ballina
NSW, Australia

Hi flacco54,
I have just done the changeover to all LED in my EL ghia,but haven't got to do the dash,ignition or gear selector yet.It's easy except for the glovebox and front and rear reading lights.They are B9S bulbs and Ford has chosen to reverse the polarity so you need to do some soldering,etc with these.Well worth doing though-it looks so much better.
Top
 Profile


Posted: Fri Apr 04, 2008 9:15 am
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

madxh_96 wrote:
So did you order T3, T4 or T5's from that seller on ebay?

It looks great by the way. There was another fella on Ford Forums that did this using a narva blue sleeve but I would rather go this way.

Do you have any tips re: getting to the globe?


The globe is 10mm diameter and 12mm high, hence went for the T4 option in the auction.

I'm pretty happy with the results. I didn't want to do the sleeve option, that's more of a last resort if I couldn't get the globe I wanted.

Getting to the globe is fairly easy.

1) Under the steering column, lower the adjustment lever.

2) Move the steering column all the way out (towards you) and down (towards your feet).

3) Under the steering column are 3 Phillips Head screws (2 close to your knees, and another further down near the pedals). Remove all three screws.

4) With the screws gone, the plastic housing around the steering column needs to be removed. It actually 'splits' in the middle. Put one hand on the top half and another on the bottom half and it'll split open.

5) You can now see the clear plastic that holds the globe and key validator. It is held in by one phillips head screw and one cable. Unplug the cable, remove the screw, and the plastic unit will simply drop off.

6) The rest should be fairly self explanatory to get to the globe (well, it will be once you remove the small unit). Just use a small flathead screwdriver to open the unit and get to the globe (it simply twists out). Put in a new globe then reverse the procedure to re-install.
Top
 Profile


Posted: Fri Apr 04, 2008 12:57 pm
Getting Side Ways
Offline
User avatar

Age: 26

Posts: 741

Joined: 19th Jan 2007

Gallery: 2 images

Ride: XR8 Ute

Location: Bunbury
WA, Australia

i just saw thos pics of that dl ltd and his dash was tacho were all blue... how would i do this with an xh... cause i have a cd that lights up blue, i also have blue neons...

any help would be great



_________________

XR8 UTE: Low && Loud

Holdens were never designed to turn, brake or accelerate... as long as you can slam in subwoofers and dump it on rims 60% of australias 17-25 yo population are happy

Top
 Profile


Posted: Fri Apr 04, 2008 10:41 pm
Fordmods Newbie
Offline

Posts: 8

Joined: 7th Mar 2006

Location: Hobart
TAS, Australia

Cheers Vertgo - very helpful. Just ordered my set..........any ideas for the left over globe? anywhere else you can put these?



_________________

xh96 ute, manual, unifilter, port polish, headers, 2.5" zorst, unichip, 161rwkt, venom body kit, 18" rims, lowered, dba slotted x-drilled rotors, hard tarp, debadged, tarp pins removed, obx seats, momo wheel & gear knob, silver dials, shift light, CD, remote central locking

Top
 Profile


Posted: Sat Apr 05, 2008 10:42 am
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

madxh_96 wrote:
Cheers Vertgo - very helpful. Just ordered my set..........any ideas for the left over globe? anywhere else you can put these?


Glad to help.

Don't know about the left over globe. I'm hanging onto mine regardless.

Take your time with the installation, especially once you remove the plastic unit inside which houses the globe and the key validator. The globe is screwed into a circuit board (see my previous pictures) so you need to be a little careful in removing it and putting in the new one.
Top
 Profile


Posted: Sat Apr 05, 2008 10:51 am
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

I just found this thread. Awesome!

I shall be copying you immediately.

I'm also going to work on the rear passenger map lights and split it into two globes - when on courtesy, the Blue LED will come on, when switched on manually for MAP reading, the White LED will come on.

The centre courtesy light is already bright blue. And the door courtesy lamps (when they go in) will also be changed to blue.


Lukeyson
Top
 Profile


Posted: Sat Apr 05, 2008 3:34 pm
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

Lukeyson wrote:
I just found this thread. Awesome!

I shall be copying you immediately.

I'm also going to work on the rear passenger map lights and split it into two globes - when on courtesy, the Blue LED will come on, when switched on manually for MAP reading, the White LED will come on.

The centre courtesy light is already bright blue. And the door courtesy lamps (when they go in) will also be changed to blue.


Lukeyson


Always a pleasure Lukeyson. Be sure to keep us posted of your progress.
Top
 Profile


Posted: Mon Apr 14, 2008 12:04 am
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Opened up my Lab TILA today and found what you were talking about.

T4 has been ordered.


Lukeyson
Top
 Profile


Posted: Thu Apr 24, 2008 10:54 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Looking good.

I'll take a shot from it installed in the car tomorrow.



Lukeyson

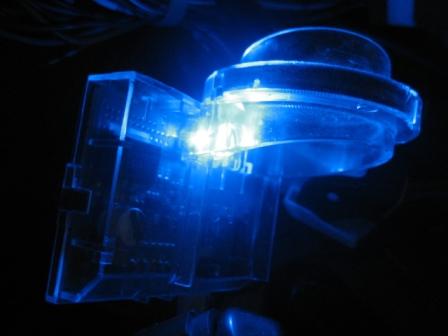

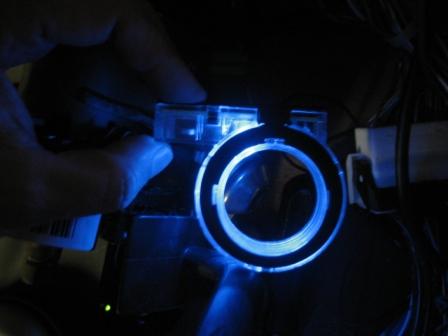

Attachments:
IMG_3118_WEB.jpg [ 23.54 KiB | Viewed 69 times ]
IMG_3120_WEB.jpg [ 24 KiB | Viewed 57 times ]
Top
 Profile


Posted: Fri Apr 25, 2008 1:53 pm
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

That's the unit I was talking about Lukeyson, you got it. Good work.
Top
 Profile


Posted: Fri Apr 25, 2008 11:42 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Done





Attachments:

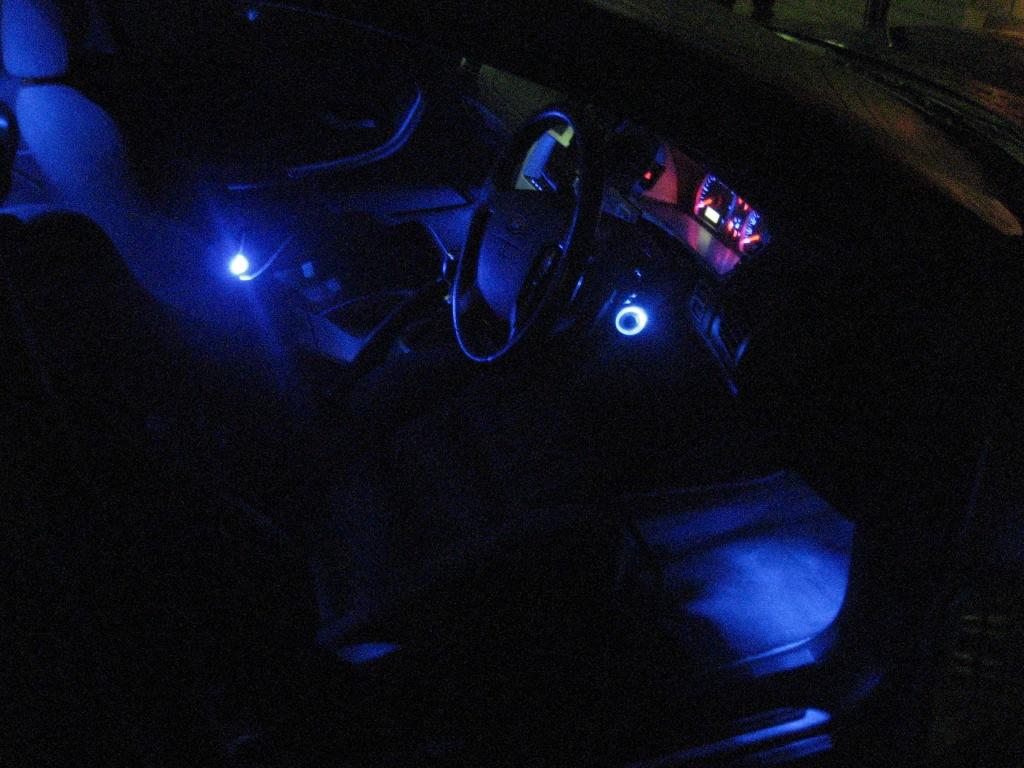

File comment: I like it! Ignition Barrell comes up a treat. Note that the bright light at the Passenger Seat is my newly installed BF Fairlane Door Trim with courtesy light......
IMG_3137_WEB.jpg [ 101.87 KiB | Viewed 74 times ]
Top
