Thanks Waggin,

dunno why you couldn't get the tacho working with the Motec, mitch got it working on his EL Ghia V8, (he's running an MSD unit).


Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Fri Jun 23, 2006 10:39 pm
Stock as a Rock
Offline

Age: 44

Posts: 112

Joined: 8th Nov 2004

Ride: EL Falcon

Location: Canberra
ACT, Australia

justfordima wrote:
Thought Id post this up.

Credit goes to Dang for this, I just finished off his circuit, and added names, so forth.

Note, MAX232A's use 0.1uF caps instead of the 1uF's.

Also the LM7805 is just a 5V fixed voltage regulator, which can be substituted with anything else.

And the 2N2222 can also be replaced with whatever basic transistor.

All of these can be bought at jaycar if anyone was wondering.

To top it all off, its late, so any mistakes let me know, I just quickly sketched it up.

Good luck.

Now, back to it for me :D

Cheers



Thanks for the acknowledgement. I'll be keeping an eye on what all you nerds come up with given the one commodity I'm well short on at the moment - time. Kid #4 has arrived since I first posted this thread. He's turning 1 next month. How time flies.......

Glad to give you lads a start, now make me and the Fordmods family proud!

Dang.
Top
 Profile


Posted: Sat Jun 24, 2006 12:02 am
Smokin em up
Offline
User avatar

Age: 30

Posts: 243

Joined: 12th Apr 2005

Gallery: 5 images

Ride: Falcon EL XR6

Location: sydney
NSW, Australia

so what does that circuit allow you to do.



_________________

EL Falcon XR6, 2.5in exhaust, extractors, ported throttle body, sequential intake, CMS stage 2 head. Tickford cam!!!!!
"158 RWKW"

http://www.youtube.com/watch?v=ErQSNeJmXsk (video of my XR6 on the Dyno)

Top
 Profile


Posted: Sat Jun 24, 2006 10:21 am
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

Quote:
so what does that circuit allow you to do
It's an interface - takes the data line information and converts it to a format readable by the computer (via a COM port). Still need software to interpret it all though...



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
 Profile


Posted: Sat Jun 24, 2006 11:49 am
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

if you need software talk to justfordima, he would know how to write some up for you.



_________________


I have a car.

Top
 Profile


Posted: Sat Jun 24, 2006 6:27 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

yeah, Ill work with the interface work out some data, and probably write a little app to present the data a little better.

Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Thu Jul 06, 2006 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

well its been a few weeks now since we have heard anything. I needed a school project so i thought of this one. I am looking for any data and stuff you guys have obtained so that i can continue and present something. I am currently making my carputer and have a 8" LCD coming in the mail next week.

I have PMed some guys here and am looking forward to some very helpful tools, tips, advice, and information.

Cheers all and i hope we get this for distrubution in the next few months. BTW i have about 20 x 100m lesson to work on this not to mention all my holidays.

Ben



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Fri Jul 07, 2006 2:10 am
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

build the above circuit, use the terminal server mentioned, and you're alright. Feed some data into the ECU, and read the DOL from the ECU, or just wire up the dash.

The next thing I was gonna do is feed a DOL to the dash, changing things to see what controls what. Just haven't had time.


Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Fri Jul 07, 2006 4:04 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

dude

OVER
_______
my head



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Fri Jul 07, 2006 1:21 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

which is the DOL? Noob question.



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Fri Jul 07, 2006 1:23 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

60 pin plug, pin 34, 104 pin plug, pin 43.

Is that what youre asking?

Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Fri Jul 07, 2006 2:39 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

arrr yeah.......Now thats on the ECU loom right???? also which one if EF and which one is EL....the EL one is 104 right?



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Fri Jul 07, 2006 3:20 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2550

Joined: 28th Jun 2005

Gallery: 13 images

Ride: EF 5 Speed, XH Uterus :P

Location: Hobart
TAS, Australia

stomper wrote:
arrr yeah.......Now thats on the ECU loom right???? also which one if EF and which one is EL....the EL one is 104 right?


EL would be 60 pin IIRC.



_________________

Maloo - Holden's word for ugly.

Top
 Profile


Posted: Fri Jul 07, 2006 5:59 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

yes, EL is 60 pin... EF and Aus run 104 pin (coil packs).


Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Thu Nov 02, 2006 9:40 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

Sorry to thread dig but i was coming back over this and got idea's.

At school i found some data loggers. They are pretty shiity eLab units.

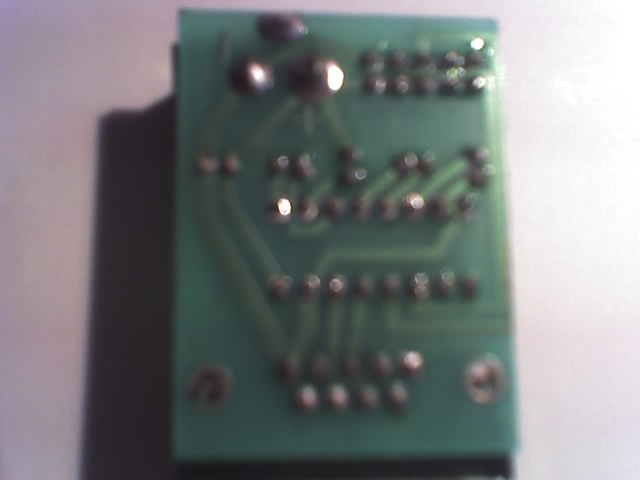

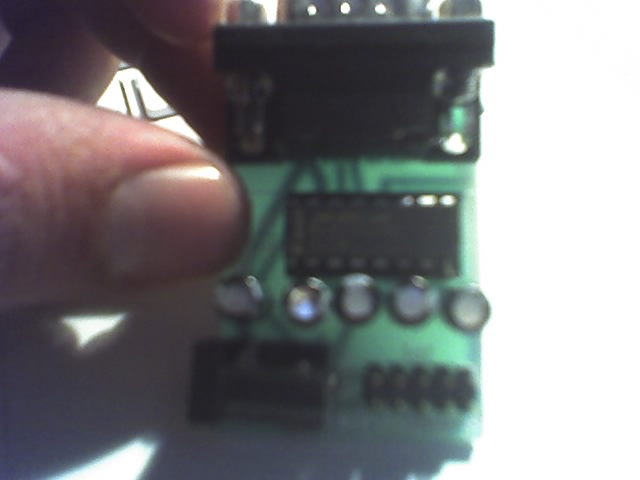

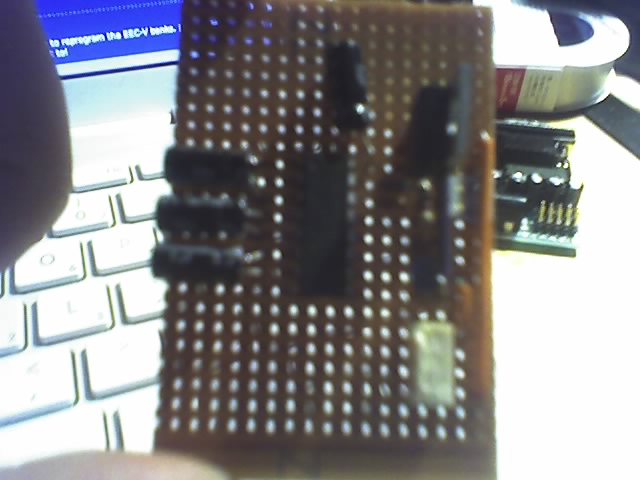

In these kits they have serial communicators. With these serial communicators they have the 4 capactors that the one here does plus one extra. It has the serial port and its got a power connector. So its missing 2 resistors, a transistor and the PVR. But if we pump 5v into it and not 12v then this should get rid of the resistors, PVR and transistor.





Attachments:
02-11-06_2107.jpg [ 64.71 KiB | Viewed 35 times ]
02-11-06_2106.jpg [ 58.64 KiB | Viewed 27 times ]
02-11-06_2105.jpg [ 55.34 KiB | Viewed 33 times ]
