 Post subject: Re: Light Trick for EA,ED clusters
Posted: Tue Jan 05, 2010 2:37 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

I had the fairmont digital dash in my ea and I converted the whole thing to blue and it looked brilliant...

Had to try a bunch of different LEDs to find the right ones... they had like 6 rectangular LED's in the T10 housing, but they were angled out to distribute the light... when I was done it lit up like a blue xmas tree..... digital readout and all...

I kept the LED's when I sold the car so they'll be going into my NL fairlane cluster I have here.
Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Mon Jan 11, 2010 10:42 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

Hay with that digital Dash what leds did u use cos i might be biying those ones one ebay that easpak91 was on about

2 green:Indicators
6 Blue:Illuminatin,High beam,Power switch
2 orange:coolant,Oil
8 Red:Seatbealt light,Warning light

But how do i change the LCD colors



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Mon Jan 11, 2010 11:31 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Crazy6ltr wrote:
Hay with that digital Dash what leds did u use cos i might be biying those ones one ebay that easpak91 was on about

2 green:Indicators
6 Blue:Illuminatin,High beam,Power switch
2 orange:coolant,Oil
8 Red:Seatbealt light,Warning light

But how do i change the LCD colors


These were the type I used... only ones that looked good imho...
http://cgi.ebay.com.au/T10-6-LED-Blue-Dash-Kit-Commodore-VR-VP-VL-VN-VS-4pcs_W0QQitemZ390117210542QQcmdZViewItemQQptZAU_Car_Parts_Accessories?hash=item5ad4cc39ae you might be able to find them cheaper if you look around.


LCD is hard to change colour in the EF/EL, but dead easy in the EA-ED.. just put the globes in... mine went blue with just the LED change.. EF/EL requires that you pull the orange filter out but if your LED's are bright enough, you don't need to with the EA-ED cluster.


cheers

Frank
Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Tue Jan 12, 2010 11:40 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

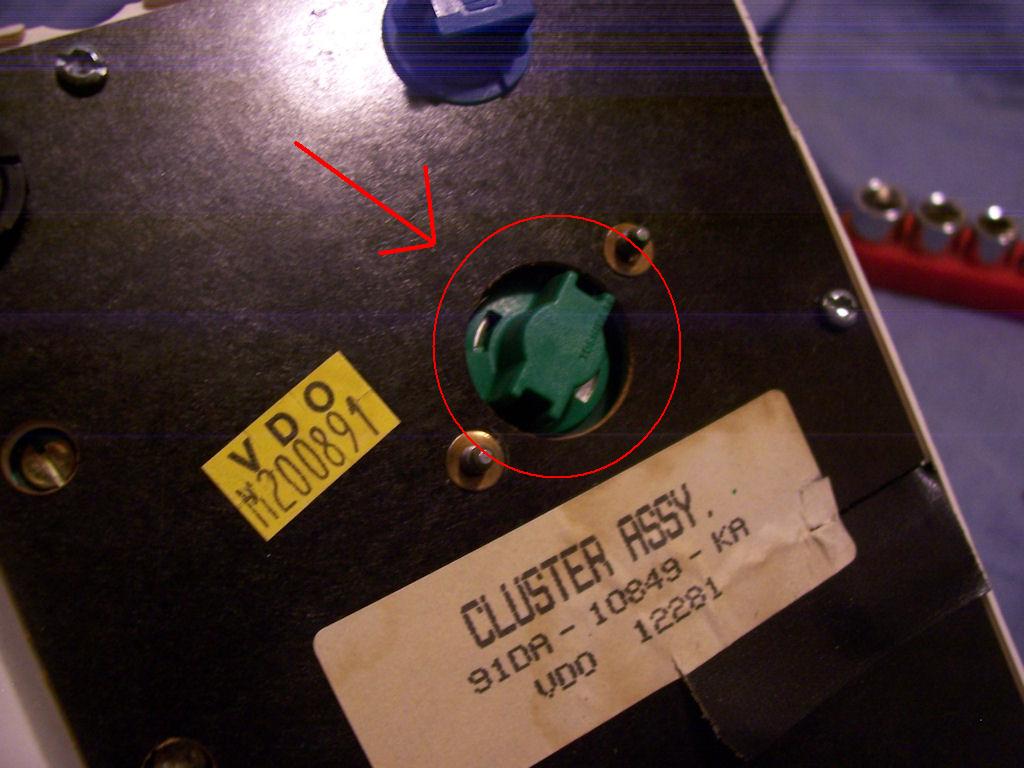

That is Phat As,but how do a remove the green bulb tjingys
Attachment:
100_1114.jpg [ 95.56 KiB | Viewed 42 times ]



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Tue Jan 12, 2010 11:43 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 251

Joined: 9th Sep 2009

Ride: ED falcon gli - XR6 replica

Location: Canberra
ACT, Australia

the one you have circled is a bulb holder and will come out with a 1/4 turn adn then pull out



_________________

Ford ED Falcon Gli, T5 conv, Twinlight lights, exedy sports tuff clutch, modified EA front grill, ED XR6 complete interior, 19" speedy graphites, monroe gt shocks, kingspring superlows, CAI, ported tickford head, 3:45 LSD.
Soon: paccies, custom centre console

Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Tue Jan 12, 2010 11:49 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

It's a tough kunt but i got it with multi-grips



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Sun Jan 17, 2010 12:57 pm
Fordmods Newbie
Offline

Age: 28

Posts: 3

Joined: 6th Jan 2010

Gallery: 6 images

Ride: ED Fairmont

Location: Langwarrin
VIC, Australia

frankieh wrote:
Crazy6ltr wrote:
Hay with that digital Dash what leds did u use cos i might be biying those ones one ebay that easpak91 was on about

2 green:Indicators
6 Blue:Illuminatin,High beam,Power switch
2 orange:coolant,Oil
8 Red:Seatbealt light,Warning light

But how do i change the LCD colors


These were the type I used... only ones that looked good imho...
http://cgi.ebay.com.au/T10-6-LED-Blue-Dash-Kit-Commodore-VR-VP-VL-VN-VS-4pcs_W0QQitemZ390117210542QQcmdZViewItemQQptZAU_Car_Parts_Accessories?hash=item5ad4cc39ae you might be able to find them cheaper if you look around.


LCD is hard to change colour in the EF/EL, but dead easy in the EA-ED.. just put the globes in... mine went blue with just the LED change.. EF/EL requires that you pull the orange filter out but if your LED's are bright enough, you don't need to with the EA-ED cluster.


cheers

Frank


Do the LEDs you've linked to on ebay work well behind the tacho and fuel gauges?
Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Sun Jan 17, 2010 1:56 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

They were the brightest ones I could find... so I used them everywhere.. I just didn't turn on the parkers in the photo but it worked well.
Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Tue Jan 19, 2010 9:29 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

Hey frank do u think u could post a pic of it all lit up i wana see if its bright enough.



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Wed Jan 20, 2010 1:30 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Sorry mate.... I sold that car about 2 months ago... have an EL now and I've just done the same thing to it... The LEDs I showed you worked well in the EA cluster.. it was bright and vibrant... the first lot I tried were not.... I've since bought lots of others too. but the ones I mention above are the brightest.

I should add that after I took that photo,, I also converted the trip computer (another T10) and replaced all the climate control LEDS with blues as well.

That was more complicated as you have to solder about 10 LED's into the board.


That worked out so well that I kept the climate control when I sold the car and put a standard one in.

Trust me, If you get the type of LED's I suggested, you won't be sorry... If you buy single LEDs (like the big ones in the photo above) you will be sorry as I had to take them out and put more of the ones in the link above in before it looked good.
Top
 Profile


 Post subject: Re: Light Trick for EA,ED clusters
Posted: Wed Jan 20, 2010 11:48 am
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

Thanks Heaps man ill save up and get some for the eb.



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile
