Loose Cup Holder - Suggestions??



Page 2 of 2 [ 25 posts ] Go to page Previous  1, 2


Posted: Mon Mar 06, 2006 12:35 pm
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

fordfreak ef wrote:
underneath where the legs are that hinge on all i did to fix mine (ef fairmont) was to melt part of the legs n melt a lil of the plastic to make a heap more resisitance to stop the cup holder arms falling down n drinks going everywhere... coke/ants and cars dont mix... :lol: cost nothing to modify and now the drink holder works as it should do...was a 15 min job...

hahaha that works sweeet! havnt tested it out with drinks yet...but its a hell of a lot harder to push it down ;)



_________________


Top
 Profile


Posted: Mon Mar 13, 2006 9:53 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 204

Joined: 23rd May 2005

Gallery: 4 images

Ride: EL Futura

Location: Perth
WA, Australia

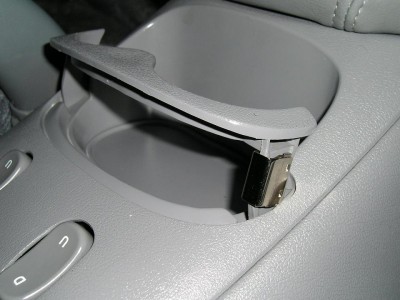

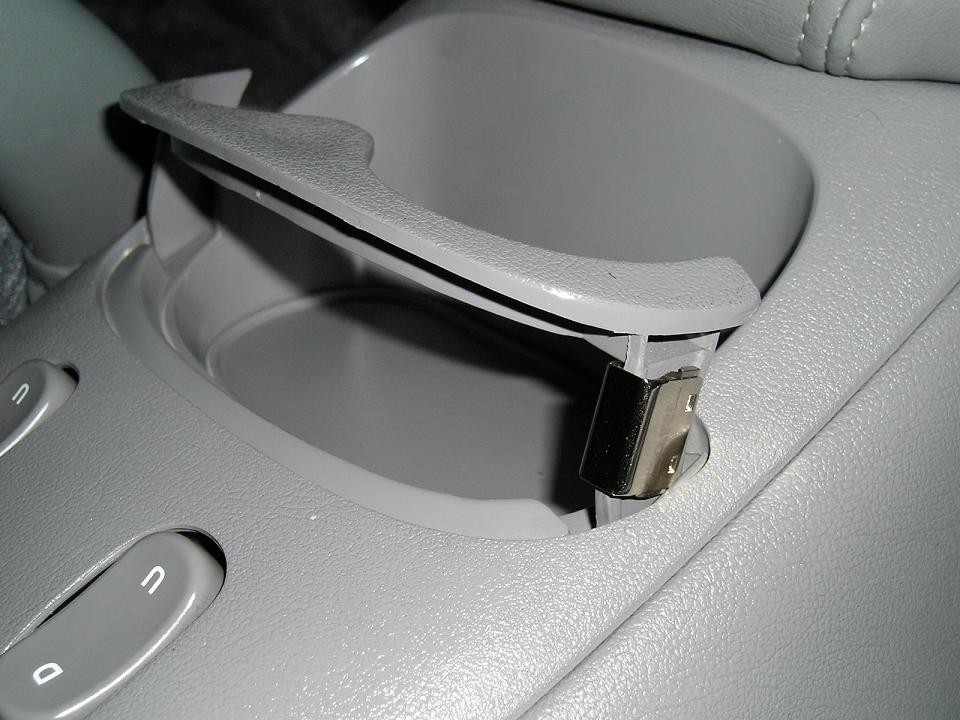

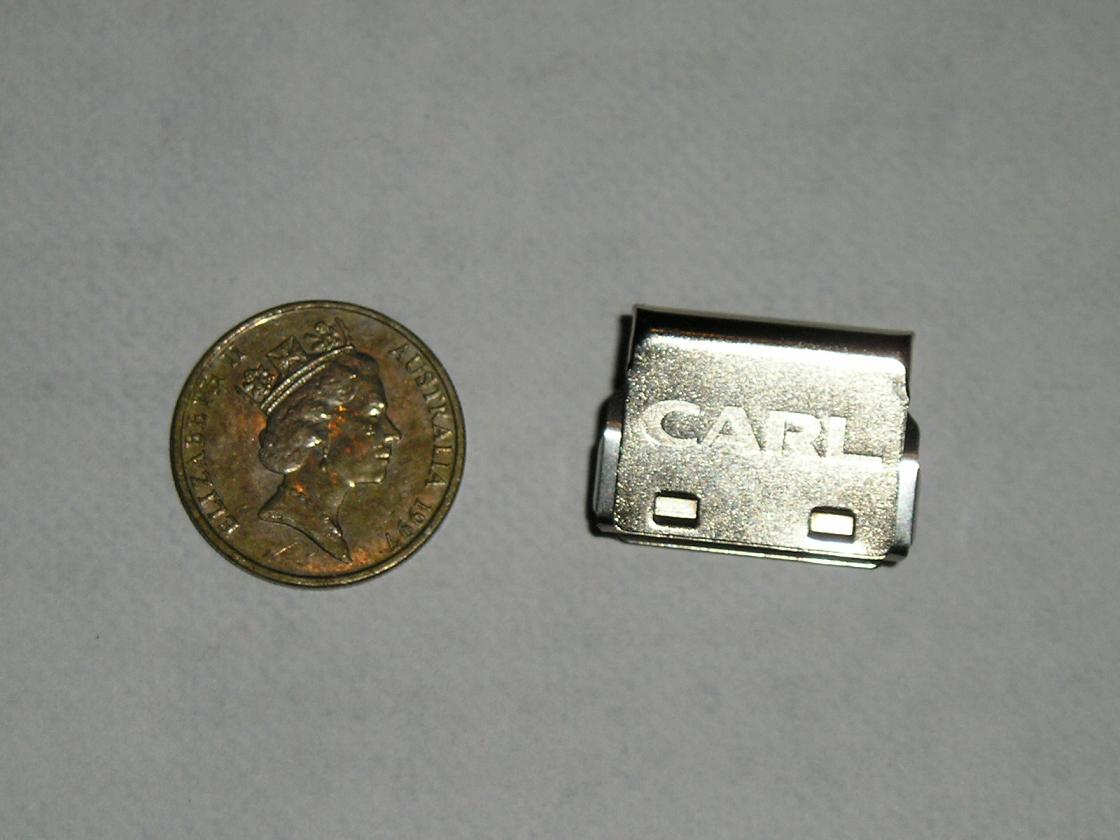

Heres a 5 cent solution to the cupholder dilemma...Its an extension of 4.9 ef's bulldog clip solution, but a bit cleaner. Ive got tons of these paperclip things on my desk. Works a treat....very sturdy.

Available where all good stationary is stolen! :wink:





Attachments:
Clip close.JPG
Clip close.JPG [ 80.14 KiB | Viewed 30 times ]
Cupholder.JPG [ 94.78 KiB | Viewed 27 times ]



_________________

Thorpy says single wipers are Fully SIK!

EL Futura Dynamic White
Tickford Suspension
K&N Hi flow and XR8 snorkel
DBA Slots and braided lines

Top
 Profile


Posted: Thu Mar 16, 2006 5:38 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

Oh My GOD!!! i know what a problem!

If you don't know i am being sarcastic!!

simple don't go to maccas as often!! don't know why cars have these all the posh import cars and proper sports cars don't have them why cause you got to concentrate on the road.


go to clints and buy the 3.50 plastic thing that sites in the grove of the window.



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Thu Mar 16, 2006 7:00 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 637

Joined: 25th Nov 2004

Ride: Toyota Surf, EF Fairmont

Location: Melbourne, Northern Suburbs
VIC, Australia

why spend 3.50 on a cup holder from clints, when the cup holder is already in place. i could go to MACCAS and buy a thinkshake and fries for 3.50
Top
 Profile


Posted: Thu Mar 16, 2006 10:34 pm
Getting Side Ways
Offline

Age: 32

Posts: 740

Joined: 10th Nov 2004

Location: sale
VIC, Australia

what do people think of the little actuator idea? any good any idea what would suit and where i could get one
Top
 Profile


Posted: Fri Mar 17, 2006 2:08 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

spannerhead wrote:
Hey fordfreak....you got any pics of what youve done to the menace cupholder?. Sounds like a good fix that other people could do too!
posting pics is harder than the job itself lol :lol: all u do is melt a little part of the legs underneath with a soldering iron n shape the soft plastic..wait for it to cool n harden in place n voila! "bobs your aunty!!" install back in n marvel at the ease of whhich my can of coke sits in the holder.. even around corners!! :shock: :lol: 8-) :wink:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Fri Mar 17, 2006 2:11 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

mitch_anderson wrote:
fordfreak ef wrote:
underneath where the legs are that hinge on all i did to fix mine (ef fairmont) was to melt part of the legs n melt a lil of the plastic to make a heap more resisitance to stop the cup holder arms falling down n drinks going everywhere... coke/ants and cars dont mix... :lol: cost nothing to modify and now the drink holder works as it should do...was a 15 min job...

hahaha that works sweeet! havnt tested it out with drinks yet...but its a hell of a lot harder to push it down ;)
easy aye?? :wink: cost nothing to fix...time mayby?? 15mins :lol: hard to believe some one would go out n buy a new cup holder section cos of the inherrant "crapness" of the standars one when it can be moddified to work so much better!!



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Tue Mar 28, 2006 4:59 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

The question of the actuator, i woul say hook up a couple of central locking actuators and attach them to the bottom of the arms. then hook them into a rocker switch. one way up, one way down.

Real cheap if you pull them out of U-pull it or the like, places.
Top
 Profile


Posted: Wed Mar 29, 2006 10:02 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Ok, heres my attempt at solving this problem.

In a nutshell, i've just increased the pressure that the little black locating lugs push against the "cam" on the moving part of the holder.

I did this with two short pull springs and two short bits of wire made of the same metal as the springs (straightened out spring wire)

The only modifications done to the cup holder itself is 2 holes melted into the locating lugs, and 2 holes at the back of the black plastic (see pics)

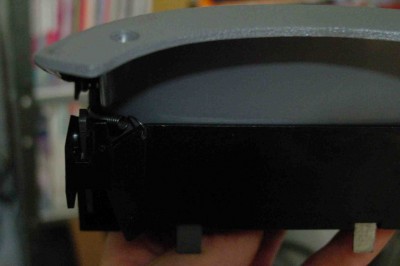

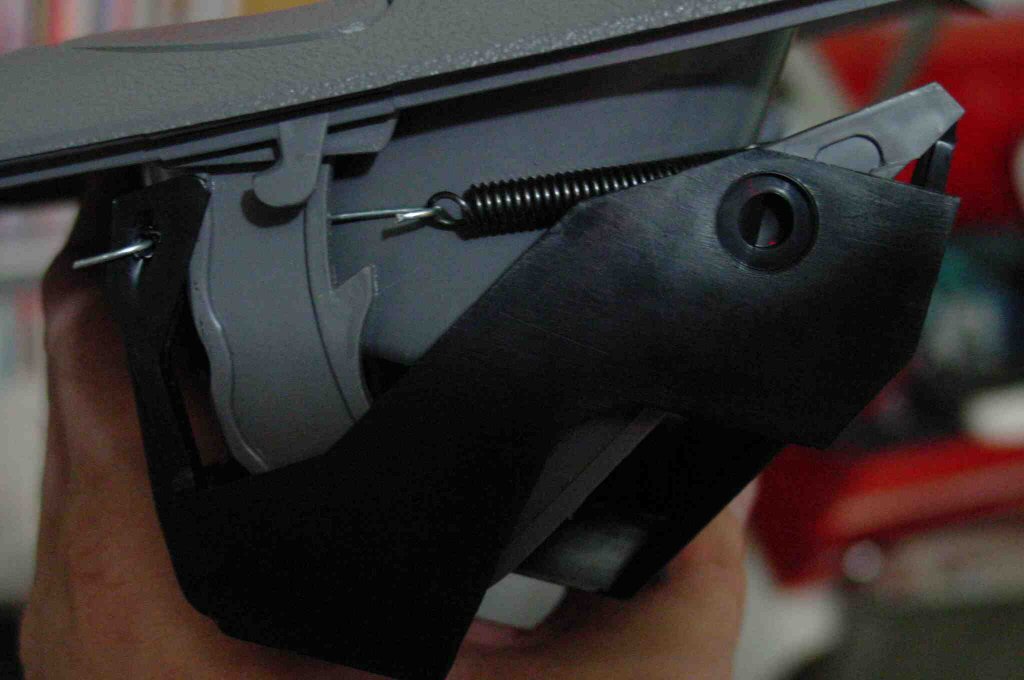

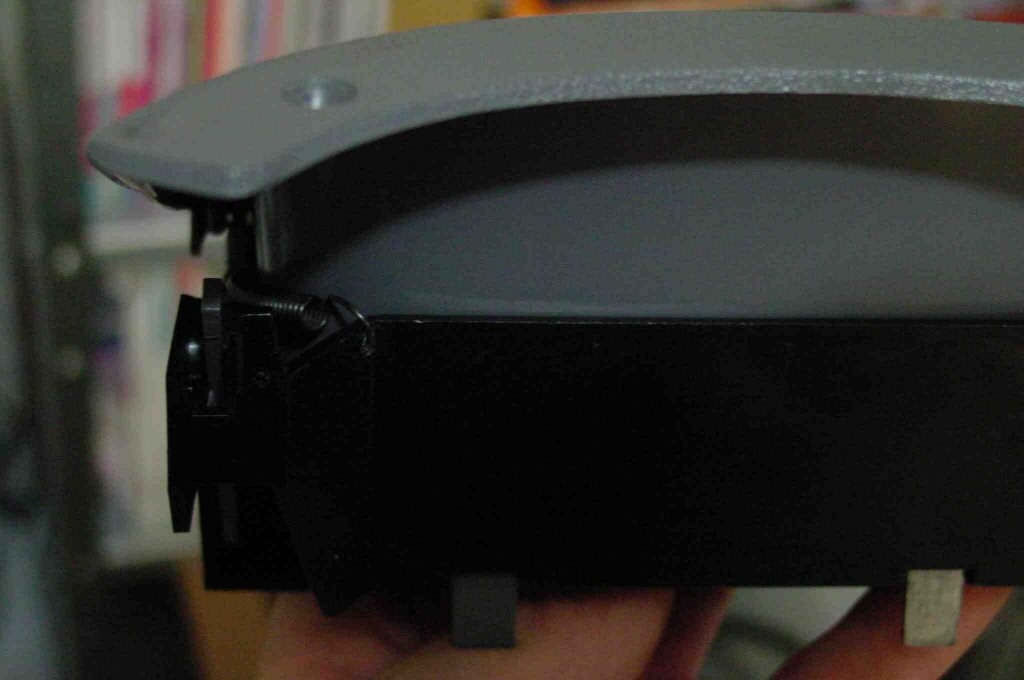

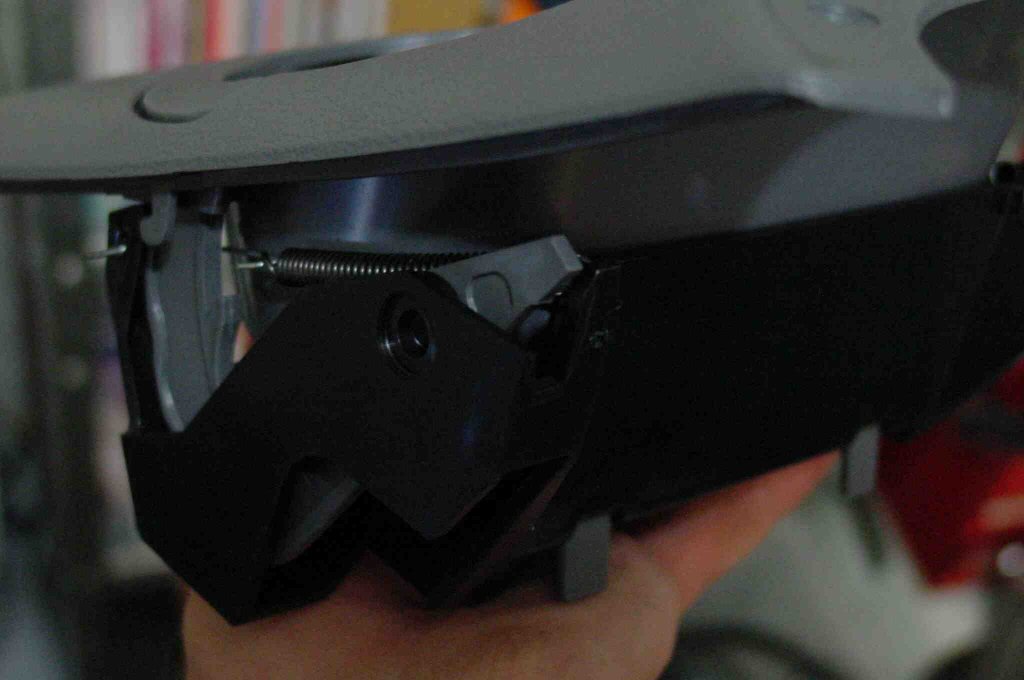

I don't think I need to go into details, as the pics pretty much explain all. On each side, the wire is attached to the hole melted in the lug (Holder_1.jpg). The other end of the wire has a hook, and is connected to the pull spring, which is hooked around the hole melted in the back of the plastic (Holder_3.jpg).

The end result is a much more positive locking feel, but everything appears the same once assembled.

I've used a pretty strong pair of springs, I had to cut them to the correct length to get the right amount of tension on the lugs. Experiment to get a result you're happy with. Also, don't forget to smear a bit of grease on the lugs and cam to reduce wear.





Attachments:
File comment: Holder_1.jpg
Holder_1.jpg [ 85.42 KiB | Viewed 36 times ]
File comment: Holder_2.jpg
Holder_2.jpg [ 72.07 KiB | Viewed 36 times ]
File comment: Holder_3.jpg
Holder_3.jpg [ 67.84 KiB | Viewed 39 times ]



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Wed Mar 29, 2006 11:46 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

hmmmmm havent had that problem in my EL yet....since i dun allow anyone to drink or eat in the car.......the EA how ever never came with one....disasterous times. but the spring idea was good EBGizmo but i might give the actuator idea a go.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile
