Loose Cup Holder - Suggestions??



Page 1 of 2 [ 25 posts ] Go to page 1, 2  Next


 Post subject: Loose Cup Holder - Suggestions??
Posted: Sun Mar 05, 2006 2:11 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 204

Joined: 23rd May 2005

Gallery: 4 images

Ride: EL Futura

Location: Perth
WA, Australia

Anyone got any great ideas on how to stop the little bar on the cup holder from dropping down all the time....keep slipping down and spilling my drinks! :roll: s**t me to tears.

I want it to click in nicely - not be as loose as a hookers t***. Im sure someone in the Fordmods clan has come up with a you-bewt fix. So share...



_________________

Thorpy says single wipers are Fully SIK!

EL Futura Dynamic White
Tickford Suspension
K&N Hi flow and XR8 snorkel
DBA Slots and braided lines

Top
 Profile


Posted: Sun Mar 05, 2006 2:20 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 5313

Joined: 6th Nov 2004

Gallery: 4 images

Ride: Surf, Turbo Diesel

Location: Melbourne, S.E Suburbs
VIC, Australia

was a pain in the a**...
i just held it up with my hand (and drove manual)

put bluetac in it or something?



_________________


Top
 Profile


Posted: Sun Mar 05, 2006 2:27 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 204

Joined: 23rd May 2005

Gallery: 4 images

Ride: EL Futura

Location: Perth
WA, Australia

Yeah - Im sick of holding it up though. Gotta be a more permamnt fix?. I reckon its common falcon problem that someone has already tackled.

Prove me right boys... :P



_________________

Thorpy says single wipers are Fully SIK!

EL Futura Dynamic White
Tickford Suspension
K&N Hi flow and XR8 snorkel
DBA Slots and braided lines

Top
 Profile


Posted: Sun Mar 05, 2006 3:27 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah, I had a gutfull of it - there's a number of methods, but this what I did a while ago:
1. Cut a notch in the cupholder arms at full extend position. You may need to trim them to get the fingers to lock in.
2. Drill some holes and fit some strong cord(fishing line may be best) - I used aircraft lockwire.
3. Find and fit something to use as a button.

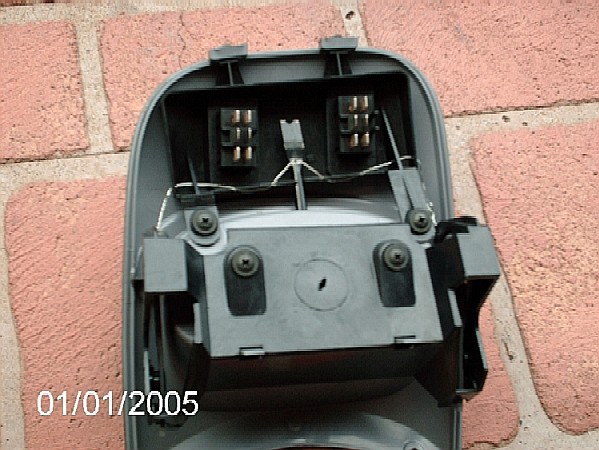

4. Setup your cord/fishing line, etc as per the pic - you'll need to drill holes in the fingers as well. You may need to adjust tension to achieve the desired effect. You'll need those holes near the button to give leverage on the cord.

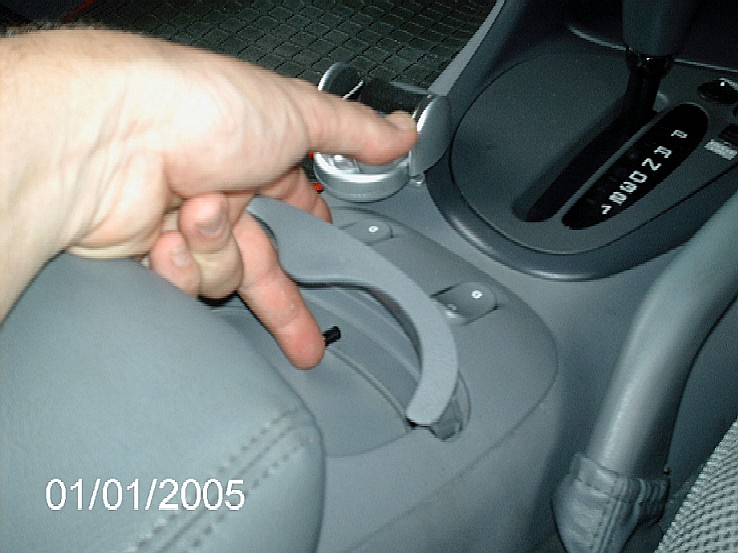

5. So when you raise the cupholder arm, it locks in - to break the lock, press the button :P

You might want to add some small return springs to the fingers to aid locking. Took me about 4 hrs to make (most time was designing it), and bits and pieces I had in the garage. It's been fitted for about 10 months now - works fine.
Fairmont and non power windows cupholders will need to be done differently and maybe use a different system to achieve same.





Attachments:

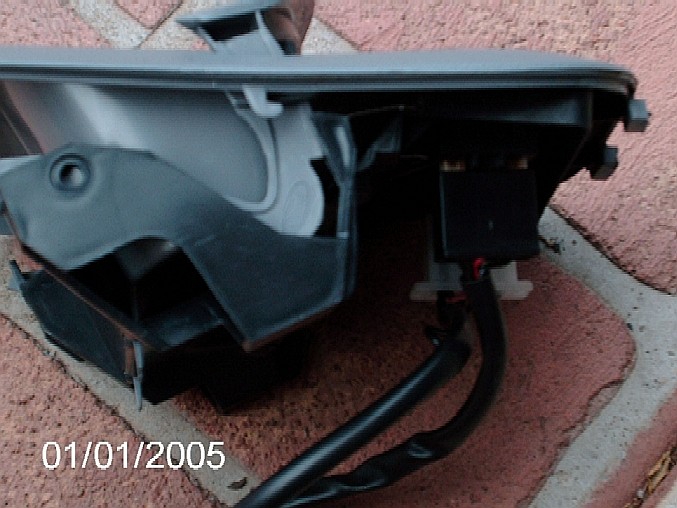

locking_cupholders.jpg [ 89.28 KiB | Viewed 75 times ]
locking_cupholders1.jpg [ 88.45 KiB | Viewed 75 times ]
File comment: Locking Cupholders
locking_cupholders2.jpg [ 96.2 KiB | Viewed 69 times ]



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Mar 05, 2006 3:30 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 3343

Joined: 5th Nov 2004

Gallery: 9 images

Location: Brisbane
QLD, Australia

how much is a new one from ford if they still sell them?
Top
 Profile


Posted: Sun Mar 05, 2006 3:31 pm
Getting Side Ways
Offline
User avatar

Age: 79

Posts: 1233

Joined: 7th Apr 2005

Gallery: 7 images

Ride: GTHO PH 1 EF ex chaser

Location: Willow vale, GOLD COAST
QLD, Australia

Very ingenious TOP stuff :D



_________________

Rotten Old Revhead!!! XW GTHO + EF ex cop car (exractors 2.5 cat back zorst !6" Simmons K&N +airbox mods Lowered with Bilstein shocks+Whiteline Bars NEXT THING Swap HO for GTP or Ferrari!

Top
 Profile


Posted: Sun Mar 05, 2006 6:53 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 204

Joined: 23rd May 2005

Gallery: 4 images

Ride: EL Futura

Location: Perth
WA, Australia

Awesome work Snap!. I knew one of the Modders would have rigged something up. Will give it a go.



_________________

Thorpy says single wipers are Fully SIK!

EL Futura Dynamic White
Tickford Suspension
K&N Hi flow and XR8 snorkel
DBA Slots and braided lines

Top
 Profile


Posted: Sun Mar 05, 2006 8:39 pm
Getting Side Ways
Offline

Age: 32

Posts: 740

Joined: 10th Nov 2004

Location: sale
VIC, Australia

put something electronic in there push a button and it goes up and push it again it goes down just an idea i thought of
Top
 Profile


Posted: Sun Mar 05, 2006 8:40 pm
Getting Side Ways
Offline
User avatar

Posts: 1552

Joined: 26th Oct 2005

Ride: Falcon

Location: Melbourne
VIC, Australia

yer i loved the first time i put my maccas cup in the
supposibly CUP HOLDER. only held it for 2 second and went all over my centre console.

boy that was a great day.



_________________

SIGNATURE REMOVED - REFER TO FORUM GUIDELINES!

Top
 Profile


Posted: Sun Mar 05, 2006 8:41 pm
Smokin em up
Offline
User avatar

Age: 29

Posts: 223

Joined: 1st Jan 2006

Gallery: 3 images

Ride: AU 1 Tonner

Location: Kariong
NSW, Australia

buy like a little actuator that pushes up when switched on and it releases when switched off.
That would be an awsome mod LOL



_________________

To be old and wise you first have to be young and stupid

Top
 Profile


Posted: Sun Mar 05, 2006 8:45 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

theblackone wrote:
yer i loved the first time i put my maccas cup in the
supposibly CUP HOLDER. only held it for 2 second and went all over my centre console.

boy that was a great day.


thats why bottled water is only allowed in my car, saves s**t going everwhere and things getting sticky

but good mod there snap, good s**t



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


Posted: Mon Mar 06, 2006 12:04 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

underneath where the legs are that hinge on all i did to fix mine (ef fairmont) was to melt part of the legs n melt a lil of the plastic to make a heap more resisitance to stop the cup holder arms falling down n drinks going everywhere... coke/ants and cars dont mix... :lol: cost nothing to modify and now the drink holder works as it should do...was a 15 min job...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Mon Mar 06, 2006 3:04 am
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

Stupid fuken POS ford cupholers.. most f**k useless things ever..

ive had a whole large thickshake go all over the carpet cause of the bloody things!

not to mention they dont even fit 6*600ml bottles!

even with one in there hit the brakes and it falls out...

i now wedge drinks down the side of the seat behind the hankbrake



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Mon Mar 06, 2006 12:04 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 204

Joined: 23rd May 2005

Gallery: 4 images

Ride: EL Futura

Location: Perth
WA, Australia

Hey fordfreak....you got any pics of what youve done to the menace cupholder?. Sounds like a good fix that other people could do too!



_________________

Thorpy says single wipers are Fully SIK!

EL Futura Dynamic White
Tickford Suspension
K&N Hi flow and XR8 snorkel
DBA Slots and braided lines

Top
 Profile


Posted: Mon Mar 06, 2006 12:12 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

I just put a bulldog clip on one of the uprights, so it stays up permanantly...



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile
