Pics of led modded dashes pls (with new dash pics :D)



Page 3 of 15 [ 211 posts ] Go to page Previous  1, 2, 3, 4, 5, 6 ... 15  Next


Posted: Sat Aug 19, 2006 2:48 am
Stock as a Rock
Offline
User avatar

Posts: 157

Joined: 14th Jul 2006

Ride: EL

Location: Adelaide
SA, Australia

Ok cool thanks.
I will definitely have to go for some leds. However, i dont think i have seen a red conversion yet. Might have to go for a red look rather than the blue. something different i guess.
Top
 Profile


Posted: Sat Aug 19, 2006 10:51 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1640

Joined: 16th Jun 2005

Gallery: 11 images

Ride: EF Falcon

Location: Driver's Seat
VIC, Australia

some people have done red... i'll see if i can locate a pic for you..



_________________

-------- Falcs --------
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Top
 Profile


Posted: Sat Aug 19, 2006 11:02 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1640

Joined: 16th Jun 2005

Gallery: 11 images

Ride: EF Falcon

Location: Driver's Seat
VIC, Australia

found one....
thanks to Rapier... (hope you don't mind, buddy)
Except he's got white dials with red here instead of red LEDs... but it'll give you an idea.




_________________

-------- Falcs --------
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Top
 Profile


Posted: Sat Aug 19, 2006 1:40 pm
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

look in my gallery on the second page i have blue leds but i changed the background also
Top
 Profile


Posted: Sat Aug 19, 2006 2:04 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 724

Joined: 11th Nov 2005

Gallery: 1 images

Ride: BF Fairmont

Location: Melbourne
VIC, Australia

Falc "They r a really light shade of whitey blue, looks kinda sxc". (out of my missuses mouth :P). Have to agree with her tho much much betta than standard yellowish light n u get a decent amount of light in the cabin unlike u would if u used blu or green led's for the same job.

Brett-one wrote:
wounded if im the 1st to do the cruise and econ lights blue?


Sorry dude its been done.


K its started finally next in line is the top of the dash which is goin black. Then under the dash which will probaly be a shade of charcoal unsure yet. Seats are getting recovered in black leather with double silver stiching blue stiched logos ive yet to decide on. Will continue the black silver & metalic blue theme throughout the car. And of course will be putting on a black & blue momo wheel very soon :) Headunits out of car (thats why the stockies in there atm) for painting of the front facias. My gf's sister is doing all the lettering & pics on the buttons for me (art freak) Hoping for a good result in the end.
Top
 Profile


Posted: Sun Aug 20, 2006 8:33 pm
Tyre Shredder
Offline

Age: 29

Posts: 357

Joined: 7th Jun 2006

Location: sydney
NSW, Australia

hey, can you guys tell me how da hell you do all this? lol it looks f**king mad, how many LEDS do u need to do the spedo,tacho,fuel,battery and whateva else on the dash, and about the approximate cost? cheers and keep up the good work



_________________

BA XR6 Turbo, Blueprint, 18's, Premium Sound, Leather.

Top
 Profile


Posted: Mon Aug 21, 2006 12:08 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1640

Joined: 16th Jun 2005

Gallery: 11 images

Ride: EF Falcon

Location: Driver's Seat
VIC, Australia

Search mate, search... covered millions of times.

here's a doco on it...
http://www.fordmods.com/forums/documents.php?doc=1

you can also buy LEDs instead of makin them yourself like in the doco ^^



_________________

-------- Falcs --------
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Top
 Profile


Posted: Mon Aug 21, 2006 7:45 pm
Tyre Shredder
Offline

Age: 29

Posts: 357

Joined: 7th Jun 2006

Location: sydney
NSW, Australia

cheers



_________________

BA XR6 Turbo, Blueprint, 18's, Premium Sound, Leather.

Top
 Profile


Posted: Mon Aug 21, 2006 8:33 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

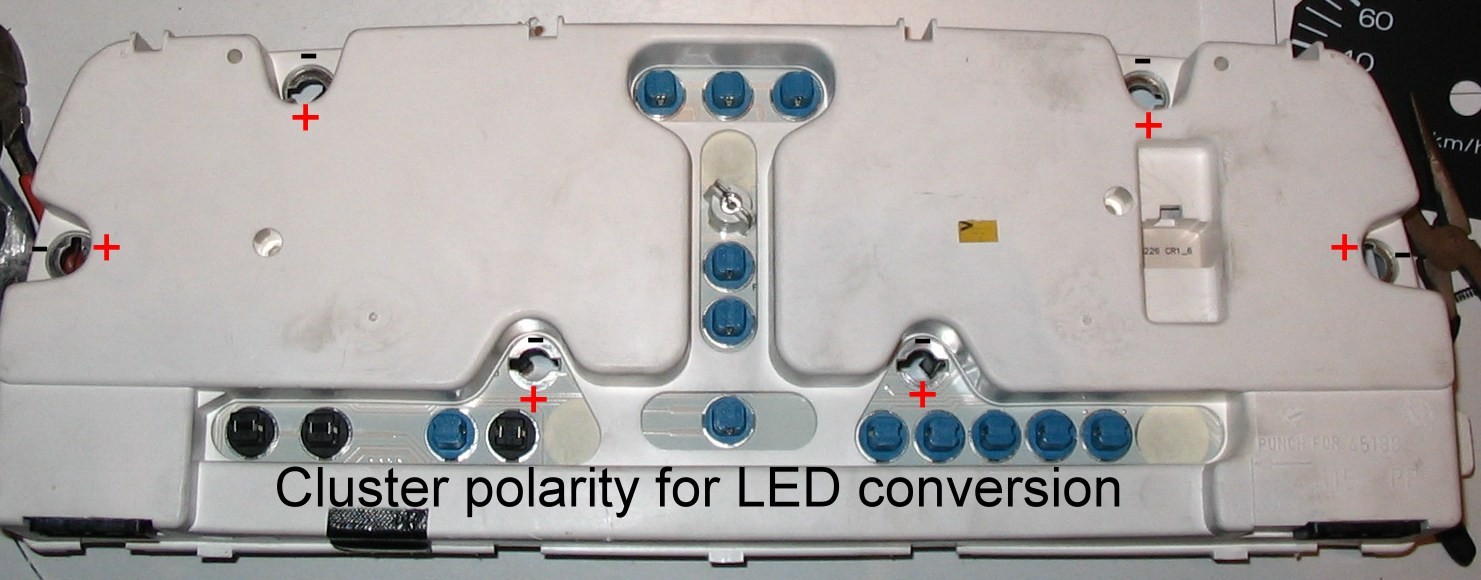

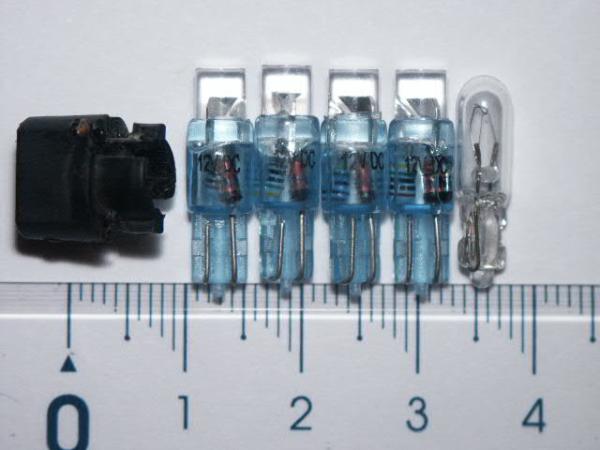

Hi Andrich, as you have probably found if you checked the Doco that you need 6 LED's to do you dash. You can get them from Narva, part number 47902, you can get them from Autobarn or Repco. Get a pack of 10, it's a hell of a lot cheaper. I used these and found them a bit directional, as they are, even after I sanded the tips to disperse the light a bit more. I found these globes on EBay and they are terrific they plug into your white or black globe holders, you won't be able to use the blue ones as the globes don't come out as they do with the black of white, just grab hold of the globe and pull. The new globe (LED) just pushes in. The same guy also has T10 LED's that just plug and play as well. As all LED's are only good when plugged in the correct polarity, I have attached a pic of the Cluster and the polarity, the pic is not mine, it was sent to me by a friend. You can checkl the polaity of your LED's by using a 9volt battery and sonme wire and small clips. I just marked mine with a red marking pen to show the correct side for positive. Hope this helps. :D [/img]





Attachments:
Cluster Polarity.jpg
Cluster Polarity.jpg [ 157.06 KiB | Viewed 142 times ]
T5 LED.jpg
T5 LED.jpg [ 29.19 KiB | Viewed 82 times ]
Top
 Profile


Posted: Mon Aug 21, 2006 8:36 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

sorry, didn't put down the guys store on EBay, Just go on EBay and look up T5 led or go to online shop warden_jp2002 :)
Top
 Profile


Posted: Sun Aug 27, 2006 11:22 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 724

Joined: 11th Nov 2005

Gallery: 1 images

Ride: BF Fairmont

Location: Melbourne
VIC, Australia

I think i killed fordmods or at least for me neways :( I havent gotten any new posts on any forums for at least 5 days............ (this post is just in the hope that it might fix things for me :P)

Neways i just did my dash surround in chrome will post a pic of that n the lit up white dash tonight :)
Top
 Profile


Posted: Sun Aug 27, 2006 11:25 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 724

Joined: 11th Nov 2005

Gallery: 1 images

Ride: BF Fairmont

Location: Melbourne
VIC, Australia

btw does ne1 know how to change the color card in the climate control unit??? Ive pulled it apart and the only way i can see is to unsolder the pin connectors (im not really hugely confident in doing that myself..... Soldering skills could do with a bit of work). If no1 knows how might have to take it to jaycar n get one of them to do it.........
Top
 Profile


Posted: Sun Aug 27, 2006 11:41 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1640

Joined: 16th Jun 2005

Gallery: 11 images

Ride: EF Falcon

Location: Driver's Seat
VIC, Australia

pics pics pics pics pics pics pics pics pics pics!!



_________________

-------- Falcs --------
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Top
 Profile


Posted: Sun Aug 27, 2006 3:14 pm
Getting Side Ways
Offline

Age: 37

Posts: 512

Joined: 7th Mar 2006

Ride: Falcon GLI

Location: Perth
WA, Australia

gryph

may i ask where the hell r your back seats?
Top
 Profile


Posted: Sun Aug 27, 2006 3:16 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

I'll have to grab some night shots of my dash, i bought the LED's from Motorquipe P'n'P and i frosted the first set and the brightness was s**t due to the light spreader inside the E-Series Cluster.
The next set i bought i didn't sand the tops and the brightness was fantastic. My recomendation is don't sand the tops of the led's or buy 2 sets and try it.


I'll grab some pics tonight.



_________________
