Rear console light BA XR6 **FOUND ANSWER**



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: Rear console light BA XR6 **FOUND ANSWER**
Posted: Tue Aug 29, 2006 12:18 pm
Fordmods Newbie
Offline
User avatar

Posts: 14

Joined: 16th Jun 2006

Location: Melbourne
VIC, Australia

i was wanting to see a picture of where the light goes in at the back of the console on a ba/bf ghia, i have a xr6 and i have taken the cover off but i cannot see or find where i could put the golbe and i was wanting to see how it is done in the ghia.


thanks

Last edited by DREW00 on Wed Aug 30, 2006 3:26 pm, edited 1 time in total.

Top
 Profile


Posted: Tue Aug 29, 2006 3:25 pm
Stock as a Rock
Offline
User avatar

Age: 47

Posts: 144

Joined: 25th May 2006

Gallery: 29 images

Ride: G6E Turbo

Location: Adelaide
SA, Australia

The wiring loom for the rear console light is not in the XT or XR (not sure about GT).
I was going to do the same.
The hole is there but that is it.



_________________

AG3NT - 2008 FG G6E Turbo / SS Growler Kit / 19 Inch Dark Argent Wheels / ASL RGB System / FPV Cluster / 60lb Injectors / F6 Piping & Intercooler / KPM 15PSI Tune
JON211 - 2006 BF Fairlane Ghia / SS Induction / 18 Inch FG G6ET Wheels / ASL RGB System / Twin Rear Headrest LCD DVD Players

Top
 Profile


Posted: Tue Aug 29, 2006 3:30 pm
Fordmods Newbie
Offline
User avatar

Posts: 14

Joined: 16th Jun 2006

Location: Melbourne
VIC, Australia

i can put the wires in i just need a bulb holder or something there, i just wanted to see where the bulb goes in the ghia. I have out the foot well lights in as i have premo sound, i was wanting to put the light in at the back of the console, there must be another part to put in that holds the golbe in or something
Top
 Profile


Posted: Wed Aug 30, 2006 3:25 pm
Fordmods Newbie
Offline
User avatar

Posts: 14

Joined: 16th Jun 2006

Location: Melbourne
VIC, Australia

i have found the answer if you just buy the lens part no. EA13K707A it has the holder for the bulb on it.....





Attachments:
File comment: The lens with the bulb in it, i got the bulb holder (the brown bit) from a wrecker
Photo-0030.jpg [ 13.34 KiB | Viewed 200 times ]
File comment: The Lens from Ford
Photo-0029.jpg [ 12.61 KiB | Viewed 60 times ]
File comment: Part No
Photo-0028.jpg [ 15.93 KiB | Viewed 56 times ]
Top
 Profile


Posted: Wed Aug 30, 2006 8:17 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

sweet how much that set ya back?



_________________

Nicko

Top
 Profile


Posted: Wed Aug 30, 2006 8:49 pm
Stock as a Rock
Offline
User avatar

Age: 44

Posts: 129

Joined: 25th May 2005

Ride: BA XR6

Location: Melbourne
VIC, Australia

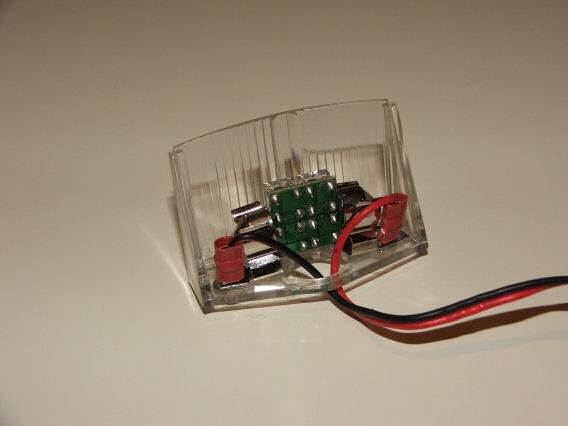

I bought the lens from ford, bought a cheap festoon lamp kit from supercheap auto, a bit of cutting and some wire and I have a very very bright LED console light. I now have a 6chip High Intensity White 41mm festoon LED in there now, looks very nice and took about 1hr at max from start to finish.





Attachments:

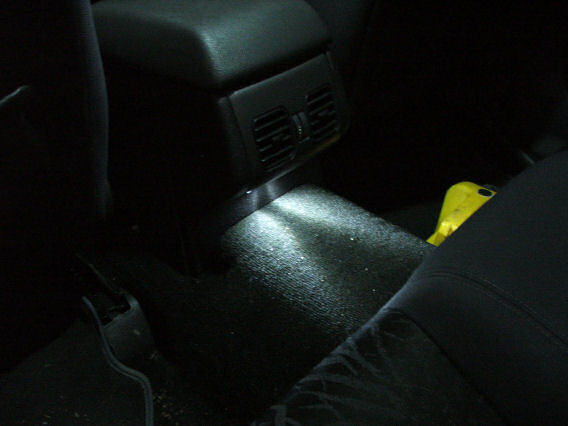

rear foot light 1.jpg
rear foot light 1.jpg [ 27.8 KiB | Viewed 73 times ]
console light.JPG
console light.JPG [ 22.72 KiB | Viewed 85 times ]



_________________

2004 Harvest Green XR6
Orsm Ford Cruisers
ORSM Ford Cruiser's Web Site

Contact me for Cluster Programming & Window switch colour change for BA/BF Falcons & Territory.

Top
 Profile


Posted: Wed Aug 30, 2006 9:32 pm
Fordmods Newbie
Offline
User avatar

Posts: 14

Joined: 16th Jun 2006

Location: Melbourne
VIC, Australia

The lens cost $10.00
Top
 Profile


Posted: Wed Aug 30, 2006 11:43 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

wicked ill go grab one!

Where bouts you from Drew?
You should come down to a meet!
we need to show off some more ba's!



_________________

Nicko

Top
 Profile


Posted: Thu Aug 31, 2006 9:48 am
Fordmods Newbie
Offline
User avatar

Posts: 14

Joined: 16th Jun 2006

Location: Melbourne
VIC, Australia

i am from Hughesdale, which i across the road from chadstone shopping centre, i have been to some meets a while a go, you might remember my old car the bright blue XE Falcon...
Top
 Profile


Posted: Thu Aug 31, 2006 4:59 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

DREW00 wrote:
i am from Hughesdale, which i across the road from chadstone shopping centre, i have been to some meets a while a go, you might remember my old car the bright blue XE Falcon...

ahhh thought it was you!

im round the corner in oakliegh!



_________________

Nicko

Top
 Profile


Posted: Tue Jun 24, 2008 12:37 am
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

I installed mine over the weekend in Spark Blue, pretty happy with the results.





Attachments:
IMG_3747.JPG [ 161.04 KiB | Viewed 1795 times ]
IMG_3743.JPG [ 115.27 KiB | Viewed 1774 times ]
IMG_3742.JPG [ 103.07 KiB | Viewed 1765 times ]
Top
 Profile


Posted: Tue Jun 24, 2008 12:29 pm
Stock as a Rock
Offline

Age: 32

Posts: 110

Joined: 17th May 2008

Gallery: 16 images

Ride: BA

Location: Bendigo
VIC, Australia

WOW that mod is awesome! I hope the XT's have it too. I've got footwell and dome as neon blue that would just set it off!

Good work guys.

Tyler



_________________

Silver 2003 BA XT - 2 ported 12" Alpine type R subs, 5 by 7 Alpine type R rears, 5 and half inch Alpine splits up front, Alpine head unit.

Blue dome and footwell neons. Debadged and deaerialed. Custom front grill.

Wheels and lowering to come next, then exhaust.

Top
 Profile


Posted: Tue Jun 24, 2008 12:50 pm
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

The XTs will have the hole for the light/lens at the back of the console but will not have any wiring. You'll need to run this yourself.

Since I had front footwell neons, I spliced into this wiring and just ran the new cables down the side of the console and into the little hole. The end result is all good.
Top
 Profile


Posted: Thu Jun 26, 2008 9:44 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Oooh. I have the brightest T10 I could find in mine, but the bastards are usually directional, and I've never really been happy with the brightness. When the LED points 'up' from th socket, that means most of the light is shining into the guts of the console, and not as much out the lense.

That festoon idea looks to be the trick.

Must go and fix now.....


Lukeyson

Last edited by Lukeyson on Fri Jun 27, 2008 8:58 am, edited 1 time in total.

Top
 Profile


Posted: Fri Jun 27, 2008 1:25 am
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

Lukeyson wrote:
Oooh. I have the brightest T10 I could find in mine, but the bastards or usually direction, and I've never really been happy with the brightness.

Must go and fix now.....


Lukeyson


I've ALWAYS purchased my LEDs off this chap on ebay called warden_jp2002. He sells VERY BRIGHT LEDs at very reasonable prices.

I went into RepCo when I first started doing my mod, and they wanted about $8.00 for one T10. Warden will see you two of them DELIVERED for just over $6.00 with the refractor lens so you get a really good spread of light. Here's an example:

http://cgi.ebay.com.au/2pcs-T10-W5W-168 ... dZViewItem
