Revamping / relettering power window switches ...easy mod!



Page 1 of 2 [ 21 posts ] Go to page 1, 2  Next


 Post subject: Revamping / relettering power window switches ...easy mod!
Posted: Wed Aug 23, 2006 4:09 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 1525

Joined: 13th Oct 2005

Gallery: 13 images

Ride: The DEVEL XR6

Location: Perth
WA, Australia

Hey guys,

As you all know, the lettering on the power window switches tends to scratch & wear off with repeated use, ...especially if you have nails like a f**k' grizzly.

I've come up with a simple, little mod that will totally renew the 'U' & 'D' lettering on your power window switches, as well as bring the switches up like new again...

You need:

1500 grit / grade sandpaper,
White 'Letraset' transfer set, size L83 (available from Jackson's Drawing Supplies),
1 can of d**k Smith's Photo Coating Spray ($9.95),
Masking tape,
Scissors,
A scalpel or needle,
A fan-forced oven!

Steps as follows:

1. Remove individual switches from car (I'm sure you can all do that).

2. Sand each switch with the 1500 grit paper until the worn lettering is completely off (or the surface is lightly sanded for those of you who don't have any lettering left).

3. Use the scissors to cut individual CAPITAL 'U' & 'D' letters from the Letraset transfer sheet (remember to take backing sheet off first).

4. Align the letters on the switch, then press down firmly with your thumb to get the letter to stay in place initially, then rub firmly over the letter with your thumbnail, or equivalent.

5. Use the needle (or scalpel) to GENTLY lift the transfer top sheet off each letter (if you see the transfer lifting as well, press back down and rub over it again).

6. Mask off the sides of the switch, then spray 3-4 light coats of the Photo Coating Spray over the top of the switch & the transfers. Aim for a nice, even glossy finish.

7. Warm up the oven (use fan-forced setting at approx. 150 degrees), and place sprayed switch in oven for 3-5 mins MAX to dry.

8. Remove switch from oven & allow to cool for 2-3 hours, or leave overnight.

9. Repeat steps 3-8 for as many switches as you need.


You should now have a new-looking set of switches ready to go back in your ride! :wink:

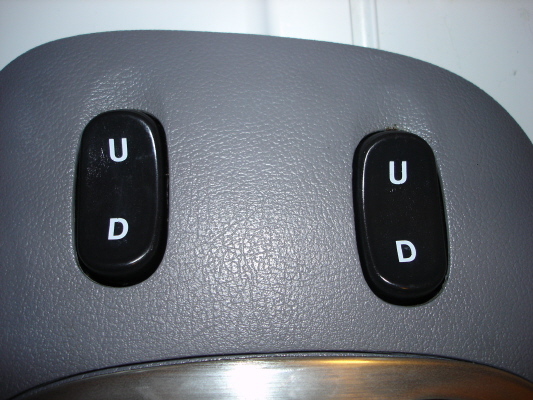

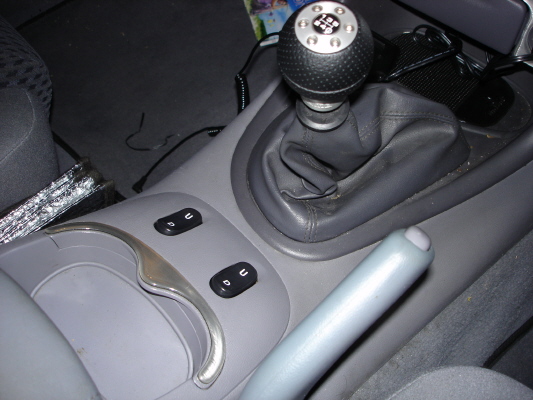

Here's a couple of pics of the 2 Black switches I did for my DEVEL ...OK, now see if you can spot my OTHER little mod??? :roll:





Attachments:
Switches 1.jpg
Switches 1.jpg [ 108.44 KiB | Viewed 32 times ]
Switches 2.jpg
Switches 2.jpg [ 92.14 KiB | Viewed 54 times ]



_________________

Hot Chilli Red EL XR6, 5-spd, JMM DEV 5 enhanced (161 rwkw custom tuned), Eliminator Switch Chip, 18" BA GTP rims, Pedders Superlows, BA XR6 badges, BA Sunroof, Pioneer Stereo, Splits, 6x9's, 10" sub, 700W 6-ch Viper amp.
QUARTER MILE PB: currently 14.590 @ 96.00 mph ...BOOST AHEAD!!

Top
 Profile


Posted: Wed Aug 23, 2006 8:34 am
Fordmods Addict
Offline

Age: 32

Posts: 2245

Joined: 5th Nov 2004

Ride: BA XR6T

Location: Bayswater
VIC, Australia

very impressed mate! looks like ive got something to do today afterall!



_________________


Top
 Profile


Posted: Wed Aug 23, 2006 8:36 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Good Job!

But sorry its not a original idea. I did that to a XF ghia years ago!



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Wed Aug 23, 2006 9:06 am
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

well done mate =D good on you for bringing this up since my 2 front buttons are fading. btw can't you just remove the individual buttons and then do it? i mean it doesn't seem safe to put the whole unit into the oven just incase you "cook" something in the electronics.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Wed Aug 23, 2006 11:04 am
Getting Side Ways
Offline

Age: 28

Posts: 1135

Joined: 27th Oct 2005

Gallery: 3 images

Location: SA
SA, Australia

Not a bad effort.

is the other mod the Chromed cup holder surround?
Top
 Profile


Posted: Wed Aug 23, 2006 11:30 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2098

Joined: 19th Jan 2005

Gallery: 9 images

Ride: 5L 5 speed Fairmont Ghia

Location: St Maoris
NSW, Australia

Well done. Too bad the D and the U are the wrong way around :P
OR
is that the other mod??



_________________

Remember kids, the more pages of crap in your build thread, the bigger your e-penis is

Top
 Profile


Posted: Wed Aug 23, 2006 3:11 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 1525

Joined: 13th Oct 2005

Gallery: 13 images

Ride: The DEVEL XR6

Location: Perth
WA, Australia

bald_princess wrote:
Well done. Too bad the D and the U are the wrong way around :P
OR
is that the other mod??


Well spotted, ...THAT is the other mod!

I also have a BA XR6T, and the window buttons are arrowed 'switch up = window up, switch down = window down' ...which I think is perfectly logical, and is the arrangement in most cars.

Then I hop into the EL XR6, and it's a***-about (switch up = window down, switch down = window up) ...just gets a little confusing sometimes.

So just thought I'd correct / mod the button directions while they were out, ...piss easy job. :wink:

Just a matter of personal preference...



_________________

Hot Chilli Red EL XR6, 5-spd, JMM DEV 5 enhanced (161 rwkw custom tuned), Eliminator Switch Chip, 18" BA GTP rims, Pedders Superlows, BA XR6 badges, BA Sunroof, Pioneer Stereo, Splits, 6x9's, 10" sub, 700W 6-ch Viper amp.
QUARTER MILE PB: currently 14.590 @ 96.00 mph ...BOOST AHEAD!!

Top
 Profile


Posted: Wed Aug 23, 2006 3:19 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 1525

Joined: 13th Oct 2005

Gallery: 13 images

Ride: The DEVEL XR6

Location: Perth
WA, Australia

phongus wrote:
well done mate =D good on you for bringing this up since my 2 front buttons are fading. btw can't you just remove the individual buttons and then do it? i mean it doesn't seem safe to put the whole unit into the oven just incase you "cook" something in the electronics.


You can remove just the individual switches themselves, which is basically just the button & rocker mechanism with the protruding contact pins.

Just take out your cup-holder console, disconnect the switch loom plugs, and pop out the individual switches.

Nothing really to cook in the oven, as the switch mechanism is purely mechanical, ...besides, you should be keeping an eye on the bastards anyhow!

They don't have to go in the oven, you can just let them dry overnight.

The oven just speeds up the drying process & encourages a nice tough finish.



_________________

Hot Chilli Red EL XR6, 5-spd, JMM DEV 5 enhanced (161 rwkw custom tuned), Eliminator Switch Chip, 18" BA GTP rims, Pedders Superlows, BA XR6 badges, BA Sunroof, Pioneer Stereo, Splits, 6x9's, 10" sub, 700W 6-ch Viper amp.
QUARTER MILE PB: currently 14.590 @ 96.00 mph ...BOOST AHEAD!!

Top
 Profile


Posted: Wed Aug 23, 2006 3:23 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 1525

Joined: 13th Oct 2005

Gallery: 13 images

Ride: The DEVEL XR6

Location: Perth
WA, Australia

madmax wrote:
Good Job!

But sorry its not a original idea. I did that to a XF ghia years ago!


Oh well, ...think I'd better start dismantling my 'power window switch reconditioning' empire now. :lol:

I certainly wasn't aiming for the FM 'Hall of Fame'! :P



_________________

Hot Chilli Red EL XR6, 5-spd, JMM DEV 5 enhanced (161 rwkw custom tuned), Eliminator Switch Chip, 18" BA GTP rims, Pedders Superlows, BA XR6 badges, BA Sunroof, Pioneer Stereo, Splits, 6x9's, 10" sub, 700W 6-ch Viper amp.
QUARTER MILE PB: currently 14.590 @ 96.00 mph ...BOOST AHEAD!!

Top
 Profile


Posted: Wed Aug 23, 2006 3:42 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 1525

Joined: 13th Oct 2005

Gallery: 13 images

Ride: The DEVEL XR6

Location: Perth
WA, Australia

Mash85 wrote:
very impressed mate! looks like ive got something to do today afterall!


Go to it, mate.

Just remember, ONLY use an 'ACID-FREE' clear coat to avoid etching the transfers!

Hence why I specified the d**k Smith's product.



_________________

Hot Chilli Red EL XR6, 5-spd, JMM DEV 5 enhanced (161 rwkw custom tuned), Eliminator Switch Chip, 18" BA GTP rims, Pedders Superlows, BA XR6 badges, BA Sunroof, Pioneer Stereo, Splits, 6x9's, 10" sub, 700W 6-ch Viper amp.
QUARTER MILE PB: currently 14.590 @ 96.00 mph ...BOOST AHEAD!!

Top
 Profile


Posted: Wed Aug 23, 2006 6:50 pm
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Lol I was thinking those switches are around hte wrong way! Daniel beat me too it!

Nice work though.
Top
 Profile


Posted: Wed Aug 23, 2006 6:56 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Well played



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Thu Aug 24, 2006 12:13 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1640

Joined: 16th Jun 2005

Gallery: 11 images

Ride: EF Falcon

Location: Driver's Seat
VIC, Australia

so what's the deal with the chrome?

common... shaaaaaare.. :P



_________________

-------- Falcs --------
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Top
 Profile


Posted: Thu Aug 24, 2006 1:46 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 1525

Joined: 13th Oct 2005

Gallery: 13 images

Ride: The DEVEL XR6

Location: Perth
WA, Australia

Falcs wrote:
so what's the deal with the chrome?

common... shaaaaaare.. :P


The chrome is just a stick-on Brushed Aluminium dash kit (see interior shots in my gallery).

Got it from The Spoiler Shop here in Perth, it's already pre-cut, you just gotta stick it on! :wink:



_________________

Hot Chilli Red EL XR6, 5-spd, JMM DEV 5 enhanced (161 rwkw custom tuned), Eliminator Switch Chip, 18" BA GTP rims, Pedders Superlows, BA XR6 badges, BA Sunroof, Pioneer Stereo, Splits, 6x9's, 10" sub, 700W 6-ch Viper amp.
QUARTER MILE PB: currently 14.590 @ 96.00 mph ...BOOST AHEAD!!

Top
 Profile


Posted: Thu Aug 24, 2006 11:20 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Hard to do to EL's as they are painted grey or cappa!
