What does a standard EF S2 XR8 dash cluster look like?



Page 1 of 1 [ 10 posts ]


 Post subject: What does a standard EF S2 XR8 dash cluster look like?
Posted: Mon Jul 30, 2007 9:34 am
Parts Gopher
Offline
User avatar

Posts: 84

Joined: 22nd May 2007

Ride: EF XR8

Location: SYD
NSW, Australia

Hello,

I have noticed that my oil pressure gauge wasnt working correctly, it was always on the max. In my experience this usually means that the sender is broken and is not grounded or something along those lines.

So after replacing the sender, I noticed that it was still up all the way to "7". Additionally to this, my temperature gauge seems to be wrong (I have another thread out regarding engine temperature)

What I am wondering is, what do the standard clusters look like?

I am starting to think that someone may have fitted one from perhaps a 6cylinder fairmont or something...

Cheers



_________________

Wanted - boot floor and lining for sedan - cheap - Syd-Central Coast

Top
 Profile


Posted: Mon Jul 30, 2007 10:57 am
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

pull the cluster out and it has on the back of it 6Cyl/8Cyl cluster



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Mon Jul 30, 2007 11:29 am
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

no diff between i6 and v8 clusters - tech doco confirms that!



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Mon Jul 30, 2007 3:44 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Happy wrote:
no diff between i6 and v8 clusters - tech doco confirms that!
Must only be EA-D that have that then.... my bad



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Tue Jul 31, 2007 12:04 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

The cluster will however be marked with what model it's for.

The XR clusters have a tickford logo on the speedo. Other than that they look like a mid series (Fairmont/monty ghia) one. The only diff is internally, for the lighting (the XR ones have a diode installed, where the monty ones do not as they have variable lighting brightness.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Tue Jul 31, 2007 5:39 pm
Parts Gopher
Offline
User avatar

Posts: 84

Joined: 22nd May 2007

Ride: EF XR8

Location: SYD
NSW, Australia

My car must be getting stranger by the minute.

It's listed in the ECU (brother put it on the scanner at work) as being an XR8 ex pursuit car, yet does not have Tickford logo on the instruments?

For 6 and 8 clusters being the same, are all the senders and such the same?

The instrumentation readings should be the same if you put an 8 or a 6 cluster in?



_________________

Wanted - boot floor and lining for sedan - cheap - Syd-Central Coast

Top
 Profile


Posted: Tue Aug 07, 2007 12:02 pm
Parts Gopher
Offline
User avatar

Posts: 84

Joined: 22nd May 2007

Ride: EF XR8

Location: SYD
NSW, Australia

anyone?



_________________

Wanted - boot floor and lining for sedan - cheap - Syd-Central Coast

Top
 Profile


Posted: Wed Aug 08, 2007 7:29 pm
Stock as a Rock
Offline

Posts: 144

Joined: 23rd Dec 2006

Location: melb
VIC, Australia

SECTION25 wrote:
anyone?

yep senders and such are the same on 6 or 8s
Top
 Profile


Posted: Wed Aug 08, 2007 8:18 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Not all XR clusters have the Tickford Wings.

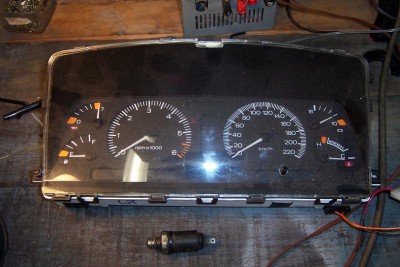

Heres a pic of the correct cluster that should be in your 'ex pursuit car'
