Hi All,

Here's my situation: My I6 AU has a powerdyne with water injection, at 9psi. Previously, this has worked well, with the water injection doing just enough to keep things cool.

I recently upgraded to a new supercharger impeller, which is supposed to increase boost 2-3psi. It appears its done this, and has subsequently heated up the intake air. The water injection, despite an upgrade, can't cope with the extra heat. The tune, as a result, has to be super rich to stop detonation, and I've lost my top end (stops making power around 4900rpm).

So, I'm needing an intercooler to get air temps back down, so I can get it tuned more aggressively and restore the lost power. From my own research, and what i've had recommended, I need a water to air intercooler. There will be too much boost lost through an air/air, so I'm looking for a W2A with 3 inch inlets/outlets.

The kits at www.frozenboost.com have become too costly due to the $US to $AU exchange rate.

Does anyone know of where I can get good value kits, or even just cores, in Aus? Prices? Or, anyone selling a same side, 3inch inlet/outlet core/kit? I live in Brisbane.

Cheers for the suggestions.

Joe



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


Posted: Mon Nov 03, 2008 12:06 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

http://cgi.ebay.com.au/Air-Water-Interc ... m153.l1262



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Mon Nov 03, 2008 2:04 pm
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

Cheers, I spotted that one, but the core is too big. Looking for something around 12inch x 12 inch (300mm x 300mm).



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


Posted: Mon Nov 03, 2008 3:18 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

If your ownly running 12ish PSI, then a liberty RS turbo intercooler would do the job.. I've just picked up one myself.. 90 bucks on ebay...

don't think you'll find much better than that..

you selling your water injection? :-)
Top
 Profile


Posted: Mon Nov 03, 2008 3:45 pm
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

Frankieh, I've been following your thread, which looks good. My problem with the RS intercooler is that i'm after 3inch inlet/outlet, and also from memory the RS core has an inlet or outlet underneath, and then it comes out the side? I'm looking for one which is same sided.

I'll see how I go with the intercooler + water injection once I've sourced and fitted the cooler. I'd like to see if I can get more out of the engine with leaner afr's using water injection. The setup is quite good now, and finally reliable. 180psi sureflow pump inside guard, water tank, fridge filter, solenoid, and high flow atomising nozzle with its own filter. Works great - very fine mist! I'll let you know if I don't need it anymore, but I'd like to try with both. Just got to find good value cores!

ARE in Brisbane do amazing water/air setups, with data to work out and guarantee what power increases can be expected, but they charge around 3K for a water/air setup! I'm hoping to find something the right size and quality a lot cheaper...



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


Posted: Mon Nov 03, 2008 4:11 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

yeah.. I have a massive air to air here that was cheap as.. but water to air is always massively overpriced..

The inlet on the RS cooler is 3 inch I think, but the outlet is 2 inch. (you can get it to 2.5 by cutting it shorter as it sleeves down underneath.)

This worked out almost perfect for me a I'll be running it on it's side hidden in a modified EL or BA airbox with an external reservoir inside the guard up near the water washer.. still have to get to that point though..
Top
 Profile


Posted: Mon Nov 03, 2008 5:00 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

JoeXR6 wrote:
Cheers, I spotted that one, but the core is too big. Looking for something around 12inch x 12 inch (300mm x 300mm).


The core size is 254 x 230 mm (10" x 9"), but overall, its 460 x 330 (18" x 13").

but it is a fairly thick unit at 115mm.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Mon Nov 03, 2008 9:39 pm
Getting Side Ways
Offline
User avatar

Posts: 670

Joined: 29th Nov 2007

Gallery: 1 images

Location: brisbane
QLD, Australia

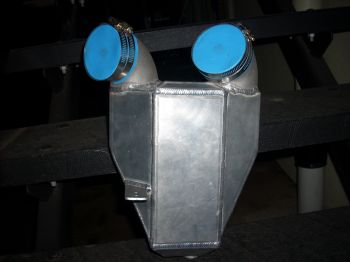

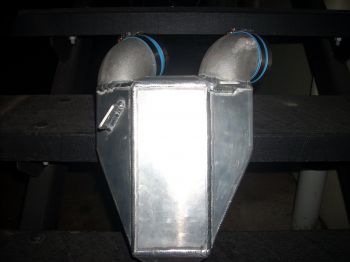

ive got this core unit for the au-ba with the 3 inch inlet and outlets if this is what your after i live in lawnton





Attachments:
intercooler sml.jpg
intercooler sml.jpg [ 48.98 KiB | Viewed 859 times ]
inter sml 2.jpg
inter sml 2.jpg [ 49.27 KiB | Viewed 863 times ]



_________________

if the bar aint bendin your just pretendin

Top
 Profile


Posted: Mon Nov 03, 2008 10:44 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Got a quote from PWR on a 400HP barrel water to air kit, $1365. For another $50 they would fit 3" ends instead of the standard 2.5". Quote is several months old but gives an idea.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Mon Nov 03, 2008 10:59 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Try adding some meth to water injection ??



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Mon Nov 03, 2008 11:51 pm
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

EBXR, I do run some meth through the water injection. Seems to sharpen up response a bit (prob due to higher octane rating), but engine still pings. Water is better for pulling heat out.

104ord, that core looks like the shape I'm after, though inlet/outlet angles look like the core would need to be oriented vertically. I'll pm you for more details.

Wagondad, I assume that PWR quote was just the kit, rather than fitted?



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


Posted: Tue Nov 04, 2008 12:09 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

You can fit one of these but you still require pump, radiator and hoses..
http://www.pwr-performance.com/intercooler.htm

I have a feeling unless temps are way high??
There's other issues ?? Is compressor past it's efficiancy ?? have you logged the inlet temps??
In any case the inlet temp sensor and ECU should compensate by retarding spark etc...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Tue Nov 04, 2008 11:53 am
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

EBXR, thanks for the pwr site.

Two experienced tuners worked on the car for 3 hrs, and couldn't get around the issue. Their take is that inlet temps are too high. The same setup, on the same map, tuned by the same tuner, used to work fine. It was only when I made the supercharger changes that the issues started.

I've ordered an temp probe, should arrive today. I'll fit that and log some temp differential, and let you know what I find. The guys are quite sure that an intercooler is what's needed though. Its making boost from 2500rpm, and ramping up to over 10psi, so it makes sense that compressed air would be getting fairly hot. Should be able to update on temps soon!



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


Posted: Tue Nov 04, 2008 2:08 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

You need something like this




_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Tue Nov 04, 2008 2:49 pm
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

That's exactly what I'm looking for. Is yours from frozenboost opto? They've become very expensive with current exchange rate. Looks great.



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
