Falcon I6 4lt Turbo PLENUM ( intake manifold )



Page 1 of 11 [ 164 posts ] Go to page 1, 2, 3, 4, 5 ... 11  Next


 Post subject: Falcon I6 4lt Turbo PLENUM ( intake manifold )
Posted: Fri Jan 13, 2006 9:37 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

Just experimenting here , what are people using on there forced induction inline 6 cylinder engines when it comes to intake manifolds ( PLENUMS )

do people have pictures of any falcon set ups ? and can u post them

Long runs ?
short runners ?
Plenum size ? round shaped square shaped tapped end ?
trumpets/bellmouth entry runners ?
throttle body position ? front entry side entry middle entry ?
Throttle body size ?

Judging from the CPI ,MPI and BBm manifolds that ford has placed originally on the falcons seems people are just using them

CPI manifold is out of the question a no go zone ????

MPI seems what some people are having success with as the throttle body is at the front entry of the manifold but would be interesting to see what sort of cylinder fill distribution occurs

BBm on the later series falcons seems poeple are using but would be interesting to see what sort of cylinder fill distribution occurs

Uneven cylinder filling causes all sorts of tuning problems robbing potential horse power gains this area seems to be untouched when it comes to ford I6 cylinder E series engines

Ok nizpro does a BA xr6T plenum , would be interesting to see the insides of one his units does anyone have pictures feel free to post them

have seen some fabricated manifolds on the market place but all VL commodore stuff and quite a few of them .

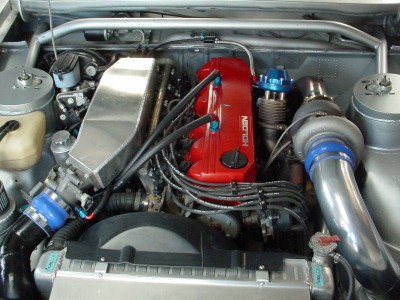

Here are some pics of aftermarket commodore VL RB30T and RB26T plenums

would like to hear peoples opinions on plenums ???



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Tue Oct 10, 2006 7:39 pm, edited 4 times in total.

Top
 Profile


Posted: Fri Jan 13, 2006 9:43 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 5313

Joined: 6th Nov 2004

Gallery: 4 images

Ride: Surf, Turbo Diesel

Location: Melbourne, S.E Suburbs
VIC, Australia

i have no bloody idea what that is, but look how shiny it is :lol:



_________________


Top
 Profile


Posted: Fri Jan 13, 2006 10:24 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

there manifolds examples LOL


more examples of different turbo application EFI manifolds


cheers

5/7/2006 sorry guys need more pic memory space have to delete some of the pics out of this thread
cheers





Attachments:
80mm%20plenum%202.jpg [ 40.61 KiB | Viewed 218 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Thu Jul 06, 2006 4:44 pm, edited 1 time in total.

Top
 Profile


Posted: Fri Jan 13, 2006 10:37 am
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

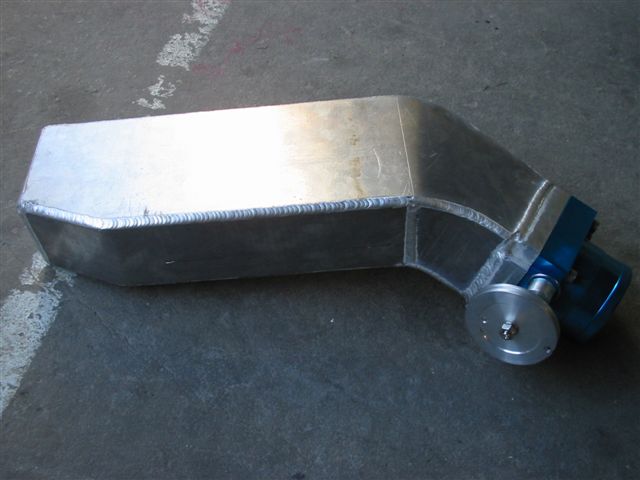

This is what a Rajab plenum looks like. It bolts onto the standard runners and is apparantly the most responsive on the market.

My apologies for all the other crap in the picture.

Top
 Profile


Posted: Fri Jan 13, 2006 2:24 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi


" Dansedgli
Fordmods - Smokin em up




Posts: 222
Location: melbourne VIC, Australia

View User Gallery (0)


Posted: Today at 9:37 am Post subject:

--------------------------------------------------------------------------------

This is what a Rajab plenum looks like. It bolts onto the standard runners and is apparantly the most responsive on the market.

My apologies for all the other crap in the picture. "


LOL if its crap i will have it LOL take of ur hands seems by the date u must of been a good boy for chrissy santa looked after you , just quickly obviously u have been shopping any chance of some shots of the plenum on its own and a few pictures through the throddle body opening to see inside the plenum and a few other shots from different directions

does rajar do plenums for E series falcon 6 cylinder engines

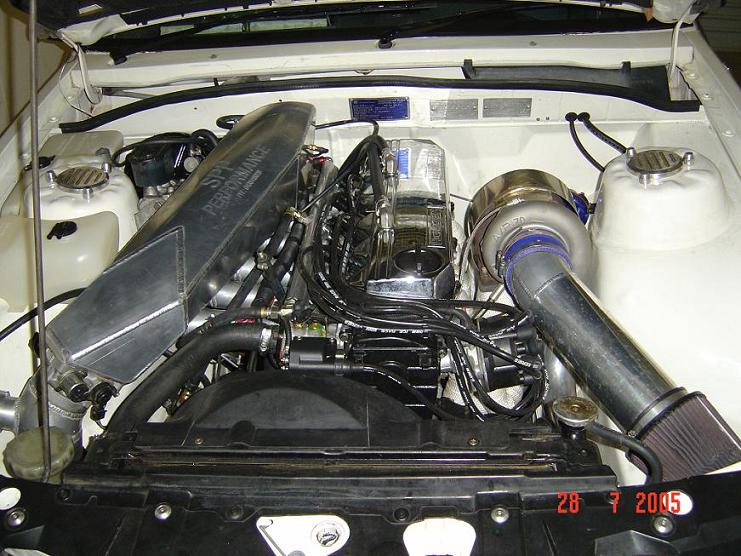

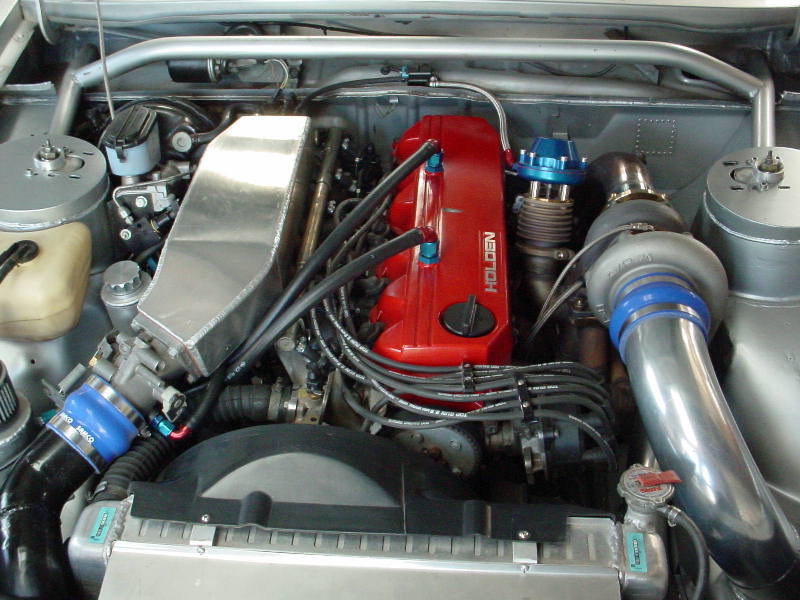

again more stuff i have located pics on plenums , these VL commodore guys have no limits to how much money they spend on there turbo commodres the JPC plenum u see in the pictures is $2000 AUD just the plenum on its own ?????? wooooooooo wish my dad was a bank manager

cheers





Attachments:

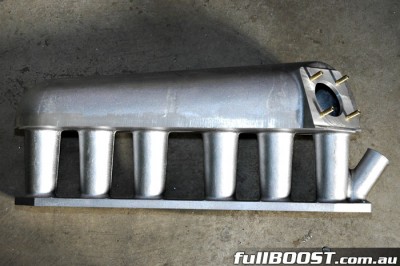

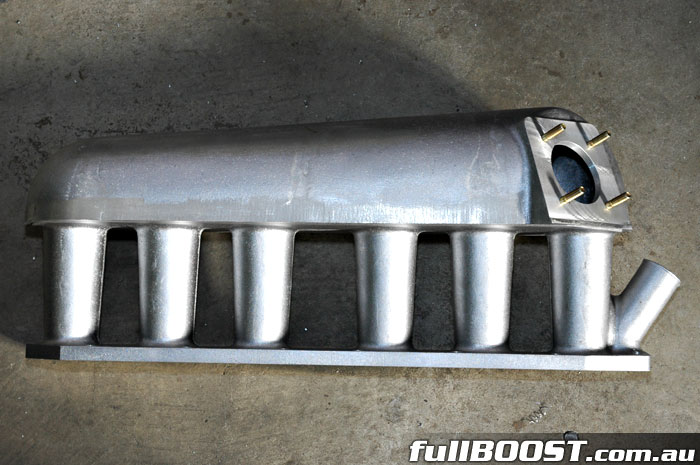

File comment: this isa JPC plenum cast one peice to suit a VL RB30 motor very nice looking would love to see the inssides of one !!!! how the port entry of the plenum is arranged
jpc_05_vlinlet_01b.jpg [ 72.97 KiB | Viewed 190 times ]
DSC00216.JPG [ 92.76 KiB | Viewed 229 times ]
enginebay4--hsvsux.jpg [ 90.7 KiB | Viewed 216 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Fri Jan 13, 2006 2:41 pm, edited 1 time in total.

Top
 Profile


Posted: Fri Jan 13, 2006 2:30 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Ill get some better pics for you tonight when I get home. Im pretty sure they dont do manifolds for other cars.

Its all good stuff, I cant wait to fit it all to the car.
Top
 Profile


Posted: Fri Jan 13, 2006 2:47 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Dansedgli wrote:
Ill get some better pics for you tonight when I get home. Im pretty sure they dont do manifolds for other cars.

Its all good stuff, I cant wait to fit it all to the car.


hi

would be nice , cant wait to have a sticky beeck :wink: :?:

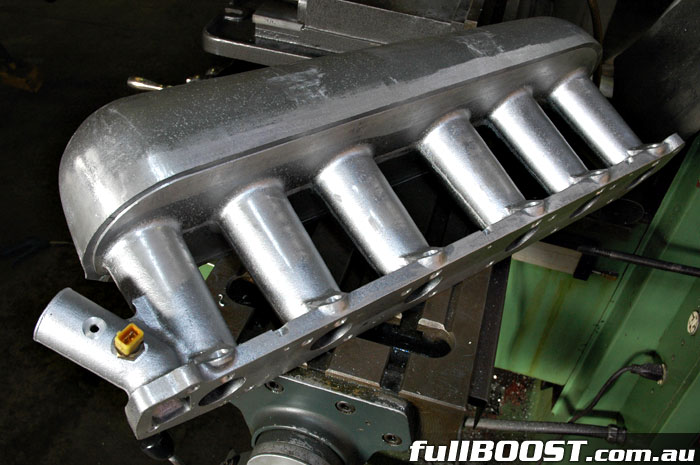

here is all the pics i have on the JPC VL commodre plenum some nice work put into the manifold plenum to suit VL's

cheers





Attachments:
jpc_05_vlinlet_04b.jpg [ 73.58 KiB | Viewed 201 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Mon Jan 30, 2006 1:16 pm, edited 1 time in total.

Top
 Profile


Posted: Fri Jan 13, 2006 6:40 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Alot of aftermarket support for the RB30.
And I've got alot of respect for the Rajab guys, staying with the RB30ET instead of going the DOHC hybrid route.

re: Intake length with turbocharging
Does the principle of long trumpets = more torque and power down low, short trumpets = more up top, still apply?
Or is it basically a moot point, with the only consideration being plenum volume and cylinder distribution?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Fri Jan 13, 2006 9:38 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 2280

Joined: 5th Nov 2004

Ride: EF Falcon 95

Location: Rosebud
VIC, Australia

maybe send ebs_4l a PM, im led to believe he made his own, take a look thru tjb45's thread 'wanna be pyoray rebuild' theres pictures of his turbo progress, including construction of the plenum. Trick lookin bit of gear



_________________

Cougar Zero makes my pants fit nice.

Top
 Profile


Posted: Fri Jan 13, 2006 11:00 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

ive got a nizpro plenum on my el. its not anything special in side, all the corners are very rounded, and its all smooth, no trumpets or anything



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Jan 14, 2006 8:50 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

fritzz wrote:
ive got a nizpro plenum on my el. its not anything special in side, all the corners are very rounded, and its all smooth, no trumpets or anything


hi fritzz


u havent got pitures by chance and what sort of money does nizzies plenum sell for

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Sat Jan 14, 2006 9:06 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

hey fpv_gtp...
checkl fritzzs user gallery... 2 pics inside... looks sweet...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Sat Jan 14, 2006 10:13 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

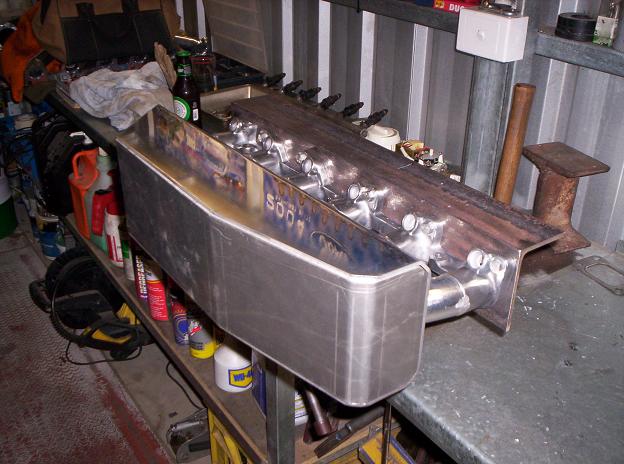

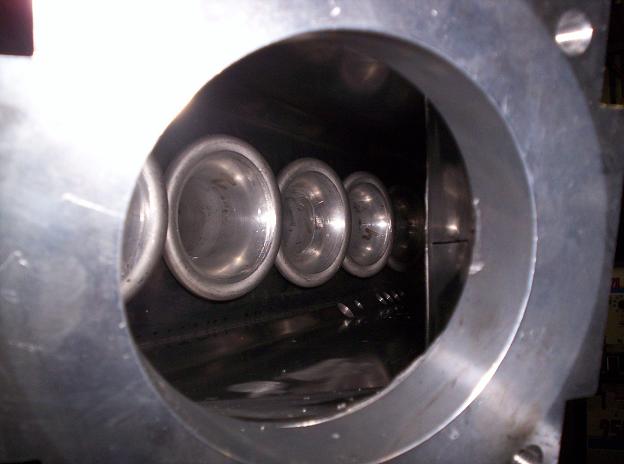

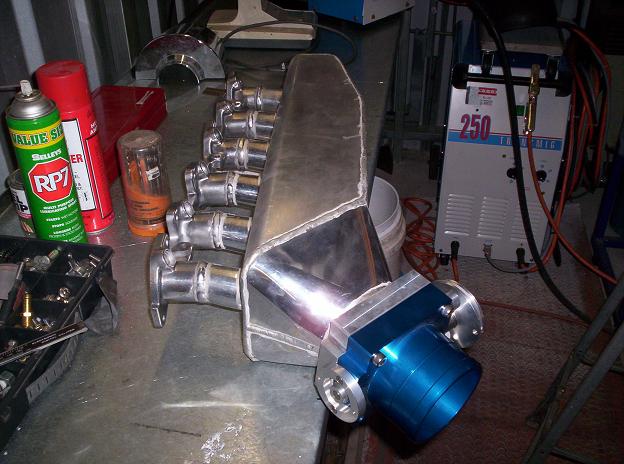

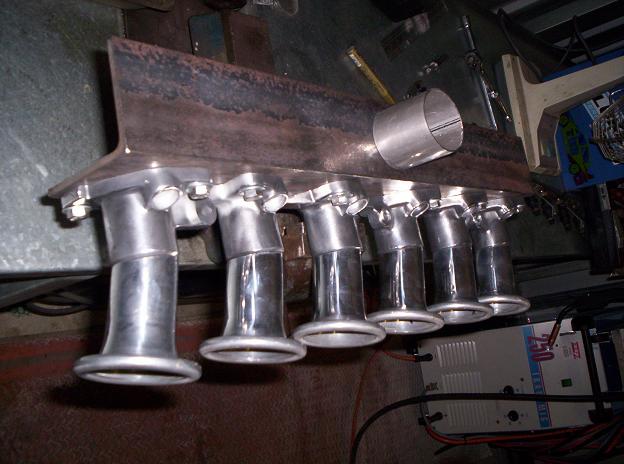

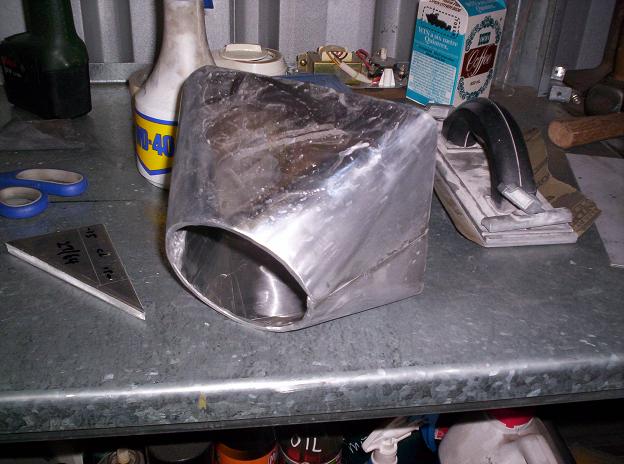

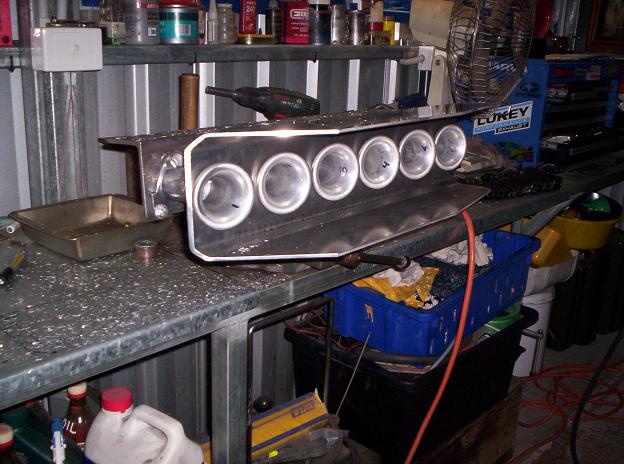

heres my efforts... 90mm throttle





Attachments:
100_0428.JPG [ 64.01 KiB | Viewed 231 times ]
100_0425.JPG [ 67.16 KiB | Viewed 236 times ]
100_0409.JPG [ 54.6 KiB | Viewed 199 times ]



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Jan 14, 2006 10:17 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

you will also find a custom plenum setup on mrdperformance.biz under john's turbo ed project... thats where i got my inspiration





Attachments:
101_0211.JPG [ 63.9 KiB | Viewed 232 times ]
101_0166.JPG [ 35.17 KiB | Viewed 186 times ]
101_0152.JPG [ 60.84 KiB | Viewed 192 times ]



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


 Post subject: VERY SEXY FALCON PLENUM
Posted: Sat Jan 14, 2006 10:50 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

ebs_4l wrote:
heres my efforts... 90mm throttle


hi

i read the thread tjb45 wrote
and a very nice job you are doing

would love to see the dyno figures once everything is completed

and a very nice plenum job you have done

question ? is it ok if i put a link to you thread so people can also see what you are upto ????

whos throttle body are you using ?

will be interesting to see how the plenum performs , when you run the car on any dyno will you be probing the individual exhasut temps to see how even the cylinder filling ???? whether you have certian cylinders favoured more than others ????

ideal dyno runs and datalogging would be a aie/fuel ratio sensor in each cylinder to see the individual cylinders ????

keep up the good work

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile
