Head Studs, I think I have something



Page 3 of 8 [ 106 posts ] Go to page Previous  1, 2, 3, 4, 5, 6 ... 8  Next


Posted: Wed Jan 31, 2007 10:57 am
Smokin em up
Offline

Age: 40

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

love your work 8-)



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).

Top
 Profile


Posted: Wed Jan 31, 2007 11:14 am
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

Any ideas on how the head is gonna like this? They're made of a relatively soft alloy yeah, so even though u may be able to torque the life out of the nuts/studs will the head hold up?

If its already been asked... gfy :oops: :oops:
Top
 Profile


Posted: Wed Jan 31, 2007 11:53 am
Tyre Shredder
Offline
User avatar

Age: 45

Posts: 336

Joined: 2nd Sep 2005

Location: Normzville
WA, Australia

yep, i'm in for a set. pm your bank details and i'll transfer the brass.

cheers,
Norm :)



_________________

<a href="http://www.spyderbyte.com.au">
<img border="0" src="http://www.spyderbyte.com.au/updated.gif" width="189" height="45"></a>

Top
 Profile


Posted: Wed Jan 31, 2007 1:13 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Heads become soft when the engines been overheated. I torqued the head bolt to the extreme with a 1m bar and the washer did not sink into the head at all. With a good head I dont think this is an issue plus the washer/nut setup has a good surface area. But we are not torquing the bolts anywhere near as much as tested but if need be 100lb/ft on the head stud is no problem with this setup IMO.

I got this idea when reading an article on the Nizpro 1000hp BA turbo setup. They used 1/2" studs into the same e series thread (same as BA). The hard bit was getting the right thread and bolts to fit. The bolts for the BA are shorter.

Tarahymen I will email bank details.



_________________

Turbo 6s rule

Top
 Profile


Posted: Tue Feb 06, 2007 10:07 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Your grandmother could install these head studs, thats how easy it is.

The process goes as follows

Fill all head bolt holes in block with oil

Place head on block, located with locating rings/dowel

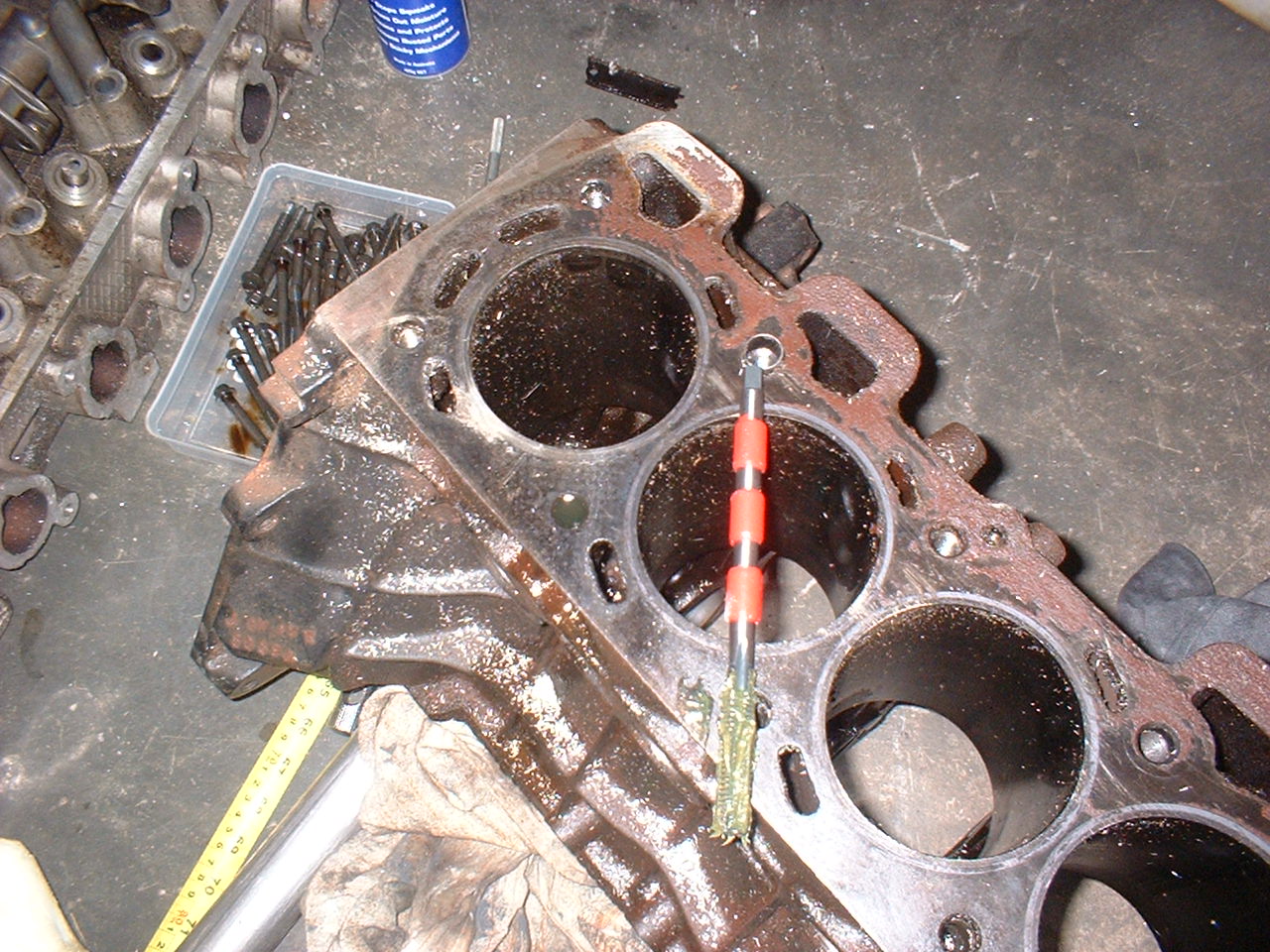

With the 180mm long tap supplied, grease up with grease to catch cut metal.

Place tap in head bolt hole till touches old thread in block

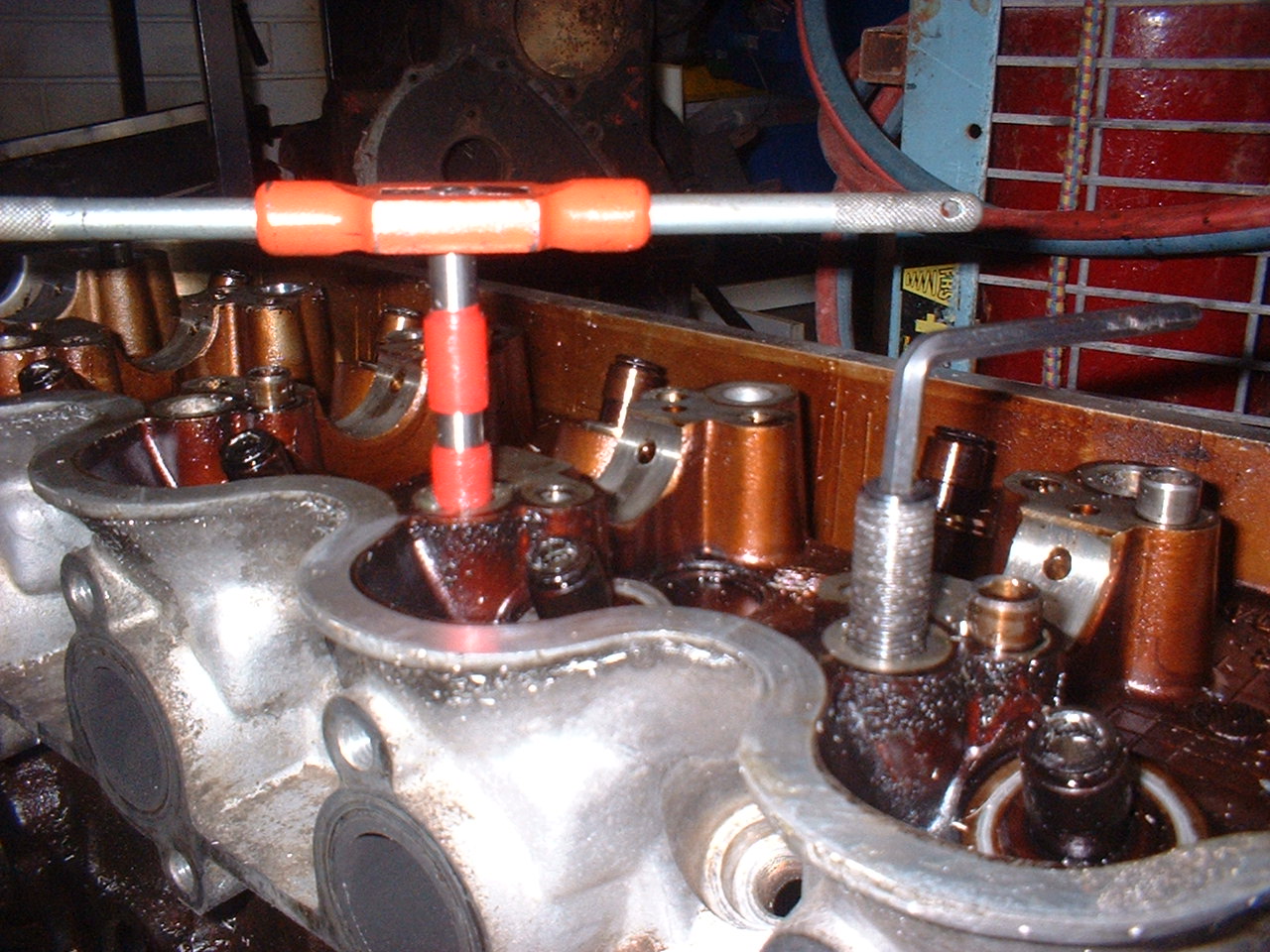

With tap T Bar start turning tap slowly 1/2 turn at a time and then backing off and at the same time pushing down firmly untill tap has reach bottom of
thread

Voila easy as. Should take around an hour

Here are a couple of pics

If anyone further is interested in a set then PM as this bolt order goes in this coming Tuesday 13/2/07





Attachments:
head bolts 017.jpg
head bolts 017.jpg [ 318.41 KiB | Viewed 67 times ]
head bolts 010.jpg
head bolts 010.jpg [ 327.57 KiB | Viewed 69 times ]



_________________

Turbo 6s rule

Top
 Profile


Posted: Wed Feb 07, 2007 8:46 pm
Stock as a Rock
Offline

Age: 30

Posts: 130

Joined: 23rd Jul 2006

Ride: EL XR6 (Formally PYROAY)

Location: perth
WA, Australia

wen is the order goin thru? wat bout main studs?
Top
 Profile


Posted: Thu Feb 08, 2007 12:29 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

The order is being done this Tuesday 13/2/07. The same could be done with the mains but I dont think its really necessary unless you are putting major horsepower thru the engine, something like maybe 800+ ATW.

Remember the inline 6 has alot more caps than say a v6 and thats a major reason why straight 6s a quite strong in that department.

My 500+RWHP Turbo Torana runs heads studs but standard mains and never a problem with either.

But head sealing is a problem with most highly boosted engines and my experience is that a good head gasket and studs usually solves that problem.



_________________

Turbo 6s rule

Top
 Profile


Posted: Thu Feb 08, 2007 2:58 pm
Smokin em up
Offline

Age: 40

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

with or without o-ringing the block in your opinion?



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).

Top
 Profile


Posted: Fri Feb 09, 2007 10:04 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

with the AU Multi layer steel shim head gasket definately no need to O ring the block. But you want really smooth surfaces on the deck and head faces.

Only need O rings with using copper.

AU MLS and head studs is all we will ever need. That is what Nizpro uses on his 1000hp BA turbo engine



_________________

Turbo 6s rule

Top
 Profile


Posted: Fri Feb 09, 2007 10:39 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

turbotrana wrote:
AU MLS and head studs is all we will ever need. That is what Nizpro uses on his 1000hp BA turbo engine


They use a SOHC gasket in the DOHC engine???



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri Feb 09, 2007 11:07 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

lol i dont think so,

i think he means they used a ba mls gasket with head studs.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Feb 10, 2007 1:08 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Sorry, I should have been clearer but basically Nizpro used BA multi layer shim with 1/2 inch studs for their 1000hp BA 6 turbo motor with NO oringing



_________________

Turbo 6s rule

Top
 Profile


Posted: Sun Apr 15, 2007 9:58 pm
Parts Gopher
Offline

Posts: 97

Joined: 5th Mar 2006

Location: qld
QLD, Australia

so do you have any exhaust manifold studs and bolts?? i need a set for my car.
Top
 Profile


Posted: Mon Apr 16, 2007 12:41 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

For the turbo manifold I use high grade allen key bolts with Finlock washers except for a couple that where I use modified studs. The Finlock washers work really well, never had one come loose using these.
You should be able to get the stuff at a good fastener place.



_________________

Turbo 6s rule

Top
 Profile


Posted: Wed Sep 19, 2007 11:32 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

I am getting some more head studs from the states. If anyone wants a set with a long shank tap to do the tapping it works out $435 posted. This is just a one off as I gotta get some more for myself. I will be ordering again on 28/9/07.

I will also be getting some high grade flexplate bolts but not sure how well they will do the job untill I get them landed



_________________
