Head Studs, I think I have something



Page 4 of 8 [ 106 posts ] Go to page Previous  1, 2, 3, 4, 5, 6, 7, 8  Next


Posted: Sun Dec 16, 2007 5:21 pm
Oompa Loompa
Offline

Posts: 49

Joined: 17th Jun 2007

Ride: TE Cortina

Location: Way down south
VIC, Australia

turbotrana wrote:
I am getting some more head studs from the states. If anyone wants a set with a long shank tap to do the tapping it works out $435 posted. This is just a one off as I gotta get some more for myself. I will be ordering again on 28/9/07.

I will also be getting some high grade flexplate bolts but not sure how well they will do the job untill I get them landed


Thats a bit rich dont you think? For my new engine; I had my new studs made custom locally. AT just under $20 each custom length in METRIC. And $0.50c for the nuts and another $0.50 for the High Tensile Washers. All these are made to grade 12.9 specs, so if your familiar with bolts you will know what i mean.

BTW In my last engine I made 400RWHP with std head bolts and the multilayer gasket.... And it held up well.... SO i think you are making unneccessary work for yourself mate... Each to their own... What power are you hoping to make out of this new engine?



_________________

Horsepower Sells cars, Torques wins races

Top
 Profile


Posted: Sun Dec 16, 2007 7:32 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Please tell me who make your custom 12.9 bolts. I've made a few enquiries into custom bolts and no one is really interested in low volume.

Are your bolts a cut thread or rolled thread.



_________________

Turbo 6s rule

Top
 Profile


Posted: Sun Dec 16, 2007 8:30 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Not a Ford but I have gone from 10mm bolts to 11mm studs in my 1UZ motor..
We just drilled and tapped existing threads..
Maybe some ARP studs can be done using G.M or another brand where arp parts are available??
In my case we used Nissan GTR ARP head studs...
Just need studs off an engine with correct length...
Or where there's enough thread on stud to shorten?? Alittle...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Thu Jan 24, 2008 12:02 am
Oompa Loompa
Offline

Posts: 49

Joined: 17th Jun 2007

Ride: TE Cortina

Location: Way down south
VIC, Australia

Turbotrana - PM sent



_________________

Horsepower Sells cars, Torques wins races

Top
 Profile


Posted: Thu Jan 24, 2008 10:15 am
Parts Gopher
Offline

Age: 32

Posts: 67

Joined: 6th Jul 2006

Ride: Escort

Location: Sydney
NSW, Australia

why didnt you just use BA head studs from arp ?
Top
 Profile


Posted: Thu Jan 24, 2008 11:36 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

RSWEPN wrote:
why didnt you just use BA head studs from arp ?


Bolts dont fit, too short.

TE Jet, you didnt mention whether your bolts were rolled thread or cut thread.



_________________

Turbo 6s rule

Top
 Profile


Posted: Fri Jan 25, 2008 12:45 pm
Parts Gopher
Offline

Age: 32

Posts: 67

Joined: 6th Jul 2006

Ride: Escort

Location: Sydney
NSW, Australia

turbotrana wrote:
RSWEPN wrote:
why didnt you just use BA head studs from arp ?


Bolts dont fit, too short.

TE Jet, you didnt mention whether your bolts were rolled thread or cut thread.


as in dont fit xf- au motor??
Top
 Profile


Posted: Tue Feb 05, 2008 6:16 pm
Oompa Loompa
Offline

Posts: 49

Joined: 17th Jun 2007

Ride: TE Cortina

Location: Way down south
VIC, Australia

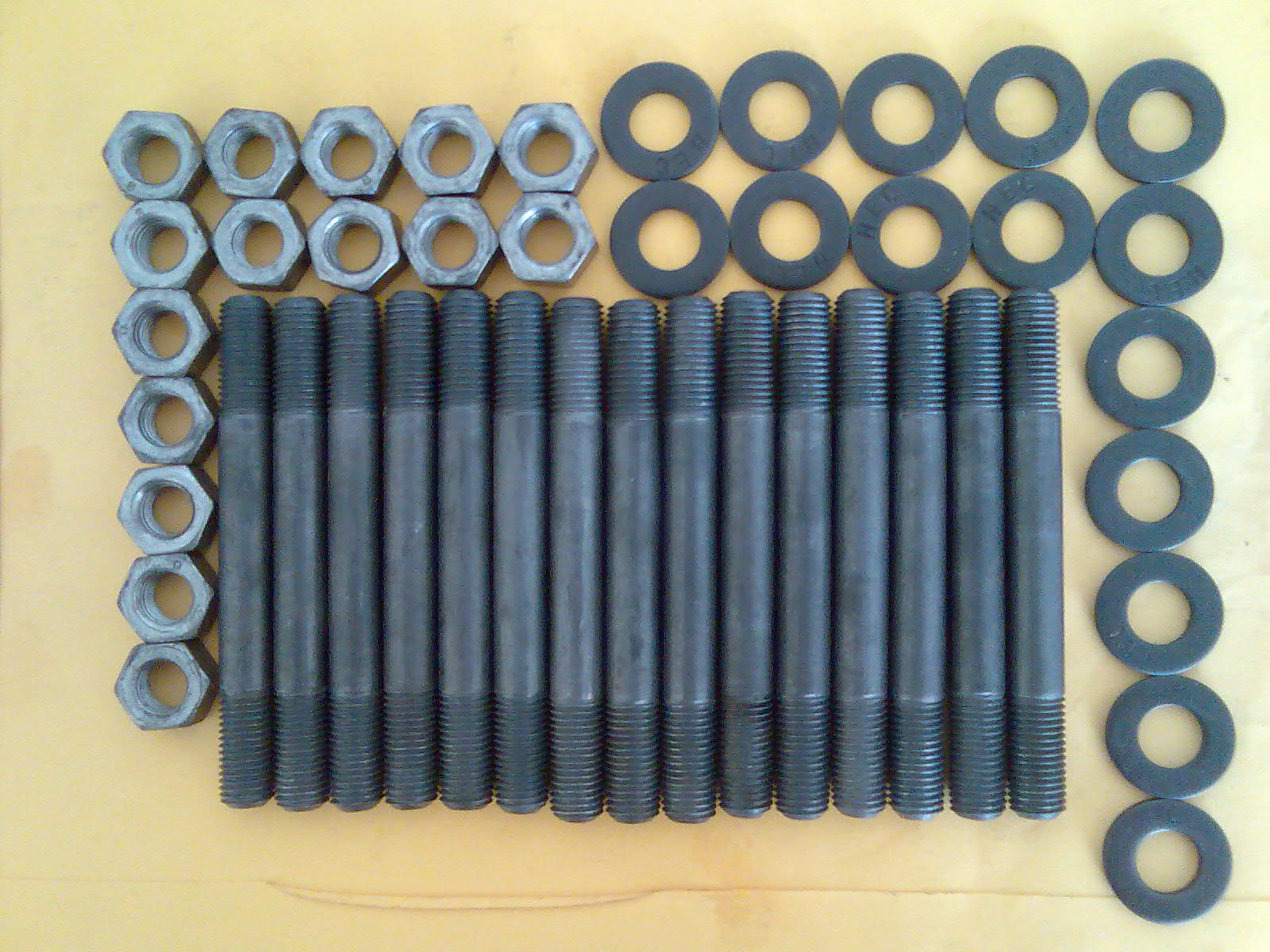

I believe they are a cut thread. Calculated their strength out. Grade 12.9 is the equivelent of 170 000psi. ARP ones are 180 000psi. See attached photo below.





Attachments:
Mains studs.jpg
Mains studs.jpg [ 334.33 KiB | Viewed 103 times ]



_________________

Horsepower Sells cars, Torques wins races

Top
 Profile


Posted: Wed Feb 06, 2008 12:44 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

but, there is a big BUTT here..

thats plainly and simply the grade of the steel... which means nothing if the threads are weak as piss... majority of the critical strength begins with the very BEST thread.



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Wed Feb 06, 2008 12:07 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

So you have a cut thread (with a course thread on top), standard nut and washer for $21.

So I supplied a highest quality rolled thread stud (a fine pitch top thread), ground flat hardened washers, a twelve point nut for $25 each and you call this rich???. Yeh I know its a 1/2" stud and the block has to be tapped for the new thread but its not "a bit rich" as you claim.

I am not knocking the cut thread solution as it will work and I have used manufactured studs with cut threads for a triumph engine but your comment of "a bit rich" is like comparing a chinese made copy watch with a swiss made original watch and saying the swiss one it "a bit rich".

Do people a favour and post the details of the person who is manufacturing the cut thread solution so that if people want to go down this way they know who is prepared to make small quantities at a reasonable price.



_________________

Turbo 6s rule

Top
 Profile


Posted: Wed Feb 06, 2008 7:52 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

I payed $200 for 12mm ARP studs for my !UZ..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Thu Feb 07, 2008 6:15 am
Oompa Loompa
Offline

Posts: 49

Joined: 17th Jun 2007

Ride: TE Cortina

Location: Way down south
VIC, Australia

turbotrana wrote:
So you have a cut thread (with a course thread on top), standard nut and washer for $21.

So I supplied a highest quality rolled thread stud (a fine pitch top thread), ground flat hardened washers, a twelve point nut for $25 each and you call this rich???. Yeh I know its a 1/2" stud and the block has to be tapped for the new thread but its not "a bit rich" as you claim.

I am not knocking the cut thread solution as it will work and I have used manufactured studs with cut threads for a triumph engine but your comment of "a bit rich" is like comparing a chinese made copy watch with a swiss made original watch and saying the swiss one it "a bit rich".

Do people a favour and post the details of the person who is manufacturing the cut thread solution so that if people want to go down this way they know who is prepared to make small quantities at a reasonable price.


Sorry My mistake. I should read the product brocure of components I purchase more often. The threads are rolled, then they are heat treated. And work out to be $270 a set of 14, inc Tax, I had a multiple item invoice happening.. Anyway, i just like the idea of not having to mess around with cutting threads into blocks. I have forwarded this info over to Jim Mock Motorsport if you want the details.

Say hi to Joe for me.



_________________

Horsepower Sells cars, Torques wins races

Top
 Profile


Posted: Thu Feb 07, 2008 11:17 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Why forward to JMM??? Post the contact info here



_________________

Turbo 6s rule

Top
 Profile


Posted: Fri Feb 08, 2008 6:05 am
Oompa Loompa
Offline

Posts: 49

Joined: 17th Jun 2007

Ride: TE Cortina

Location: Way down south
VIC, Australia

I sent the info package I had to them, so they could "VERIFY" the studs are good enough, and will be safe to use, without having issues. I thought it best they double check all my measurements etc.



_________________

Horsepower Sells cars, Torques wins races

Top
 Profile


Posted: Sat Feb 09, 2008 6:07 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

TE JET wrote:
I sent the info package I had to them, so they could "VERIFY" the studs are good enough, and will be safe to use, without having issues. I thought it best they double check all my measurements etc.



why would you want those crooks to verify anything for you?.

more to the point, why wont you share any of the info on here?



_________________

PERMANENTLY BANNED

Top
 Profile
