help on lowering boost levels



Page 1 of 1 [ 9 posts ]


 Post subject: help on lowering boost levels
Posted: Sat Mar 04, 2006 4:05 pm
Oompa Loompa
Offline
User avatar

Age: 32

Posts: 26

Joined: 17th Dec 2005

Ride: EA 5SP

Location: whyalla
SA, Australia

hi there, just wondering if there is anyway to lower boost levels.

as i have a mini im going to muck around with and put a turbo on it, i dont want to run the turbo at its normal boost level because it mite be too much for the engine so to make sure i dont blow it up first go i want to lower the boost to a safer level.
will a boost controller do this, or can they only increase the boost?

any help will be very good
Top
 Profile


Posted: Sat Mar 04, 2006 5:28 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

yes boost controller will only incress the pressure. u will need a smaller spring in wastegate



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Mar 04, 2006 5:30 pm
Oompa Loompa
Offline

Age: 34

Posts: 26

Joined: 12th Jun 2005

Ride: EBII GLi

Location: Melbourne
VIC, Australia

or put restrictors in the vaccum line



_________________

94 ED GLi - RIP
92 180sx - Sold
93 EBII GLi - Now wreaking. email me at plappen@bigpond.net.au for parts
97 EL Fairmont Ghia - New daily
01 Suzuki GSX-R750 - Weekend toy

Top
 Profile


Posted: Sat Mar 04, 2006 6:21 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

putting restrictors in vacume line is the same as a boost controller it will not lower boost pressure



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Mar 04, 2006 7:14 pm
Oompa Loompa
Offline
User avatar

Age: 32

Posts: 26

Joined: 17th Dec 2005

Ride: EA 5SP

Location: whyalla
SA, Australia

a smaller spring in the wastegate you say......
are there differnt wastegates i could buy already like this,
or do i have to do it my self, is it a hard mod to carry out?
Top
 Profile


Posted: Sun Mar 05, 2006 1:32 am
Stock as a Rock
Offline

Age: 30

Posts: 112

Joined: 5th Feb 2006

Ride: EL gli

Location: Perth, NOR
WA, Australia

I dont think it should be a very big mod. I guess it depends of the wastegate.

However there is another way. Most probably not as efficient but it shows you another way.

Just goto the autospeed website and do a search for 'venting boost'.
Have a quick read of that and let us know what you think of it.
Top
 Profile


Posted: Sun Mar 05, 2006 1:02 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

a wastegate with an adjustable rod.

change the length =change the boost



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sun Mar 05, 2006 3:41 pm
Oompa Loompa
Offline
User avatar

Age: 32

Posts: 26

Joined: 17th Dec 2005

Ride: EA 5SP

Location: whyalla
SA, Australia

the venting boost pages seemed sorta hard to understand but still interesting but i need to pay for the pages or some crap so i left it at that,

i had a brief look into the adjustable wastegate rod thing and that dont seem too hard

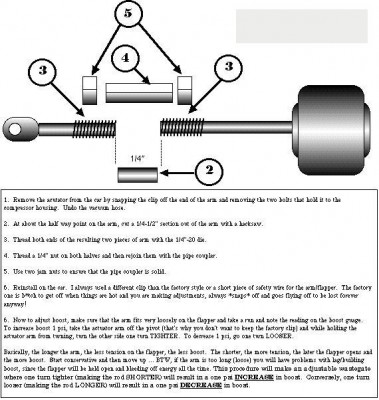

i added a pic i found to see if thats what you are talking about,
so i think making the adjustable rod would be better cos it is easily adjustable, campared to the spring method i'd need to get a whole heap of springs and keep changeing them to get the boost i want





Attachments:
Adj_wastegate.jpg [ 106.28 KiB | Viewed 59 times ]
Top
 Profile


Posted: Mon Mar 06, 2006 12:16 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Yes that will take preload from diaphram..You can purchase a low Lb wastegate if its an intergrated wastegate.. Having a rstrictive exhaust will limit boost / power also..Mazda did this on the Turbo 626's...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....
