Hi guys, I have found a blower on the interwebs, will I be able to fit it to my fairmont frankieh style or will it be too big? It's a M122 blower from a 2010 GT500 with under 1k miles, 2.8" pulley. I know frankieh is/was doing the m90 in his car, how much bigger is the m122? Cheers guys!



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Mon Aug 12, 2013 11:16 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

No Such thing as a M122. It is an M112.

MP90 at 12,000rpm (blower rpm) is just over 550cfm at 5psi. At 10psi it is about 525cfm.

M112 at 12,000rpm is about 720cfm at 5psi and 690 at 10psi.

Volumetric efficiency is also higher at 5psi (95%) than 10psi (91%), air temp at 5psi and 12,000 rpm is approx 130deg F and at 10psi at 12,000rpm it is approx 200deg F.

HP required at 12,000rpm for MP112 is 34hp at 5psi and 52hp at 10psi.

HP required at 12,000rpm for MP90 is 25hp at 5psi and 40hp at 10psi.

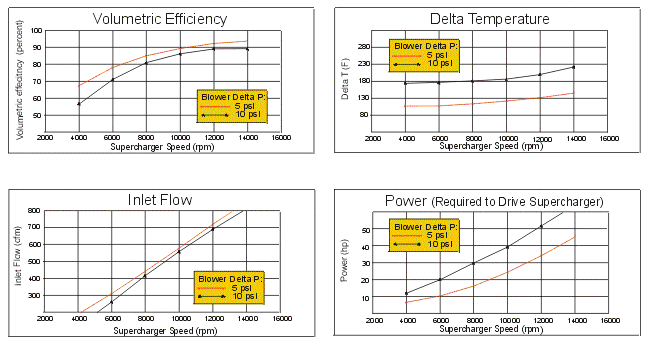

M90 Graphs
Attachment:
eaton_M90_graph.gif [ 16.81 KiB | Viewed 87 times ]

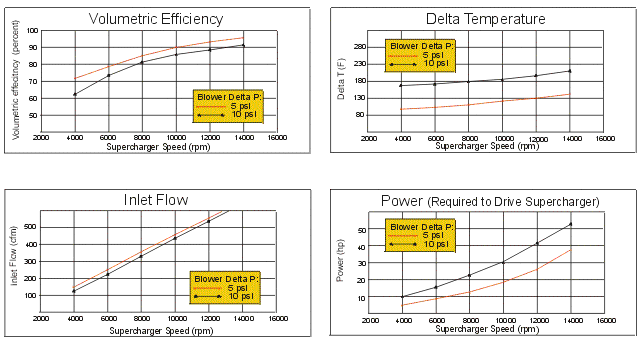

MP90 Graphs
Attachment:
eaton_Mp90bgraph.gif [ 25.81 KiB | Viewed 65 times ]

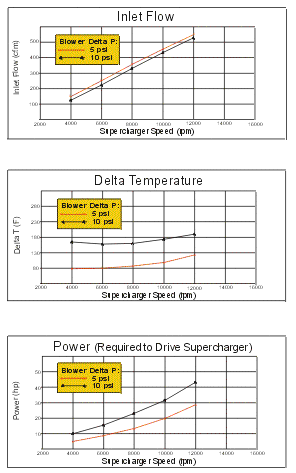

MP112 Graphs
Attachment:
eaton_Mp112Graph.gif [ 25.92 KiB | Viewed 99 times ]






As you can see the MP90 is very efficent and can handle the 4.0l well. Increasing PSI is basically a waste of time with the Eaton as can be seen from the above figures, you get less flow and higher temps.

M90 Graphs
Top
 Profile


 Post subject: Re: M122 into EL
Posted: Tue Aug 13, 2013 11:07 am
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

There is an M122, and as described it what was fitted to the GT500.


I wouldn't say no straight away, but they are a fair bit longer than the m90 Frankieh is using.

The integrated inlet elbow on the GT500 M122 adds a lot of length to it and I reckon it would be located just about directly above the engine mount.


I think your best bet would be to try and find a MP112, MP90, or if you're lucky an MP112HH.
Or consider looking for the newer magnuson range using the new Eaton TVS rotors. (R1650, R1900, R2300, etc)



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Tue Aug 13, 2013 12:59 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

I stand corrected on the M122. :D
Top
 Profile


 Post subject: Re: M122 into EL
Posted: Tue Aug 13, 2013 1:03 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

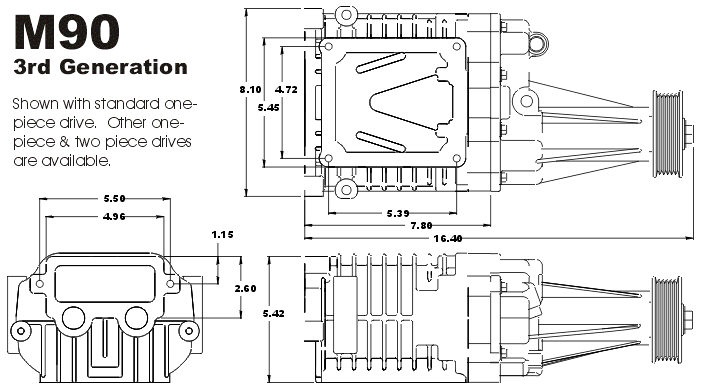

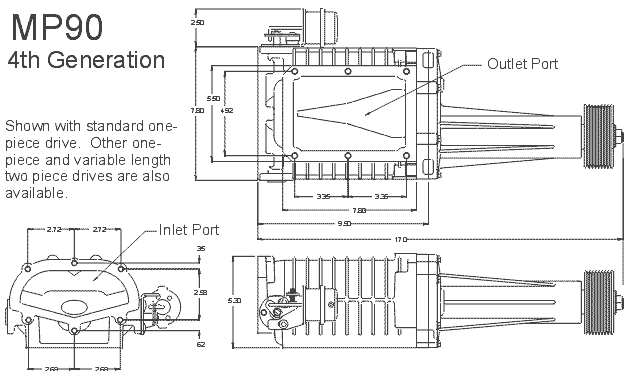

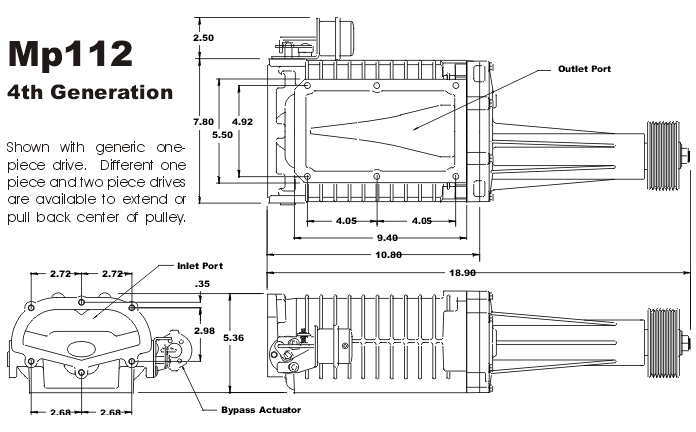

Drawings for the M90, MP90 & MP112.

M90
Attachment:
eaton_M90_drawing.gif [ 29.29 KiB | Viewed 91 times ]


MP90
Attachment:
eaton_mp90xdrawing.gif [ 15.19 KiB | Viewed 85 times ]


MP112
Attachment:
eaton_MP112_drawing.gif [ 39.4 KiB | Viewed 136 times ]
Top
 Profile


 Post subject: Re: M122 into EL
Posted: Tue Aug 13, 2013 2:03 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

This is the pic I got of the unit. I have seen on a couple amurican forums that they swap in the m122 rotors into the 112 housings, would this mean they are the same size? Cannot find specs on the shelby blower... According to the drawings the m112 is 480mm long to the front of the snout, ill have to get stuck in with the tape measure tonight after work. Would the 122 be overkill on my motor? Be better off with the 90?



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Tue Aug 13, 2013 2:24 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Unless it's well below it's optimal operating range, a bigger blower can be a benefit as it can spin slower to give the same boost giving lower intake temps.

I've read of guys spinning the 90 very fast in the US for 20+ psi, but they're intercooled.

The 90 has a small benefit of the shorter rotors, with same degree of twist as the 112, having a higher helix angle which improves it's efficiency. Spinning the 112 to a similar speed results in the rotors not having enough time to fill properly.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Tue Aug 13, 2013 4:09 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

I'm only looking at running 5-10 psi boost. A j3 should handle that yeah?



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Tue Aug 13, 2013 4:37 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

The snort kit uses a 112 for 5 or 9psi.

The only limitation using a J3 is the actual map sensor which has a hissy fit at around 10psi.
The J3 will cope all the way up to the cut off.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Wed Aug 14, 2013 8:43 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

Update: price is right for the charger, got a reasonable shipping quote, gonna confirm with the seller in the next couple of days. Hopefully boost will be on its way! I seriously doubt it will fit frankieh style, will have to buy/fabricate a snort style manifold.



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Wed Aug 14, 2013 8:47 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

Attachment:
1001569_690570927624279_1962956695_n.jpg [ 11.54 KiB | Viewed 2983 times ]

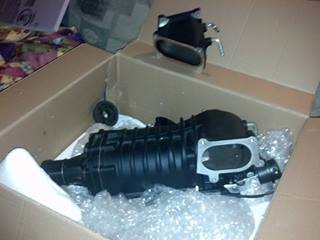

This is the unit I'm looking at...



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Wed Aug 14, 2013 10:04 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

This should give you an idea of how big the unit is.
In the picture is an M112 from the SVT Cobra to early 2000's.



Here's a comparo of the MP112 vs the SVT M112




The GT500 unit is a tad bigger than the SVT M112.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Wed Aug 14, 2013 11:05 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

That's the way ill end up doing it I reckon. I'll need to update my shopping list haha.
Walbro 255 fuel pump.
42-60lb injectors.
Wade 1521a.
Pacy 4480's.
J3.
Intake manifold.

My motor has done 246000 k's so I am thinking of buying a spare el motor and rebuilding/freshening it up ready for boost. No forgies or anything, just new bearings, gaskets, timing chain kit, oil and water pumps. I haven't forgotten anything have I?
Just thought of some more stuff to get, new valve springs, xr6 fuel reg, new dizzy+coil.



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Thu Aug 15, 2013 11:13 am
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Frankieh's engine.

If you got a short snout you could fit a fairly big unit in there.
Dunno how much room there would be to the shock tower for the inlet of the GT500 unit though.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: M122 into EL
Posted: Thu Aug 15, 2013 4:12 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 218

Joined: 17th Sep 2012

Gallery: 3 images

Ride: EL Fairmont

Power: 12 rwkw

Location: in the 'beff
SA, Australia

I doubt the m122 will get in there, it looks waaaayyyyy too cramped in there.
I was thinking of fabbing up a custom manifold like a snort style but with a w2a core in it.
l /// <--heat exchanger
Intake runner l /// l
-----------------------l. /// l
/// l
/// l <-blower face
-----------------------l. /// l
l. /// l
l

That will work I reckon....



_________________

EL Mont- mods: 2.5" catback, clear indicator repeaters.

Planned mods: Boooooooooooooossssssssst :D
