Mr.Kiss's EF LPG Turbo Project *FIRST POST UPDATED 25/03/07*



Page 9 of 11 [ 154 posts ] Go to page Previous  1 ... 6, 7, 8, 9, 10, 11  Next


Posted: Sun Feb 04, 2007 5:10 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

dam nice turbo



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Feb 05, 2007 9:00 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

will that clear the shock tower?
mine goes pretty damn close.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Mon Feb 05, 2007 12:17 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 23rd Jan 2007

Location: cairns
QLD, Australia

kudos for effort mate, more rewarding doing it yourself...

couple things tho, your manifold seems kinda like a `custom log` manifold with those 90deg bends and no tuned length, might want to rethink it when you need more power... it will hurt your volumetric efficiency for sure...

the other thing is the turbo itself... do you have a compressor map for that thing you bought and have you plotted your engine on it? takes alot of the guess work out which you seem to be doing and you will get a much better idea of where your boost threshold will be and how its going to drive etc... but i guess its too late now, you need to do this before you buy your turbo... id do it asap, coz since you havent used it yet, you could return it its too far off the map...
Top
 Profile


Posted: Mon Feb 05, 2007 10:18 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

EFFalcon wrote:
will that clear the shock tower?
mine goes pretty damn close.

Yes it will clear... I hope :D Thats why the turbo is angled up a little bit , I'v also allowed for clearence from the bonnet. I did a fair bit of measuring to make sure.

groper wrote:
kudos for effort mate, more rewarding doing it yourself...

couple things tho, your manifold seems kinda like a `custom log` manifold with those 90deg bends and no tuned length, might want to rethink it when you need more power... it will hurt your volumetric efficiency for sure...

the other thing is the turbo itself... do you have a compressor map for that thing you bought and have you plotted your engine on it? takes alot of the guess work out which you seem to be doing and you will get a much better idea of where your boost threshold will be and how its going to drive etc... but i guess its too late now, you need to do this before you buy your turbo... id do it asap, coz since you havent used it yet, you could return it its too far off the map...


Yeah with the manifold I'll keep it for a while, and then when i decide to build up an engine made for boost (300 - 350 rwkw) I'll buy a propper tuned length one as i dont have the skills to make one of them, but this could be 3 yerars down the track :)
So at the moment the manifold will do for my current goals.

As for the turbo size I'm not that concerned, as i spent a long time discusing it with my supplier, and he said if it choked, or was to big we'll swap the turbine housing for a bigger or smaller one. But this turbo is pretty close to the GT53/40r....



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile


Posted: Tue Feb 06, 2007 9:23 am
Fordmods Newbie
Offline

Posts: 15

Joined: 23rd Jan 2007

Location: cairns
QLD, Australia

im a little confused, if your going by the current garrett nomenclature then your saying you have a t53 size turbine housing? yours is called a t60, whats the turbine wheel inducer and exducer size? furthermore, your running a 1.0 A/R on this presumably very large housing? to me, it sounds like its gonna take ages to spool up dude :?:

i may have to totally wrong idea here, but i think you may find that if you only want 8.5psi and 220rwkw, that thing will be VERY laggy...

i dont see how you can aim for 220rwkw with the option of going for 350+ all with the same turbo esp if you want to drive it around for 3 years on low boost before you go all out, itll drive you nuts...
Top
 Profile


Posted: Tue Feb 06, 2007 9:09 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

i think the turbo should be ok, but i wouldn't expect full boost before 3000. probably around 3200



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Mon Feb 12, 2007 1:00 am
Oompa Loompa
Offline
User avatar

Age: 35

Posts: 40

Joined: 22nd Jan 2007

Ride: R33 Skyline

Location: Tarneit
VIC, Australia

its lookin good mate, wish i had the knowlegde to make all that s**t.....



_________________

Greddy T67, Trust Hi Flow W/gate, HKS Manifold & Extractors, HKS Super Dragger Exhaust, 550cc Blitz injectors, Blitz Pod Filter, GTR Fuel Pump, Blitz Electronic Boost Controller, Apexi Power FC, Greddy BOV, Extreme H/Duty Ceramic Button Clutch.
300kw @ RWheels.

Top
 Profile


Posted: Mon Feb 19, 2007 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

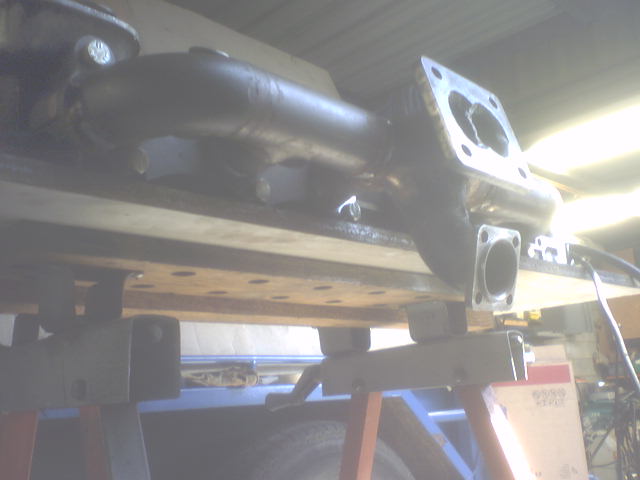

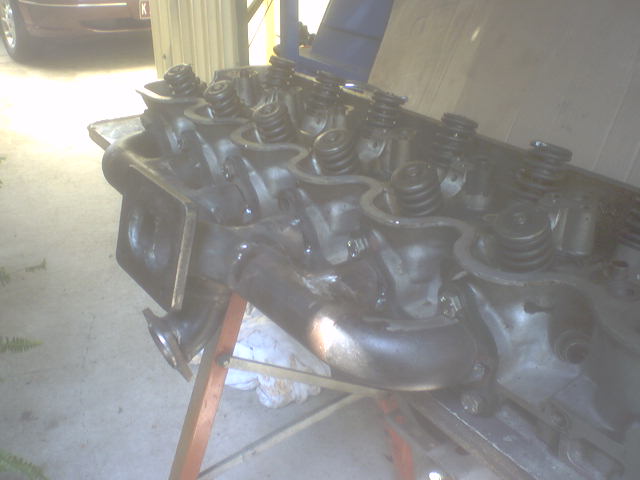

OK i finally got around to doing more work on the manifold today... I "should" finish it nexd weekend, all i have to do is finish welding around the runners on the header plate.

The pics arent very good coz i only had my phone camera on me...





Attachments:
P02-19-07_14.17[2].jpg [ 28.6 KiB | Viewed 49 times ]
P02-19-07_14.17.jpg [ 31.84 KiB | Viewed 52 times ]



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile


Posted: Wed Feb 21, 2007 5:09 pm
Fordmods Newbie
Offline

Posts: 12

Joined: 21st Jun 2005

Location: Melbourne
VIC, Australia

good to see another update at last! Not that i can really talk with my boosted project haha...

CHRIS...
Top
 Profile


Posted: Thu Feb 22, 2007 5:57 pm
Oompa Loompa
Offline

Age: 44

Posts: 43

Joined: 15th Jan 2007

Gallery: 3 images

Ride: 99 xr6

Location: Brisbane
QLD, Australia

good on you for doing it all yourself heres a tip if you want to do another manifold .steam tube is wicked and lasts an age or more longer than exhaust tube,have a friend with a 355 stroker vn commo i know horrible holden ,but the guy that did the manifold swears by the stuff its rated for higher temps which as we all know pyro temps are a must with turbo cars .this car is turboed as well and is as scary as all hell with a little bit of foot. i look forward to seeing how this all pans out for you . keep up the good work!!!!! :D



_________________

ONCE YOU GO BLACK YOU WILL NEVER GO BACK,what a shame im white ..........

Top
 Profile


Posted: Thu Feb 22, 2007 6:05 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

blackxr6 wrote:
good on you for doing it all yourself heres a tip if you want to do another manifold .steam tube is wicked and lasts an age or more longer than exhaust tube,have a friend with a 355 stroker vn commo i know horrible holden ,but the guy that did the manifold swears by the stuff its rated for higher temps which as we all know pyro temps are a must with turbo cars .this car is turboed as well and is as scary as all hell with a little bit of foot. i look forward to seeing how this all pans out for you . keep up the good work!!!!! :D


I am using steam tube, the stuff is 3.5 - 4mm thick :D



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile


Posted: Thu Feb 22, 2007 6:17 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

blackxr, you seem to know a lot about steam pipe, yet cant tell when you are looking at it...



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Thu Feb 22, 2007 6:19 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

steampipe is all well and good, but it aint worth s**t if you dont get the f**k thing done already stefan!
speed it up sunshine :P



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Feb 22, 2007 6:30 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

Steady ED wrote:
steampipe is all well and good, but it aint worth s**t if you dont get the f**k thing done already stefan!
speed it up sunshine :P

the turbo stuff wont be going on till near the end of the year :)
its got something to do with me getting off my P's in December... :cry:



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile


Posted: Fri Feb 23, 2007 4:53 pm
Oompa Loompa
Offline

Age: 44

Posts: 43

Joined: 15th Jan 2007

Gallery: 3 images

Ride: 99 xr6

Location: Brisbane
QLD, Australia

you have my apologies for not reading properly and wat i saw on the pics steel and steamtube i wouldnt know the diff in a picture.still putting together yourself keep up the good work :D



_________________

ONCE YOU GO BLACK YOU WILL NEVER GO BACK,what a shame im white ..........
