Posted: Sun Jan 21, 2007 10:09 pm
Getting Side Ways
Offline

Age: 39

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

what power are you making now?? did 3rd gear let go???

im going to try my luck with a R154 toyota box....



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Tue Jan 23, 2007 12:11 am
Stock as a Rock
Offline

Age: 37

Posts: 109

Joined: 11th Nov 2006

Gallery: 10 images

Ride: ED fairmont turbo

Location: sunshine coast
QLD, Australia

Yeah it was 3rd gear that blew and very easily too, i rekon it's putting out about 225 - 250rwkw i haven't even had it dyno tuned yet, i got one of the qld wolf distributers to street tune it for fuel economy with 10psi boost and i guess it was too much for the t5z, i'm going to get it dyno tuned with the new gearbox and go for some serious power anywhere between 350rwkw and 400rwkw will do, check out this site and see what you rekon about these boxes.
http://www.gforcetransmissions.com/tran_gt-5.asp



_________________

ED Fairmont: Master Power GT45, race spec T5, Wolf v4, 870cc Injectors, EF bottom end, EF Head, Surcam custom Grind Cam, Crane LX92 Coil

Top
 Profile


Posted: Tue Jan 23, 2007 12:29 am
Getting Side Ways
Offline
User avatar

Age: 70

Posts: 3555

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Go TKO they are around half the $$$ of a T5/6..
You don't need the close gears ayway..
With 4.0's looong stroke they produce SOOooo much torque.. It breaks transmissions easy..
Talk to Mal Wood .....
TKO's are tronger than TOP Loaders by alongshot...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Tue Jan 23, 2007 12:33 am
Getting Side Ways
Offline

Age: 39

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

3rd gear lasts about 3 secs once i flick it to high boost in mine...

i was going to go with the gforce a***, i spent a couple of weeks researching the pros/cons of it all, it is apparent that the t5's achilles heel is the case, it flexes too much, which allows the gears (especially 3rd since it has the least bearing support) to run out of mesh slightly, once the gears start to run on the tips of the teeth its ALL OVER, i decided it would be a complete waste of money to spend that sort of $ on the T5, when there is tried and tested stronger alternatives, ie. the R154... you will find lots of evidence of BIG HP cars using these boxes, and the only weak point i could find was a thrust washer behind 1st gear, if you replace that then there is no other problems to be had from what i found.... some 600+ rwhp supras use them. they are among the strongest factory 5spds avaliable

i like the R154 due to its cost also, i will be able to do the conversion myself for about $2500. try buy and fit a t56, tko600 for that price. that includes a custom built carbotic button clutch from Jim Berry.



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Tue Jan 23, 2007 4:20 pm
Smokin em up
Offline

Age: 46

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

build a c10 with a c9 convertor and a Torque-Power bellhousing.
Restrict your mods to a drilled intermediate plate (aka shift kit), rear case oiling mod, high flowed pump cover, 5 pack of quality clutches, kevlar bands and an R or H code servo.

A box like that shouldn't cost much over $1500, Bellhousing $600, Convertor ??? (you might have to track one down from an XB then get it modded). I've just home-built this combo to go behind a BA conversion. You could get out of it cheaper depending on how much you are prepared to learn about autos.

A TKO is $4600 RRP from Mal Wood and is rated in terms of torque handling capability, not horsepower. Be careful to get what you pay for as i've had morons trying to convince me that their TR3550's are TKO's. :roll:



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).

Top
 Profile


Posted: Tue Jan 23, 2007 8:31 pm
Stock as a Rock
Offline

Age: 40

Posts: 151

Joined: 27th Jan 2006

Ride: XD

Location: Melbourne
VIC, Australia

how does the shifter line up with the R154 ?
custom tailshaft & gbox crossmember yeah?



_________________

1997EL 5spd
mods: 2.5" redback catback, DBA slotted rotors, Pacemaker 4480's, Tint, K&N pod, 17" rims

Top
 Profile


Posted: Mon Jan 29, 2007 12:02 pm
Oompa Loompa
Offline

Age: 37

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

:lol:

Last edited by ebman40 on Tue Jan 30, 2007 8:15 am, edited 1 time in total.

Top
 Profile


Posted: Tue Jan 30, 2007 1:27 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 889

Joined: 23rd Aug 2005

Gallery: 1 images

Ride: 1984 XE Falcon

Location: South East Melb
VIC, Australia

nice car

Last edited by boost1105 on Sun Jul 29, 2007 1:29 am, edited 1 time in total.

Top
 Profile


Posted: Tue Jan 30, 2007 8:13 am
Oompa Loompa
Offline

Age: 37

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

:P





Attachments:
ford.jpg [ 13.31 KiB | Viewed 358 times ]
Top
 Profile


Posted: Tue Jan 30, 2007 11:48 pm
Oompa Loompa
Offline
User avatar

Age: 42

Posts: 40

Joined: 22nd Jan 2007

Ride: R33 Skyline

Location: Tarneit
VIC, Australia

Looks Real Good!!!



_________________

Greddy T67, Trust Hi Flow W/gate, HKS Manifold & Extractors, HKS Super Dragger Exhaust, 550cc Blitz injectors, Blitz Pod Filter, GTR Fuel Pump, Blitz Electronic Boost Controller, Apexi Power FC, Greddy BOV, Extreme H/Duty Ceramic Button Clutch.
300kw @ RWheels.

Top
 Profile


Posted: Fri Mar 09, 2007 12:45 am
Stock as a Rock
Offline

Age: 37

Posts: 109

Joined: 11th Nov 2006

Gallery: 10 images

Ride: ED fairmont turbo

Location: sunshine coast
QLD, Australia

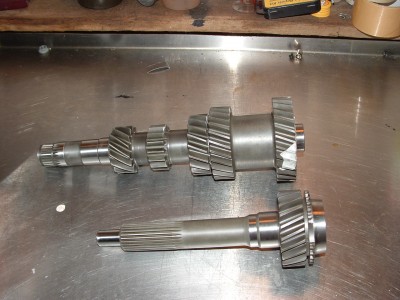

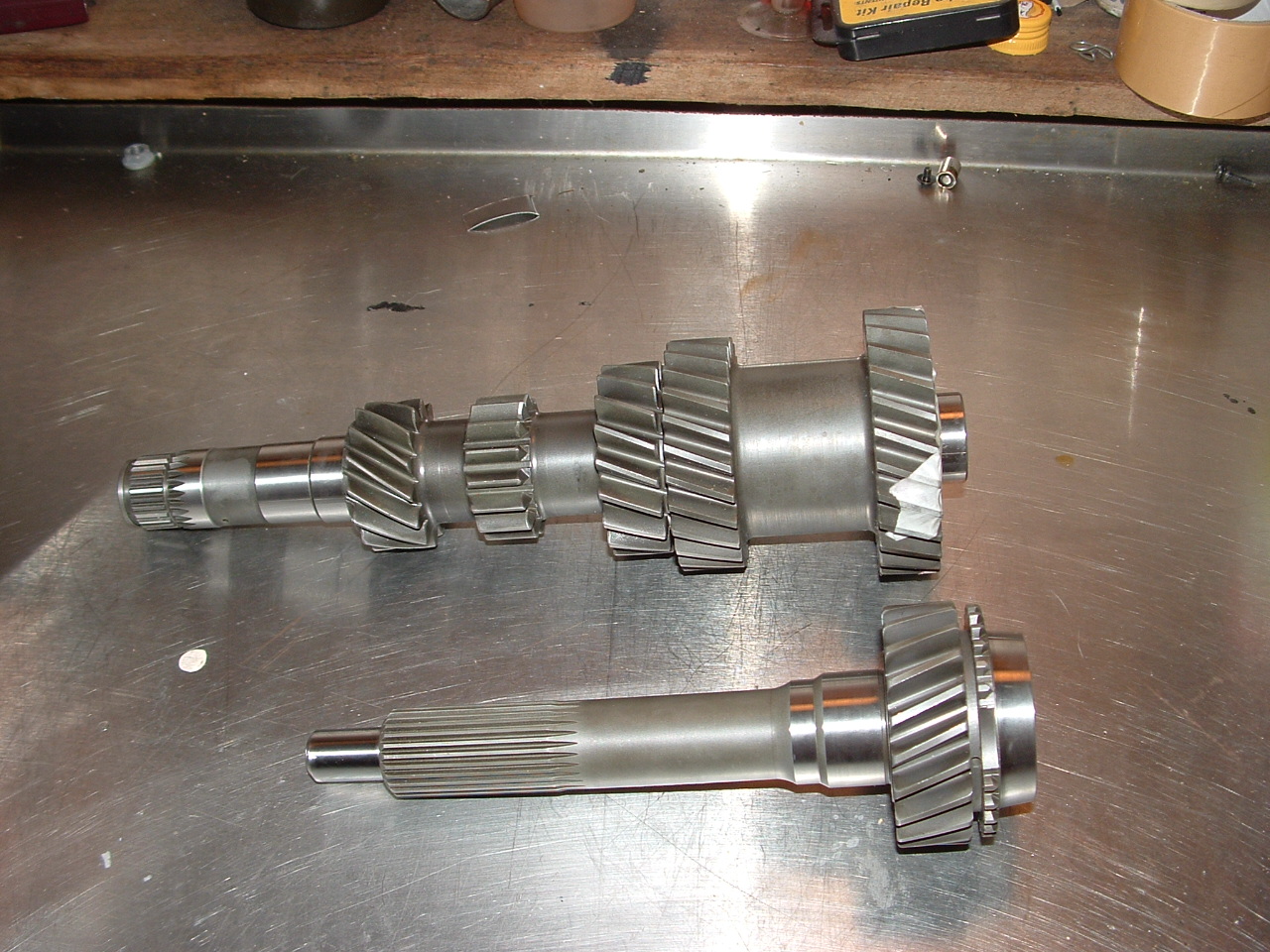

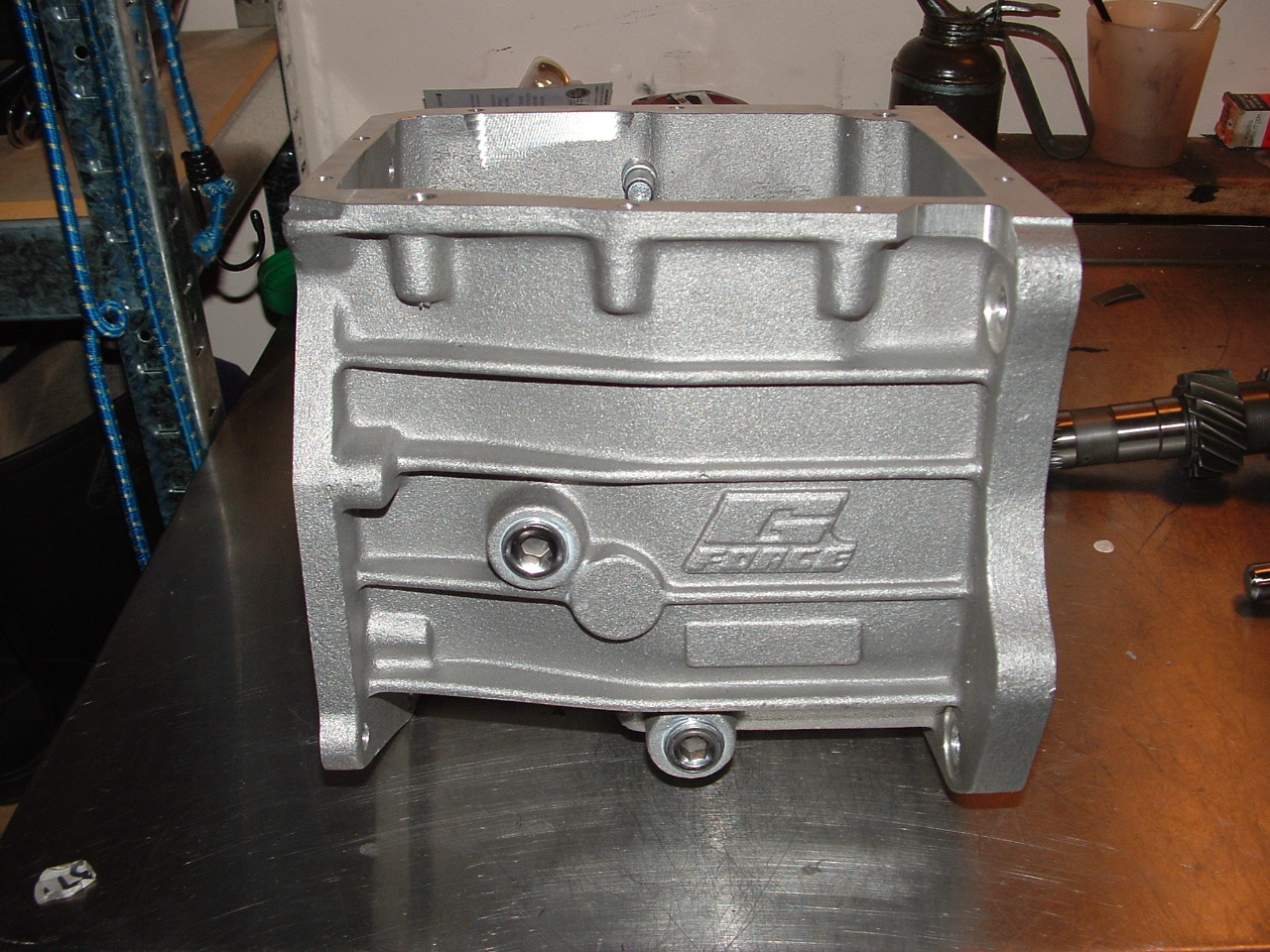

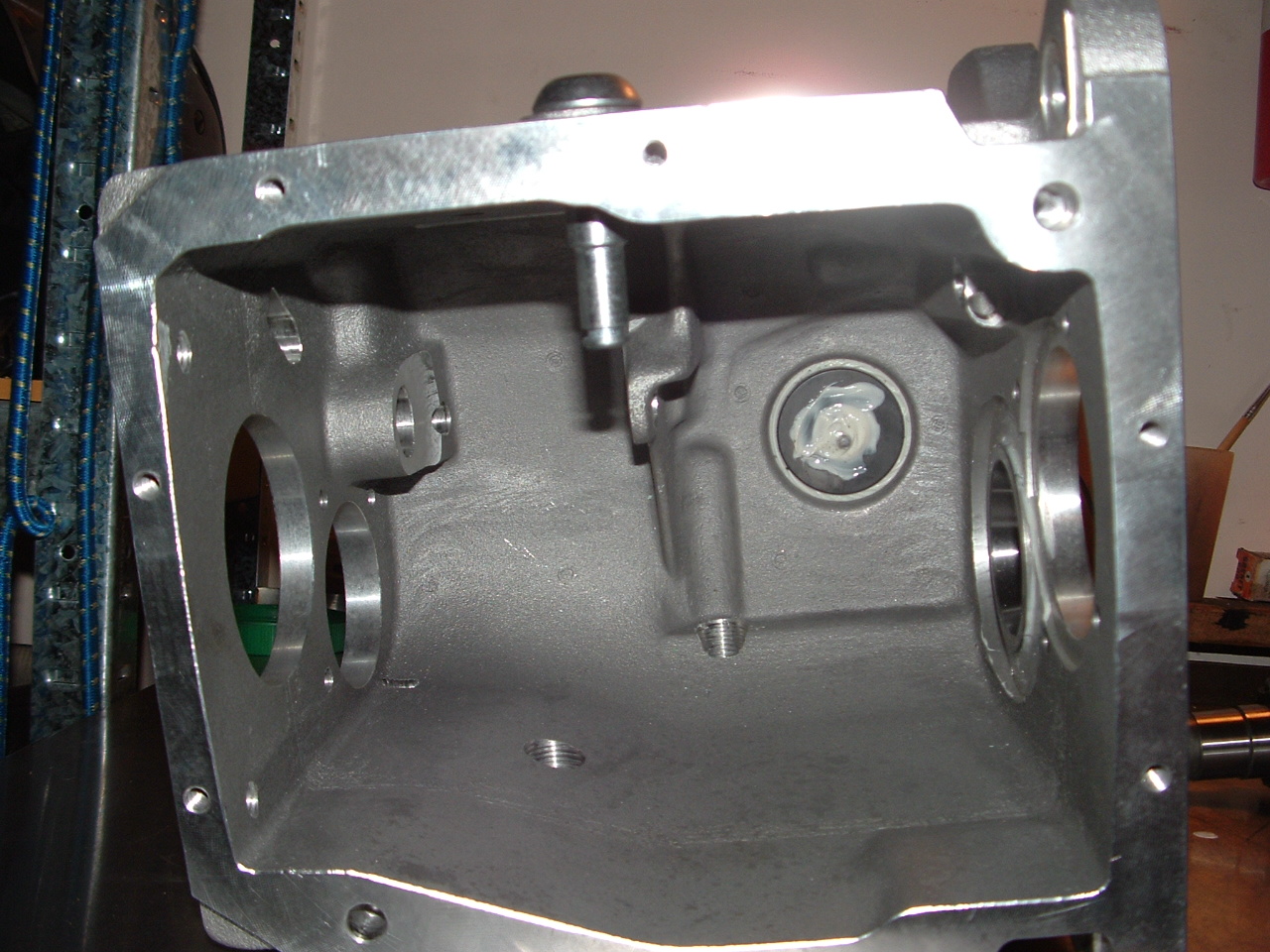

well finally i have my new gearbox from G-Force Race Transmissions and i also have a turbo cam from surecam





Attachments:
DSCF0005.JPG [ 449.9 KiB | Viewed 345 times ]
DSCF0003.JPG [ 468.36 KiB | Viewed 358 times ]
DSCF0001.JPG [ 466.86 KiB | Viewed 380 times ]



_________________

ED Fairmont: Master Power GT45, race spec T5, Wolf v4, 870cc Injectors, EF bottom end, EF Head, Surcam custom Grind Cam, Crane LX92 Coil

Top
 Profile


Posted: Fri Mar 09, 2007 1:40 am
Getting Side Ways
Offline

Age: 39

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

sorry to say it, but, as i suspected and mentioned in your other thread about the g-force box.. You do need a new clutch plate



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Fri Mar 09, 2007 1:45 am
Getting Side Ways
Offline

Age: 38

Posts: 1679

Joined: 9th Jul 2005

Gallery: 8 images

Ride: BA XR6 TURBO

Location: Newcastle
NSW, Australia

man that is a clean engine, but wtf is with the rusty lookin ic pipe on passenger side haha anyhoo nice work man, very very clean engine
Top
 Profile


Posted: Fri Mar 09, 2007 2:09 am
Stock as a Rock
Offline

Age: 37

Posts: 109

Joined: 11th Nov 2006

Gallery: 10 images

Ride: ED fairmont turbo

Location: sunshine coast
QLD, Australia

Yes it's ok i work at a gearbox and diff service center so getting as new clutch isn't a problem, and for the dodgy looking pipe work well that was just made to test the car see i lost my licence 6 months ago and still have 1 month to go and i just been waiting for this gerbox to come before i spend money else where on the car, now i have the box i will do 3 inch pipe owrk, battery in boot and bring pod filter to where batt was, i will be putting my turbo cam in too with a twin fuel pump setup and surge tank, i'm also yet to install my turbo cam and dyno tune it. I'll keep u posted



_________________

ED Fairmont: Master Power GT45, race spec T5, Wolf v4, 870cc Injectors, EF bottom end, EF Head, Surcam custom Grind Cam, Crane LX92 Coil

Top
 Profile


Posted: Wed Mar 14, 2007 2:40 pm
Fordmods Newbie
Offline

Posts: 4

Joined: 1st Sep 2005

Ride: xr6 Turbo

Location: Rockingham
WA, Australia

cool project mate..
sounds like some serious power!!

what is your new box? i have just got a t56 for my car as there hasn't been any failures from too much power that i have heard of..

my t5z didn;t last at stock power (~200rwkw) so im not surprised yours didn't!!

antone interested in a t5z with no 2nd syncro, teeth or 5th syncro?? they really are a shyte box haha



_________________

XR6T - now t56'd!

Top
 Profile
