 Post subject: NEXT MODS?? XR6Turbo
Posted: Tue Oct 09, 2007 11:32 am
Stock as a Rock
Offline

Age: 38

Posts: 107

Joined: 25th Sep 2007

Power: 284 rwkw

Location: sydney
NSW, Australia

Hi,

I have XR6 Turbo..

3 inch stainless system from the turbo back, bigger cat converter, typhoon second intake snorkel, new valve springs, bigger injectors, custom tune 14psi, 280rwkw. (auto)

What can I do to give it a little more shove?

At the moment, the car takes off ok from the line but when boost comes on about 3000rpm, the car just goes sideways, keep the foot in and you have a big power slide on your hands. But I need more...

What is the next step? Any little fiddly bits which may make a difference?



_________________

XR6 Turbo, 20 inch wheels, citric acid, 300rwkw

Top
 Profile


Posted: Tue Oct 09, 2007 2:14 pm
Stock as a Rock
Offline

Posts: 170

Joined: 10th Nov 2005

Location: Canberra
ACT, Australia

intercooler kit, the stock cores are very small



_________________

http://www.TURBO351.com

2V 351T, 732rwhp@15psi on LPG.

Top
 Profile


Posted: Tue Oct 09, 2007 4:24 pm
Getting Side Ways
Offline

Age: 31

Posts: 425

Joined: 1st Dec 2004

Location: Noble Park
VIC, Australia

yep, thats what i would def do!

process west stage 1 coolers are the go, for around $870 and remove the under battery pipe that's restrictive and buy a process west one for around the $125 mark i think!
think that's spose to deliver another 25-35kws!

u should upgrade ur actuator to a 12psi one, dont know how much that will cost??? anyone?

bigger dump pipe - Xforce 4'' or SMB.....

and maybe a bigger fuel pump - walbro/bosch...

any problems with ur auto yet??

there are endless things u can do to these!

wish i had some spare cash to spend on mine!! haha
Top
 Profile


Posted: Tue Oct 09, 2007 8:43 pm
Getting Side Ways
Offline
User avatar

Posts: 873

Joined: 9th May 2005

Ride: BA XR6T

gunit18 wrote:
yep, thats what i would def do!

process west stage 1 coolers are the go, for around $870 and remove the under battery pipe that's restrictive and buy a process west one for around the $125 mark i think!
think that's spose to deliver another 25-35kws!

u should upgrade ur actuator to a 12psi one, dont know how much that will cost??? anyone?

bigger dump pipe - Xforce 4'' or SMB.....

and maybe a bigger fuel pump - walbro/bosch...

any problems with ur auto yet??

there are endless things u can do to these!

wish i had some spare cash to spend on mine!! haha


those process west coolers are very nice :) and i am about to put the UBP in my ute to, they are also a nice bit of kit.
actuators are around the $160 dollar mark
walbro GSS-341, bolt in replacement for factory pump.
i would look at gettin the auto strengthened before it dies to 8-)



_________________

300+rwkw HeadsexTuned XR6 Turbo Ute *NOW SOLD :(*
MK Triton with 31" muddies, 2" lift and 3" turbo back exhaust etc...

Last edited by Mr Man on Thu Oct 11, 2007 4:21 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Oct 11, 2007 2:54 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Get an intercooler on it asap, it summer now and inlet temps are going to be huge from the tiny stock intercooler. That means there's a huge chance of detonation.

Intercooler to be safe, sqeeze a few more kws out of it and save a few grand for a well built auto... the stock 4sp will start slip at high 200wkws.

Your on the right path though, and nice car too dude.
Top
 Profile


Posted: Thu Oct 11, 2007 7:13 pm
Getting Side Ways
Offline

Age: 29

Posts: 1538

Joined: 4th May 2006

Gallery: 4 images

Ride: ef fairmont turbo

Power: 213 rwkw

Location: melbourne
VIC, Australia

does anyone know exactly what needs to be done to strengthn the auto???(apart from a s**t)
is it possible to do at home???(my dads a machanic)
btw XR6T citric is it a 4speed or zf 6speed???



_________________

96 EF FAIRMONT
Garrett gt40turbo, iceman plenum, ported head, turbo cam, double valvesprings, 023 fuel pump, 36lb injectors 4' cat, 4' dump, 2.5 exhaust, build bottom end, hypertonic pistons rods & rods, king bearings, j3. c10 3500 stall
232rwkw@4psi

Top
 Profile


Posted: Thu Oct 11, 2007 8:43 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Its a full on rebuild, stong bands, valves ect... but if he's a good mechanic, find out the parts and go for it... then there's the tuning side to firm up changes ect
Top
 Profile


Posted: Mon Oct 15, 2007 6:27 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 812

Joined: 9th Nov 2004

Ride: xr6t

Location: Newcastle
NSW, Australia

hmm that power seams a little low for the mods you have? i only have cooler and piping, intake and injectors and im running 285rwkw, and thats being seriousl;y restricted by the cat. With the mods you have it should be into the 300s, id say grab a cooler and get chef to do you some of his awesome piping.

The weakest part in teh auto is the a***, mines been fitted with au v8 a***, stronger bands, clutches, etc etc and it made a hell of a difference.



_________________

Rides:
-Ba xr6t, wog cooler, K&N pod on custom intake, battery moved to other side, flash, custom cooler piping, presons auto, car pc, 19" lenso speed 6, going for 300rwkw
-FZR 250- run around bike

Top
 Profile


Posted: Tue Oct 16, 2007 12:38 pm
Stock as a Rock
Offline

Age: 38

Posts: 107

Joined: 25th Sep 2007

Power: 284 rwkw

Location: sydney
NSW, Australia

The tuner said my 20 inch wheels cost me power on the dyno? He said he has seen it many times before, big wheels cost you power on the dyno???

He said the size combines with the weight? Is this guy pulling my leg?



_________________

XR6 Turbo, 20 inch wheels, citric acid, 300rwkw

Top
 Profile


Posted: Tue Oct 16, 2007 6:13 pm
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

when in doubt...up the boost



_________________


Top
 Profile


Posted: Tue Oct 16, 2007 6:43 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 812

Joined: 9th Nov 2004

Ride: xr6t

Location: Newcastle
NSW, Australia

hmm he might be, ive never heard of that before, fyi mine made its power with 19s



_________________

Rides:
-Ba xr6t, wog cooler, K&N pod on custom intake, battery moved to other side, flash, custom cooler piping, presons auto, car pc, 19" lenso speed 6, going for 300rwkw
-FZR 250- run around bike

Top
 Profile


Posted: Tue Oct 23, 2007 4:54 am
Fordmods Newbie
Offline

Age: 31

Posts: 14

Joined: 19th Jul 2007

Ride: ba xr6, eb

Location: victoria,melbourne
VIC, Australia

yeah apart from a decent cooler( as we all know more cold air= more hp) i would be looking in to the auto post haste
there are various corba kits avail from nizpro depending how re-inforced you want your trans- would make a massive diffrence to say the least
Top
 Profile


Posted: Tue Oct 23, 2007 3:57 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

XR6T citric wrote:
The tuner said my 20 inch wheels cost me power on the dyno? He said he has seen it many times before, big wheels cost you power on the dyno???

He said the size combines with the weight? Is this guy pulling my leg?


Once you go over a 17" rim the factory steelies actually are lighter (when both are fitted with tires). The difference in inertia is enough to rob you a fair ammount of power. If you don't know what inetria I suggest you grab yourself a copy of "Physics for engineers" by Paul A Tippler, or any engineering text book written by Norton, Shigley, Gere, Hibbler and Mabie and Reinholtz. Its a basic concept but its a b**ch of a thing to explain to someone with a limited mechanical aptitude.

And depending on the overall tire height you get more leverage by using smaller rims. Again, any physics text book will do if you want more information on leverage.
Top
 Profile


Posted: Tue Oct 23, 2007 5:33 pm
Stock as a Rock
Offline
User avatar

Age: 40

Posts: 140

Joined: 7th Jul 2007

Gallery: 21 images

Location: sidunee
NSW, Australia

mate......get a decent cooler (do some reaserch)...and whack on a nizpro / plazmaman/ process west plenumn and you will be way over 300rwkw.

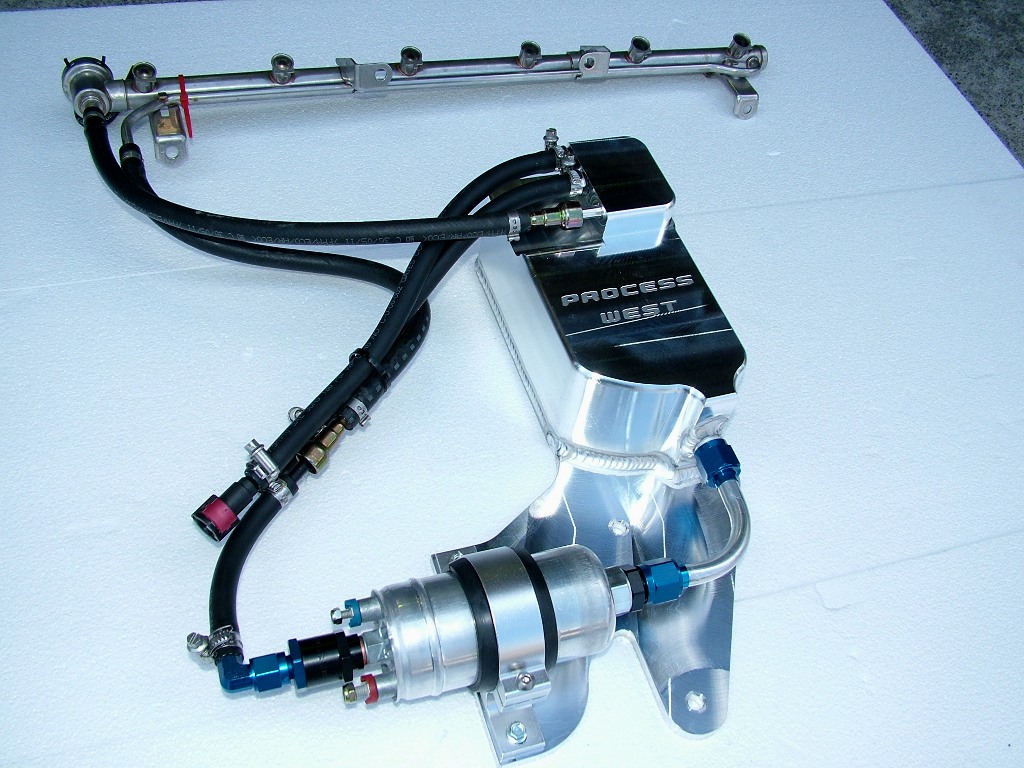

and get a fuel pump pronto... process west have a real cracker of a pump and swirlpot basiclt bolt on.around 600 bucks........

you can also remove the underbattery pipe from the cooler to the throttle body and replace it with a pwr/plaz/pw/ unit.

then theres the factory xover pipe.

airfilter off the turbo with battery relocation.

the list is endless.





Attachments:
surge11.jpg [ 227.31 KiB | Viewed 95 times ]



_________________

bf xr6turbo siemens injectors, full plazmaman 800 hp intercooler kit, 5 inch cat and custom dual 2.5 inch zorst, billet flywheel with mal wood clutch kit, braided hoses, big brakes, 3.2L surge tank/w twin 044's rebuilt motor with forged and billet everything 420+ rwkw on 98. holden killer.

Top
 Profile


Posted: Tue Oct 23, 2007 6:09 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

bfhoon wrote:
process west have a real cracker of a pump and swirlpot basiclt bolt on.around 600 bucks........

"It can be purchased with or without the Bosch Motorsport 044 pump.

Cost on the complete unit is $865 or $615 without the pump."

thats the real price of the surge tank setup



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile
