 Post subject: oil out dipstick
Posted: Sat Nov 03, 2007 3:40 pm
Parts Gopher
Offline
User avatar

Age: 30

Posts: 63

Joined: 25th Mar 2006

Gallery: 5 images

Ride: ef falcon

Location: ayr
QLD, Australia

g'day
almost finished my turbo project and gets tuned in 2 weeks BUT i hav come across a problem with oil coming out the dipstick at about 2 grand. its a fresh motor so there is not blow by and ive pin pointed the problem to the crankcase ventilation system. does anyone have any good and simple ideas to resolve this??

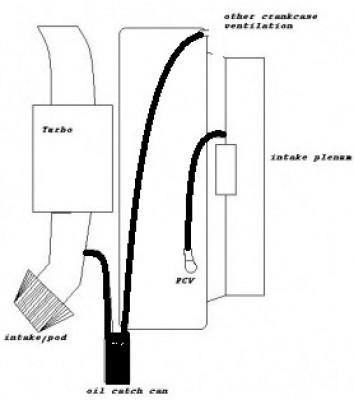

ive put a diagram which i think mite work but if anyone thinks it wont please modify the pic so i can work off it thanks heaps!!!!





Attachments:
File comment: this is what i think may work
catch can setup.JPG
catch can setup.JPG [ 22.73 KiB | Viewed 90 times ]
Top
 Profile


Posted: Sat Nov 03, 2007 3:51 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

I would do the PCV to take manifold vacuum as it has one way valve ...
Then fit the other to inlet pre turbo..
If not you'll boost crankcase...
Its best to take rocker cover off and drill out the rear vent as they are alittle small for forced induction...
A one way valve from most Jap wrecks fitted inline with both brake booster and PCV just to be safe...

With the way you have it.. It doesn't vent anywhere while engine is under boost... Remember the PCV closes under boost... Or it should....



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Sat Nov 03, 2007 4:45 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

lol ur pushing boost pressure strait into the crank case like that.

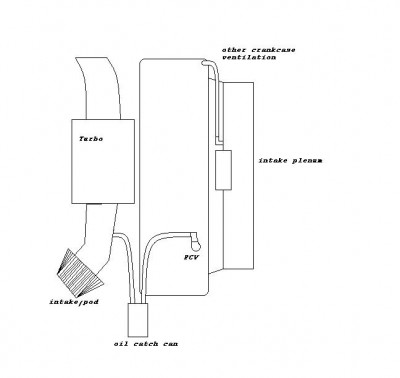

heres how ebxr8380 explained it





Attachments:
modsss.JPG [ 15.52 KiB | Viewed 97 times ]



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Nov 03, 2007 8:39 pm
Parts Gopher
Offline
User avatar

Age: 30

Posts: 63

Joined: 25th Mar 2006

Gallery: 5 images

Ride: ef falcon

Location: ayr
QLD, Australia

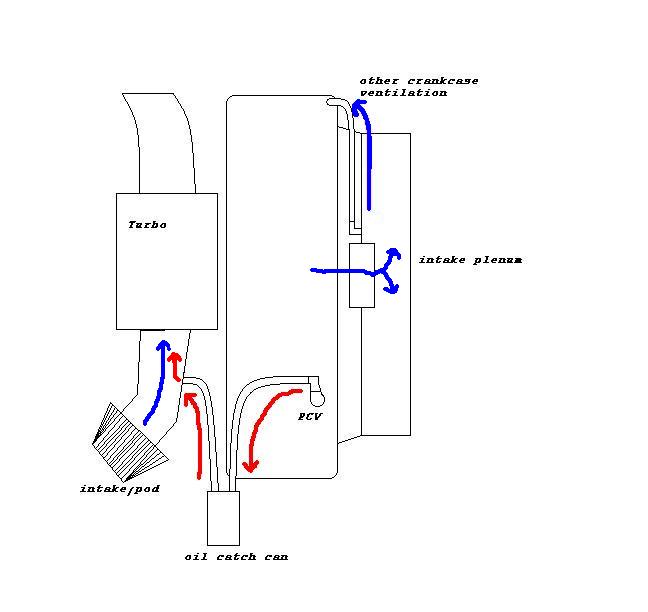

but this is how i thort it wud work. but yeah lol it wud b putting a fare bit of boost pressure in there. at least it'd vent crankcase gasses lol lol lol
thanks heaps guys :D





Attachments:
catch can setup under pressure..JPG
catch can setup under pressure..JPG [ 26.89 KiB | Viewed 82 times ]
Top
 Profile


Posted: Sat Nov 03, 2007 8:43 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

haha, i think u got the wrong idea about crankcase ventilation.

u dont want any boost in there.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Nov 03, 2007 9:03 pm
Parts Gopher
Offline
User avatar

Age: 30

Posts: 63

Joined: 25th Mar 2006

Gallery: 5 images

Ride: ef falcon

Location: ayr
QLD, Australia

hang on another thing. ebxr8380 said that the pcv valve closses under boost pressure. which must mean there is very little vacuum draw through the pre turbo hose??? is that right??

cos if theres mass amounts of vacuum it'll pull thru the dipstick and worst case thru the seals.. just trying to b cautious lol
Top
 Profile


Posted: Sun Nov 04, 2007 12:16 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

the pcv valve closes when the boost from the plenum try the go bak thew the pipe and into the crank case. it opens when the plenum gets vacuum to stop stinky gases going to atmo.

yes there is very little vacuum pre turbo.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sun Nov 04, 2007 10:13 am
Parts Gopher
Offline
User avatar

Age: 30

Posts: 63

Joined: 25th Mar 2006

Gallery: 5 images

Ride: ef falcon

Location: ayr
QLD, Australia

k now i kno the theory behind it. thanks heaps
Top
 Profile


Posted: Wed Nov 07, 2007 7:51 pm
Smokin em up
Offline

Posts: 277

Joined: 12th Nov 2004

Gallery: 3 images

Ride: AU - Turbo

Location: Canada
Oustide Australia

I had this same problem had it blowing oil out the dipstick. Mine is now setup simliar to the pic you originally posted

Actually here is a pic of it which may help you
http://i3.photobucket.com/albums/y67/au2/m1.jpg
Top
 Profile


Posted: Wed Nov 07, 2007 9:13 pm
Parts Gopher
Offline
User avatar

Age: 30

Posts: 63

Joined: 25th Mar 2006

Gallery: 5 images

Ride: ef falcon

Location: ayr
QLD, Australia

yeah but wudnt the crankcase b getting constant pressure on and off boost? cant b good for seals? but then again u wudnt hav it if it didnt work effectively
Top
 Profile


Posted: Wed Nov 07, 2007 9:54 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

fritzz's diagram is the correct way. Off boost the PCV will work to provide suction from the crank case to the inlet manifold. When on boost the PCV will close and the rear vent will then provide the suction from the crank case through the catch can to the front of the turbo.
I would recommend getting a metal PCV, as the plastic ones have a habit of breaking, also it might pay to get an addition one way valve to put between the PCV and the inlet manifold as often the PCV valves done seal 100% and will cause pressurization of the crank case

This is important to get right, under extreme situations pressurization of the crank case can slow the oil feed through the turbo.

Good luck.
Top
 Profile


Posted: Thu Nov 08, 2007 7:39 pm
Stock as a Rock
Offline
User avatar

Posts: 197

Joined: 24th Nov 2006

Gallery: 1 images

Ride: vs cluby,elxr6t

Location: Frankganistan
VIC, Australia

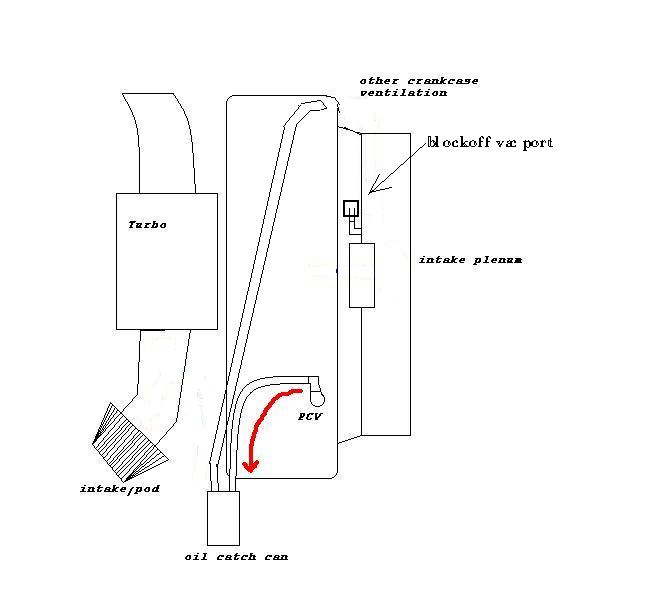

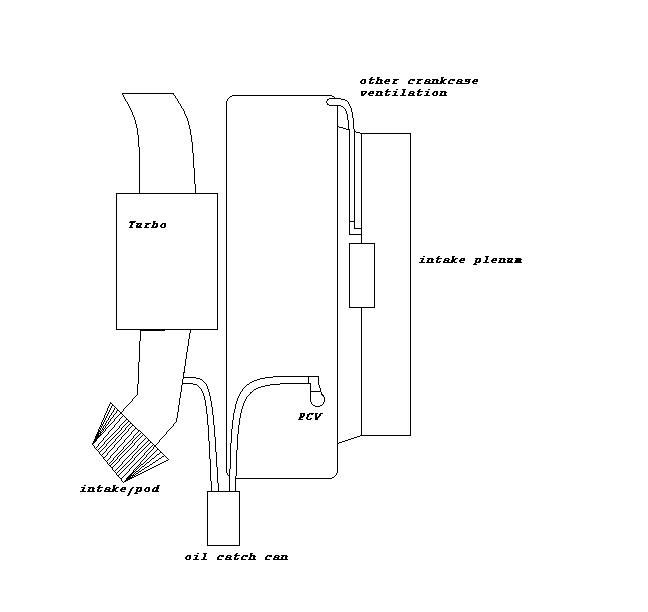

wat about this kind of setup
[/img]





Attachments:
catch can setup under pressure[1]..JPG
catch can setup under pressure[1]..JPG [ 27.96 KiB | Viewed 76 times ]



_________________

wish i had bigger wheels.

Top
 Profile


Posted: Thu Nov 08, 2007 7:50 pm
Parts Gopher
Offline
User avatar

Age: 30

Posts: 63

Joined: 25th Mar 2006

Gallery: 5 images

Ride: ef falcon

Location: ayr
QLD, Australia

that will do absolutely nothing. nothing is flowing so no crank case gasses wud be vented and theres no need for a catch can.

ive been studying up a bit and found out the best way for a crankcase to b in is full vacuum, so theres no pressures against the moving internals. most dragscars hav a pump of sum sort to keep it in this state.
Top
 Profile


Posted: Thu Nov 08, 2007 7:56 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

ISQUIK wrote:
wat about this kind of setup
[/img]


that would be ok, if the catch can had a filter on top. but would do nothing at all if it was a sealed catch can.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Thu Nov 08, 2007 9:08 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Some vacuum to crankcase helps purge condensation from oil etc keeping it clean...
If engine is in good nick then PCV could stay as is..
Then vent rear breather to air cleaner cover where fumes finally get sucked into air cleaner...
If this breather line is high enough on firewall there very little chance of oil going through it...
The better the ventilation the better the ring seal...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile
