 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 9:45 am
Fordmods Newbie
Offline

Posts: 2

Joined: 23rd Feb 2014

Ride: supercharged el xr6 m112

Location: canberra
ACT, Australia

the quarterhorse works on the 6 cylinder also ( live tune ) however you wont have access to the live dash/datta logging ect as there isnt a patch ( adx file ) created for them . for this reason i wouldnt recommend the quarterhorse as 50% of its intended purpose is not able to be used ( unless someone creates the adx file to suit

the v8 platform is a very differant story as the qaurterhorse can be used to its full potential the usa guys have made the patch codes to suit
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 10:48 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

One thing I did forget to mention, if your doing DIY tuning you will need a wideband o2 sensor so that you can get your AFR's.

Personally I would recommend the Innovate units, personal preference.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 12:42 pm
Stock as a Rock
Offline
User avatar

Age: 26

Posts: 135

Joined: 31st Oct 2008

Gallery: 5 images

Ride: EA Falcon S pack now 4.0l

Location: Tweed Heads
NSW, Australia

SWC wrote:
2 types of Supercharger, Centrifical (belt driven Turbo :( ) and PD (positive Displacement :D :D :D :D :D ).

Attachment:
Charger Mounted front.jpg


Attachment:
Charger Mounted Left.jpg


Go PD. Only way to fly.


is this a kit from somewhere or something you've created?



_________________

1990 ea ford falcon getting ready for boost.

2000 Ford Courier 2.5l Turbo Diesel

YZ250 2009

Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 12:53 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Something I created. :D
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 6:11 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

You will also need to upgrade to a EF/EL serpentine belt setup. Will make it a lot easier to run the supercharger.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 9:09 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

Much appreciated with all the advice. I Gotta ask, with the Chips and such, what would be the easiest way to go?
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 9:20 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Povvo_XT wrote:
Much appreciated with all the advice. I Gotta ask, with the Chips and such, what would be the easiest way to go?


I'll go with what will probably turn to a s**t fight.

My recommendation would be to go with the Moates F3 (J3) Chip.

SWC wrote:
You will also need a chip to tune the ECU.

Look at the Moates site and see the gear there. http://www.moates.net/ford-19862004-c-63.html

You will need their F3 Chip (J3)
http://www.moates.net/f3-ford-memory-ad ... l?cPath=63
and also the Jaybird Programmer
http://www.moates.net/jaybird-j3-module ... l?cPath=63

If you want to read your stock ECU and dump the Binaries etc then you will need the Burn2 Programmer
http://www.moates.net/burn2-chip-progra ... l?cPath=63
and also the FA Adaptor
http://www.moates.net/fa-ford-module-pr ... l?cPath=63

You will only need either the Jaybird or the Burn2, you won't need both.

You can then use Tunerpro to do your tuning.

I am using the Quarterhorse but I won't go recommending that yet for the 6cyl as I still have further work to do to ensure that every thing works on the Live tuning side. Car is currently running on the Quarterhorse but with a cost difference of $135/160 for the F3 set up and $250 for the Quarterhorse, if the live tuning doesn't work then you have blown $100. I also purchased Binary Editor when I got my Quarterhorse so that added to the cost

If you don't want to go through Moates US, then contact BPR in Melbourne, nice guy but can be a little odd. He will help you out.
http://www.bulletperformanceracing.com. ... dware.html
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 9:55 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

So an F3 chip and jaybird would be the best/easiest option?
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 9:58 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Povvo_XT wrote:
So an F3 chip and jaybird would be the best/easiest option?


In my opinion, yes. (awaits s**t fight)

I am still going ahead with using the quarterhorse. I may pay to get the patch done.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 10:12 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

From what i can see, that combo looks the easiest to setup. Yeah, the quarterhorse would be good, but like ya said, not much point if ya don't have the patch.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 10:14 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Povvo_XT wrote:
From what i can see, that combo looks the easiest to setup. Yeah, the quarterhorse would be good, but like ya said, not much point if ya don't have the patch.


At least I don't have to pull it out to make changes :D . I can do it straight from the laptop to the ECU. Even while the car is running. Will make it easier to tune on the Dyno.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Fri Apr 18, 2014 10:50 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

Yeah, i guess being able to tune in place via laptop could be a good option. Question is what it would cost to get a patch made to utilise the whole system
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sat Apr 19, 2014 6:37 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

I will make a call next week and see what I can organise.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sat Apr 19, 2014 6:07 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

Keep me up to date on that.depending on the costing, mihgt be worth sharing the cost, çause in car tuning would be nice!
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sun Apr 27, 2014 5:01 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

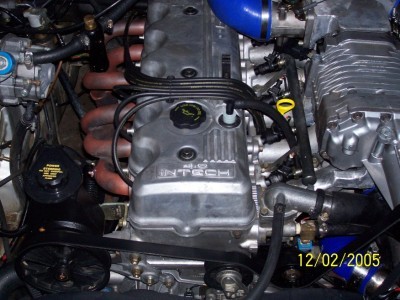

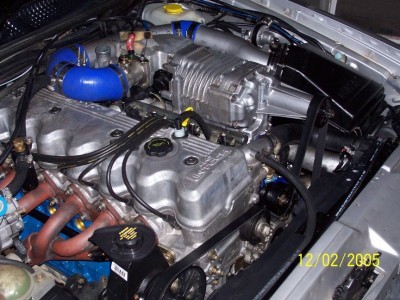

Pics of XFPauls set up,

Attachment:
Superchrged NC I6 Eaton 2.jpg
Superchrged NC I6 Eaton 2.jpg [ 48.48 KiB | Viewed 40 times ]


Attachment:
Superchrged NC I6 Eaton.jpg
Superchrged NC I6 Eaton.jpg [ 43.74 KiB | Viewed 46 times ]


Attachment:

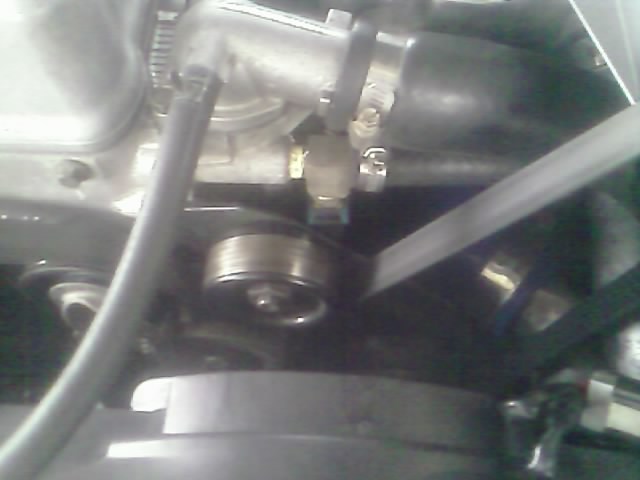

Supercharger Belt 2 XFPaul.jpg
Supercharger Belt 2 XFPaul.jpg [ 35.59 KiB | Viewed 40 times ]


Attachment:

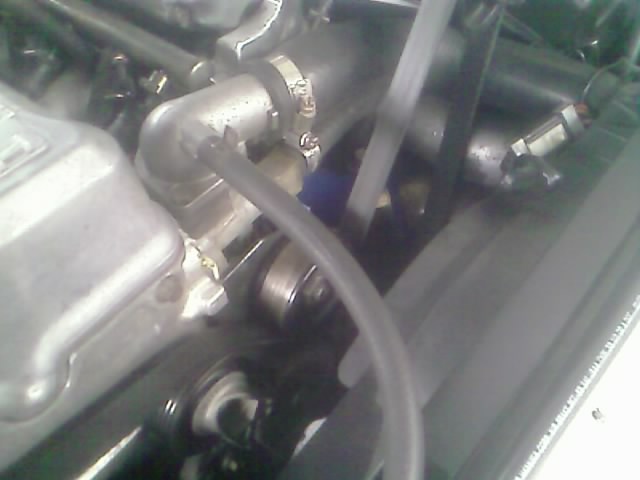

Supercharger Belt 3 XFPaul.jpg
Supercharger Belt 3 XFPaul.jpg [ 34.12 KiB | Viewed 42 times ]


Attachment:

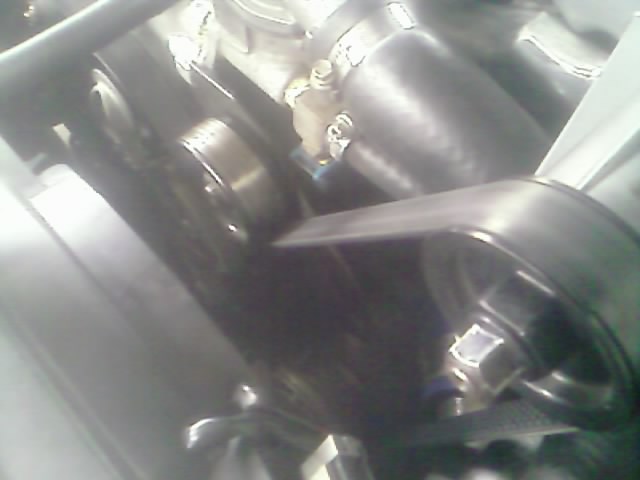

Supercharger Belt XFPaul.jpg
Supercharger Belt XFPaul.jpg [ 32.29 KiB | Viewed 41 times ]
