wastegate plumbing



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: wastegate plumbing
Posted: Mon Jul 21, 2008 9:08 pm
Parts Gopher
Offline

Posts: 76

Joined: 3rd Mar 2007

Location: lismore
NSW, Australia

what are your thought's on having the wastegate plumbed straight off your turbo exhaust housing. it alway's use to hold 14 perfectly and go straight to it, but now running more and a different plenum (which shouldn't make any difference as my boost reference line is straight after the turbo) i have a 7psi spring to run 17 and it sort of starts at 12 and end's up at 17.
i thought it might be the way it's plumbed off the manifold, not getting enough exhaust flow. hence the idea of putting it straight off the housing. just funny how it use to work really well. your thought's.

marty
Top
 Profile


Posted: Mon Jul 21, 2008 9:54 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

yes strait of the housing work very well.


has your tune changed?

has exhaust changed?



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Mon Jul 21, 2008 9:55 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Its the best way to go as far as boost control goes if you dont mind cutting into your housing.

ebs_4l, 6boost and ETM all do it because it works the best.
Top
 Profile


Posted: Mon Jul 21, 2008 10:06 pm
Parts Gopher
Offline

Posts: 76

Joined: 3rd Mar 2007

Location: lismore
NSW, Australia

the only thing with the exhaust is the cat is a little more see through, going straight off the housing is the easiest way with the room available. would it upset the flow to the turbo much or like you say alot of quick car's do it
Top
 Profile


Posted: Wed Jul 23, 2008 8:05 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

Dansedgli wrote:
Its the best way to go as far as boost control goes if you dont mind cutting into your housing.

ebs_4l, 6boost and ETM all do it because it works the best.

But if you have the room......the next best thing...IMHO

Some housings are already cast with flange for wastegate, but i think they are only racing versions.....but i could be wrong...

Cheers

8-) Daz 8-)



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Wed Jul 23, 2008 8:54 pm
Parts Gopher
Offline

Posts: 76

Joined: 3rd Mar 2007

Location: lismore
NSW, Australia

that's pretty much what i've got. and after reading ebs 4l , he stuffed around, plumbed 2 into 1 sort of thing and still didn't work, so it'll probably go on the housing.
is your's running daz, does it work well
Top
 Profile


Posted: Wed Jul 23, 2008 9:39 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

justa6 wrote:
that's pretty much what i've got. and after reading ebs 4l , he stuffed around, plumbed 2 into 1 sort of thing and still didn't work, so it'll probably go on the housing.
is your's running daz, does it work well

Yeah mate, but had an ignition and timing issue which has been sorted and i am waiting for the call to come and pick up the car. I am expecting the wastegate to work properly. Stinger is controlling the boost, which has reached 14 psi at 4000rpm.

Cheers

Daz 8-)



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Wed Jul 23, 2008 9:48 pm
Parts Gopher
Offline

Posts: 76

Joined: 3rd Mar 2007

Location: lismore
NSW, Australia

what turbo is it , seem's a bit late
Top
 Profile


Posted: Thu Jul 24, 2008 8:44 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

justa6 wrote:
what turbo is it , seem's a bit late

T70.....a bit late???not sure what you mean, starts to boost at 2000rpm, by 4000, you're definately in the back of the seat....lol

Daz :D



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Thu Jul 24, 2008 10:38 pm
Parts Gopher
Offline

Posts: 76

Joined: 3rd Mar 2007

Location: lismore
NSW, Australia

mine is at full boost by 2200. your's is full by 4000. no worries just a bit different
Top
 Profile


Posted: Thu Jul 24, 2008 10:47 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

yes that is pretty late for a 4l with a t3 turbo.

i would expect full boost at 4000 rpm with a 900hp turbo.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Thu Jul 24, 2008 11:51 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Sounds like the trim on exhaust wheel needs changing to tighter / lower trim ??

What type of wastegate is that ??
I have heard bad bad things about cheap E bay w/gates etc...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Fri Jul 25, 2008 8:00 am
Parts Gopher
Offline

Posts: 76

Joined: 3rd Mar 2007

Location: lismore
NSW, Australia

mine's a 48mm turbosmart progate, not sure what daz has
Top
 Profile


Posted: Fri Jul 25, 2008 11:22 am
Stock as a Rock
Offline
User avatar

Age: 40

Posts: 140

Joined: 7th Jul 2007

Gallery: 21 images

Location: sidunee
NSW, Australia

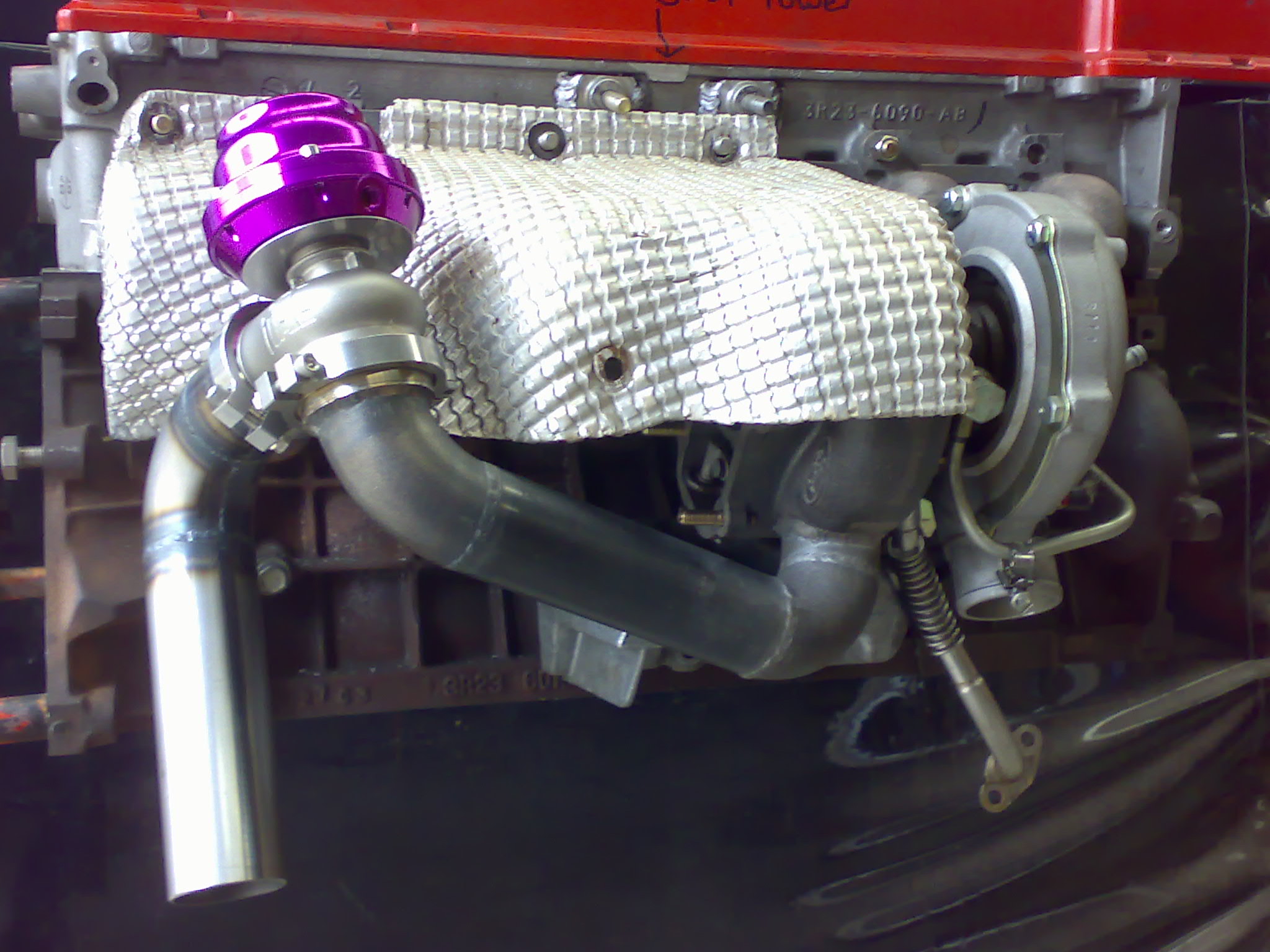

heres a pic of one etm has done for a ba.





Attachments:
16042008577.jpg [ 419.85 KiB | Viewed 1094 times ]



_________________

bf xr6turbo siemens injectors, full plazmaman 800 hp intercooler kit, 5 inch cat and custom dual 2.5 inch zorst, billet flywheel with mal wood clutch kit, braided hoses, big brakes, 3.2L surge tank/w twin 044's rebuilt motor with forged and billet everything 420+ rwkw on 98. holden killer.

Top
 Profile


Posted: Fri Jul 25, 2008 7:04 pm
Parts Gopher
Offline

Posts: 76

Joined: 3rd Mar 2007

Location: lismore
NSW, Australia

yeah that's the go, if ebs 4l is around what's the best way to go around welding it. use cast bend's, pre heat the housing up, tig it then let it cool slowly. almost post heat. any particular filler.
