water feed lines?????



Page 1 of 1 [ 4 posts ]


 Post subject: water feed lines?????
Posted: Wed Jan 04, 2012 10:05 pm
Stock as a Rock
Offline

Age: 28

Posts: 182

Joined: 9th Jan 2011

Gallery: 4 images

Ride: 2004 ba xr6 turbo

Location: sydney
NSW, Australia

hi i was just wandering where i get water feed and return on the ba?

im installing a snort kit stage 2 turbo

if anyone could please help that would be great im so lost with this atm... its the only thing stopping me from completing the setup...
Top
 Profile


 Post subject: Re: water feed lines?????
Posted: Fri Jan 06, 2012 2:11 pm
Commercial Sponsor
Offline
User avatar

Posts: 123

Joined: 27th Sep 2007

Ride: eb-twin turbo

Location: albury/wodonga
VIC, Australia

hey mate thanks for the kind words ;)

the water lines can be done a few ways however the most common is to take water from the thermostat housing and return into the water overflow bottle ( t piece )

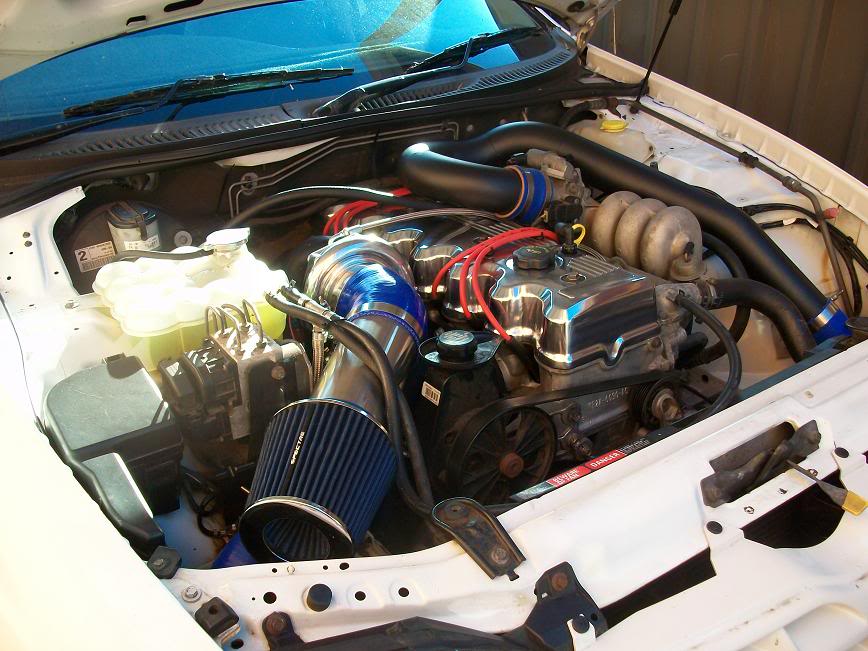

here is a picture os a system we installed which should help
Attachment:
2011-10-26182805.jpg [ 468.99 KiB | Viewed 70 times ]



_________________

Snort Snort, we make our own speed!!!!!

Top
 Profile


 Post subject: Re: water feed lines?????
Posted: Fri Jan 06, 2012 2:15 pm
Commercial Sponsor
Offline
User avatar

Posts: 123

Joined: 27th Sep 2007

Ride: eb-twin turbo

Location: albury/wodonga
VIC, Australia

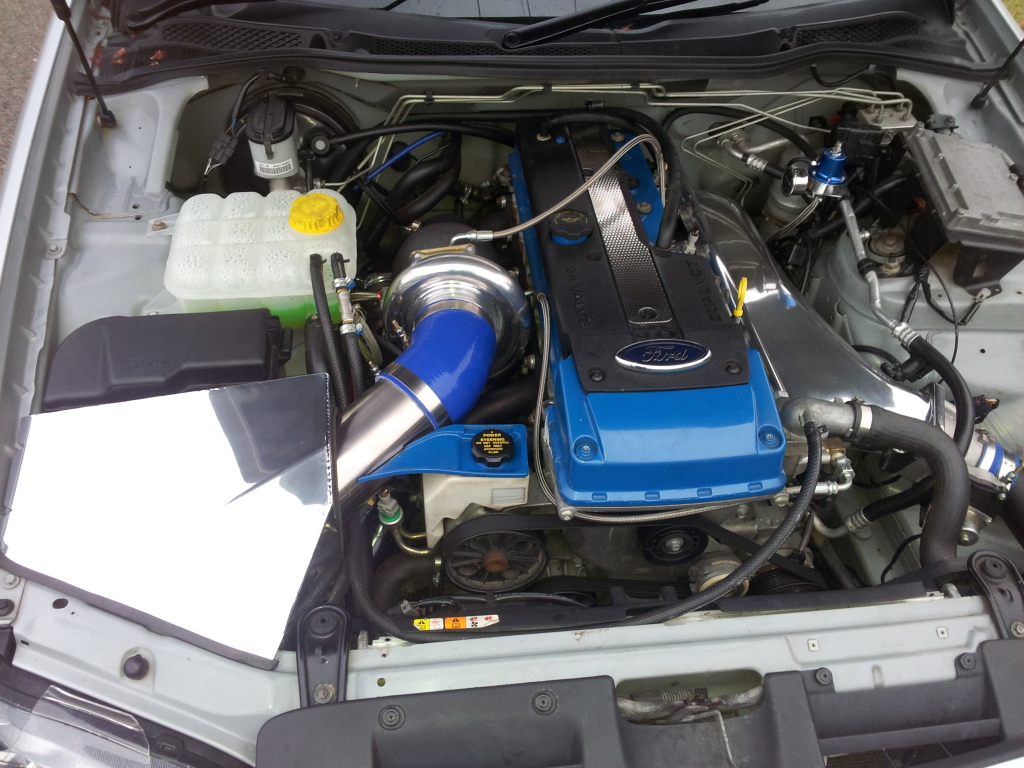

this one you can see how we used a t piece to return to the water overflow
Attachment:
100_0413s.jpg [ 98.52 KiB | Viewed 78 times ]



_________________

Snort Snort, we make our own speed!!!!!

Top
 Profile


 Post subject: Re: water feed lines?????
Posted: Sun Jan 08, 2012 12:50 am
Stock as a Rock
Offline

Age: 28

Posts: 182

Joined: 9th Jan 2011

Gallery: 4 images

Ride: 2004 ba xr6 turbo

Location: sydney
NSW, Australia

hey mate, well thank you for the awesome, hassle free kit, and THANKS a million for that info now I can complete the kit and get her tuned and up and running.

Would you be able to tell me also what a safe boost level to run would be, and what sort of power out put should i be able to push the na motor and gear box to with out blowing anything up, i have a trans cooler installed and its a new box (about 2 months old).

I was thinking around 7-8 psi and probably between 215 - 230 kw at the tyres, but that's just an estimate guess, any advice you can give would be much appreciated as to how i can get maximum potential out of what I have for now with out blowing stuff up, i know on a stock motor, box and diff, it wont be much, but its a start, i have plans for a strengthened box and valve springs soon but till then whatever advice you can give me would be amazing.

thanks
