Make the centre section shorter and run the outer two cylinders into the end as you would do on a non log style... The centre two can be welded on an angle towards turbo flange...
This one has made 300 rwkw with ease..
http://i4.photobucket.com/albums/y146/E ... 737690.jpg
The primeries are level with ports.. But the guy wanted a high mount...
having them come out and down about 30mm or so gives good clearance..
Also mounting flange on approx 45* angle keeps turbo off inner guard..
A T04Z 1.15 housing was used on this manifold....

Ooops...Lol I have changed the tigs plug since that shot....



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Mon Jan 28, 2008 11:13 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Tig is better but takes heaps longer





Attachments:

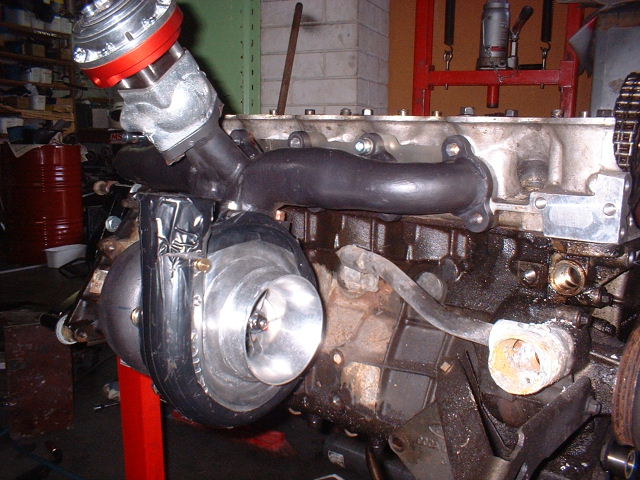

turbo ed 002.jpg
turbo ed 002.jpg [ 78.63 KiB | Viewed 161 times ]



_________________

Turbo 6s rule

Top
 Profile


Posted: Mon Jan 28, 2008 11:20 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

To do a good log manifold takes heaps of work. All bends flow into the turbo.
Heres a better pic





Attachments:

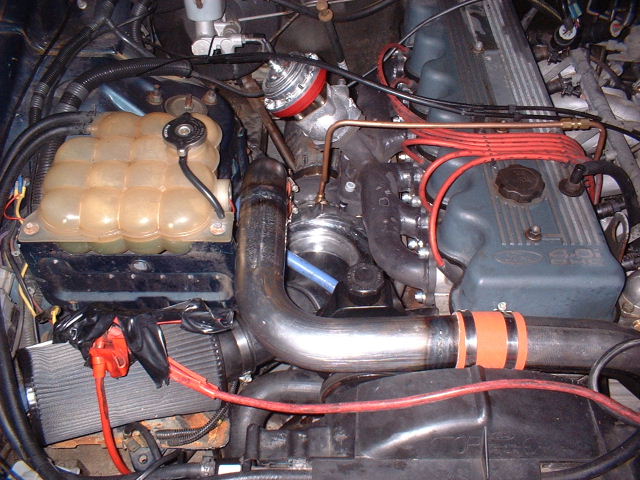

turbo ed 003.jpg
turbo ed 003.jpg [ 86.06 KiB | Viewed 184 times ]



_________________

Turbo 6s rule

Top
 Profile


Posted: Tue Jan 29, 2008 2:25 pm
Stock as a Rock
Offline

Posts: 170

Joined: 10th Nov 2005

Location: Canberra
ACT, Australia

Xflow wrote:
the problem with bends on the center 4 runners is no one can cut the curve out of the 90* cause i already wanted that and curve out the the turbo flange i was going to do but it pushes turbo 2 far out and hits strut tower so i keep it in the extra 2-3cm and i got clearance or i got to put turbo on a 30* angle and get all to annoying.


anyone with a lathe can do it, so any engineering shop can do it, hell you can do it by hand with a grinder, wouldn't take more than an hour to do all 4.

you really should copy the two nice logs that have been posted in this thread, they are both very very nice designs.

In all honesty, the original design, its stuff like that giving log manifolds a bad name, and if your keeping it that way, you'd be better of modifying a stock cast manifold.



_________________

http://www.TURBO351.com

2V 351T, 732rwhp@15psi on LPG.

Top
 Profile


Posted: Tue Jan 29, 2008 8:29 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

no way known to man you can do this with a MIG




_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Tue Jan 29, 2008 8:38 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

lol, we've had about 2 mechanics, 2 boilermakers, and every1 is saying, MIG and TIG is far better. It's so confusing!!



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Tue Jan 29, 2008 9:12 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

Any boilermaker/welder will tell you the TIG is Better, even myself.

TIG (tungsten inert gas) also known as GTAW (Gas tungsten Arc Welding)

MIG (Metal Inert Gas) also know as GMAW (Gas Metal Arc welding)

1 letter different, Worlds apart. You'll never get the same control on delicate or precision stuff.

Can be Migged, But I wouldnt If I were Paying for it.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Tue Jan 29, 2008 9:46 pm
Parts Gopher
Offline

Age: 37

Posts: 72

Joined: 24th Sep 2005

Gallery: 8 images

Location: west ridgley
TAS, Australia

http://www.fordmods.com/forums/viewtopi ... highlight=

This is when I first did mine. my car is still not going as it an ongoing project but i mig welded mine. Spatter will clean off, but if you prep the surface( i.e. remove mill scale ) and set your welder up right you can mig without spatter.
Trial and error mate, give it a go i say. Ya appreciate more when ya make it yourself.

Cheers Corey
Top
 Profile


Posted: Fri Feb 01, 2008 7:37 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

They are some sexy welds there MAN

look how nice they are



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Sat Feb 02, 2008 1:31 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

Xflow wrote:
They are some sexy welds there MAN

look how nice they are

can i ask who you are talking about??

i followed the previous link and found my tig work, and a migged up manifold... what were you aiming your comment at



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Feb 02, 2008 7:24 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

ebs_4l wrote:
Xflow wrote:
They are some sexy welds there MAN

look how nice they are

can i ask who you are talking about??

i followed the previous link and found my tig work, and a migged up manifold... what were you aiming your comment at


your manifold welds look so nice and smooth on your prev post with the pic



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Wed Feb 06, 2008 11:49 pm
Fordmods Newbie
Offline

Posts: 7

Joined: 13th Dec 2006

Location: Melbourne
VIC, Australia

It's a bit off topic but how much would a good welder make a year? I'd love to learn how to weld properly. you can make some pretty cool stuff.
Top
 Profile


Posted: Thu Feb 07, 2008 12:29 am
Technical Contributor
Offline

Age: 50

Posts: 3227

Joined: 12th Feb 2007

Gallery: 10 images

Ride: Falcon

Power: 113 rwkw

Location: your mums
NSW, Australia

smiley235 wrote:
lol, we've had about 2 mechanics, 2 boilermakers, and every1 is saying, MIG and TIG is far better. It's so confusing!!


i am also a boilermaker and i say TIG would be the best for that kind of job.



_________________

BANNED

Top
 Profile


Posted: Thu Feb 07, 2008 12:36 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

Depends what you welding and where you are doing it.

Best way would be to get into high production welding (ie Flux Core, mig, innershield) as all you need is a weld test to get a start. A night course will get you up to speed and certified if you pass. A flux core welder in my company where I work will make $30 an hour casual, with paid lunches and overtime all work done to AS 1554 (structual code).

If you want to hone your skills, do a Tig night course and chase the pressure pipe ticket, AS 1796 it will require a lot of patience, robotic movements and practice, lots of it. A good TIG (GTAW) welder can make $150 000 a year if he's doing offshore pipes or on a rig doing spool pieces.
It requires a vertical and horizontal (2g and 5g) as they no longer do a 6g (45 degree butt) for a test piece unless they are using ASME codes, ie ASME 9.

Good money to be had, but only if your good!



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Mon Feb 18, 2008 10:46 pm
Oompa Loompa
Offline

Age: 32

Posts: 44

Joined: 21st Nov 2005

Gallery: 4 images

Location: bathurst
NSW, Australia

boiley myself.
tig is the go.
most mechanics dont have top notch welding skills, thats why they go for mig, cos mig is easy as for beginers
Top
 Profile
