you guys with superchargers



Page 1 of 1 [ 12 posts ]


 Post subject: you guys with superchargers
Posted: Mon Aug 29, 2005 11:13 pm
Parts Gopher
Offline

Age: 31

Posts: 96

Joined: 7th Dec 2004

Location: newcastle
NSW, Australia

a question for the guys with centrivical superchargers
just wanna ask where do u put your air filter.
like i can see in photos the intake piping comin from the back of the supercharger around to the front but then it dissapears behind the head light.
do u but the filter behind the head light or run the pipin down further and put the filter behind the brake duct?
Top
 Profile


Posted: Tue Aug 30, 2005 12:14 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1239

Joined: 1st Jul 2005

Gallery: 9 images

Ride: EF XR8 & 2002 GSXR-1000

Location: Perth
WA, Australia

Mine sits just behind the hole on the passenger side of the front bar (where I have seen a few people have their fog lights).

Uses some crimped pipe to get there, so it can be flexy if it needs to be as well.

Nice & low to the ground & just behind an opening for the air to come in. Couldn't ask for much more.



_________________

The fast fun: Suzuki GSXR1000
The one I use when I can't use the fast fun: Blown EF XR8

Last edited by Kilma on Tue Aug 30, 2005 12:52 am, edited 1 time in total.

Top
 Profile


Posted: Tue Aug 30, 2005 12:43 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

I run mine down in the front spoiler. Cut a hole in the fender under where the factory airbox use to sit and then route the air intake down to the front bar.

Last edited by EDXR8 on Tue Aug 30, 2005 1:43 am, edited 1 time in total.

Top
 Profile


Posted: Tue Aug 30, 2005 1:39 am
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

isnt there a legal thing of running a pod outside of a box? or is that jsut one of those myths?



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Tue Aug 30, 2005 1:43 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

The pod doesn't need to be in the airbox, but I believe it does need to be shielded to be legal.
Top
 Profile


Posted: Tue Aug 30, 2005 10:57 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Yes my air filter sits where these other two blokes have them mounted. Cut a nice big hole in the sheet metal under the airbox and run some flexipipe down there.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Tue Aug 30, 2005 12:00 pm
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 4370

Joined: 5th Nov 2004

Ride: BA Fairlane Ghia

Location: Karratha
WA, Australia

How do you fellas go with picking up water? is it a problem, someone here has a WRX, blew his donk suckin water.
Top
 Profile


Posted: Tue Aug 30, 2005 10:59 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

I dont really think water is an issue unless you are stupid enough to drive through deep water. My current setup is fairly low at the bottom of the front spoiler, but unless the water is 6-12" and I drive through it fairly fast I dont see any real issue.
Top
 Profile


Posted: Tue Aug 30, 2005 11:06 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

bowsaw wrote:
How do you fellas go with picking up water? is it a problem, someone here has a WRX, blew his donk suckin water.


My filter is bolted pretty much underneath the passenger side headlight. Whilst i do get a little nervous when theres heaps of water on the road, it would take a serious flood to take a gulpful of water into the engine... my feet would be swimming...

It sits in between the "brake duct" and the headlight.... so it's a good foot and a half off the ground... probably about a foot lower than the standard snorkel...



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Aug 31, 2005 1:34 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1239

Joined: 1st Jul 2005

Gallery: 9 images

Ride: EF XR8 & 2002 GSXR-1000

Location: Perth
WA, Australia

Never had any problems with picking up water, but I gotta clean the AFS more regularly. It has a tendency to get filthy.



_________________

The fast fun: Suzuki GSXR1000
The one I use when I can't use the fast fun: Blown EF XR8

Top
 Profile


Posted: Wed Aug 31, 2005 1:44 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

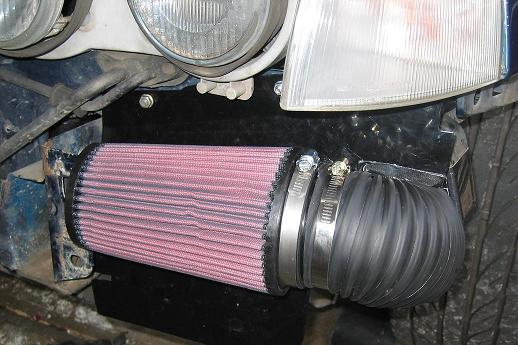

Here is a pic of my old CAPA setup that sat just below the headlight in the front bumper (front bumper removed in the pic). I have relocated it further down now to give me more room to mount the MAF and larger piping.





Attachments:
airpod.JPG [ 39.38 KiB | Viewed 66 times ]
Top
 Profile


Posted: Wed Aug 31, 2005 3:16 pm
Smokin em up
Offline
User avatar

Posts: 244

Joined: 6th Nov 2004

Ride: EA falcon

Location: Melbourne
VIC, Australia

Yep, mines mounted exactly were everyone elses is :)
