290 boss engine into ED



Page 2 of 3 [ 31 posts ] Go to page Previous  1, 2, 3  Next


 Post subject: Re: 290 boss engine into ED
Posted: Tue Jun 14, 2011 11:27 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Ok firstly all modulars are 90 degree engines and for the 4 millionth time the E-series bay is actually a smidge wider than a B-series!
The 4.6 has a short deck height of 8.937" and the 5.4 or 6.8 is 10.079" A modular is also very short due to it's small bore spacing and accessory placement. A 4.6(even an iron block one) or coyote is certainly the lightest way to go and is the way I would go but, if you do the work to set back a 5.4 in the bay it'll be pretty good.

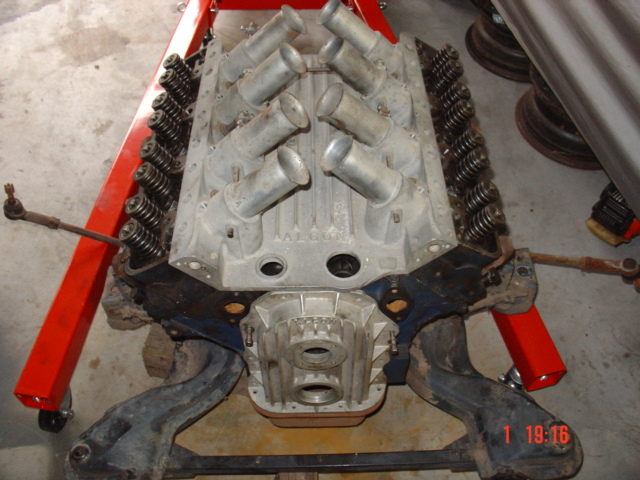

Here's a pic of my 390 bigblock which has a 10.17" deck height sitting on an EB K-member with plenty of room to spare so, a modular will fit.

Attachment:
DSC02281.JPG [ 153.19 KiB | Viewed 54 times ]
Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Wed Jun 15, 2011 1:53 am
Stock as a Rock
Offline

Age: 93

Posts: 152

Joined: 12th Jan 2010

Power: 141 rwkw

0

Last edited by micky4433 on Sun Jan 01, 2012 3:02 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Wed Jun 15, 2011 11:32 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

No wuckers Mick,

Sounds good, If it were mine I'd say... no body kit, stock interior, 17" wheels max because I think 20's make the car look like a roller skate plus you get greater performance from 17's....something you'll certainly need :mrgreen: . Cardinal red sure is a nice colour, good score there.
The coyote has the same deck as a 4.6 so, nice and small compared to a 5.4 and probably most important, shorter in height, so no f**k in with the bonnet.

Cheers.
Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Wed Jun 15, 2011 2:43 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

What do you intend to do about the sump if using a coyote? Regardless of if you use a US coyote or Australian 'Miami' (same block) both use a rear sump set up as in the FG's and mustangs.

You could possibly use an earlier modular oil pick up from a falcon (BF etc) then get a custom sump made to fit. You will need a custom sump though as can't fit a BA/BF sump with the coyote being a bit longer due to the VCT.

I have been looking into this and am curious to see whether the earlier oil pick up both fits and sits in the right position. If it does would not be difficult at all to modify the sump to suit (and using a custom sump should make it easier to fit without difficult to engineer modifications.

How much are you looking at spending? I don't think you will get a coyote and 6 speed in there for much change out of $15000. I believe they are around US$6500 for a crate engine, then extra for PCM/loom and obviously freight and any relevant import duties.

4.6 into a falcon has been done before and could work out a bit cheaper (as falcon modular oil pick up and sumps can be used) plus could probably get one second hand. Alternatively they want $4800 for the one below plus another $2500 for trans which means you could probably get it done under $10k if you are doing the work yourself. http://www.ebay.com.au/itm/FORD-4-6LT-V8-NEW-FUEL-INJECTED-COBRA-MUSTANG-MOTOR-/230633104113?pt=AU_Car_Parts_Accessories&hash=item35b2cde2f1



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Wed Jun 15, 2011 9:45 pm
Stock as a Rock
Offline

Age: 93

Posts: 152

Joined: 12th Jan 2010

Power: 141 rwkw

0

Last edited by micky4433 on Sun Jan 01, 2012 3:02 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Wed Jun 15, 2011 10:49 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Those local prices are sure up there! I'd go direct to the U.S.
Here's some prices I got just before xmas....
Engine $5900
Controls pack $1250
Alternator kit $192

The sump is steel so you could easily do what I was going to do with my 6.8, just section the pan off below the pan rail and weld it on backwards then make you're own pickup out of the original.

Just got a 5.0 Mustang mag with some blown coyote vs GT500 tests. The coyote made 710hp with 15psi. They were going to go 18psi but it blew up it's oil pump because they had to change the harmonic balancer to overdirve the blower which created pump killing harmonics.
They were rear wheel figures btw.
Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 12:28 am
Stock as a Rock
Offline

Age: 93

Posts: 152

Joined: 12th Jan 2010

Power: 141 rwkw

0

Last edited by micky4433 on Sun Jan 01, 2012 3:03 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 6:49 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

As Pete said I would source the engine from the US, then get the box locally.

White interior will require cleaning a lot...my friend had a white interior for a bit in one of his cars and was shocked at how it would show when it was the tiniest bit dirty. It was a daily driver though.

Have you considered keeping the EL GT wheels the standard colour and doing the interior to match?



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 9:25 am
Stock as a Rock
Offline

Age: 93

Posts: 152

Joined: 12th Jan 2010

Power: 141 rwkw

0

Last edited by micky4433 on Sun Jan 01, 2012 3:03 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 12:57 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Here's a quote I got off summit just now....
The cost of the parts before freight is $8342.80 U.S. of which you'll also cop 20 odd % duty and 10%gst plus they usually hit you with all sorts of other costs when it get's here. I think the exhange rate is about 1.05 at the mo.
Isn't DHL a shocker!?
I'd be looking at sea freight.

Ship Method Delivery Estimate Total
DB SCHENKER Door to Airport 2 3
3 - 7 Days * $2,992.63
Airport required

Please select preferred airport:
DHL Worldwide Priority Express
2 - 6 Days * $5,116.59
Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 3:41 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

micky4433 wrote:
a gold / champagne coloured interior?? guess it would look alright against the cardinal red. i need photoshop!!!


I was thinking like an ivory colour that which had the same kind of shade. I have a program called gimp 2 (free), I suck pretty bad at using it though :(



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 8:07 pm
Stock as a Rock
Offline

Age: 93

Posts: 152

Joined: 12th Jan 2010

Power: 141 rwkw

0

Last edited by micky4433 on Sun Jan 01, 2012 3:03 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 8:11 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

vinyl painting, or coyote engine conversion?

sigh, another thread of dreams :(
Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 8:58 pm
Stock as a Rock
Offline

Age: 93

Posts: 152

Joined: 12th Jan 2010

Power: 141 rwkw

0

Last edited by micky4433 on Sun Jan 01, 2012 3:04 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: 290 boss engine into ED
Posted: Thu Jun 16, 2011 9:05 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

yet again????

70k eh..... looking forward to the progress
Top
 Profile
