302 windsor blocks



Page 1 of 4 [ 55 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: 302 windsor blocks
Posted: Thu Jun 25, 2009 12:10 am
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

im aware of the power limits of a roller 302 block (approx 500hp), but want to know if the earlier blocks were stronger. I think i read somewhere that they can hold a little more power than the later ones. I am interested on buying one and fitting the roller lifter brace to make it a roller block.

Any one know what im on about?
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Thu Jun 25, 2009 1:02 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

The factory engineering rating of a 5.0 block is 350hp.
The factory engineering rating of a 302 block up to '78 is 500hp.
Mexican blocks can handle a little more because of the thicker main webs.
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Fri Jun 26, 2009 12:36 am
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

so if the factory hp for roller is 350 and we push to 500hp, does this mean the earlier block can too be pushed 35% past factory limit?
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Fri Jun 26, 2009 12:37 am
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

so if the factory hp for roller is 350 and we push to 500hp, does this mean the earlier block can too be pushed 35% past factory limit?

is it worth changing blocks? what is involved appart form roller lifter guides? any other changes or are castings exact?
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Fri Jun 26, 2009 11:20 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Yes.
Maybe.
You either need a reduced base roller cam(for stock 5.0 roller lifters) or a std base circle roller cam and link bar roller lifters.
5.0 blocks are a whopping 25lbs lighter than a early block.
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Sat Jun 27, 2009 4:58 pm
Fordmods Newbie
Offline
User avatar

Posts: 3

Joined: 31st Dec 2008

Ride: Falcon

Location: Sydney
NSW, Australia

late 5.0L blocks are also 1 piece rear main seal...better idea IMHO. Save your money and buy a Dart or FRPP or something. Peace of mind more than anything.
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 12:51 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

I have the Dart Iron Eagle block..
EVERYTHING swapped over.. Slight mods to fit dog bone's was about all was done except honing for clearances..
The Dart Sportsman is a cheaper block..
A Ford 351 block can take much more as their webbing is much thicker and can take
four bolt mains if required..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 7:03 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

can i get a 351 block to be a 5L??
How much is the sportsman block? Plus machining?
What is dog bone??
Whats involved in fitting all my parts to a 351 block?

Cheers!
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 7:19 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

basically, can i fit a 302 crank in a 351 block?
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 10:24 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

No the 351 crank is too big..
The 351 long block is the way to go for strength..
http://www.suburbanimports.com.au
Then add performance sump 5.0 accessaries fit, aftermarket inlet or box the upper ??

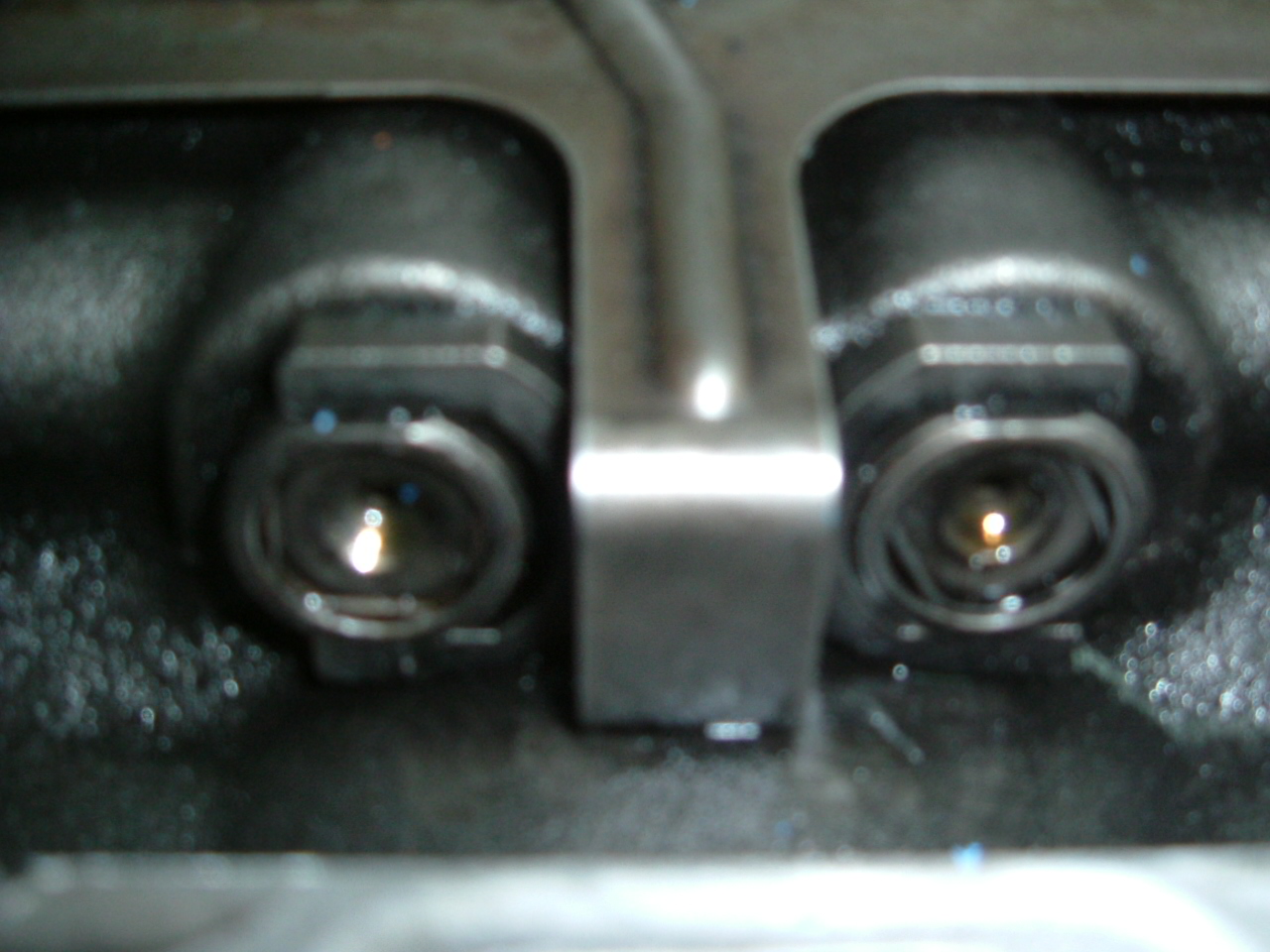

Dog bones are factory H patern plates than fit between lifters to stop them from turning with a spider plate holding them in..
Dart or Boss Sportsman are around $3k just for block..

Notice some clearance between block and dog bone?





Attachments:
DSCF0346.JPG [ 387.72 KiB | Viewed 78 times ]



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 10:40 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

what do you mean the 351 crank is too big???

"Then add performance sump 5.0 accessaries fit, aftermarket inlet or box the upper ??"
this sentence makes absolutely no seance to me???

5L accesories fit, dont think i have room for bigger sump, have explorer inlet...?
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 10:46 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

[quote="eboost"]what do you mean the 351 crank is too big???
Sheesh..

what do you mean the 351 crank is too big???
3" mains..
"Then add performance sump 5.0 accessaries fit, aftermarket inlet or box the upper ??"
this sentence makes absolutely no seance to me???
To convert 351 where a 5.0 was..
The inlet can be alittle high due to engine being higher so some make a box on the lower
and fab up a throttle body .. Much like what Nispro did to the turbo XR6T..



5L accesories fit, dont think i have room for bigger sump, have explorer inlet...?
YES check Hi Energy sumps..Have one in my car..
http://highenergy.com.au/index.php?modu ... 14703-7378



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Last edited by EBXR8380 on Mon Jun 29, 2009 10:55 pm, edited 3 times in total.

Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 10:48 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

A 302C crank will fit if you machine the step off the front of the crank that clevelands have but why bother? and your rods and pistons won't fit and you want to up the stroke not reduce it.
You can also get World 9.2 and 9.5 deck blocks with 302w type 2.25" mains so you could actually put a 5.0 crank in it....but once again WHY!??!?!?
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 11:15 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

okso could i just get an old 351 block and bottom end and fit my parts to it??
Top
 Profile


 Post subject: Re: 302 windsor blocks
Posted: Mon Jun 29, 2009 11:17 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

okso could i just get an old 351 block and bottom end and fit my parts to it?? will the intake hit the bonnet with this block??
Top
 Profile
