 Post subject: 351 Turbo intake plenum R & D
Posted: Thu Jun 17, 2010 8:14 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 614

Joined: 30th Apr 2006

Location: albany
WA, Australia

Hi fella's,

Well with my 351 turbo project underway, I've decided to attempt to build my own plenum to replace the upper Edelbrock manifold. I realise there's alot of math's involved and it's a tedious project, but why not!

Run down on the engine is, 351 block bored to 0.030", giving it a displacement of 357 ci. I'll be running stock camshaft with gt40x Aluminum heads and the Edelbrock 351w lower. With 'H' beams and Probe forged pistons. I'm just giving a run down of the engine to more accurately determine plenum volume and design.

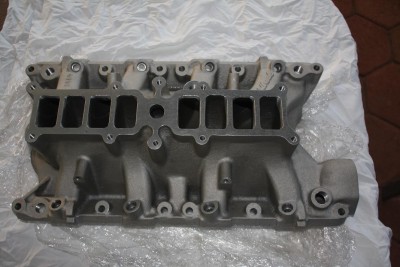

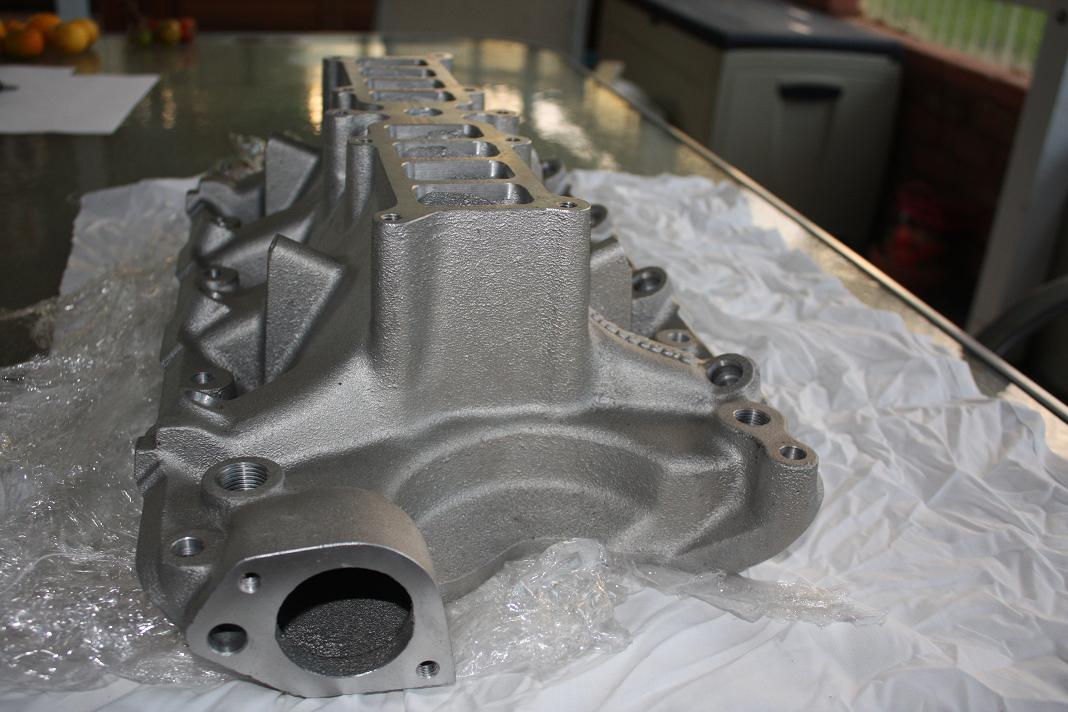

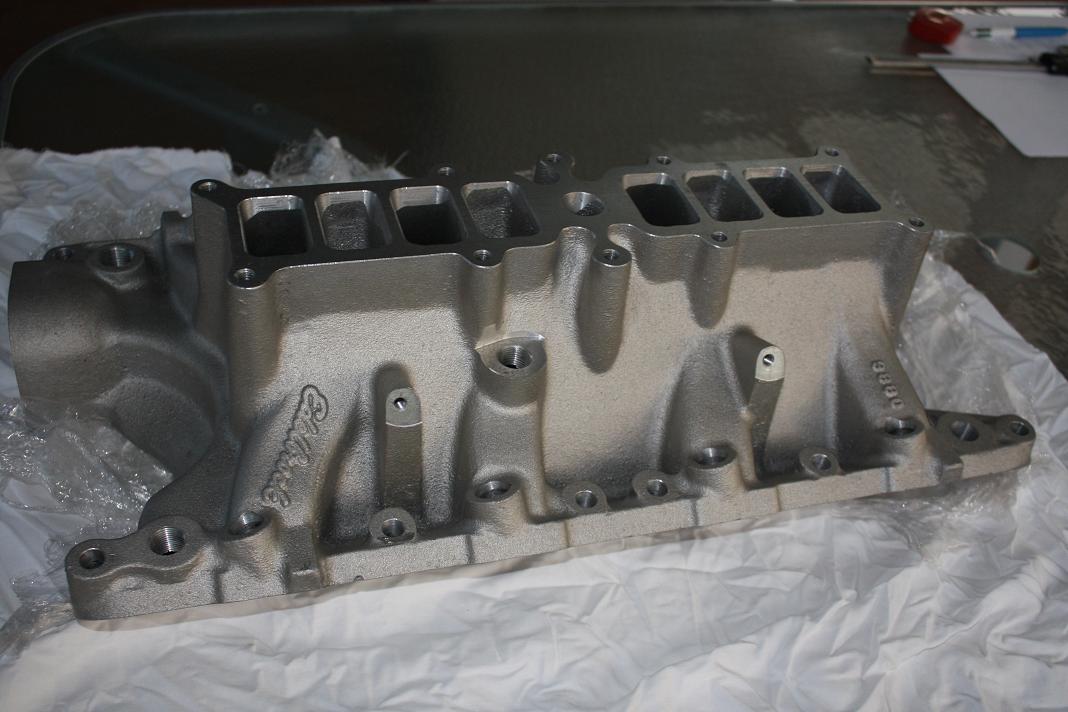

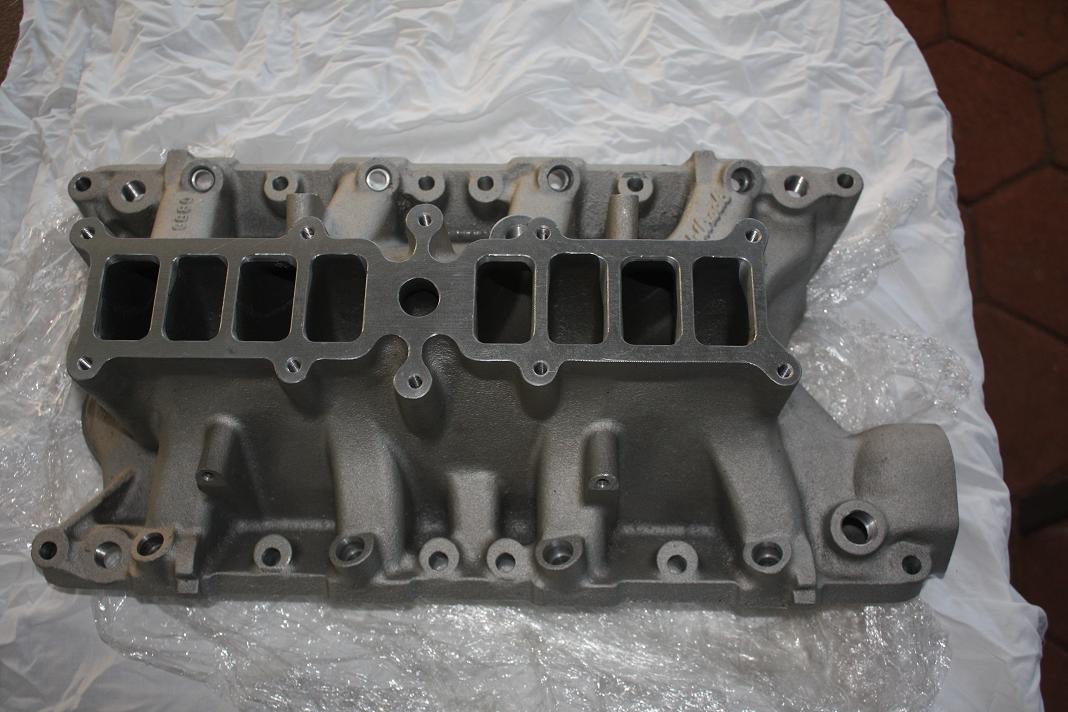

I've attached some photo's of the Edelbrock manny.

Now I've done afew measurements with some vernier calipers and a measure tape. Sorry but this might be abit confusing.

Ok...

Runner size for the top of manifold. ( Part that bolts to upper ).
First measurement is smallest runner width and second is full size as it flares out towards top, as people with edelbrock manifolds will know.

8. - 46.12mm x 27.29mm
47.87mm x 29.84mm
7. - 46.82mm x 27.49mm
47.55mm x 29.70mm
6. - 46.14mm x 27.55mm
47.70mm x 29.71mm
5. - 47.06mm x 27.46mm
48.06mm x 29.91mm
4. - 46.36mm x 27.87mm
47.67mm x 29.68mm
3. - 47.88mm x 27.85mm
49.16mm x 29.66mm
2. - 46.19mm x 27.70mm
47.97mm x 29.66mm
1. - 46.96mm x 27.45mm
48.01mm x 29.55mm

FRONT

Measurements of dimensions for either bank.

1. - 45.92mm x 27.91mm 2. - 45.64mm x 28.75mm
3. - 46.26mm x 27.53mm 4. - 46.92mm x 28.13mm
5. - 45.99mm x 27.97mm 6. - 46.83mm x 27.89mm
7. - 45.77mm x 27.62mm 8. - 46.40mm x 28.06mm

Now length of runners ( both inside and outside of arc length )

8. - inside: 162mm Outside: 200mm
7. - inside: 160mm Outside: 200mm
6. - inside: 160mm Outside: 200mm
5. - inside: 160mm Outside: 200mm
4. - inside: 160mm Outside: 200mm
3. - inside: 160mm Outside: 200mm
2. - inside: 170mm Outside: 200mm
1. - inside: 170mm Outside: 200mm

Alright I'm hoping everyone can understand that? Now I'm asking for some feedback on design and best way to work out volume chamber etc.

any help would be great!





Attachments:
edl3.JPG [ 84.01 KiB | Viewed 52 times ]
edl2.JPG [ 96.09 KiB | Viewed 59 times ]
edl1.JPG [ 95.31 KiB | Viewed 57 times ]



_________________

Slavery, gets s**t done!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Thu Jun 17, 2010 8:22 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 614

Joined: 30th Apr 2006

Location: albany
WA, Australia

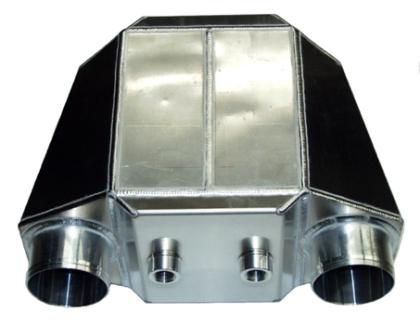

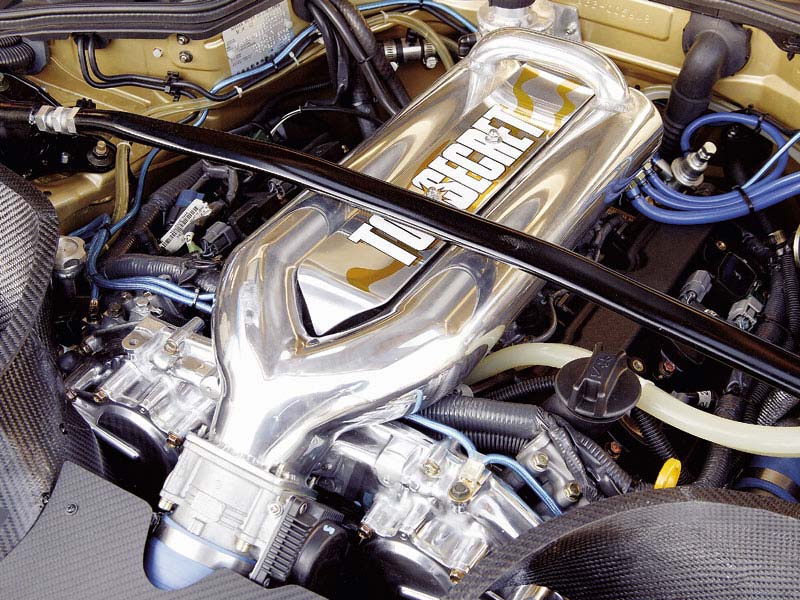

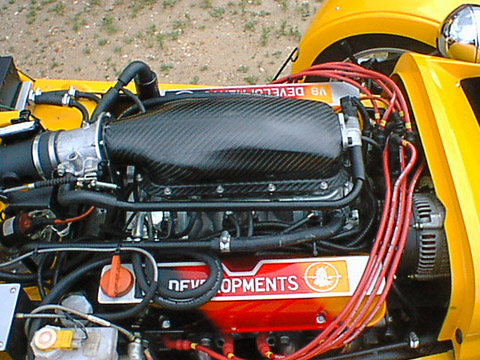

Here are a few designs that may be promising..





Attachments:
group-49f9dfaa-125e-486b-b4dc-fe1b7b6b2b52-420.jpg [ 15.43 KiB | Viewed 50 times ]
DSC00006.jpg [ 99.79 KiB | Viewed 35 times ]
130_0406_04z+Nissan_350Z+Under_Hood_Engine_View.jpg [ 113.52 KiB | Viewed 55 times ]



_________________

Slavery, gets s**t done!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Thu Jun 17, 2010 9:02 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

The last 2 look good. Front mount TB and smooth even distribution.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Fri Jun 18, 2010 2:13 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 614

Joined: 30th Apr 2006

Location: albany
WA, Australia

Brett, Yeh as this won't be a street car I think a front mounted T/B will be the way to go.

I've been looking through the interweb's resources and plenum size for turbo applications varies from half engine size upto double engine displacement. I'm thinking with a low boost '51, a plenum volume of about 6 Litres would be fairly well suited? Or should i go larger.

According to alot of people, shorter, larger runners are better for turbo engines. I could always get some meat machined off the top of the lower manifold if need be. Now settling on a design may be abit of a headache..

With it being a large V8, turbo lag won't be a problem, and therefore plenum size won't matter too much as it will always be under pressure, unlike an N/A setup. I spose it will be some trial and error.
I just need to settle on a plenum volume best suit to the engine.



_________________

Slavery, gets s**t done!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Fri Jun 18, 2010 5:04 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 614

Joined: 30th Apr 2006

Location: albany
WA, Australia

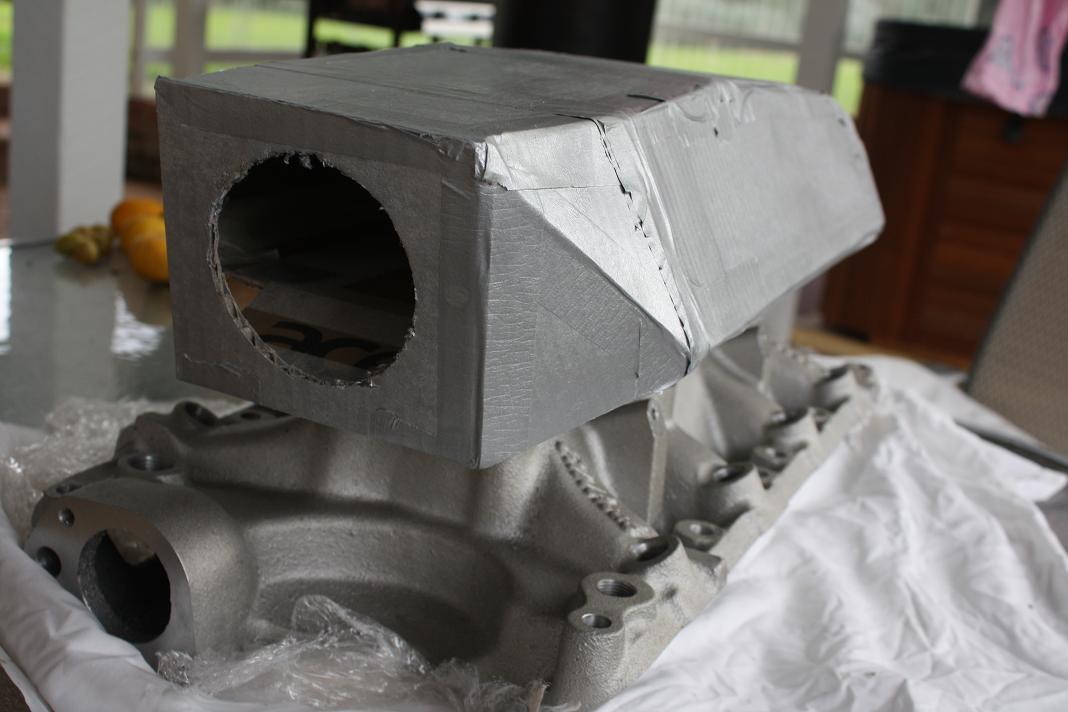

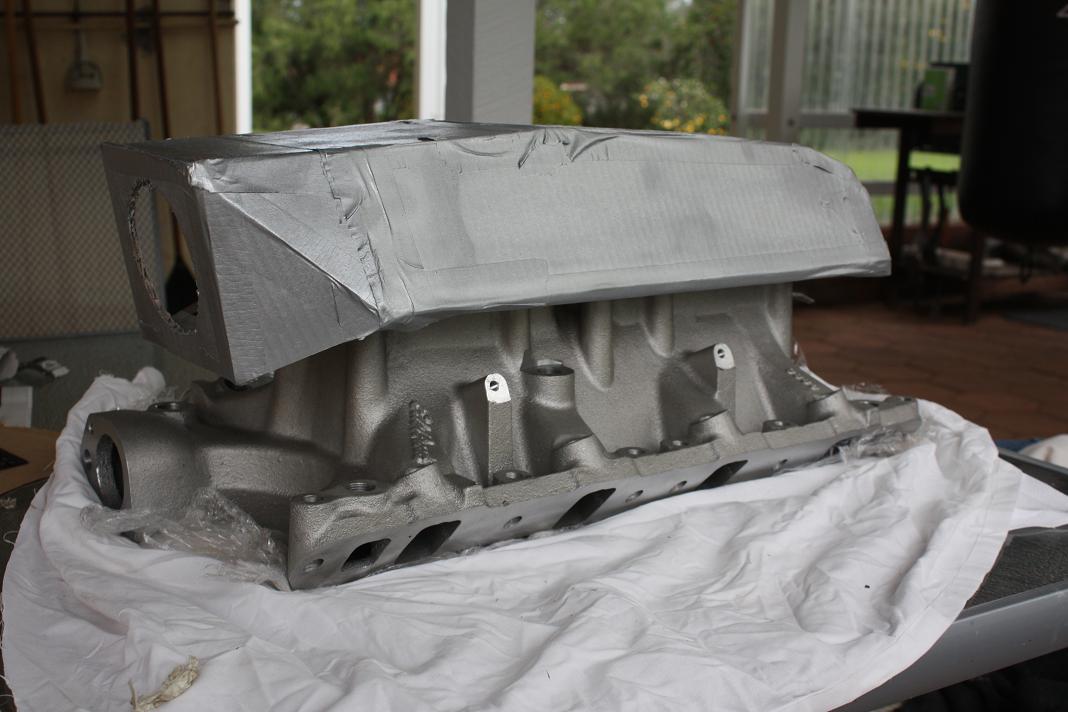

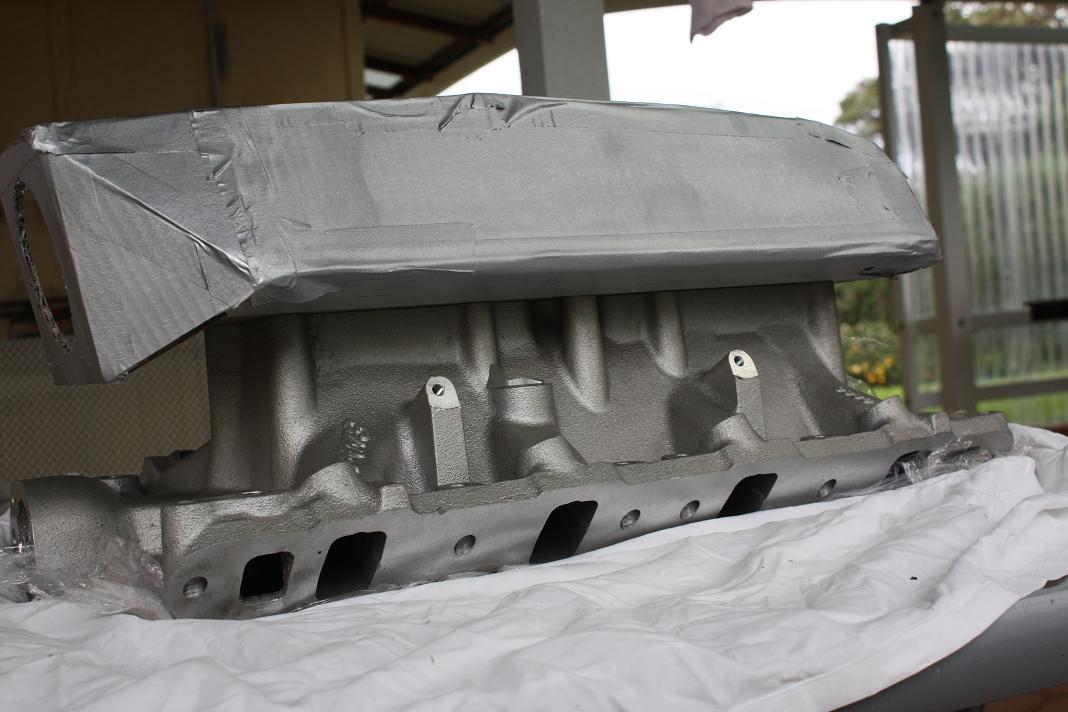

Well i got bored today and this is what I've got to show for it.. one dodgy as f**k cardboard plenum!





Attachments:
plenum3.JPG [ 68.4 KiB | Viewed 60 times ]
plenum2.JPG [ 83.67 KiB | Viewed 61 times ]
plenum1.JPG [ 78.51 KiB | Viewed 61 times ]



_________________

Slavery, gets s**t done!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Fri Jun 18, 2010 6:08 pm
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Why not just get a carby based manifold and use a 4 barrell EFI carby and hat on top??? much eaiser and look realy good.



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Fri Jun 18, 2010 6:25 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

that plenum isnt too bad man lol



_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Fri Jun 18, 2010 6:33 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 614

Joined: 30th Apr 2006

Location: albany
WA, Australia

MICKYYYY wrote:
Why not just get a carby based manifold and use a 4 barrell EFI carby and hat on top??? much eaiser and look realy good.


Well to be honest this way will work out cheaper for me, as all i have to buy is a T/B and mounting bolts. It's also a good opportunity to have a go at building my own turbo plenum. I want to keep the Edelbrock lower i have atm. I reckon it could turn out really well if i take my time and do it right. It may easier with a EFI carby and hat, but the hard way is more of a challenge and a learning experience.

cheers for the feedback



_________________

Slavery, gets s**t done!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Sat Jun 19, 2010 3:06 am
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Dont go cheap on me dude hahaha jks

Like i suggested to u with turbo manifolds i also think u should go this way with intake or other off the shelf EFI manfolds as they work. I'll post up or pm u some stuff about intake manifolds and u will soon understand that if its not done right in all aspects it will rob u of power and reliability.



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Sat Jun 19, 2010 9:23 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Im have TFS track heat with over 650 rwhp.. No inlet issues..
Edelbrock, Holley would be the same...
On a 351 & forced induction I would like to see the TFS boxed inlet...
http://www.trickflow.com/partdetail.asp ... 150&orig=1
They are high rpm power band.. BUT with forced induction it all changes to much lower power band...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Mon Jun 21, 2010 6:28 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 614

Joined: 30th Apr 2006

Location: albany
WA, Australia

Mick, that would be good mate, I want to run a NOS system on the donk as well. So my edelbrock lower with a RPM2 upper should fit the bill? Then i can fit direct port injection to the lower manifold.
I can get the RPM2 upper from summit for a fairly good price. I just thought i could save abit of coin building my own plenum, but looks like off the shelf set-ups are the way to go.

What size T/B would be sufficient for such a set-up? 80 - 90mm?

How would the edelbrock RPM2 size up EBXR?



_________________

Slavery, gets s**t done!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Wed Jun 23, 2010 1:04 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

You already have an RPMII lower? I could be wrong, but I think I've read that the RPMII upper won't fit on the RPM lower.

Fabbed will be much more impressive to look at, but off the shelf is going to save you bulk-loads of time and probably money. Have you looked at the BBK SSI-R? I don't know how this performs against the TFS Box-R. Actully, it'll only mount to the driver's side anyway. May not be any good for you.



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Wed Jun 23, 2010 4:46 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

blacksabbath189 wrote:
Mick, that would be good mate, I want to run a NOS system on the donk as well. So my edelbrock lower with a RPM2 upper should fit the bill? Then i can fit direct port injection to the lower manifold.
I can get the RPM2 upper from summit for a fairly good price. I just thought i could save abit of coin building my own plenum, but looks like off the shelf set-ups are the way to go.

What size T/B would be sufficient for such a set-up? 80 - 90mm?

How would the edelbrock RPM2 size up EBXR?

The Edelbrock will do fine.. Being forced induction... I would mill the runers on inlet alittle shorter giving larger plenum. Which is better for forced induction..
The is why the plate on plenum is there...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Wed Jun 23, 2010 5:56 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

The RPM upper will fit that lower, I know because it is my old lower, and i fitted it to see if it would. The NOS polate i have is for that manifold. If you are interested in the NOS plate PM me for a price.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: 351 Turbo intake plenum R & D
Posted: Wed Jun 23, 2010 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 614

Joined: 30th Apr 2006

Location: albany
WA, Australia

So both the RPM and RPM2 upper will fit the 351 lower??

PM sent Brett



_________________

Slavery, gets s**t done!

Top
