Posted: Thu Sep 28, 2006 8:44 am
Fordmods Newbie
Offline

Age: 41

Posts: 2

Joined: 28th Sep 2006

Ride: cortina

Location: cairns
QLD, Australia

cc volume is not important main diffrences where from factory with the amount of material removed to get a particular volume mine where 64cc closed chamber heads when i got them now they are 57cc, hope it helps you out i would also go for the 4v's forget all the crap you hear about them being a dog on the street a good setup combo is just fine, any engine can be a dog when poorly designed with incorrect parts.. :)
Top
 Profile


Posted: Thu Sep 28, 2006 8:47 am
Fordmods Newbie
Offline

Age: 41

Posts: 2

Joined: 28th Sep 2006

Ride: cortina

Location: cairns
QLD, Australia

if you can get a good set of cc 4v's for 950 i'd grab them, a good set will sell for 1200-1800 depending on condition of course 950 is very reasonable..
Top
 Profile


Posted: Sat Sep 30, 2006 1:51 am
Getting Side Ways
Offline
User avatar

Posts: 596

Joined: 6th Nov 2004

Gallery: 11 images

Ride: BA mkII XR8

Location: NEWCASTLE
NSW, Australia

4V heads have they're place, but not on an everyday driver, 4V heads come in about 10 different variations from open chamber hydraulic thru to closed chamber mechanical with screw in studs, if you opt for the 4V heads you will have to buy a top of the line intake manifold such as the Jack Rousch (as already mentioned), and a cam that was designed for 4V's as the port size requires high lift and later timing to create decent vacuum.
Big cams & 4V's will also NOT pass emissions laws, and fouling plugs due poor idle circuit signal (vacuum strenght)
BUT when set up properly a 4V clevo can make 380-400hp for around $3500



_________________

IF YOU HAVE IT UNDER CONTROL
YOU SIMPLY DON'T HAVE ENOUGH POWER!!!
Detroit 8V71 for sale, taking offers

Top
 Profile


Posted: Sat Sep 30, 2006 2:11 am
Getting Side Ways
Offline
User avatar

Posts: 596

Joined: 6th Nov 2004

Gallery: 11 images

Ride: BA mkII XR8

Location: NEWCASTLE
NSW, Australia

brenx wrote:
So how did XY GT HO's end up with 11:1 compression ;) 4V's come in open chamber and closed. Just the same as 2V's. Technically the 4V CC is slightly bigger due to the larger valves needing deshrouding.


They had lumpy top forged pistons & blueprinted engines heads were milled to around 12.6:1 or more!



_________________

IF YOU HAVE IT UNDER CONTROL
YOU SIMPLY DON'T HAVE ENOUGH POWER!!!
Detroit 8V71 for sale, taking offers

Top
 Profile


Posted: Sat Sep 30, 2006 2:16 am
Stock as a Rock
Offline
User avatar

Posts: 157

Joined: 19th Dec 2004

Location: Seaford
VIC, Australia

11.1:1 comp is very close to just a CC head and stock 30thou down the bore. We got those engines here in Aus. They were imported from the US and fitted in our GT etc. In stock form these engines put out very close to 400hp stock. They even had solid cam's fitted from the factory.



_________________

XB Fairmont sedan 11.07@123.02mph

Top
 Profile


Posted: Sat Sep 30, 2006 5:06 am
Getting Side Ways
Offline
User avatar

Posts: 596

Joined: 6th Nov 2004

Gallery: 11 images

Ride: BA mkII XR8

Location: NEWCASTLE
NSW, Australia

All of the manual GTHO cleveland engines got them as most of the XY GT manual and the XA GT ,RPO83 got em but only the 1st 200 XB GT manuals got em towards the end of the 160mhp supercar era due to emission laws, thats when ford changed the code "4V" meaning the heads that were fitted, to the now commonly mistaken 4V, which denotes the number of venturi's that the carby has.
Ford did throw the remaining stock on the occasional car over the next few years until there were none left, or when the clevo died in 83, The 4V's i'm using on my latest project are original US imports with closed chambers 58cc & studs/guide plates as standard, they produced 581hp @6800rpm on the last engine, but power never dropped off until just over 8000rpm..... so be prepared to rev it to get the most out of them!





Attachments:

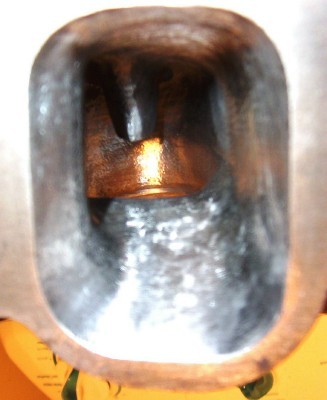

4V inlet.jpg
4V inlet.jpg [ 27.43 KiB | Viewed 43 times ]



_________________

IF YOU HAVE IT UNDER CONTROL
YOU SIMPLY DON'T HAVE ENOUGH POWER!!!
Detroit 8V71 for sale, taking offers

Top
 Profile


Posted: Sat Sep 30, 2006 11:41 am
Stock as a Rock
Offline
User avatar

Posts: 157

Joined: 19th Dec 2004

Location: Seaford
VIC, Australia

That's why you add cubes. No need to rev higher :)



_________________

XB Fairmont sedan 11.07@123.02mph

Top
 Profile


Posted: Sat Sep 30, 2006 12:36 pm
Getting Side Ways
Offline
User avatar

Posts: 596

Joined: 6th Nov 2004

Gallery: 11 images

Ride: BA mkII XR8

Location: NEWCASTLE
NSW, Australia

It was stroked to 416, too!



_________________

IF YOU HAVE IT UNDER CONTROL
YOU SIMPLY DON'T HAVE ENOUGH POWER!!!
Detroit 8V71 for sale, taking offers

Top
 Profile


Posted: Sat Sep 30, 2006 1:10 pm
Getting Side Ways
Offline

Age: 43

Posts: 469

Joined: 4th Jun 2006

Gallery: 35 images

Ride: xy fairmont

Location: Perth
WA, Australia

this a a pic of my CHI 3V inlet and exhaust sides... less than a week till its finnished stay tuned for a a snipet of the first start up woohoo..





Attachments:

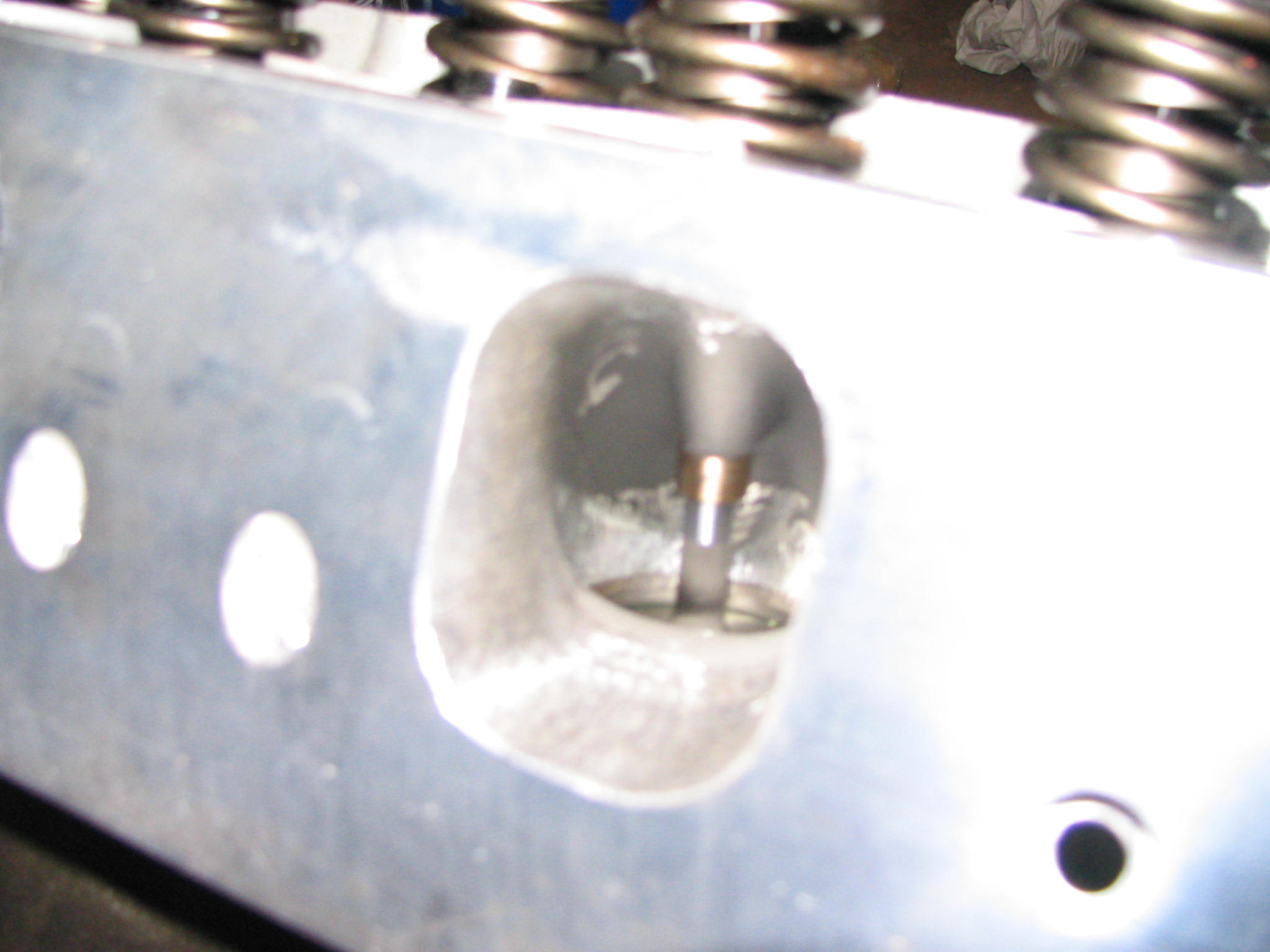

File comment: CHI 3V exhaust
IMG_0530.JPG [ 34.77 KiB | Viewed 40 times ]

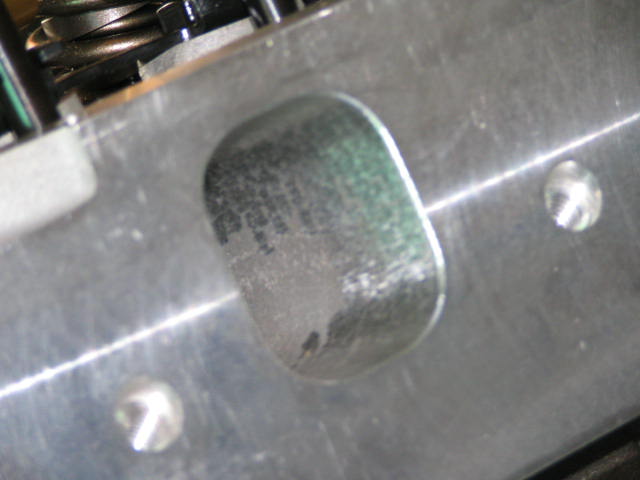

File comment: CHI 3V inlet
IMG_0727.JPG [ 198.39 KiB | Viewed 38 times ]



_________________

If you have it under control then you dont have enough power..
There is no replacement for Displacment..
