6/71 blower on EF XR8 302



Page 1 of 4 [ 51 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 4:11 pm
Oompa Loompa
Offline

Age: 31

Posts: 34

Joined: 13th Feb 2011

Ride: 1994 EF XR8

Location: Rockhampton
QLD, Australia

Just wondering about putting a 6/71 on an EF XR8. Is there any ppl out there that have seen this done or could provide me with info to do it.
Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 4:20 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

my thoughts would be that you can't do it legally for the road as it would sit way too far above the bonnet line, that why people go for Raptor or similar style hanging off the side instead of on top where 6/71's are mounted, but if you have one lying around I'll have it for my ZD! :lol: :lol:



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 4:22 pm
Oompa Loompa
Offline

Age: 31

Posts: 34

Joined: 13th Feb 2011

Ride: 1994 EF XR8

Location: Rockhampton
QLD, Australia

I was thinking about not having it as my daily driver. I might take a few measurements and see what i can come up with.
Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 5:31 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

It will most probably fit but I don't know about driving the ancillaries.
Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 7:46 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Eaton M112.

the 6/71 has to much parasitic drag and to much stuffing around with parts and authorities.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 8:02 pm
Oompa Loompa
Offline

Age: 31

Posts: 34

Joined: 13th Feb 2011

Ride: 1994 EF XR8

Location: Rockhampton
QLD, Australia

is there a bolt on kit for the M112
Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 10:31 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

xr8boi wrote:
is there a bolt on kit for the M112

Nope and with good reason the intake on a 302 is too narrow so you'd have jack it up over the fuel rails which would make it too high once again.
Here's some 6/71 kits but I wouldn't use one....
http://www.superchargerusa.com/ford_bk_drag.htm#ford302
KB make about the only bolt on positive displacement kit(non intercooled) but frankly, they don't deserve anyones business!
Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 10:33 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

XR9UTE wrote:
KB make about the only bolt on positive displacement kit(non intercooled) but frankly, they don't deserve anyones business!

i was about to mention KB, why the hate? :)



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 10:33 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Ask the site sponsor here bpt-motorsport-f33/

If you're tight with cash then source the charger from ebay.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 10:41 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

EFFalcon wrote:
XR9UTE wrote:
KB make about the only bolt on positive displacement kit(non intercooled) but frankly, they don't deserve anyones business!

i was about to mention KB, why the hate? :)


Really bad customer service and the kit quality varies wildly.
Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sat Mar 12, 2011 11:34 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Slick wrote:
Ask the site sponsor here bpt-motorsport-f33/

If you're tight with cash then source the charger from ebay.


They're not authorised Kenne Bell dealers, are they? I thought the only authorised Australian dealer was Bluepower. I'm pretty sure they're the only ones who have warranty backing from Kenne Bell, anyway.

Kenne Bells can be intercooled, it just takes a bit of fabrication work. We'll be seeing an intercooled one here in the West within the next 12 months, hopefully!



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sun Mar 13, 2011 2:28 am
Getting Side Ways
Offline

Age: 32

Posts: 942

Joined: 23rd Dec 2007

Ride: AU1 XR8

Will it fit under the bonnet tho?
Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sun Mar 13, 2011 7:10 am
Getting Side Ways
Offline

Posts: 699

Joined: 1st Jan 2006

Ride: Lots, all Fords

Location: Hamilton
New Zealand

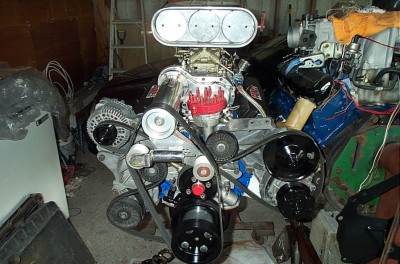

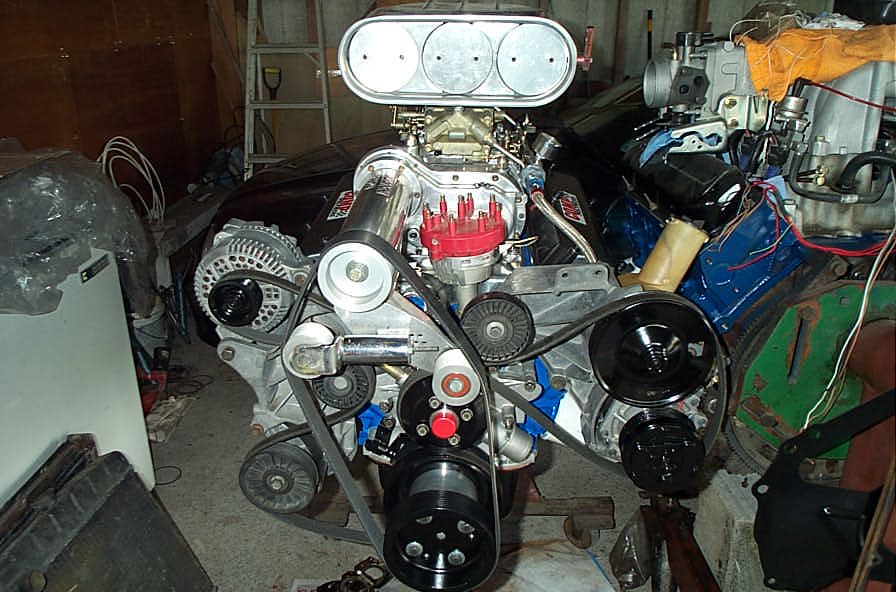

B&M/Weiand/Holley make a nice bolt-on kit. Positive displacement. Allows stock sepentine drive to remain. Low profile. Can easily make enough power to destroy your engine. Here is a photo of mine.





Attachments:
Picture 180.jpg
Picture 180.jpg [ 96 KiB | Viewed 120 times ]



_________________

XA Faimont 351C, AU2 XR8 Manual 5.0, DA LTD 5.0, Mk1 Capri 5.0, 1995 Mustang 5.0, EF2 XR8 Manual, EF2 Fairmont Ghia 5.0, AU3 XR8 Auto, AU2 XR8 Auto, AU2 XR8 Manual Ute, TE Cortina 5.0 Manual, DU LTD 5.0 soon to be manual

Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sun Mar 13, 2011 9:18 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Scaffy wrote:
Slick wrote:
Ask the site sponsor here bpt-motorsport-f33/

If you're tight with cash then source the charger from ebay.


They're not authorised Kenne Bell dealers, are they? I thought the only authorised Australian dealer was Bluepower. I'm pretty sure they're the only ones who have warranty backing from Kenne Bell, anyway.

Kenne Bells can be intercooled, it just takes a bit of fabrication work. We'll be seeing an intercooled one here in the West within the next 12 months, hopefully!


If they sell complete kits then they must be authorized.
this is the solution to the height clearance on the 5.0L windsor, upside-down and side mounted. http://www.bptmotorsport.com/EB-AU_50L_pd_SCHGR.htm

I reckon you can source those identical plenum secondhand from the stang forums in the states and Canada. even score a M112 complete kit for peanuts, have it side mounted somewhere between the shock tower and rocker cover... providing you can sort, match, cut, measure, weld and have a foul mouth for cursing. LOL



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


 Post subject: Re: 6/71 blower on EF XR8 302
Posted: Sun Mar 13, 2011 12:47 pm
Oompa Loompa
Offline

Age: 31

Posts: 34

Joined: 13th Feb 2011

Ride: 1994 EF XR8

Location: Rockhampton
QLD, Australia

hey xafalcom is that thed 174 supercharger kit you have there
