Au2 XR8 5.0 into DL LTD



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: Au2 XR8 5.0 into DL LTD
Posted: Tue Jun 23, 2009 11:44 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

HI

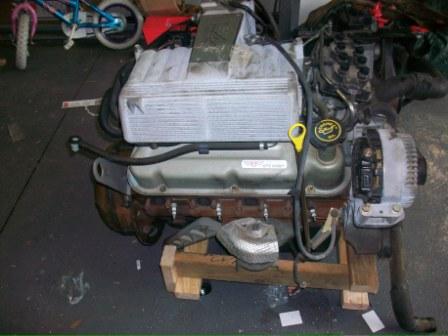

I have just purchased a 200kw AU2 XR8 motor and auto gearbox that I want to put into my 97 LTD 5.0.
The ecu and harnesses all came with the motor.
Does anyone have any tips or traps that I should look out for with the transplant.
Is it better to re chip the existing computer or can I use the XR8 one (will smartshield work)
Thanks





Attachments:
ford 200kw 004.jpg
ford 200kw 004.jpg [ 43.19 KiB | Viewed 78 times ]
ford 200kw 005.jpg
ford 200kw 005.jpg [ 38.06 KiB | Viewed 74 times ]
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Sun Jun 28, 2009 9:18 pm
Getting Side Ways
Offline
User avatar

Posts: 633

Joined: 21st Nov 2008

Location: Melbourne
VIC, Australia

do a search plenty of info.
you may require new extractors
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Sun Jun 28, 2009 10:54 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Take what you need from this thread.
http://www.perthfalcons.com.au/index.php?showtopic=3490
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Fri Jul 10, 2009 12:10 am
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

Hi

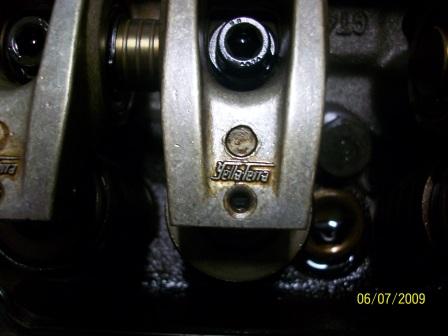

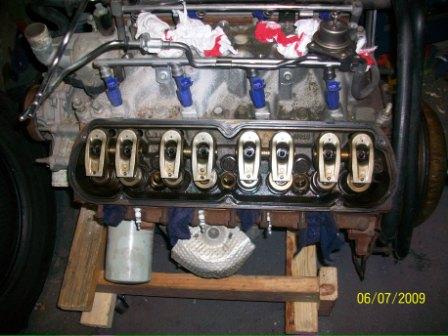

I have striped the accessories from the AU motor and I am getting ready to install with the EL ECU and a chip.I had a look under the rocker cover can some one tell me if this is the 220kw motor.





Attachments:
roller rockers 0011.jpg
roller rockers 0011.jpg [ 48.21 KiB | Viewed 60 times ]
roller rockers 0031.jpg
roller rockers 0031.jpg [ 32.77 KiB | Viewed 56 times ]
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Fri Jul 10, 2009 3:33 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

Look to be a 220kw, the 200kw got crane 1.6 roller rockers, the 220kw copped 1.72 Yella Terra's.


Bargain!



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Fri Jul 10, 2009 9:56 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

I can flash the smartshield out of the AU EEC if you want?
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Sat Jul 11, 2009 6:52 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

Thanks for the reply's.
I was happy to see the Yellaterra rockers.
I removed the coil pack and the wiring harness from the AU so I can use the original one is this going to make a difference in the performance.

I started to chase the EEC wiring harness to see how hard it is to change to the AU one is there a easy way to do this or do I have to just keep removing the dash untill I can get the room to change it.
I would rather use the AU EEC and keep the coil pack.

I got some prices for a set of Advance headers today $750 or $900 installed is this about right or should I keep looking.

I also got some advice on improving the brakes I was tolled that the best place to start is to upgrade the brake booster has anyone done this .
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Mon Jul 13, 2009 12:56 pm
Tyre Shredder
Offline
User avatar

Posts: 388

Joined: 5th Nov 2004

Gallery: 9 images

Location: Melb
VIC, Australia

220kw got the Tickford T/B (Tickford wings stamped)

My 200kw also scored some Y/T 1.7's
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Mon Jul 13, 2009 3:54 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

Stevo wrote:
220kw got the Tickford T/B (Tickford wings stamped)

My 200kw also scored some Y/T 1.7's


Are you sure they were factory fitted? If so that is whack....



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Sat Aug 01, 2009 6:46 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

Hi
I need help

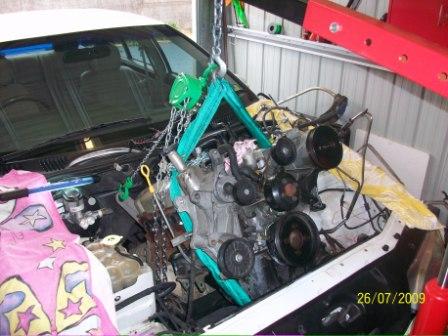

Dropped the motor in last weekend it went in easier than I expected.
I have hooker everything up but the starter wont turn over and I am not getting any power thru the trigger wire when I try to turn it over.
I have hooked up a wire from the battery to turn it over I have a spark and smells like I have fuel but it won't fire I have set #1 to the top of the compression stroke so the timing should be close.
Can anyone help





Attachments:
Transplant V8 013web.jpg
Transplant V8 013web.jpg [ 50.25 KiB | Viewed 48 times ]
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Sat Aug 01, 2009 7:18 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

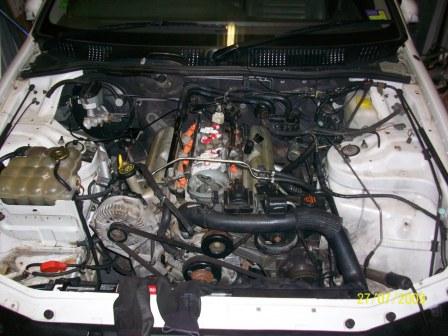

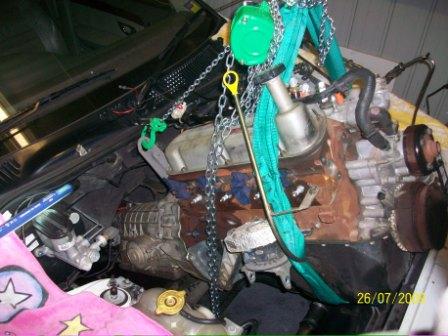

More pics





Attachments:
Transplant V8 029web.jpg
Transplant V8 029web.jpg [ 45.85 KiB | Viewed 62 times ]
Transplant V8 023web.jpg
Transplant V8 023web.jpg [ 49.85 KiB | Viewed 49 times ]
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Tue Nov 24, 2009 5:49 pm
Tyre Shredder
Offline

Age: 29

Posts: 313

Joined: 9th Jan 2006

Ride: EF2 Fairmont Ghia

Location: Eltham
VIC, Australia

Any updates??!?!?



_________________

Cobra Motorsports

1996 EF2 Fairmont Ghia For Sale

Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Wed Nov 25, 2009 11:14 am
Getting Side Ways
Offline

Age: 31

Posts: 771

Joined: 20th Nov 2005

Ride: AU XR8 220 Manual

i would be keen to hear how all this went. how does the new motor feel in the car, big gains? what did you pay for one of them? did you end up using EL ecu, if so how did that run?

great project,
cheers
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Sat Nov 28, 2009 4:36 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th May 2006

Location: wollongong
NSW, Australia

Hi
The LTD is up and running I had a bad earth on the auto that stopped it from firing has been fixed and starts fine.
The new motor has heaps more grunt I am still running 19 pound injectors and the old ecu so there should be more power to be had.
The motor auto and looms cost $1500
Dropping the motor in and hooking everything up was a fairly straight forward task.
Saying that I did need to modify the fuel lines power steering hoses and change the bottom radiator hose to the AU one for clearance on the bottom pully.
Its been the electrics that has given me the most headaches no mater how careful I was I always seemed to break the tabs on the connections.
So the EL ecu runs fine a new chip would be better and will be my next upgrade along with 24 pound injectors and a 70mm MAF.
Cheers
Top
 Profile


 Post subject: Re: Au2 XR8 5.0 into DL LTD
Posted: Sat Dec 26, 2009 1:22 pm
Getting Side Ways
Offline

Age: 31

Posts: 771

Joined: 20th Nov 2005

Ride: AU XR8 220 Manual

interesting, this is good to know. so its running fine with 19lbs, dizzy and the original maf? no pinging or detonating problems? what sort of gains did you get (using the seat-o-pant meter)

how long did it take to do the engine swap? what was required to use the AU power steering pump with the EL hoses and rack?

thanks
mate

good work!
Top
 Profile
