BF XR8 Lights now fixed but Stability control broken



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: BF XR8 Lights now fixed but Stability control broken
Posted: Tue Mar 22, 2011 8:12 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

Hi Guys have a BF XR8, switched on the headlights this eavning when driving home to find they are not working. No park lights, No Low Or high beam or even cluster lights. Now switch the Lights to auto and they work even the cluster works.
Now dont think its a fuse as they wouldn't work at all.

any Ideas what it could be?



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Last edited by voids on Tue Apr 05, 2011 8:54 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Tue Mar 22, 2011 8:44 pm
Moderator
Offline
User avatar

Age: 40

Posts: 2327

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

Good chance it could be the combo switch. Ive heard of them playing up on B series especially BFs and if it is you wanna hope its under warranty. Ford charge a fortune to replace it and its a pain in the a*** job.



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Tue Mar 22, 2011 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 540

Joined: 9th Aug 2007

Ride: FG Ute, ED XR8 Sprint, GPZ900R

Location: Leopold, Geelong
VIC, Australia

[quote="93EB"]Good chance it could be the combo switch. Ive heard of them playing up on B series especially BFs and if it is you wanna hope its under warranty. Ford charge a fortune to replace it and its a pain in the a*** job.[/quo

agree, me and a mate just replaced one on his XR6T



_________________

The Past: EF Fairmont, EL Fairmont 5.0, HR Special, NF Fairlane 5.0, GSX 250-F, BA II XR8, VS3 Ute, VS2 L67 Calais

The Present: FG Egas Ute, ED XR8 Sprint, GPZ 900R

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Wed Mar 23, 2011 9:32 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

Just flicked through my dealer warranty handbook and looks like im covered if it is a switch.

Still seems funny that all of a sudden it worked and then nothing, I thaught it would flicker or turnoff by its self before giving up the ghost. Has anyone pulled the switch to bits to identify the failure point



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Wed Mar 23, 2011 11:54 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

voids wrote:
Just flicked through my dealer warranty handbook and looks like im covered if it is a switch.

Still seems funny that all of a sudden it worked and then nothing, I thaught it would flicker or turnoff by its self before giving up the ghost. Has anyone pulled the switch to bits to identify the failure point


What happens, is the wires that go to the headlight switch, run up the indicator stalk, and the movement of the stalk eventually wears one of them through, with the symptoms you've got (auto only) sounds like it's the same as I had.

If it's under warranty, get them to fix it. If not, it's easy (although fiddly) to fix as long as you can do some soldering.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Thu Mar 24, 2011 1:03 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

Went to Ford and spoke to the service advisor who was certain it was the indicator combination stalk as well. So I got some part numbers and a Quote for the part $440 ( not cheap) then went across town to the dealer that I baught the car from and gave them the part number, also speaking to their service advisor who perviously worked at ford. Its booked in next week, aftermarket warranty will cover everything so happy about that.



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Fri Apr 01, 2011 12:25 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

Picked up the car today Lights are working now. They even replaced the PCV or rocker cover breather hose that perished ($165) from ford all under warranty.

now here is the next problem, stability control warning light in the dash stays on.
seems like maybe the angle sensor in the steering wheel is out and needs calibrating after the steering wheel was removed. will have to ring tomorow. is this a problem only ford can fix or any qualifted workshop?



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Fri Apr 01, 2011 6:41 am
Moderator
Offline
User avatar

Age: 40

Posts: 2327

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

You would think they would have noticed that before they gave the car back to you. Your ford dealership sounds like there clowns. :| .



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Fri Apr 01, 2011 9:21 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

voids wrote:
Picked up the car today Lights are working now. They even replaced the PCV or rocker cover breather hose that perished ($165) from ford all under warranty.

now here is the next problem, stability control warning light in the dash stays on.
seems like maybe the angle sensor in the steering wheel is out and needs calibrating after the steering wheel was removed. will have to ring tomorow. is this a problem only ford can fix or any qualifted workshop?


Removing the wheel wouldn't have changed the SAS (YAW sensor), that's further down the steering column.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Sun Apr 03, 2011 12:23 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

93EB nothing wrong with the ford dealer in town they seem good to deal with, I purchased the car from DC motors used Cars, They are the biggest dealer in town selling Nissan, Subaru, Honda, Hyundai, Jeep, Crysler and Mercades. and these guys are who the warranty is through.

I did notice that the Settings on the stereo where the same so looks like the Battery was not disconected and left for 30min during the work and most importantly removal of the air bag, Big No No. So will try to disconect the battery for 20 min or so in the morning just to reset things and see what happens.



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Sun Apr 03, 2011 7:43 am
Moderator
Offline
User avatar

Age: 40

Posts: 2327

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

No problem. well so long as they are helping you out with sorting the car thats the main thing. But they still should have noticed the light on when they fixed it and tried to solve that problem before the car was returned to you.
Let us know how you go when you pull the battery of. And from experience the ford dealerships are usually great people its just the apprentices working on the cars that worry me.



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Tue Apr 05, 2011 8:20 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

Disconecting the battery didnt solve my problem. spoke to the deler again, going to book it in again so they can take another look and hopfuly fix the problem.



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: BF XR8 Lights not working?
Posted: Tue Apr 05, 2011 8:46 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

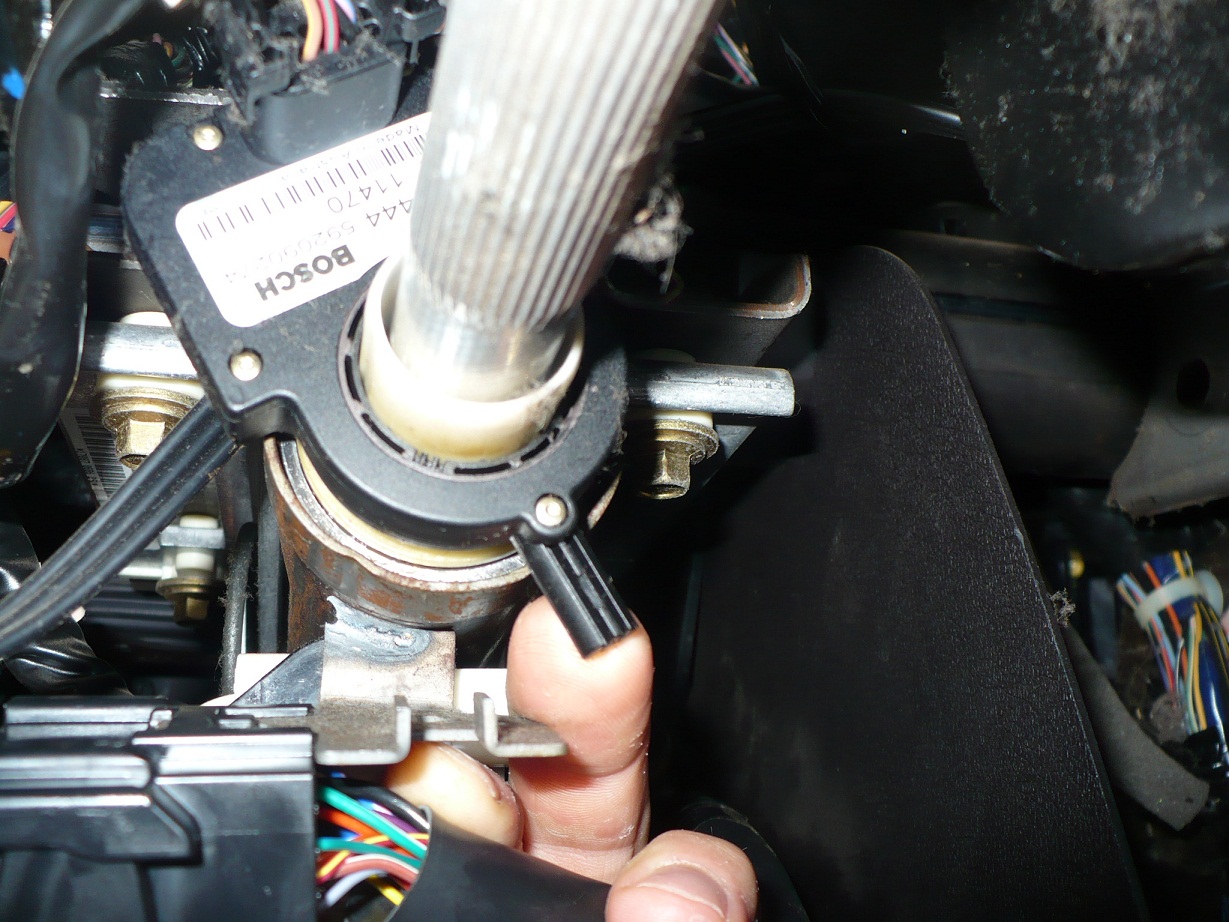

just had a look under the steeing wheel at the steering angle swith, Should it be floating like it is or am I missing a retainer? Somthing dosent look right to me, has somone got a diagram or pic of the switch in a working state?





Attachments:
steering switch.jpg
steering switch.jpg [ 348.14 KiB | Viewed 127 times ]



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: BF XR8 Lights now fixed but Stability control broken
Posted: Tue Apr 05, 2011 8:59 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

no pics, but yeah it needs to be attached...

from the manual
Quote:
8. Fit the Steering Angle Sensor over the alloy shaft,
ensuring the connector is facing away from the
driver. Align the key on the white plastic sleeve,
with the keyway in the sensor. The sensor has a
peg that must engage with the steel bracket on
the steering column, and has three small clips that
hold it in position.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: BF XR8 Lights now fixed but Stability control broken
Posted: Wed Apr 06, 2011 9:44 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

Made a small retainer using some plastic tubeing and some cable ties, Test drove the vehicle and yep all fixed no more faults, so will be calling DC motors and getting them to order the correct little retainer. Hope it only comes with the sensor and hope its expensive this will teach them to do their work correctly and test the vehicle properly!



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
