Building AN Braided Fuel System



Page 2 of 3 [ 34 posts ] Go to page Previous  1, 2, 3  Next


 Post subject: Re: Building AN Braided Fuel System
Posted: Sun May 29, 2011 6:38 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

EBXR8380 wrote:
I made the std rail fit my TFS manifold. It was VERY tight..
You can cut away the std crossover hose and add a longer one
with crimps or clamps to hold hose on..
I made 280 rwkw with std rail and lines with Walbro 255 and in line Bosch pump..
With turbo engine, stock block..

You will find it easier to use larger [stainless] steel pipe in original brackets..
As braided is too large, needs another method of attachment..
Plus it can be easily damaged..
But braided can be used from firewall to engine...


It must have been an EXTREMELY tight fit. The first part to hit the manifold is the hose, second is the actual metal part the hose attaches too. Even without the hose it will still hit on the manifold and is about 1.5cm away from being able to bolt up.

What size AN are the standard hard lines?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Sun May 29, 2011 9:29 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Check EBay motors U.S..Plenty of aftermarket fuel rails for $100..
I guess -4 ???



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Sun May 29, 2011 10:07 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

XFWAGON wrote:
Looks I may have to make up a new system as my factory fuel rails won't work with the TFS lower. The front hose and rail won't fit!


Yeah that's typical of the TFS stuff.
Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Mon May 30, 2011 5:22 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

EBXR8380 wrote:
Check EBay motors U.S..Plenty of aftermarket fuel rails for $100..
I guess -4 ???



Have looked at a few low end no name fuel rails, but there must be a reason the TFS/Aeromotive rails are $110 more than the rest? Or maybe just the name that's being charged extra.....

I also found that Russell make the push-lock Ford fittings http://www.jegs.com/p/Russell/Russell-Fuel-Rail-Fitting-Adapters/1503602/10002/-1 that click into the factory hard lines, they only come in -6an so was thinking of using the an reducers/adapters that go from -6 to -8 (for the fuel supply and return to the -8 rail/ ports)

Are the hard line push lock clip things 3/8 hose or 5/16?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Last edited by XFWAGON on Mon May 30, 2011 6:11 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Mon May 30, 2011 5:22 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

XR9UTE wrote:
XFWAGON wrote:
Looks I may have to make up a new system as my factory fuel rails won't work with the TFS lower. The front hose and rail won't fit!


Yeah that's typical of the TFS stuff.



Yeah I'm a bit p****d about that as it said that it fits factory fuel rails etc, but upon further reading through google it turns out that many people have the same problem.



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Mon May 30, 2011 7:20 pm
Getting Side Ways
Offline

Posts: 699

Joined: 1st Jan 2006

Ride: Lots, all Fords

Location: Hamilton
New Zealand

XFWAGON wrote:
XR9UTE wrote:
XFWAGON wrote:
Looks I may have to make up a new system as my factory fuel rails won't work with the TFS lower. The front hose and rail won't fit!


Yeah that's typical of the TFS stuff.



Yeah I'm a bit p****d about that as it said that it fits factory fuel rails etc, but upon further reading through google it turns out that many people have the same problem.


They fit US factory fuel rails (eg 86-93 Mustang) just fine, I have that exact combo in the Mustang. But you are using Aussie fuel rails which are different, and the lower manifold wasn't designed to work with them. Unfortunately to run the US fuel rails the intake must be flipped (to face the right way) to clear the FP regulator which is on the opposite side of the intake compared with the Aussie rails.



_________________

XA Faimont 351C, AU2 XR8 Manual 5.0, DA LTD 5.0, Mk1 Capri 5.0, 1995 Mustang 5.0, EF2 XR8 Manual, EF2 Fairmont Ghia 5.0, AU3 XR8 Auto, AU2 XR8 Auto, AU2 XR8 Manual Ute, TE Cortina 5.0 Manual, DU LTD 5.0 soon to be manual

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Tue May 31, 2011 12:21 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

XFWAGON wrote:
XR9UTE wrote:
XFWAGON wrote:
Looks I may have to make up a new system as my factory fuel rails won't work with the TFS lower. The front hose and rail won't fit!


Yeah that's typical of the TFS stuff.



Yeah I'm a bit p****d about that as it said that it fits factory fuel rails etc, but upon further reading through google it turns out that many people have the same problem.


Yep, don't have the same problem with Edelbrock and other intakes. Don't know why TFS can't seem to do it?
Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Wed Jun 01, 2011 7:21 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

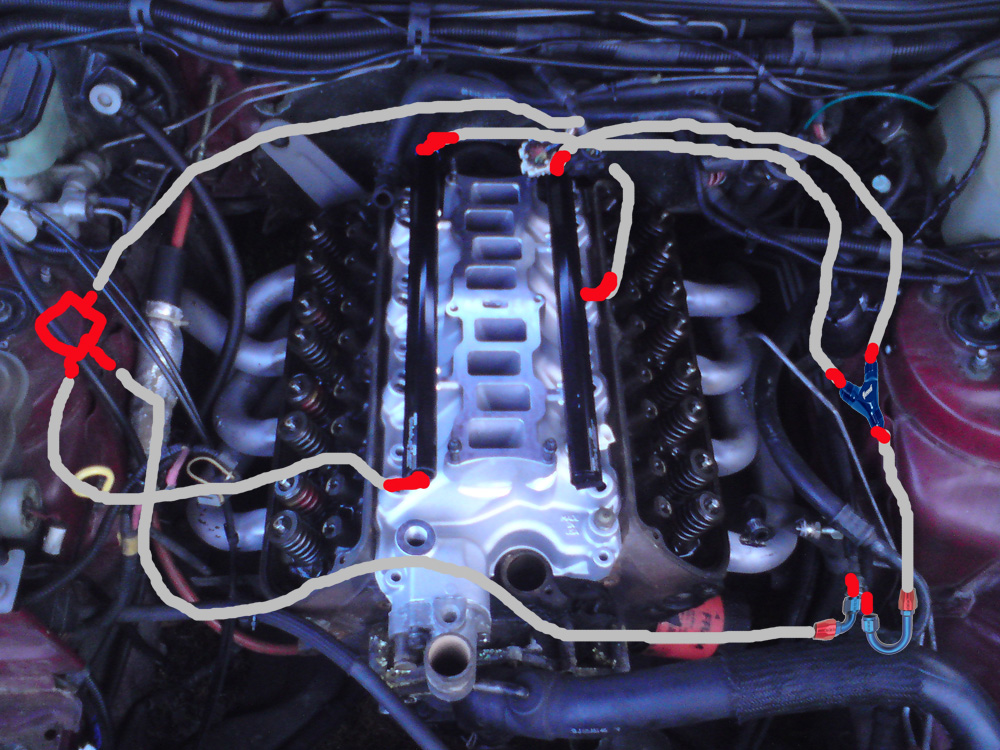

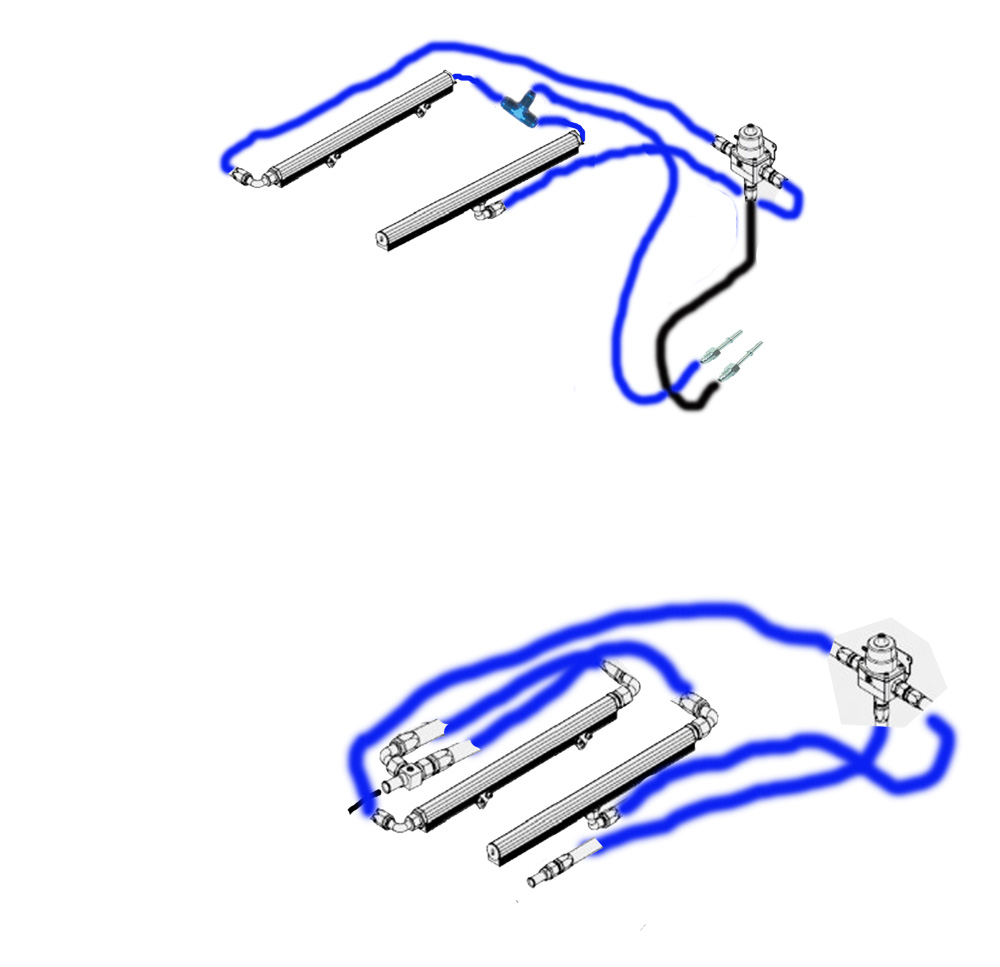

So is there any particular sie lines I need to run? I've decided on some TFS fuel rails (made by Aeromotive) and also the TFS branded Aeromotive FPR. Rails have -8 ports so will use reducer unions from -8 to -6. So both the supply and return lines will be -6 (all ports on the FPR are -6)

FPR mounted on the side of the passengers shock tower thingie.

I'm trying to work out how to do the supply to the rear of the rails so I did up a very quick photo chop to give an idea.

Any thoughts on which model to go with, or any tweaks?





Attachments:
Untitled-16.jpg [ 132.4 KiB | Viewed 63 times ]



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Wed Jun 01, 2011 11:48 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Easiest way to run the lines is like this.

Supply goes to one side of the rail. From there it goes down the rail, to the rear and crosses over to the 2nd rail. Your 2nd rail terminates at the other end. The return, which is half way along the rail, then goes to an input in your reg, and the output of the reg returns to the tank.

Sorry i have no pics but thats the idea.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Fri Jun 03, 2011 7:24 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

I get what you mean. Accel have a fuel rail kit that is set up this way. Think I'll just do that as it will save a little coin on the braided stuff.

I've ordered the TFS rails and reg so will have a play around once it gets here. I just need to work out how to connect the supply/return up to the factory hard lines. Would it be easier to flare and nut the hardlines or just buy two of these: http://www.jegs.com/p/Russell/Russell-F ... 2/10002/-1



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Sun Jun 05, 2011 8:22 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Yep, thats them, I have one myself for my system. Will get photo's during the week for ya.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Sun Jun 05, 2011 11:58 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

On mine I Y blocked under firewall to two -8 braided to each side of fuel rail..
Then fitted fuel reg between the rails at the front..
So each rail has it's own fuel with less chance of any bad harmonics..
My system is designed for 1000 h.p turbo engine...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Mon Jun 06, 2011 10:46 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

TerroristGHIA wrote:
Yep, thats them, I have one myself for my system. Will get photo's during the week for ya.

Brett



That would be gold, thanks Brett! Was it the 3/8" fittings you got?

EBXR8380 wrote:
On mine I Y blocked under firewall to two -8 braided to each side of fuel rail..
Then fitted fuel reg between the rails at the front..
So each rail has it's own fuel with less chance of any bad harmonics..
My system is designed for 1000 h.p turbo engine...


Thats a bloody good idea, how much room was there to fit the fuel reg between the rails with the dizzy there? I have ordered a 13101 fuel reg (Aero.) it looks quite big so I don't know if it will fit my application. Although you also have the TFS Track Heat upper don't you?

That's also an effective way of cutting down on braided line. Did you just mount the reg using two 90 deg. fittings without any hose? As it looks like there isn't enough room to run hose between the reg and rails if mounted at the front.



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Mon Jun 06, 2011 1:09 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Sorry mate, I honestly don't remember. Others may be of help.

I know that it made the fitting from -8 to fuel line so much easier.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Building AN Braided Fuel System
Posted: Sun Jun 26, 2011 2:44 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

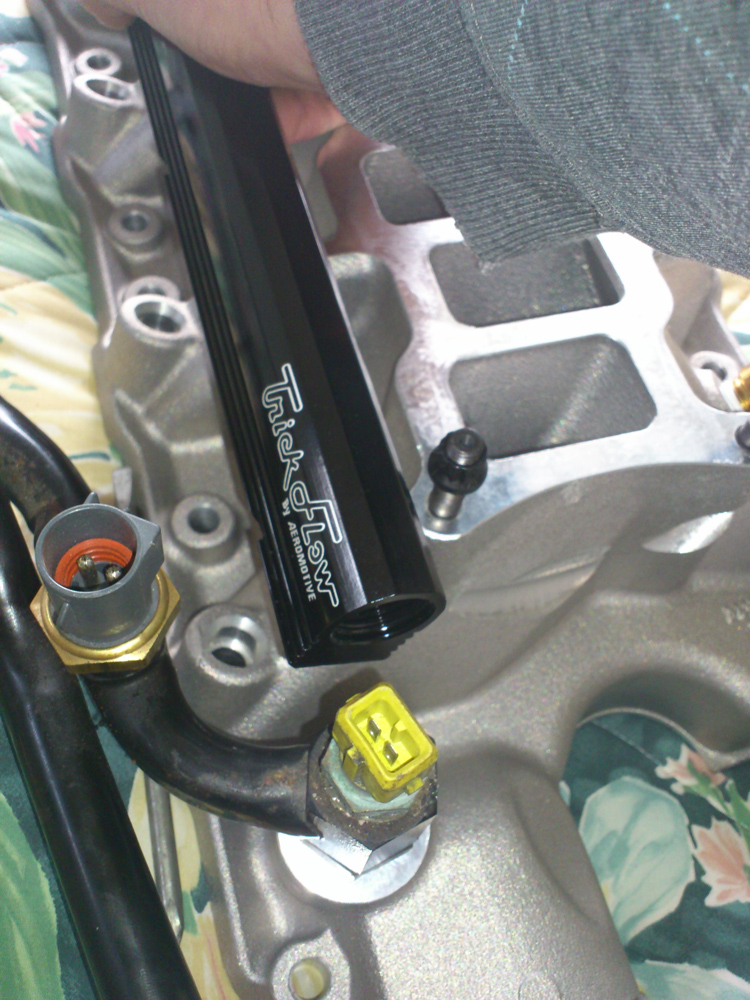

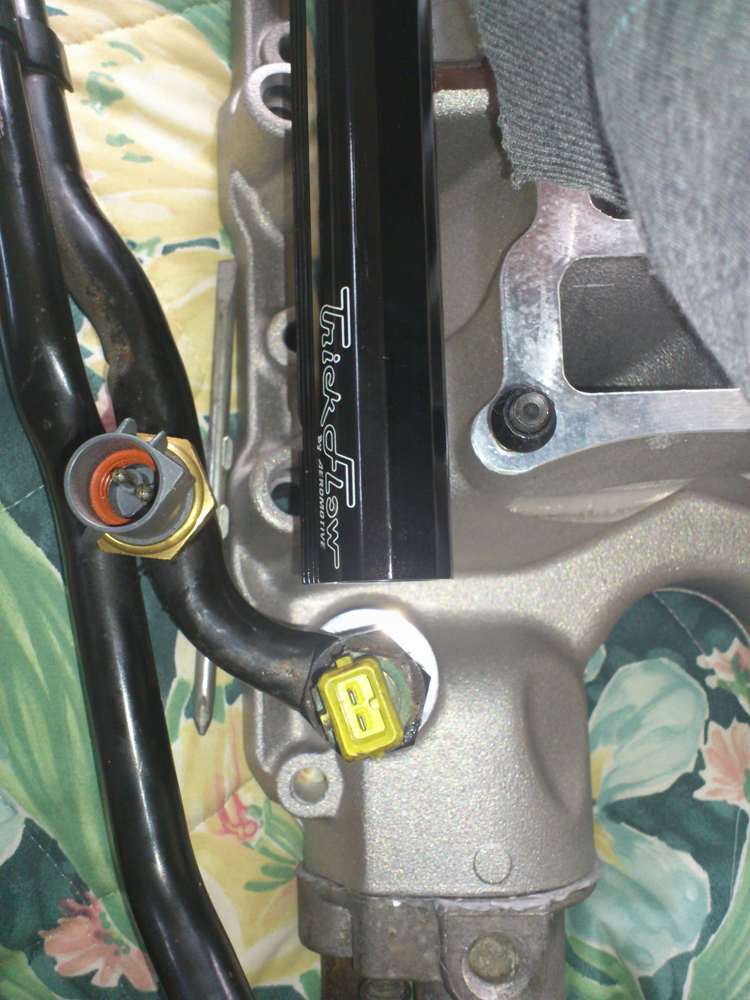

Obviously the yanks don't run climate control or the temp sensors in their water pipes.... I found this out today after I mounted the heater pipes and noticed that the return end fitting of the fuel rail won't fit with the temp sensor on it. The climate temp sensor is in the direct path of the fitting needed to be on the end of the fuel rail.... :x

Is the climate temp sensor able to be located elsewhere or does it need to be in the heater pipes?





Attachments:
Copy of DSC02512.jpg
Copy of DSC02512.jpg [ 360.24 KiB | Viewed 63 times ]
DSC_0018.jpg [ 464.96 KiB | Viewed 60 times ]
DSC_0016.jpg [ 440.49 KiB | Viewed 54 times ]



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.
