Cam choice 5.0L - Help



Page 1 of 4 [ 52 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: Cam choice 5.0L - Help
Posted: Mon Jan 19, 2015 5:26 pm
Stock as a Rock
Offline
User avatar

Posts: 168

Joined: 10th Jan 2014

Ride: BFII Super Pursuit

Location: Adelaide
SA, Australia

Hi everyone,

As mentioned in my other threads, I'm building an AU series 5.0L to throw in my XH. I've had so much conflicting information from engine builders around Adelaide that right I'm back where I started! I didn't realise there would be this much running around to order a cam (took me 8 weeks to find someone who would measure the unstamped rockers)

Motor is:

AU 200KW
GT40p's
Yella Terra Roller Rockers 1.6 ratio
Roller Lifters
*I'm not sure if springs are stock or not*

Could anyone please help me and recommend some tough cam choices? Hp figures, price, brand etc

*I will have stall converter and tune/j3*
*Would really prefer not to change springs or lifters*

Thanks heaps for your help it will be much appreciated.



_________________

It's always funny until someone gets hurt. Then it's just hilarious.
-Bill Hicks

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Mon Jan 19, 2015 9:30 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

Well, here's another thread where every man and his dog (and engine builder) will have an opinion... :D

So, with the Yella Terra 1.6 RRs, I assume you have the 200kw V8....which had biggest lift of the XR8 motors. Too bad they didn't put 1.7 RRs on them like the 220.

If you upgrade your cam, you need to change the valve springs. Perhaps get yours tested at a machine shop before buying new ones. Not much point getting a bigger cam if your springs won't handle it. I think Trickflow make double valve springs that can be fitted without machining the spring seats. As you're retaining the stock Explorer intake and GT40P heads, a cam with any more than 0.500 lift is going to be restricted by the small port and valve sizes (especially in the upper rev range).

Comp Cams 2030 or 2031 are often recommended on the US Mustang forums for those with iron heads. I bought an XE264HR cam for about $340AU incl freight from Summit. You can get one for a similar price from VPW.

HP output will depend on what's been done to your engine and its condition (140-150rwkw is a starting point for a stock 5.0L Explorer motor). I'll leave it to the experienced V8 guys to tell you how much hp you can make.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Mon Jan 19, 2015 10:23 pm
Stock as a Rock
Offline
User avatar

Posts: 168

Joined: 10th Jan 2014

Ride: BFII Super Pursuit

Location: Adelaide
SA, Australia

Thanks for the reply.
Haha, I know it's been posted before, just wanted more/fresh input

Heads have been milled and valve springs tested. All good.
Engine has been rebuilt

Do I need to change pushrod length with those cams?



_________________

It's always funny until someone gets hurt. Then it's just hilarious.
-Bill Hicks

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 12:21 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

I'm a fan of the TFS 1 cam. Nice wide rev range (1500-5500rpm) and a nice idle. 0.499" lift on 1.6 rockers which suits the 40p flow figures and it's a pretty cheap cam for what it is.
Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 8:12 am
Stock as a Rock
Offline
User avatar

Posts: 168

Joined: 10th Jan 2014

Ride: BFII Super Pursuit

Location: Adelaide
SA, Australia

Cheers xcabbi,

Any ideas on kw increase with chip/tune & exhaust?

I've had a tuner in Adelaide say I can get 270 at the fly which I think is a tall order after speaking with other companies.



_________________

It's always funny until someone gets hurt. Then it's just hilarious.
-Bill Hicks

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 8:13 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

Littlefoot wrote:
Do I need to change pushrod length with those cams?

Any time you change the cam, it should be degreed and have the pushrod lengths checked. Small errors in cam machining, keyway placement and timing chain slack can have an cumalative effect.

With pedestal rockers, IMO I'd say yes to changing the pushrods (because of the extra lift and limited adjustment with shims).



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 8:13 am
Stock as a Rock
Offline
User avatar

Posts: 168

Joined: 10th Jan 2014

Ride: BFII Super Pursuit

Location: Adelaide
SA, Australia

*with tfs1 cam*



_________________

It's always funny until someone gets hurt. Then it's just hilarious.
-Bill Hicks

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 8:33 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

Littlefoot wrote:
*with tfs1 cam*
The roller cam I'm going to use has 0.512 lift and the Comp Cams website says you can use 6.248" or 6.25" pushrods (standard length). As the TFS1 cam has less lift, then can reuse your pushrods. I'd still use a pushrod checker anyway. You will find out if the pushrod length is OK when you start doing the preload and torque adjustment of the pedestal bolts.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 4:53 pm
Stock as a Rock
Offline
User avatar

Posts: 168

Joined: 10th Jan 2014

Ride: BFII Super Pursuit

Location: Adelaide
SA, Australia

One thing I've noticed since starting this project is how difficult it is to get power out of these motors.

When the motor was in pieces in front of me,
I thought, "hey, lets stroke it, throw a lumpy cam in and throw some awesome flowing heads on top"

Then, I looked at the price tag vs kw's gains...

Unlike my other upcoming project
5K in a 2j... twice the power.. lol



_________________

It's always funny until someone gets hurt. Then it's just hilarious.
-Bill Hicks

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 4:57 pm
Stock as a Rock
Offline
User avatar

Posts: 168

Joined: 10th Jan 2014

Ride: BFII Super Pursuit

Location: Adelaide
SA, Australia

*hence my resolve,
As much power as possible from a cam and chip package" considering the xh is a budget build project



_________________

It's always funny until someone gets hurt. Then it's just hilarious.
-Bill Hicks

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 6:26 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Littlefoot wrote:
One thing I've noticed since starting this project is how difficult it is to get power out of these motors.

When the motor was in pieces in front of me,
I thought, "hey, lets stroke it, throw a lumpy cam in and throw some awesome flowing heads on top"

Then, I looked at the price tag vs kw's gains...

Unlike my other upcoming project
5K in a 2j... twice the power.. lol


depends on how much power your after?
you also got to keep in mind the Windsor 5.0 is a design from the 1960s, heavy cast iron pushrod engine... no sohc or dohc, no multi valves ect.
Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Tue Jan 20, 2015 10:36 pm
Stock as a Rock
Offline
User avatar

Posts: 168

Joined: 10th Jan 2014

Ride: BFII Super Pursuit

Location: Adelaide
SA, Australia

Quote:
depends on how much power your after?
you also got to keep in mind the Windsor 5.0 is a design from the 1960s, heavy cast iron pushrod engine... no sohc or dohc, no multi valves ect.


Hey Troyman,
I've let go of 220rwkw (yep rwkw) promised by one dyno tuner as that's 270 n/a with GT40P'S - I don't think it's possible

If I could manage 200rwkw with a good torque curve, I'd feel this whole thing had been worthwhile.



_________________

It's always funny until someone gets hurt. Then it's just hilarious.
-Bill Hicks

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Wed Jan 21, 2015 5:40 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 661

Joined: 14th Jan 2007

Ride: T1 TE50 P01

Location: Perth NoR
WA, Australia

Use a Comp XE276HR-12 with 1.6 rockers will give 0.512" lift. Change your springs any time you run a performance camshaft the factory springs will not support the faster ramp rates of a decent performance camshaft.

That cam, ported Explorer intake, unported GT40P heads made 291rwhp in a manual AU XR8 ute. You'll need the ecu retuned and a minimum of a 2800 stall.



_________________

TE50 T1 P01
200kw 5.0L, T5, Koni shocks, King S/Lows, Whiteline swaybars, DBA 4000 rotors, Acron CAI, 80mm Accufab TB, Difillipo headers & cats, twin 2.5" & Aerochambers, 3.91 LSD.

To Come:
Long rod 306, TFS 11R 205cc heads, SHP camshaft, 1.72 R/R, ported TFS Box R, 400hp NX SHO kit...

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Wed Jan 21, 2015 7:48 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

BOTTLEDUP wrote:
That cam, ported Explorer intake, unported GT40P heads made 291rwhp in a manual AU XR8 ute
Just curious.... what rpm was the motor doing to reach that figure and any problems with valve float around 6000 rpm?



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Cam choice 5.0L - Help
Posted: Wed Jan 21, 2015 8:02 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 661

Joined: 14th Jan 2007

Ride: T1 TE50 P01

Location: Perth NoR
WA, Australia

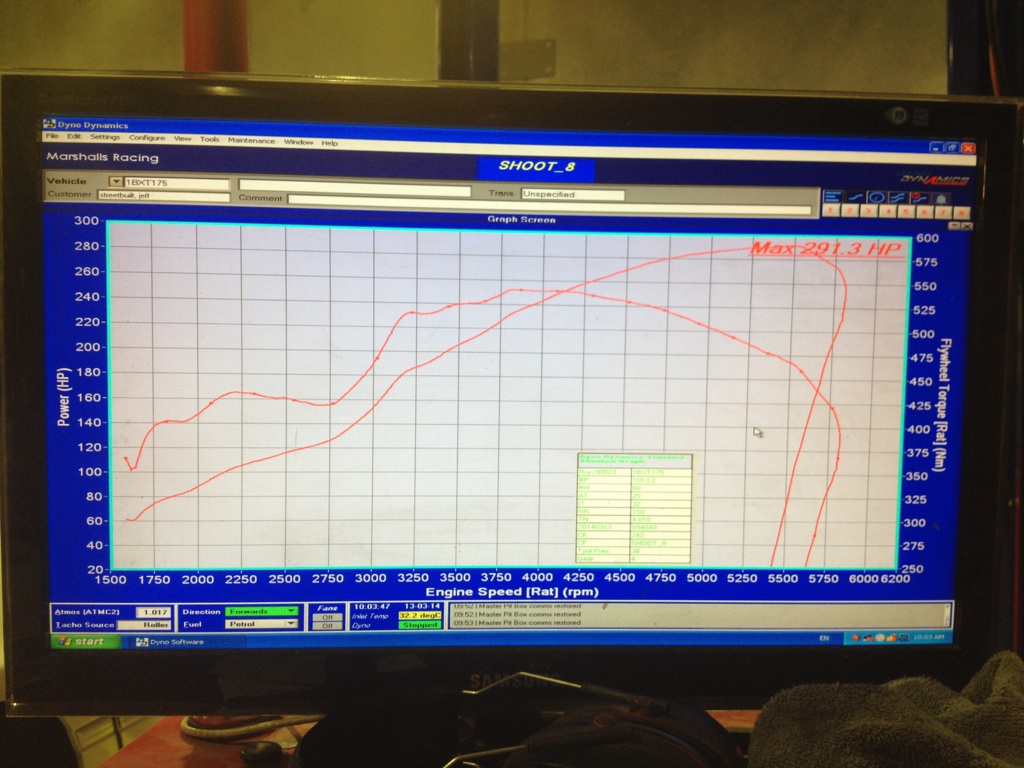

Peak horsepower was near 5600rpm, see attached picture. No issues with valve float this engine is running the Crow 7738 springs & matching retainers.





Attachments:
IMG_68331.jpg [ 227.29 KiB | Viewed 108 times ]



_________________

TE50 T1 P01
200kw 5.0L, T5, Koni shocks, King S/Lows, Whiteline swaybars, DBA 4000 rotors, Acron CAI, 80mm Accufab TB, Difillipo headers & cats, twin 2.5" & Aerochambers, 3.91 LSD.

To Come:
Long rod 306, TFS 11R 205cc heads, SHP camshaft, 1.72 R/R, ported TFS Box R, 400hp NX SHO kit...

Top
