 Post subject: ef/el v8 computer pin outs
Posted: Thu Aug 28, 2008 2:09 pm
Oompa Loompa
Offline

Age: 39

Posts: 31

Joined: 30th Jul 2007

Ride: Brocky

Location: Lockrose
QLD, Australia

Can anyone help me with this. Can't seem to find any.
Thanks



_________________

Take it easy or if shes easy take her home!

Top
 Profile


Posted: Thu Aug 28, 2008 2:51 pm
Parts Gopher
Offline

Age: 30

Posts: 53

Joined: 8th May 2008

Ride: EL XR8

Location: Sydney
NSW, Australia

Top
 Profile


Posted: Thu Aug 28, 2008 8:43 pm
Stock as a Rock
Offline

Posts: 119

Joined: 4th Jun 2006

Gallery: 5 images

Location: Palmerston North
Oustide Australia

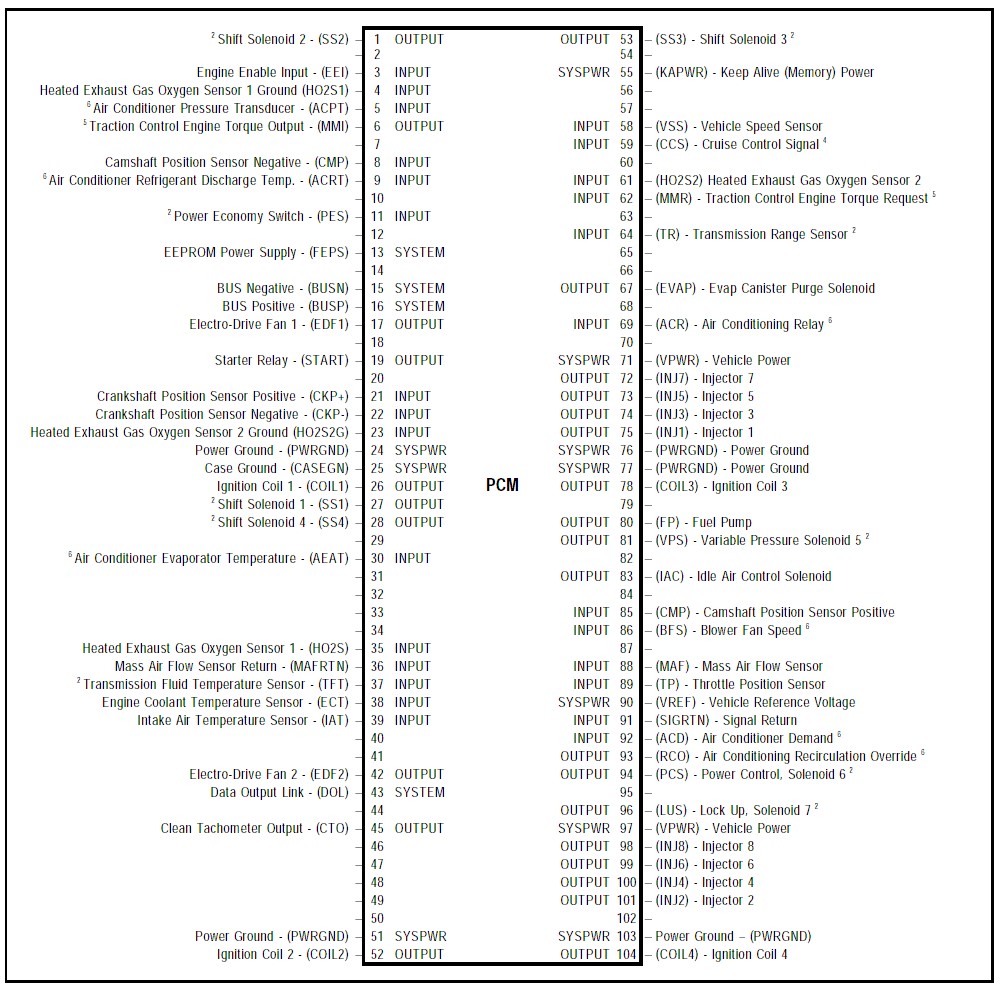

I used this, from an AU but I think it is pretty much the same, except for the fans





Attachments:
AUPCM8.jpg [ 270.97 KiB | Viewed 1679 times ]
Top
 Profile


Posted: Thu Aug 28, 2008 10:36 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Here are the pinouts for the EL\NL\DL V8 ECU. EFs differ a bit with the thermo fans and the variable power steer.

The EL/NL/DL ECU(EECV) has 106 pins, with the following being:
2 - Self test output;
3 - Smartlock;
4 - HEGO ground;
10- Compressor clutch engaged;
17- Thermo fan relay 1;
23- Ignition ground;
24- Power ground;
25- Case ground;
30- A/C evap air temp;
34- Trans temp link;
35- HEGO 1;
36- MAF return;
38- coolant temp sensor;
39- Intake air temp;
41- A/C clutch;
42- Speed sensitive steering;
43- Data output link;
45- Tacho;
47- EGR vacuum regulator;
48- Ignition diag monitor;
49- PIP;
50- SPOUT;
51- Power ground;
55- Keep alive power;
58- Vehicle speed sensor;
61- HEGO 2;
64- PRND switch;
65- EGR valve position sensor;
66- self test input;
67- canister purge
68- Thermo fan relays 2 & 3;
69- A/C relay(WAC);
71- Vehicle power;
72- Injector 7;
73- Injector 5;
74- Injector 3;
75- Injector 1;
76- Power ground;
77- Power ground;
80- Fuel pump;
83- Idle speed control;
86- Blower fan speed;
88- MAF sensor;
89- Throttle position sensor;
90- Voltage reference;
91- Signal return;
93- Recirculation override;
97- Vehicle power;
98- Injector 8;
99- Injector 6;
100- Injector 4;
101- Injector 2;
103- Power ground



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Thu Aug 28, 2008 10:42 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Are you sure they're not 104 as well?

Just a quick question. Would I be able to tap into wires 45 and 89 to get a signal for data-logging of rpm and tps? Or would I need to use an alternate method?



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


Posted: Fri Aug 29, 2008 7:20 am
Stock as a Rock
Offline

Posts: 119

Joined: 4th Jun 2006

Gallery: 5 images

Location: Palmerston North
Oustide Australia

You should be able to for the tacho but probably not for the TPS. I have found when the sensors use a ref voltage you can't unless you start building other electronic components but that is getting way over my head.
I tried it with an aftermarket temp guage and it rooted things up.
Top
 Profile


Posted: Fri Aug 29, 2008 11:38 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Scaffy wrote:
Are you sure they're not 104 as well?

Just a quick question. Would I be able to tap into wires 45 and 89 to get a signal for data-logging of rpm and tps? Or would I need to use an alternate method?


All EECV's are 104 pin except the EL 4.0 which is like an EECV in an EECIV case hence it has 60 pins.
You should be able to log TPS and other signals scaffy. Just be sure the input impedance to your logger is high(and it should be if it's a decent logger) then it won't effect what the EEC is reading.
Top
 Profile


Posted: Sat Aug 30, 2008 8:47 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Thanks Pete



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


Posted: Sat Aug 30, 2008 2:40 pm
Oompa Loompa
Offline

Age: 39

Posts: 31

Joined: 30th Jul 2007

Ride: Brocky

Location: Lockrose
QLD, Australia

Thanks for all that info. I'm splicing a v8 harness into a xf ute with xg dash and harness.



_________________

Take it easy or if shes easy take her home!

Top
 Profile


Posted: Sat Aug 30, 2008 4:55 pm
Oompa Loompa
Offline

Age: 39

Posts: 31

Joined: 30th Jul 2007

Ride: Brocky

Location: Lockrose
QLD, Australia

Bugger, does anyone have a 104 pin connector to sell?



_________________

Take it easy or if shes easy take her home!

Top
 Profile


Posted: Sun Aug 31, 2008 8:45 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Hey Chris,

Do yourself a favour and fit the whole EF-L harness into the car and use an XH cluster that way it will all work with your EEC and engine. It's less work than splicing the two together.
I'm in the process of splicing an AU 5.0 EEC harness into an XG van harness which is a bit more involved. I couldn't get an entire AU harness but it would have been quicker if I had.

Pete.
Top
 Profile


Posted: Sun Aug 31, 2008 9:06 pm
Oompa Loompa
Offline

Age: 39

Posts: 31

Joined: 30th Jul 2007

Ride: Brocky

Location: Lockrose
QLD, Australia

Thanks Pete. I was going to use the eb 2 computers and harness but too much wiring. I got a 104 pin plug today out of an au and i've almost done but still need an ecu.



_________________

Take it easy or if shes easy take her home!

Top
 Profile
